FRONT SUSPENSION - SHOCK ABSORBERS of Ferrari Ferrari 296 GTB Europe

View All

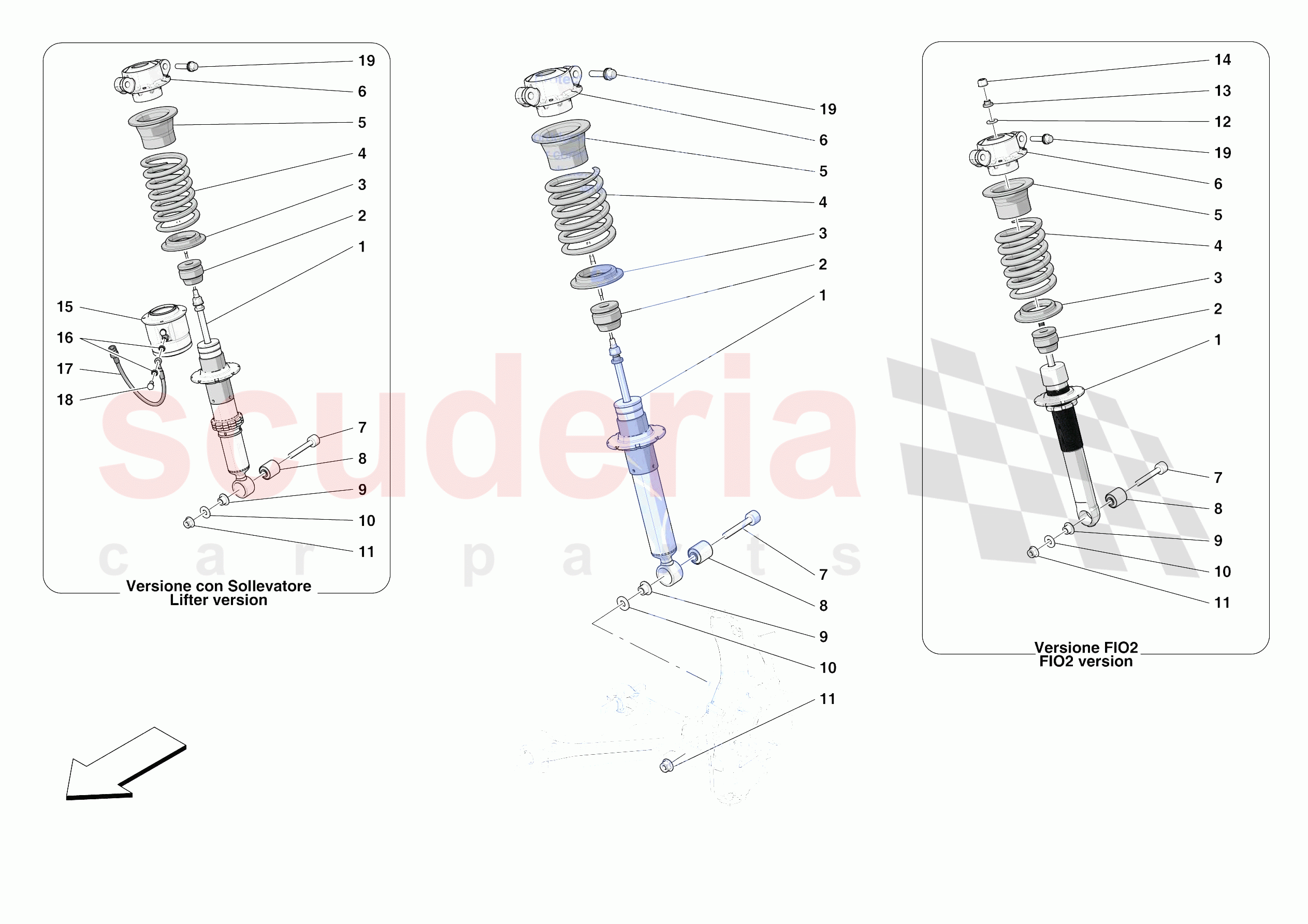

Ferrari 296 GTB Europe - FRONT SUSPENSION - SHOCK ABSORBERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	823604	FRONT SHOCK ABSORBER	Enquire	To Order
	891385	FRONT SHOCK ABSORBER	Enquire	To Order
	942052	FRONT SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	281221	ENDSTOP BUSH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	188996	LOWER SPACER	Enquire	IN STOCK
	293648	LOWER SPRING SPACER	Enquire	To Order
	188996	LOWER SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	811425	FRONT SUSPENSION SPRING	Enquire	To Order
	814318	FRONT SUSPENSION SPRING	Enquire	To Order
	992167	FRONT SUSPENSION SPRING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	293621	UPPER SPRING SPACER	Enquire	IN STOCK
	917866	UPPER SPRING SPACER	Enquire	To Order
	293621	UPPER SPRING SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	340250	COMPL. SHOCK ABSORBER RETAINER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237297	SCREW M12 X 1.25 X 8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	220377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220383	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300214	ACTUATOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259638	GASKET 8.7 - 14	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	277168	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261587	HOSE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW M12 X 1.25 X 50	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	823604	FRONT SHOCK ABSORBER	823604 FRONT SHOCK ABSORBER Not for Assetto Fiorano FIO2 - Not for version with lift system	-	2	Enquire
1	891385	FRONT SHOCK ABSORBER	891385 FRONT SHOCK ABSORBER Applicable for Assetto Fiorano FIO2 - Not for version with lift system; No longer supplied - Replaced by 942052	-	2	Enquire
1	942052	FRONT SHOCK ABSORBER	942052 FRONT SHOCK ABSORBER Applicable for Assetto Fiorano FIO2 - For vehicles up to Ass.ly No. 203400, replace as a pair - Not for version with lift system	-	2	Enquire
1	863696	FRONT SHOCK ABSORBER	863696 FRONT SHOCK ABSORBER Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
2	281221	ENDSTOP BUSH ARRIVING SOON	281221 ENDSTOP BUSH ARRIVING SOON	-	2	Enquire
3	188996	LOWER SPACER IN STOCK	188996 LOWER SPACER Version with lift system - Not for Assetto Fiorano FIO2 IN STOCK	-	2	Enquire
3	293648	LOWER SPRING SPACER	293648 LOWER SPRING SPACER Applicable for Assetto Fiorano FIO2 - Not for version with lift system	-	2	Enquire
3	188996	LOWER SPACER IN STOCK	188996 LOWER SPACER IN STOCK	-	2	Enquire
4	811425	FRONT SUSPENSION SPRING	811425 FRONT SUSPENSION SPRING Not for Assetto Fiorano FIO2 - Not for version with lift system	-	2	Enquire
4	814318	FRONT SUSPENSION SPRING	814318 FRONT SUSPENSION SPRING Applicable for Assetto Fiorano FIO2 - Not for version with lift system; Applies until depletion	-	2	Enquire
4	992167	FRONT SUSPENSION SPRING	992167 FRONT SUSPENSION SPRING Applicable for Assetto Fiorano FIO2 - Not for version with lift system; Applicable after depletion of 814318	-	2	Enquire
4	810742	FRONT SUSPENSION SPRING	810742 FRONT SUSPENSION SPRING Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
5	293621	UPPER SPRING SPACER IN STOCK	293621 UPPER SPRING SPACER Version with lift system - Not for Assetto Fiorano FIO2 IN STOCK	-	2	Enquire
5	917866	UPPER SPRING SPACER	917866 UPPER SPRING SPACER	-	2	Enquire
5	293621	UPPER SPRING SPACER IN STOCK	293621 UPPER SPRING SPACER IN STOCK	-	2	Enquire
6	340250	COMPL. SHOCK ABSORBER RETAINER CAP IN STOCK	340250 COMPL. SHOCK ABSORBER RETAINER CAP IN STOCK	-	2	Enquire
7	237297	SCREW M12 X 1.25 X 8 IN STOCK	237297 SCREW M12 X 1.25 X 8 M12 X 1.25 X 80 IN STOCK	-	2	Enquire
8	157630	BALL JOINT IN STOCK	157630 BALL JOINT IN STOCK	-	2	Enquire
9	237821	BUSH IN STOCK	237821 BUSH D 18 X 15 IN STOCK	-	2	Enquire
10	12646921	WASHER IN STOCK	12646921 WASHER IN STOCK	-	2	Enquire
11	255271	NUT IN STOCK	255271 NUT IN STOCK	-	2	Enquire
12	220377	WASHER	220377 WASHER Applicable for Assetto Fiorano FIO2	-	2	Enquire
13	220383	BUSH	220383 BUSH Applicable for Assetto Fiorano FIO2	-	2	Enquire
14	220378	NUT	220378 NUT Applicable for Assetto Fiorano FIO2	-	2	Enquire
15	300214	ACTUATOR IN STOCK	300214 ACTUATOR Not for Assetto Fiorano FIO2; Version with lift system IN STOCK	-	2	Enquire
16	259638	GASKET 8.7 - 14 IN STOCK	259638 GASKET 8.7 - 14 Not for Assetto Fiorano FIO2; Version with lift system IN STOCK	-	4	Enquire
17	277168	HOSE	277168 HOSE Not for Assetto Fiorano FIO2; Version with lift system	-	2	Enquire
18	261587	HOSE IN STOCK	261587 HOSE Not for Assetto Fiorano FIO2; Version with lift system IN STOCK	-	2	Enquire
19	248790	SCREW M12 X 1.25 X 50	248790 SCREW M12 X 1.25 X 50 M12 X 1.25 X 50	-	4	Enquire
