Ferrari 296 GTB Europe - LIFTING THE VEHICLE

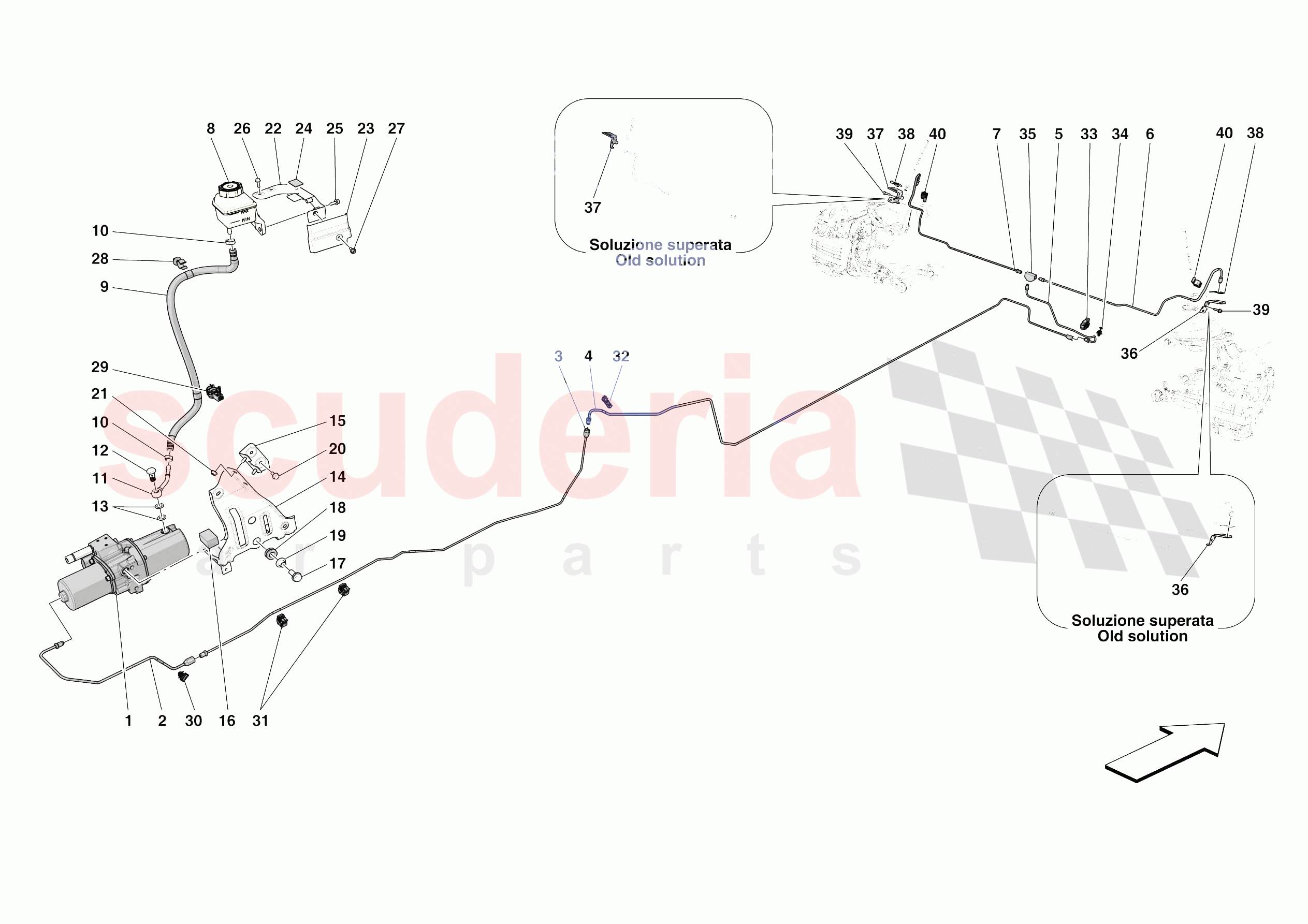

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	844052	ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749634	LIFT SYSTEM PIPE FROM PUMP TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749633	LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY	Enquire	To Order
	840588	LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965928	UNDERBODY LIFT SYSTEM PIPE	Enquire	To Order
	840587	UNDERBODY LIFT SYSTEM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818435	LIFT SYSTEM PIPE FROM DISCONNECTOR TO BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	981007	LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	981008	LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326103	LIFT SYSTEM FILLER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770523	LIFT SYSTEM FILLER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916497	LIFT SYSTEM RIGID FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259642	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260155	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965937	LIFT PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925640	LIFTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308995	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	745271	LIFT SYSTEM OIL TANK MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	955463	LIFT SYSTEM OIL TANK SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292835	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266156	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959208	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292189	LIFT SYSTEM DISTRIBUTOR BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	793079	RH LIFT SYSTEM HOSE BRACKET	Enquire	To Order
	900096	RH LIFT SYSTEM HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	793080	LH LIFT SYSTEM HOSE BRACKET	Enquire	To Order
	900097	LH LIFT SYSTEM HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303873	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	844052	ELECTRIC PUMP	844052 ELECTRIC PUMP Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
2	749634	LIFT SYSTEM PIPE FROM PUMP TO DISCONNECTOR	749634 LIFT SYSTEM PIPE FROM PUMP TO DISCONNECTOR Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
3	749633	LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY	749633 LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY Version with lift system - Not for Assetto Fiorano FIO2; No longer supplied - Replaced by 840588	-	1	Enquire
3	840588	LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY	840588 LIFT SYSTEM PIPE FROM DISCONNECTOR TO UNDERBODY Version with lift system - For vehicles up to Ass.ly No. 197540 also order underbody lift system pipe 840587 Ref. 4 - Not for Assetto Fiorano FIO2	-	1	Enquire
4	965928	UNDERBODY LIFT SYSTEM PIPE	965928 UNDERBODY LIFT SYSTEM PIPE Version with lift system - Not for Assetto Fiorano FIO2; No longer supplied - Replaced by 840587	-	1	Enquire
4	840587	UNDERBODY LIFT SYSTEM PIPE	840587 UNDERBODY LIFT SYSTEM PIPE Version with lift system - For vehicles up to Ass.ly No. 197540 also order lift system pipe from disconnector to underbody 840588 Ref. 3 - Not for Assetto Fiorano FIO2	-	1	Enquire
5	818435	LIFT SYSTEM PIPE FROM DISCONNECTOR TO BLOCK	818435 LIFT SYSTEM PIPE FROM DISCONNECTOR TO BLOCK Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
6	981007	LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL	981007 LIFT SYSTEM PIPE FROM BLOCK TO RH FRONT WHEEL Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
7	981008	LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL	981008 LIFT SYSTEM PIPE FROM BLOCK TO LH FRONT WHEEL Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
8	326103	LIFT SYSTEM FILLER TANK	326103 LIFT SYSTEM FILLER TANK Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
9	770523	LIFT SYSTEM FILLER HOSE	770523 LIFT SYSTEM FILLER HOSE Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
10	13432070	HOSE COLLAR	13432070 HOSE COLLAR Version with lift system - Not for Assetto Fiorano FIO2; D. 15.7	-	2	Enquire
11	916497	LIFT SYSTEM RIGID FILLER PIPE	916497 LIFT SYSTEM RIGID FILLER PIPE Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
12	259642	HOSE	259642 HOSE Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
13	260155	GASKET	260155 GASKET Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
14	965937	LIFT PUMP MOUNTING BRACKET	965937 LIFT PUMP MOUNTING BRACKET Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
15	925640	LIFTER BRACKET	925640 LIFTER BRACKET Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
16	308995	BUSH	308995 BUSH Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
17	304224	SCREW	304224 SCREW Version with lift system - Not for Assetto Fiorano FIO2; M10 X 1.5 X 28	-	2	Enquire
18	255047	CABLE GROMMET	255047 CABLE GROMMET Version with lift system - Not for Assetto Fiorano FIO2; D13	-	2	Enquire
19	255048	GROMMET SHIM	255048 GROMMET SHIM Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
20	11568124	SCREW	11568124 SCREW M6 X 16	-	3	Enquire
21	14059211	NUT	14059211 NUT Version with lift system - Not for Assetto Fiorano FIO2; M6	-	2	Enquire
22	745271	LIFT SYSTEM OIL TANK MOUNTING BRACKET	745271 LIFT SYSTEM OIL TANK MOUNTING BRACKET Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
23	955463	LIFT SYSTEM OIL TANK SHIELD	955463 LIFT SYSTEM OIL TANK SHIELD Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
24	292835	BUSH	292835 BUSH Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
25	85833700	SCREW	85833700 SCREW M5 X 16	-	1	Enquire
26	16285014	SCREW	16285014 SCREW M5 X 16	-	2	Enquire
27	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
28	259508	CLIP	259508 CLIP Version with lift system - Not for Assetto Fiorano FIO2; 1 compartment-	-	1	Enquire
28	259508	CLIP	259508 CLIP 1 compartment-	-	1	Enquire
29	266156	CLIP	266156 CLIP Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
30	256962	CLIP	256962 CLIP Version with lift system - Not for Assetto Fiorano FIO2; D. 4.7 X 1	-	1	Enquire
31	234284	CLIP	234284 CLIP Version with lift system - Not for Assetto Fiorano FIO2; 1 compartment-	-	2	Enquire
32	959208	CLIP	959208 CLIP Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
33	234285	CLIP	234285 CLIP Version with lift system - Not for Assetto Fiorano FIO2; 2 compartments	-	1	Enquire
34	291408	CLIP	291408 CLIP Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
35	292189	LIFT SYSTEM DISTRIBUTOR BLOCK	292189 LIFT SYSTEM DISTRIBUTOR BLOCK Version with lift system - Not for Assetto Fiorano FIO2	-	1	Enquire
36	793079	RH LIFT SYSTEM HOSE BRACKET	793079 RH LIFT SYSTEM HOSE BRACKET Version with lift system - Not for Assetto Fiorano FIO2; Applies until depletion	-	1	Enquire
36	900096	RH LIFT SYSTEM HOSE BRACKET	900096 RH LIFT SYSTEM HOSE BRACKET Version with lift system - Not for Assetto Fiorano FIO2; Applicable after depletion of 793079	-	1	Enquire
37	793080	LH LIFT SYSTEM HOSE BRACKET	793080 LH LIFT SYSTEM HOSE BRACKET Version with lift system - Not for Assetto Fiorano FIO2; Applies until depletion	-	1	Enquire
37	900097	LH LIFT SYSTEM HOSE BRACKET	900097 LH LIFT SYSTEM HOSE BRACKET Version with lift system - Not for Assetto Fiorano FIO2; Applicable after depletion of 793080	-	1	Enquire
38	116374	CLIP	116374 CLIP Version with lift system - Not for Assetto Fiorano FIO2	-	2	Enquire
39	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
40	303873	CLIP	303873 CLIP Version with lift system - Not for Assetto Fiorano FIO2; 1 compartment-	-	2	Enquire
