ENGINE INJECTION CONTROL of Ferrari Ferrari 296 GTB Europe

View All

Ferrari 296 GTB Europe - ENGINE INJECTION CONTROL

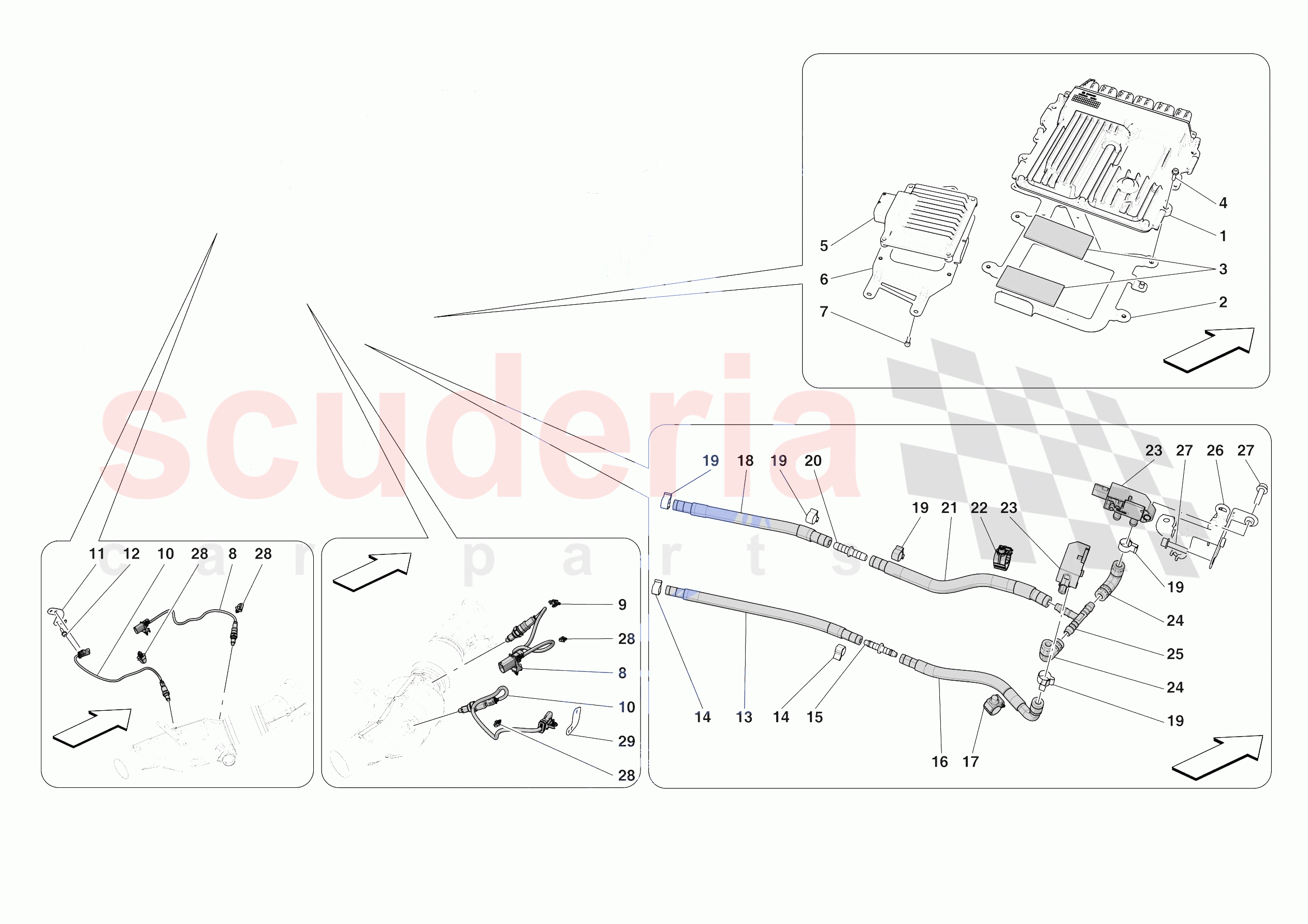

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	935117	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	890026	ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797726	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749477	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order
	782371	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order
	952897	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	967599	IONISING ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787778	FRONT OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303339	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787780	REAR OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	913624	OXYGEN SENSOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917756	RUBBER PIPE WITH SHEATH	Enquire	To Order
	869409	RUBBER PIPE WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125270	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917648	2-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917531	RUBBER PIPE WITH SHEATH	Enquire	To Order
	869391	RUBBER PIPE WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917816	RUBBER PIPE WITH SHEATH	Enquire	To Order
	869411	RUBBER PIPE WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917646	2-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917574	RUBBER PIPE WITH SHEATH	Enquire	To Order
	869408	RUBBER PIPE WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340691	GPF PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806791	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	913829	THREE WAY	Enquire	To Order
	913829	THREE WAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	832219	RH PRESSURE SENSOR BRACKET	Enquire	To Order
	775250	LH PRESSURE SENSOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	767629	OXYGEN SENSOR BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	935117	IGNITION ECU	935117 IGNITION ECU Unprogrammed	-	1	Enquire
2	890026	ECU BRACKET	890026 ECU BRACKET	-	1	Enquire
3	255515	BUSH	255515 BUSH 100 X 50 mm	-	2	Enquire
4	797726	SCREW	797726 SCREW M5 X 20	-	8	Enquire
5	749477	IONISING KNOCK SENSOR CONTROL UNIT	749477 IONISING KNOCK SENSOR CONTROL UNIT No longer supplied - Replaced by 782371; Unprogrammed	-	1	Enquire
5	782371	IONISING KNOCK SENSOR CONTROL UNIT	782371 IONISING KNOCK SENSOR CONTROL UNIT No longer supplied - Replaced by 952897; Unprogrammed	-	1	Enquire
5	952897	IONISING KNOCK SENSOR CONTROL UNIT	952897 IONISING KNOCK SENSOR CONTROL UNIT Unprogrammed	-	1	Enquire
6	967599	IONISING ECU BRACKET	967599 IONISING ECU BRACKET	-	1	Enquire
7	85833700	SCREW	85833700 SCREW M5 X 16	-	10	Enquire
8	787778	FRONT OXYGEN SENSOR	787778 FRONT OXYGEN SENSOR	-	2	Enquire
9	303339	CLIP	303339 CLIP	-	1	Enquire
10	787780	REAR OXYGEN SENSOR	787780 REAR OXYGEN SENSOR	-	2	Enquire
11	913624	OXYGEN SENSOR BRACKET	913624 OXYGEN SENSOR BRACKET	-	1	Enquire
12	797724	SCREW	797724 SCREW M5 X 14	-	1	Enquire
13	917756	RUBBER PIPE WITH SHEATH	917756 RUBBER PIPE WITH SHEATH No longer supplied - Replaced by 869409	-	2	Enquire
13	869409	RUBBER PIPE WITH SHEATH	869409 RUBBER PIPE WITH SHEATH	-	2	Enquire
14	13125270	COLLAR	13125270 COLLAR	-	6	Enquire
15	917648	2-WAY CONNECTOR	917648 2-WAY CONNECTOR	-	2	Enquire
16	917531	RUBBER PIPE WITH SHEATH	917531 RUBBER PIPE WITH SHEATH No longer supplied - Replaced by 869391	-	2	Enquire
16	869391	RUBBER PIPE WITH SHEATH	869391 RUBBER PIPE WITH SHEATH	-	2	Enquire
17	198253	CLIP	198253 CLIP D. 14	-	2	Enquire
18	917816	RUBBER PIPE WITH SHEATH	917816 RUBBER PIPE WITH SHEATH No longer supplied - Replaced by 869411	-	2	Enquire
18	869411	RUBBER PIPE WITH SHEATH	869411 RUBBER PIPE WITH SHEATH	-	2	Enquire
19	13125470	COLLAR	13125470 COLLAR	-	18	Enquire
20	917646	2-WAY CONNECTOR	917646 2-WAY CONNECTOR	-	2	Enquire
21	917574	RUBBER PIPE WITH SHEATH	917574 RUBBER PIPE WITH SHEATH No longer supplied - Replaced by 869408	-	2	Enquire
21	869408	RUBBER PIPE WITH SHEATH	869408 RUBBER PIPE WITH SHEATH	-	2	Enquire
22	259508	CLIP	259508 CLIP 1 compartment-	-	2	Enquire
23	340691	GPF PRESSURE SENSOR	340691 GPF PRESSURE SENSOR	-	4	Enquire
24	806791	RUBBER PIPE	806791 RUBBER PIPE	-	4	Enquire
25	913829	THREE WAY	913829 THREE WAY	-	2	Enquire
25	913829	THREE WAY	913829 THREE WAY	-	2	Enquire
26	832219	RH PRESSURE SENSOR BRACKET	832219 RH PRESSURE SENSOR BRACKET	-	1	Enquire
26	775250	LH PRESSURE SENSOR BRACKET	775250 LH PRESSURE SENSOR BRACKET	-	1	Enquire
27	231620	SCREW	231620 SCREW M6 X 25	-	4	Enquire
28	303385	CLIP	303385 CLIP 170 mm	-	10	Enquire
29	767629	OXYGEN SENSOR BRACKET	767629 OXYGEN SENSOR BRACKET	-	1	Enquire
