Name: FUEL TANK
Rating: 5.0 (1 reviews)

FUEL TANK of Ferrari Ferrari 296 GTB Europe

View All

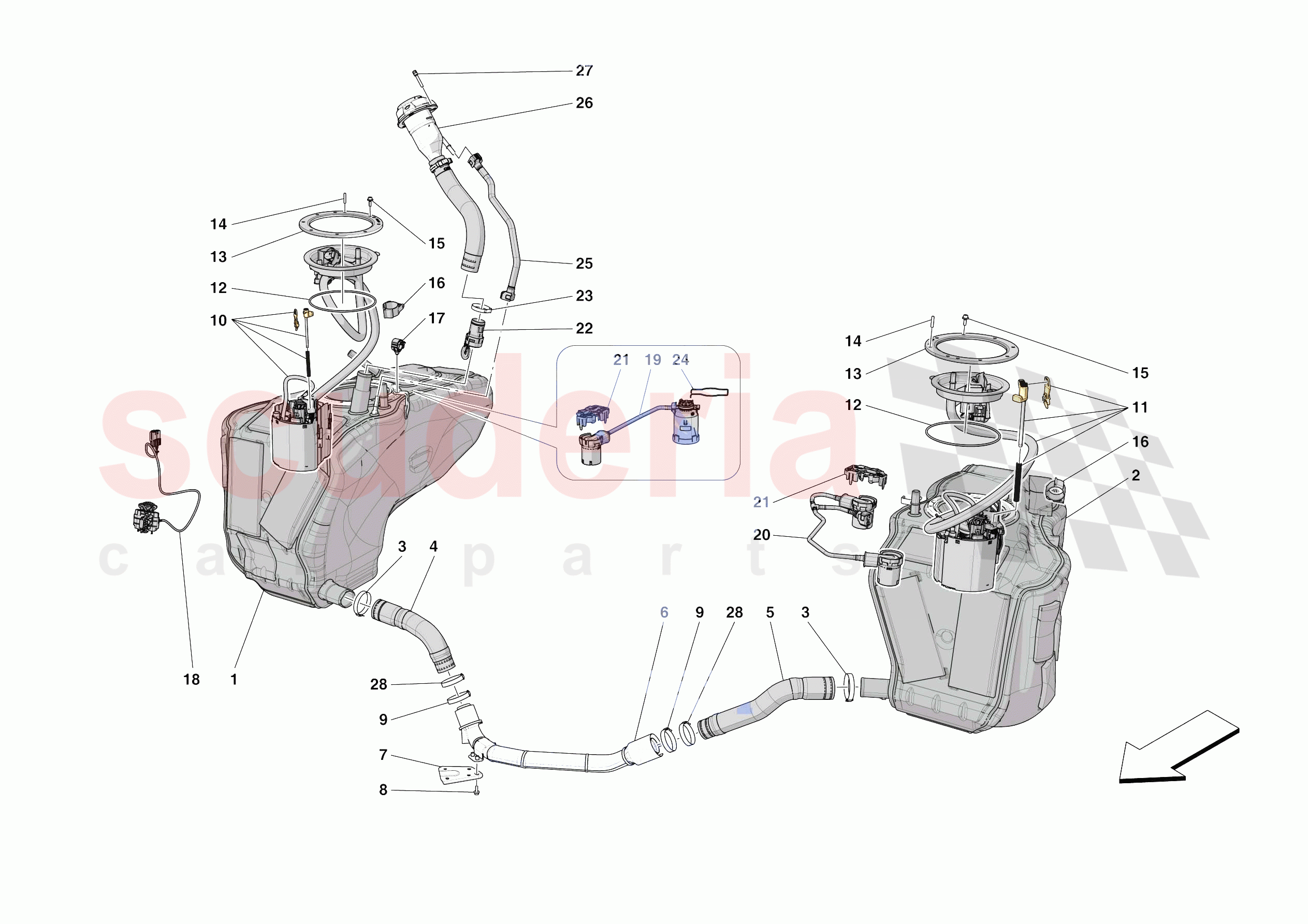

Ferrari 296 GTB Europe - FUEL TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	963266	RH FUEL TANK	Enquire	To Order
	948365	RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	$6,337.29	To Order

Photo	Part No	Description	Price (each)	Stock
	940193	LH FUEL TANK	Enquire	To Order
	948368	LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	$5,262.21	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	983355	RH HOSE	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	983175	LH HOSE	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	987200	TUBO COLLEGAMENTO SERBATOI	Enquire	To Order
	988896	COMPL. FUEL TANK CONNECTOR PIPE	$573.36	To Order
	960934	COMPL. FUEL TANK CONNECTOR PIPE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	847118	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	850148	COMPL. RH FUEL PUMP KIT	$1,327.33	To Order
	838726	COMPL. RH FUEL PUMP KIT	$1,820.88	To Order

Photo	Part No	Description	Price (each)	Stock
	850136	COMPL. LH FUEL PUMP KIT	$1,213.51	To Order
	838682	COMPL. LH FUEL PUMP KIT	$1,665.27	To Order

Photo	Part No	Description	Price (each)	Stock
	899649	O-RING	$22.50	To Order

Photo	Part No	Description	Price (each)	Stock
	753437	FLANGE FASTENER RING	$783.85	To Order

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	$70.54	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	254078	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	864964	COMPL. CORNER ADAPTER	$657.87	To Order

Photo	Part No	Description	Price (each)	Stock
	801035	RH FUEL TANK INTERNAL VALVE KIT	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	784217	LH FUEL TANK INTERNAL VALVE KIT	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	856964	PIPING VALVE MOUNTING	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	237407	ANTI SPIT-BACK VALVE	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	954080	HOOK-UP WIRE	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	782833	FUEL VAPOUR RECIRCULATION PIPE	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	790428	COMPL. FUEL FILLER NECK	$1,218.43	To Order

Photo	Part No	Description	Price (each)	Stock
	791355	SCREW	$5.07	To Order
	791355	SCREW	$5.07	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	963266	RH FUEL TANK	963266 RH FUEL TANK No longer supplied - Replaced by 948365	-	1	Enquire
1	948365	RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	948365 RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	$6,337.29	1
2	940193	LH FUEL TANK	940193 LH FUEL TANK No longer supplied - Replaced by 948368	-	1	Enquire
2	948368	LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	948368 LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	$5,262.21	1
3	262116	COLLAR	262116 COLLAR	$3.13	2
4	983355	RH HOSE	983355 RH HOSE	$186.33	1
5	983175	LH HOSE	983175 LH HOSE	$186.33	1
6	987200	TUBO COLLEGAMENTO SERBATOI	987200 TUBO COLLEGAMENTO SERBATOI	-	1	Enquire
6	988896	COMPL. FUEL TANK CONNECTOR PIPE	988896 COMPL. FUEL TANK CONNECTOR PIPE Applies until depletion	$573.36	1
6	960934	COMPL. FUEL TANK CONNECTOR PIPE	960934 COMPL. FUEL TANK CONNECTOR PIPE Applicable after depletion of 988896	$288.81	1
7	847118	BRACKET	847118 BRACKET	-	1	Enquire
8	16281827	SCREW	16281827 SCREW M5 X 14	$0.23	5
9	262114	HOSE CLAMP ARRIVING SOON	262114 HOSE CLAMP ARRIVING SOON	$1.20	2
10	850148	COMPL. RH FUEL PUMP KIT	850148 COMPL. RH FUEL PUMP KIT Applies until depletion	$1,327.33	1
10	838726	COMPL. RH FUEL PUMP KIT	838726 COMPL. RH FUEL PUMP KIT Applicable after depletion of 850148	$1,820.88	1
11	850136	COMPL. LH FUEL PUMP KIT	850136 COMPL. LH FUEL PUMP KIT Applies until depletion	$1,213.51	1
11	838682	COMPL. LH FUEL PUMP KIT	838682 COMPL. LH FUEL PUMP KIT Applicable after depletion of 850136	$1,665.27	1
12	899649	O-RING	899649 O-RING	$22.50	2
13	753437	FLANGE FASTENER RING	753437 FLANGE FASTENER RING	$783.85	2
14	11001124	STUD BOLT	11001124 STUD BOLT	$70.54	2
15	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	16
16	254078	CLIP	254078 CLIP	$1.85	4
17	259508	CLIP	259508 CLIP 1 compartment-	$0.63	2
18	864964	COMPL. CORNER ADAPTER	864964 COMPL. CORNER ADAPTER	$657.87	1
19	801035	RH FUEL TANK INTERNAL VALVE KIT	801035 RH FUEL TANK INTERNAL VALVE KIT	$401.34	1
20	784217	LH FUEL TANK INTERNAL VALVE KIT	784217 LH FUEL TANK INTERNAL VALVE KIT	$258.00	1
21	856964	PIPING VALVE MOUNTING	856964 PIPING VALVE MOUNTING	$9.60	3
22	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE	$37.25	1
23	11449470	COLLAR	11449470 COLLAR	$2.92	1
24	954080	HOOK-UP WIRE	954080 HOOK-UP WIRE	$22.92	1
25	782833	FUEL VAPOUR RECIRCULATION PIPE	782833 FUEL VAPOUR RECIRCULATION PIPE	$68.79	1
26	790428	COMPL. FUEL FILLER NECK	790428 COMPL. FUEL FILLER NECK	$1,218.43	1
27	791355	SCREW	791355 SCREW M5 X 30	$5.07	3
27	791355	SCREW	791355 SCREW M5 X 30	$5.07	3
28	10815787	CLAMP	10815787 CLAMP	$0.15	2
