Name: INTERCOOLER
Rating: 5.0 (1 reviews)

INTERCOOLER of Ferrari Ferrari 296 GTB Europe

View All

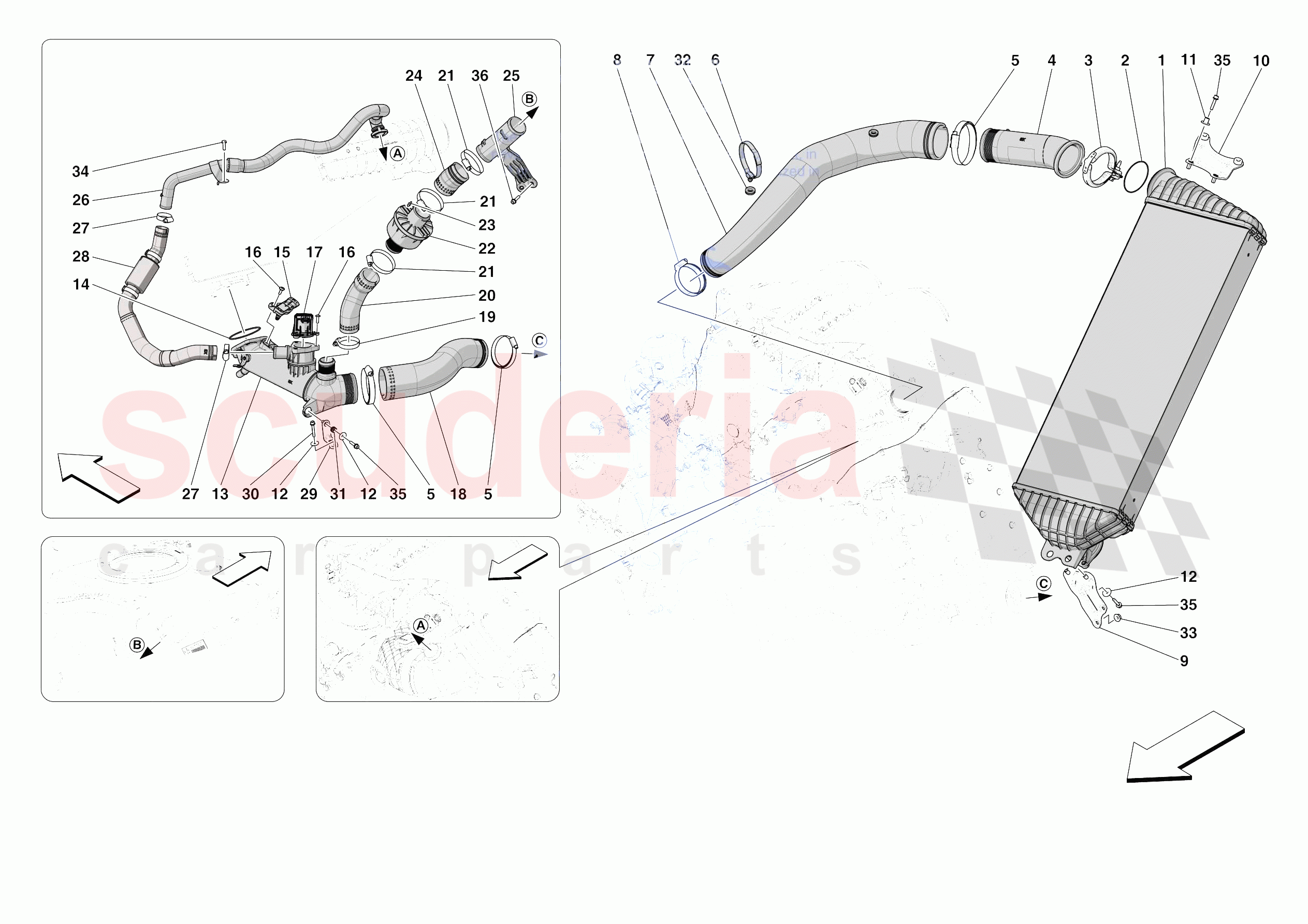

Ferrari 296 GTB Europe - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	874363	LH INTERCOOLER	$1,720.11	To Order
	874364	RH INTERCOOLER	$1,720.11	To Order

Photo	Part No	Description	Price (each)	Stock
	914435	O-RING	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	910534	INTERCOOLER V-CLAMP	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	777775	LH INTERCOOLER RIGID PIPE	$65.92	To Order
	941361	LH INTERCOOLER RIGID PIPE	$63.05	To Order
	777776	RH INTERCOOLER RIGID PIPE	$65.92	To Order

Photo	Part No	Description	Price (each)	Stock
	297576	COLLAR	$6.47	To Order

Photo	Part No	Description	Price (each)	Stock
	814993	COLLAR	$45.06	To Order

Photo	Part No	Description	Price (each)	Stock
	777773	LH HOSE	$803.24	To Order
	941399	LH HOSE	$946.70	To Order
	777774	RH HOSE	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	297572	COLLAR	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	914140	LH INTERCOOLER LOWER BRACKET	$44.91	To Order
	914144	RH INTERCOOLER LOWER BRACKET	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	811614	LH INTERCOOLER UPPER BRACKET	$74.52	To Order
	811654	RH INTERCOOLER UPPER BRACKET	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	789073	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	844545	LH PIPE CONNECTOR BARREL	$272.34	To Order
	844546	RH PIPE CONNECTOR BARREL	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	889223	O-RING	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	835465	PRESSURE AND TEMPERATURE SENSOR	$52.25	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	315495	DUMP-VALVE	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	771901	LH HOSE	$97.86	To Order
	771902	RH HOSE	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	846986	SOUND GENERATOR HOSE	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	296783	SCREW COLLAR	$11.12	To Order

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	869189	SOUND GENERATOR FASTENER HOSE	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	746942	SOUND GENERATOR BRACKET	$45.85	To Order

Photo	Part No	Description	Price (each)	Stock
	915988	LH RIGID DUMP VALVE PIPE	$501.69	To Order
	915989	RH RIGID DUMP VALVE PIPE	$501.69	To Order

Photo	Part No	Description	Price (each)	Stock
	178053	CLAMP	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	810962	COMPL. LH DUMP VALVE PIPE	$358.34	To Order
	810963	COMPL. RH DUMP VALVE PIPE	$358.34	To Order

Photo	Part No	Description	Price (each)	Stock
	771777	LH PIPE CONNECTOR BARREL BRACKET	$25.79	To Order
	771778	RH PIPE CONNECTOR BARREL BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	797731	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	917701	RUBBER PAD	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	797729	SCREW	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	294780	SCREW	$0.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	874363	LH INTERCOOLER	874363 LH INTERCOOLER	$1,720.11	1
1	874364	RH INTERCOOLER	874364 RH INTERCOOLER	$1,720.11	1
2	914435	O-RING	914435 O-RING	$2.38	2
3	910534	INTERCOOLER V-CLAMP	910534 INTERCOOLER V-CLAMP	$86.63	2
4	777775	LH INTERCOOLER RIGID PIPE	777775 LH INTERCOOLER RIGID PIPE Applies until depletion	$65.92	1
4	941361	LH INTERCOOLER RIGID PIPE	941361 LH INTERCOOLER RIGID PIPE For vehicles up to Ass.ly No. 203727, also hose 941399, ref. 7; Applicable after depletion of 777775	$63.05	1
4	777776	RH INTERCOOLER RIGID PIPE	777776 RH INTERCOOLER RIGID PIPE	$65.92	1
5	297576	COLLAR	297576 COLLAR	$6.47	6
6	814993	COLLAR	814993 COLLAR	$45.06	2
7	777773	LH HOSE	777773 LH HOSE Applies until depletion	$803.24	1
7	941399	LH HOSE	941399 LH HOSE For vehicles up to Ass.ly No. 203727, also order pipe 941361 ref. 4; Applicable after depletion of 777773	$946.70	1
7	777774	RH HOSE	777774 RH HOSE	$914.60	1
8	297572	COLLAR	297572 COLLAR	$5.48	2
9	914140	LH INTERCOOLER LOWER BRACKET	914140 LH INTERCOOLER LOWER BRACKET	$44.91	1
9	914144	RH INTERCOOLER LOWER BRACKET	914144 RH INTERCOOLER LOWER BRACKET	$44.91	1
10	811614	LH INTERCOOLER UPPER BRACKET	811614 LH INTERCOOLER UPPER BRACKET	$74.52	1
10	811654	RH INTERCOOLER UPPER BRACKET	811654 RH INTERCOOLER UPPER BRACKET	$74.52	1
11	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	8
12	789073	WASHER	789073 WASHER	$0.32	18
13	844545	LH PIPE CONNECTOR BARREL	844545 LH PIPE CONNECTOR BARREL	$272.34	1
13	844546	RH PIPE CONNECTOR BARREL	844546 RH PIPE CONNECTOR BARREL	$240.67	1
14	889223	O-RING	889223 O-RING	$2.24	2
15	835465	PRESSURE AND TEMPERATURE SENSOR	835465 PRESSURE AND TEMPERATURE SENSOR	$52.25	2
16	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	14
17	315495	DUMP-VALVE	315495 DUMP-VALVE	$192.54	2
18	771901	LH HOSE	771901 LH HOSE	$97.86	1
18	771902	RH HOSE	771902 RH HOSE	$97.86	1
19	296781	COLLAR 30-45MM	296781 COLLAR 30-45MM	$9.00	1
20	846986	SOUND GENERATOR HOSE	846986 SOUND GENERATOR HOSE	$67.38	1
21	296783	SCREW COLLAR	296783 SCREW COLLAR	$11.12	3
22	310096	SOUND GENERATOR	310096 SOUND GENERATOR	$272.34	1
23	314100	RIVET	314100 RIVET	$0.49	2
24	869189	SOUND GENERATOR FASTENER HOSE	869189 SOUND GENERATOR FASTENER HOSE	$52.94	1
25	746942	SOUND GENERATOR BRACKET	746942 SOUND GENERATOR BRACKET	$45.85	1
26	915988	LH RIGID DUMP VALVE PIPE	915988 LH RIGID DUMP VALVE PIPE	$501.69	1
26	915989	RH RIGID DUMP VALVE PIPE	915989 RH RIGID DUMP VALVE PIPE	$501.69	1
27	178053	CLAMP	178053 CLAMP	$1.54	4
28	810962	COMPL. LH DUMP VALVE PIPE	810962 COMPL. LH DUMP VALVE PIPE	$358.34	1
28	810963	COMPL. RH DUMP VALVE PIPE	810963 COMPL. RH DUMP VALVE PIPE	$358.34	1
29	771777	LH PIPE CONNECTOR BARREL BRACKET	771777 LH PIPE CONNECTOR BARREL BRACKET	$25.79	1
29	771778	RH PIPE CONNECTOR BARREL BRACKET	771778 RH PIPE CONNECTOR BARREL BRACKET	$25.79	1
30	797731	SCREW	797731 SCREW M5 X 35	$0.58	2
31	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.65	10
32	917701	RUBBER PAD	917701 RUBBER PAD	$3.40	2
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
34	797724	SCREW	797724 SCREW M5 X 14	$0.47	2
35	797729	SCREW	797729 SCREW M5 X 25	$0.83	14
36	294780	SCREW	294780 SCREW M5 X 16	$0.47	2
