Ferrari 296 GTS USA - REAR SUSPENSION - CALLIPERS AND DISCS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
776946 COMPL. RH REAR CALIPER $6,398.30 To Order
859618 COMPL. RH REAR CALIPER Enquire To Order
776948 COMPL. RH REAR CALIPER $6,747.21 To Order
...and 33 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
319166 REAR BRAKE DISC $4,450.44 To Order
319166 REAR BRAKE DISC $4,450.44 To Order
859613 REAR BRAKE DISC $6,135.35 To Order
Photo Part No Description Price (each) Stock
228131 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
228132 SPRING WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
257424 RH REAR DISC SHIELD $62.56 To Order
257423 LH REAR DISC SHIELD $62.56 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
847755 RH REAR CALIPER HOUSING COVER $286.67 To Order
847861 LH REAR CALIPER HOUSING COVER $301.00 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
195167 SCREW $19.69 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.00 To Order
Photo Part No Description Price (each) Stock
861582 AIR DELIVERY PIPE $121.82 To Order
Photo Part No Description Price (each) Stock
299562 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE $38.69 To Order
299560 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE $32.08 To Order
Photo Part No Description Price (each) Stock
977797 HOSE $65.77 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.15 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
70005268 Rear Brake Pad, Wear Sensor and Spring Kit $3,129.11 To Order
70005268 Rear Brake Pad, Wear Sensor and Spring Kit $3,129.11 To Order
851791 REAR PAD SET WITH SPRING $3,383.50 To Order
Photo Part No Description Price (each) Stock
215665 BLEED SCREW $51.59 To Order
Photo Part No Description Price (each) Stock
215666 PROTECTIVE CAP $33.68 To Order
Photo Part No Description Price (each) Stock
70003667 SET OF EPB PADS $1,549.43 To Order
Photo Part No Description Price (each) Stock
70003493 DUST GAITER KIT $97.86 To Order
Photo Part No Description Price (each) Stock
70005108 SPRING KIT $16.73 To Order
View All

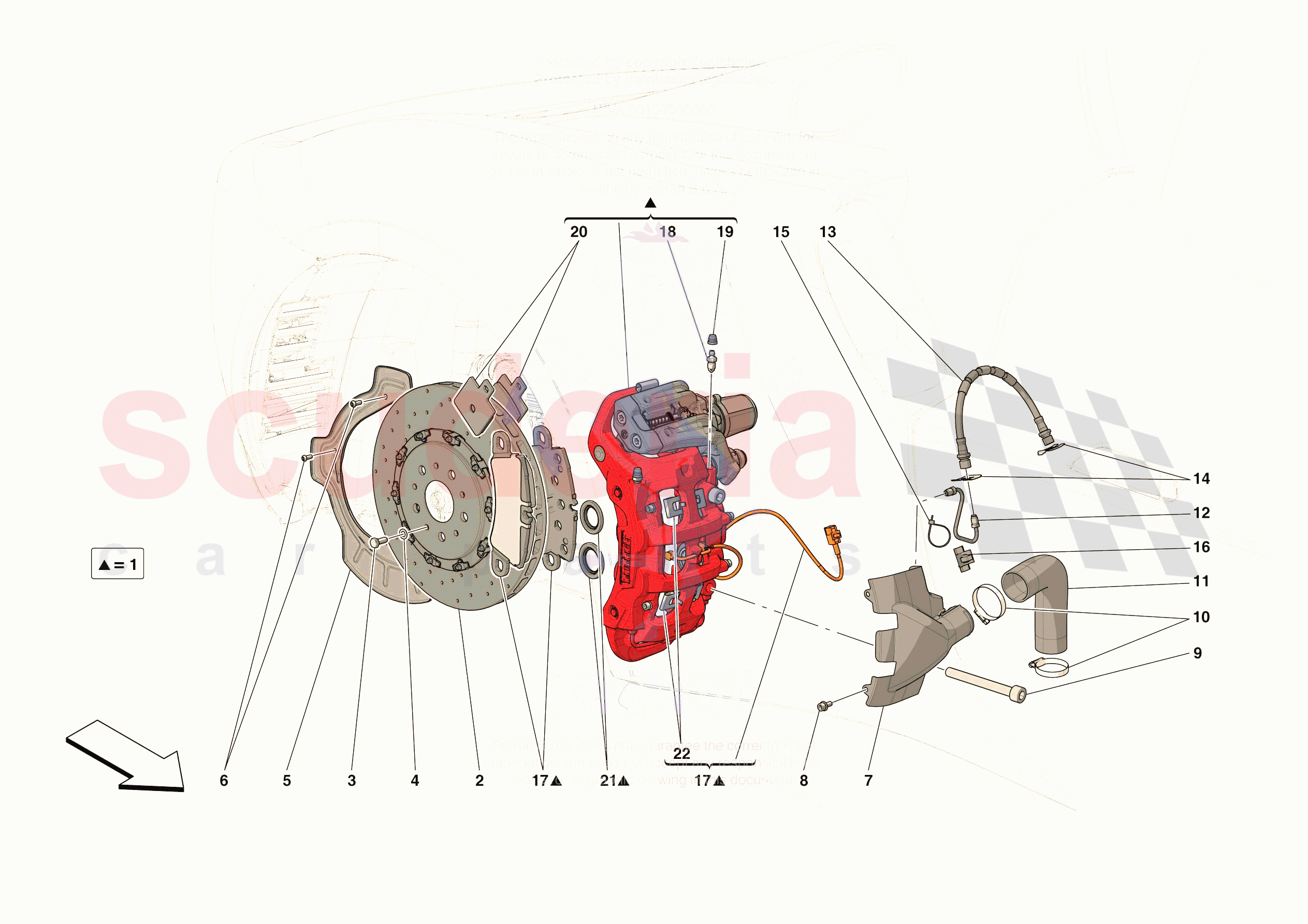

REAR SUSPENSION - CALLIPERS AND DISCS of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 776946
COMPL. RH REAR CALIPER
Anodised black- -With bedded-in pads 		$6,398.30 1
0001 859618
COMPL. RH REAR CALIPER
Anodised black- -With bedded-in pads 		- 1 Enquire
0001 776948
COMPL. RH REAR CALIPER
Dark grey- -With bedded-in pads 		$6,747.21 1
0001 860180
COMPL. RH REAR CALIPER
Dark grey- -With bedded-in pads 		- 1 Enquire
0001 776942
COMPL. RH REAR CALIPER
Scuderia red- -With bedded-in pads 		$6,387.35 1
0001 860184
COMPL. RH REAR CALIPER
Scuderia red- -With bedded-in pads 		- 1 Enquire
0001 776944
COMPL. RH REAR CALIPER
Blue- -With bedded-in pads 		$6,742.34 1
0001 860175
COMPL. RH REAR CALIPER
Blue- -With bedded-in pads 		- 1 Enquire
0001 776937
COMPL. RH REAR CALIPER
Silver- -With bedded-in pads 		$6,719.25 1
0001 860173
COMPL. RH REAR CALIPER
Silver- -With bedded-in pads 		- 1 Enquire
0001 776928
COMPL. RH REAR CALIPER
Red- -With bedded-in pads 		$6,265.78 1
0001 860186
COMPL. RH REAR CALIPER
Red- -With bedded-in pads 		$6,547.83 1
0001 776940
COMPL. RH REAR CALIPER
Yellow- -With bedded-in pads 		$6,719.25 1
0001 860182
COMPL. RH REAR CALIPER
Yellow- -With bedded-in pads 		$6,663.33 1
0001 776931
COMPL. RH REAR CALIPER
Gold- -With bedded-in pads 		$6,387.35 1
0001 860177
COMPL. RH REAR CALIPER
Gold- -With bedded-in pads 		- 1 Enquire
0001 776926
COMPL. RH REAR CALIPER
Black- -With bedded-in pads 		$6,179.47 1
0001 860188
COMPL. RH REAR CALIPER
Black- -With bedded-in pads 		- 1 Enquire
0001 776945
COMPL. LH REAR CALIPER
Anodised black- -With bedded-in pads 		$6,080.99 1
0001 859615
COMPL. LH REAR CALIPER
Anodised black- -With bedded-in pads 		- 1 Enquire
0001 776947
COMPL. LH REAR CALIPER
Dark grey- -With bedded-in pads 		$6,747.21 1
0001 860159
COMPL. LH REAR CALIPER
Dark grey- -With bedded-in pads 		- 1 Enquire
0001 776941
COMPL. LH REAR CALIPER
Scuderia red- -With bedded-in pads 		$6,387.35 1
0001 860164
COMPL. LH REAR CALIPER
Scuderia red- -With bedded-in pads 		- 1 Enquire
0001 776943
COMPL. LH REAR CALIPER
Blue- -With bedded-in pads 		$6,742.34 1
0001 860105
COMPL. LH REAR CALIPER
Blue- -With bedded-in pads 		- 1 Enquire
0001 776933
COMPL. LH REAR CALIPER
Silver- -With bedded-in pads 		$6,719.25 1
0001 860103
COMPL. LH REAR CALIPER
Silver- -With bedded-in pads 		- 1 Enquire
0001 776927
COMPL. LH REAR CALIPER
Red- -With bedded-in pads 		$6,265.78 1
0001 860167
COMPL. LH REAR CALIPER
Red- -With bedded-in pads 		$6,547.83 1
0001 776939
COMPL. LH REAR CALIPER
Yellow- -With bedded-in pads 		$6,719.25 1
0001 860161
COMPL. LH REAR CALIPER
Yellow- -With bedded-in pads 		- 1 Enquire
0001 776929
COMPL. LH REAR CALIPER
Gold- -With bedded-in pads 		$6,387.35 1
0001 860110
COMPL. LH REAR CALIPER
Gold- -With bedded-in pads 		- 1 Enquire
0001 776924
COMPL. LH REAR CALIPER
Black- -With bedded-in pads 		$6,179.47 1
0001 860169
COMPL. LH REAR CALIPER
Black- -With bedded-in pads 		- 1 Enquire
0002 319166
REAR BRAKE DISC
Applies until depletion; Bedded-in 		$4,450.44 2
0002 319166
REAR BRAKE DISC
Not bedded-in 		$4,450.44 2
0002 859613
REAR BRAKE DISC
Bedded-in 		$6,135.35 2
0003 228131
SCREW
M8 X 20 		$0.83 4
0004 228132
SPRING WASHER 		$0.32 4
0005 257424
RH REAR DISC SHIELD 		$62.56 1
0005 257423
LH REAR DISC SHIELD 		$62.56 (24.1% off) 1
0006 250657
SCREW
M6 X 14 		$7.60 6
0007 847755
RH REAR CALIPER HOUSING COVER 		$286.67 1
0007 847861
LH REAR CALIPER HOUSING COVER 		$301.00 1
0008 248334
SCREW
M6 X 14 		$0.68 8
0009 195167
SCREW
M12 X 1.5 X 95 		$19.69 4
0010 296781
COLLAR 30-45MM 		$9.00 4
0011 861582
AIR DELIVERY PIPE 		$121.82 2
0012 299562
COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE 		$38.69 1
0012 299560
COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE 		$32.08 1
0013 977797
HOSE
Replace as a pair 		$65.77 2
0014 116374
CLIP 		$2.51 (28.3% off) 3
0015 10815787
CLAMP 		$0.15 4
0016 303385
CLIP 		$0.31 2
0017 70005268
Rear Brake Pad, Wear Sensor and Spring Kit
Applies until depletion; With bedded-in pads 		$3,129.11 1
0017 70005268
Rear Brake Pad, Wear Sensor and Spring Kit
With non-bedded-in pads 		$3,129.11 1
0017 851791
REAR PAD SET WITH SPRING
With bedded-in pads 		$3,383.50 1
0018 215665
BLEED SCREW 		$51.59 4
0019 215666
PROTECTIVE CAP 		$33.68 (24.4% off) 4
0020 70003667
SET OF EPB PADS 		$1,549.43 1
0021 70003493
DUST GAITER KIT 		$97.86 (24.8% off) 1
0022 70005108
SPRING KIT 		$16.73 1
