Ferrari 296 GTS USA - ENGINE COOLING SYSTEM RADIATORS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	884488	RH WATER RADIATOR	$1,808.37	To Order

Photo	Part No	Description	Price (each)	Stock
	884487	LH WATER RADIATOR	$1,808.37	To Order

Photo	Part No	Description	Price (each)	Stock
	938570	RH FAN COWL	$888.72	To Order

Photo	Part No	Description	Price (each)	Stock
	937798	LH FAN COWL	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order
	747853	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	262836	CONDENSER	$904.47	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	798958	CONDENSER	$577.85	To Order

Photo	Part No	Description	Price (each)	Stock
	747853	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	770533	RH BRACKET	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	770535	LH BRACKET	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14304387	SCREW	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	798033	PIPE FROM CONDENSER TO FILTER	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	797994	FREON DELIVERY PIPE TO CONDENSER	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14305487	SCREW	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	14499378	WASHER	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10441490	BRACKET WITH SHEATH	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	263230	CLIP	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	804781	CONDENSER CONNECTOR PIPE	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	926141	PIPE FROM DISCONNECTOR TO RH CONDENSER	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock
	770588	PIPE FROM DISCONNECTOR TO LH CONDENSER	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	267798	BUSH	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	244216	CLIP	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11612826	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	237478	MOUNTING RADIATOR	$23.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	247751	WASHER	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	849234	SCREW	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	747853	SCREW	$0.78	To Order
	747853	SCREW	$0.78	To Order

View All

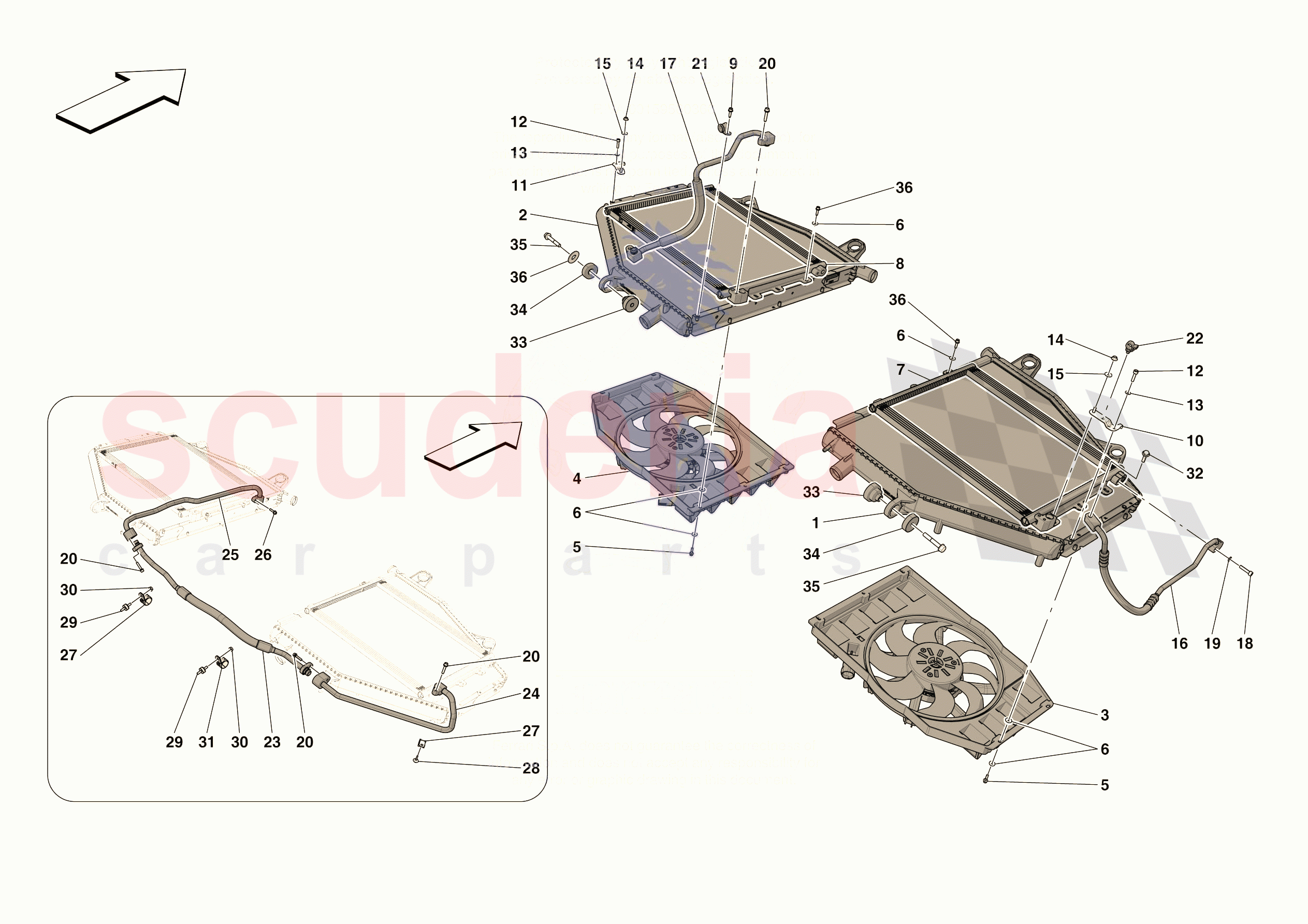

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	884488	RH WATER RADIATOR	884488 RH WATER RADIATOR	$1,808.37	1
0002	884487	LH WATER RADIATOR	884487 LH WATER RADIATOR	$1,808.37	1
0003	938570	RH FAN COWL	938570 RH FAN COWL	$888.72	1
0004	937798	LH FAN COWL	937798 LH FAN COWL	$882.51	1
0005	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0005	747853	SCREW	747853 SCREW M5 X 25	$0.78	4
0006	12644424	WASHER	12644424 WASHER	$0.06 MSRP: ~~0.40~~ (85% off)	24
0007	262836	CONDENSER ARRIVING SOON	262836 CONDENSER RH side ARRIVING SOON	$904.47 MSRP: ~~1,051.46~~ (14% off)	1
0008	798958	CONDENSER	798958 CONDENSER LH side	$577.85	1
0009	747853	SCREW	747853 SCREW M5 X 20	$0.78	1
0010	770533	RH BRACKET	770533 RH BRACKET	$40.10	3
0011	770535	LH BRACKET	770535 LH BRACKET	$40.10	1
0012	14304387	SCREW	14304387 SCREW M5 X 20	$0.97	4
0013	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	4
0014	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
0015	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
0016	798033	PIPE FROM CONDENSER TO FILTER	798033 PIPE FROM CONDENSER TO FILTER	$286.67	1
0017	797994	FREON DELIVERY PIPE TO CONDENSER	797994 FREON DELIVERY PIPE TO CONDENSER	$186.33	1
0018	14305487	SCREW	14305487 SCREW M6 X 25	$0.89	1
0019	14499378	WASHER	14499378 WASHER	$0.79	1
0020	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	5
0021	10441490	BRACKET WITH SHEATH	10441490 BRACKET WITH SHEATH D. 14	$0.55	1
0022	263230	CLIP	263230 CLIP	$1.46	1
0023	804781	CONDENSER CONNECTOR PIPE	804781 CONDENSER CONNECTOR PIPE	$176.49	1
0024	926141	PIPE FROM DISCONNECTOR TO RH CONDENSER	926141 PIPE FROM DISCONNECTOR TO RH CONDENSER	$160.44	1
0025	770588	PIPE FROM DISCONNECTOR TO LH CONDENSER	770588 PIPE FROM DISCONNECTOR TO LH CONDENSER	$192.54	1
0026	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0027	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$0.55	4
0028	15699804	SCREW	15699804 SCREW M6 X 20	$0.19	3
0029	267798	BUSH	267798 BUSH	$10.10	2
0030	14040614	NUT	14040614 NUT	$0.15	2
0031	244216	CLIP	244216 CLIP	$4.31	1
0032	11612826	SCREW	11612826 SCREW M6 X 25	$3.40	1
0033	237478	MOUNTING RADIATOR ARRIVING SOON	237478 MOUNTING RADIATOR ARRIVING SOON	$23.68	6
0034	247751	WASHER	247751 WASHER	$6.18	6
0035	849234	SCREW	849234 SCREW M8 X 47	$2.92	6
0036	747853	SCREW	747853 SCREW M5 X 20	$0.78	4
0036	747853	SCREW	747853 SCREW M5 X 25	$0.78	4
