Ferrari 296 GTS USA - ENGINE OIL RADIATOR AND TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
742173 COMPL. OIL TANK $2,610.67 To Order
742173 COMPL. OIL TANK $2,610.67 To Order
982955 COMPL. OIL TANK $2,576.97 To Order
Photo Part No Description Price (each) Stock
869355 LOWER FILLER PIPE $164.11 To Order
Photo Part No Description Price (each) Stock
904489 CAP COMPL. WITH DIPSTICK $353.00 To Order
904499 CAP COMPL. WITH DIPSTICK $433.23 To Order
Photo Part No Description Price (each) Stock
797265 SCREW $0.84 To Order
Photo Part No Description Price (each) Stock
104212 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
871810 VAPOUR PRESSURE SENSOR $147.59 To Order
871810 VAPOUR PRESSURE SENSOR $147.59 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
85833900 SCREW $0.36 IN STOCK
797723 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
952054 COMPL. INTAKE PIPE $417.18 To Order
Photo Part No Description Price (each) Stock
189710 CLIP $0.31 IN STOCK
Photo Part No Description Price (each) Stock
909581 OIL PICKUP $288.81 To Order
Photo Part No Description Price (each) Stock
865758 O-RING $18.75 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.89 IN STOCK
Photo Part No Description Price (each) Stock
102948 NUT $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12601274 WASHER $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10300711 PLUG $0.99 IN STOCK
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 IN STOCK
Photo Part No Description Price (each) Stock
845767 OIL DELIVERY PIPE $641.82 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $5.67 To Order
Photo Part No Description Price (each) Stock
12578011 NUT $0.16 IN STOCK
Photo Part No Description Price (each) Stock
11001124 STUD BOLT $71.36 To Order
Photo Part No Description Price (each) Stock
103021 O-RING $1.47 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
746453 OIL RETURN PIPE $609.73 To Order
Photo Part No Description Price (each) Stock
139934 O-RING $0.91 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
777796 OIL TANK HEAT SHIELD $545.55 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
772341 COMPL. PIPE FROM OIL TANK TO PLENUM $304.86 To Order
Photo Part No Description Price (each) Stock
868624 BRACKET $3.19 To Order
Photo Part No Description Price (each) Stock
743029 PIPE FROM RH HEAD TANK $188.53 To Order
Photo Part No Description Price (each) Stock
10884087 CLIP $0.28 To Order
Photo Part No Description Price (each) Stock
776839 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
789073 WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
102948 NUT $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.29 To Order
Photo Part No Description Price (each) Stock
267798 BUSH $10.10 To Order
Photo Part No Description Price (each) Stock
309169 BRACKET WITH SHEATH $17.63 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.47 To Order
View All

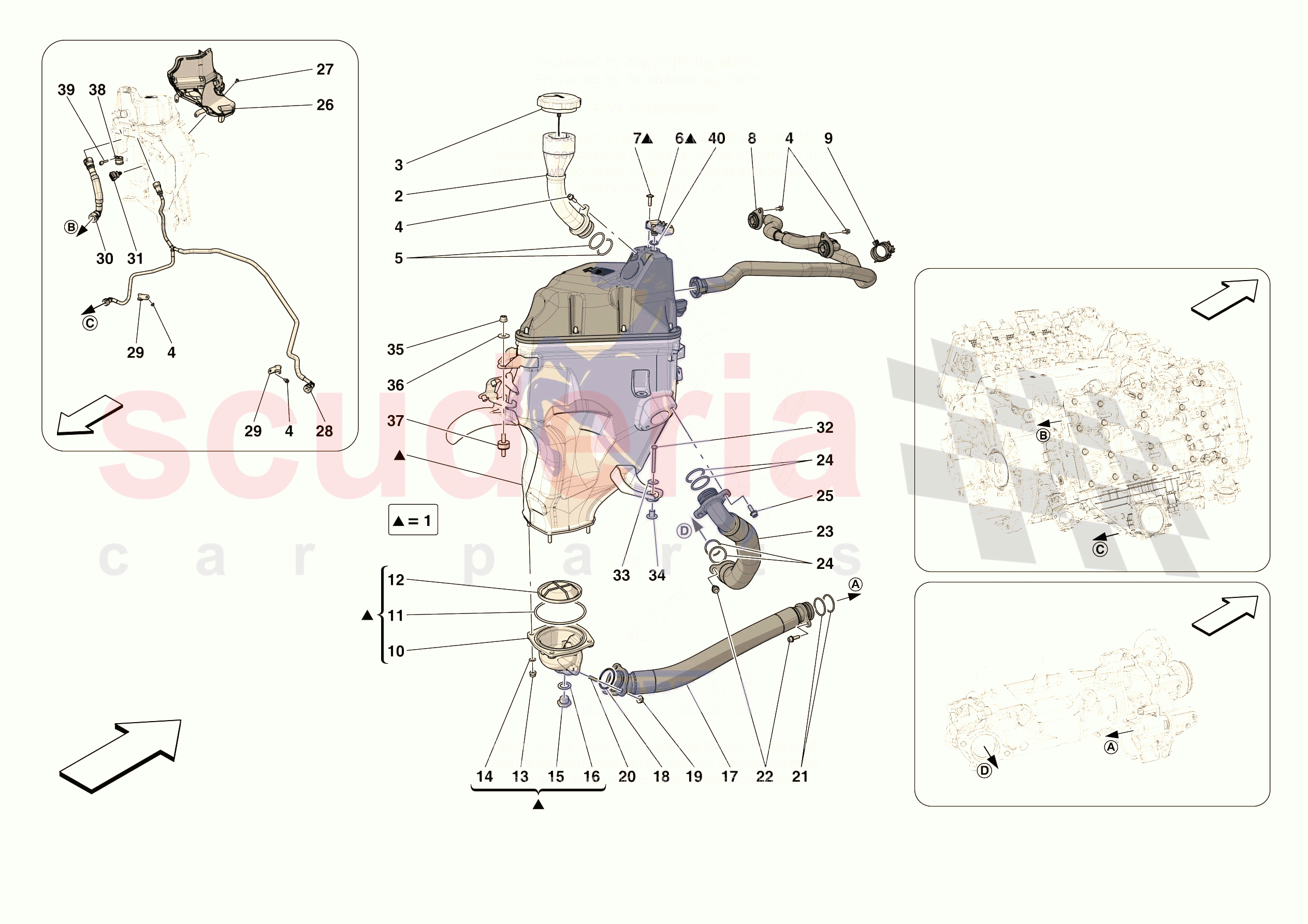

ENGINE OIL RADIATOR AND TANK of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 742173
COMPL. OIL TANK 		$2,610.67 1
0001 742173
COMPL. OIL TANK 		$2,610.67 1
0001 982955
COMPL. OIL TANK 		$2,576.97 1
0002 869355
LOWER FILLER PIPE 		$164.11 1
0003 904489
CAP COMPL. WITH DIPSTICK 		$353.00 1
0003 904499
CAP COMPL. WITH DIPSTICK
Carbon version 		$433.23 1
0004 797265
SCREW
M5 X 14 		$0.84 5
0005 104212
O-RING
IN STOCK 		$0.65 (35% off) 2
0006 871810
VAPOUR PRESSURE SENSOR 		$147.59 1
0006 871810
VAPOUR PRESSURE SENSOR 		$147.59 1
0007 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 1
0007 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 1
0007 797723
SCREW
M5 X 12 		$0.45 1
0008 952054
COMPL. INTAKE PIPE 		$417.18 1
0009 189710
CLIP
IN STOCK 		$0.31 1
0010 909581
OIL PICKUP 		$288.81 1
0011 865758
O-RING 		$18.75 1
0012 100332
OIL PICKUP FILTER
IN STOCK 		$20.89 1
0013 102948
NUT
M6 X 8
IN STOCK 		$0.23 (93.9% off) 2
0014 12601274
WASHER
D. 6.40-12 X 0.5
IN STOCK 		$0.58 (27.5% off) 11
0015 10300711
PLUG
IN STOCK 		$0.99 (73.6% off) 1
0016 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.36 (64% off) 1
0017 845767
OIL DELIVERY PIPE 		$641.82 1
0018 862084
GASKET 		$5.67 1
0019 12578011
NUT
M5
IN STOCK 		$0.16 3
0020 11001124
STUD BOLT 		$71.36 3
0021 103021
O-RING
Also included in Short block gasket kit 		$1.47 (62.6% off) 2
0022 231619
SCREW
M6 X 22
IN STOCK 		$0.31 4
0022 231619
SCREW
M6 X 22
IN STOCK 		$0.31 4
0023 746453
OIL RETURN PIPE 		$609.73 1
0024 139934
O-RING
Also included in Short block gasket kit
IN STOCK 		$0.91 (59.6% off) 4
0025 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 2
0026 777796
OIL TANK HEAT SHIELD 		$545.55 1
0027 85833900
SCREW
M5 X 12
IN STOCK 		$0.36 5
0028 772341
COMPL. PIPE FROM OIL TANK TO PLENUM 		$304.86 1
0029 868624
BRACKET 		$3.19 1
0030 743029
PIPE FROM RH HEAD TANK 		$188.53 1
0031 10884087
CLIP 		$0.28 2
0032 776839
SCREW
M5 X 45 		$0.79 1
0033 789073
WASHER 		$0.32 1
0034 149707
SPACER
IN STOCK 		$1.10 (37.1% off) 1
0035 102948
NUT
M6 X 8
IN STOCK 		$0.23 (93.9% off) 2
0036 12643778
BLACK WASHER D.6.45-18X1.5
18 X 1.5 		$0.29 (42% off) 2
0037 267798
BUSH 		$10.10 2
0038 309169
BRACKET WITH SHEATH 		$17.63 1
0039 797724
SCREW
M5 X 14 		$0.47 1
