Name: EXPANSION TANK
Rating: 4.6 (1 reviews)

EXPANSION TANK of Ferrari Ferrari 296 GTS USA

View All

Ferrari 296 GTS USA - EXPANSION TANK

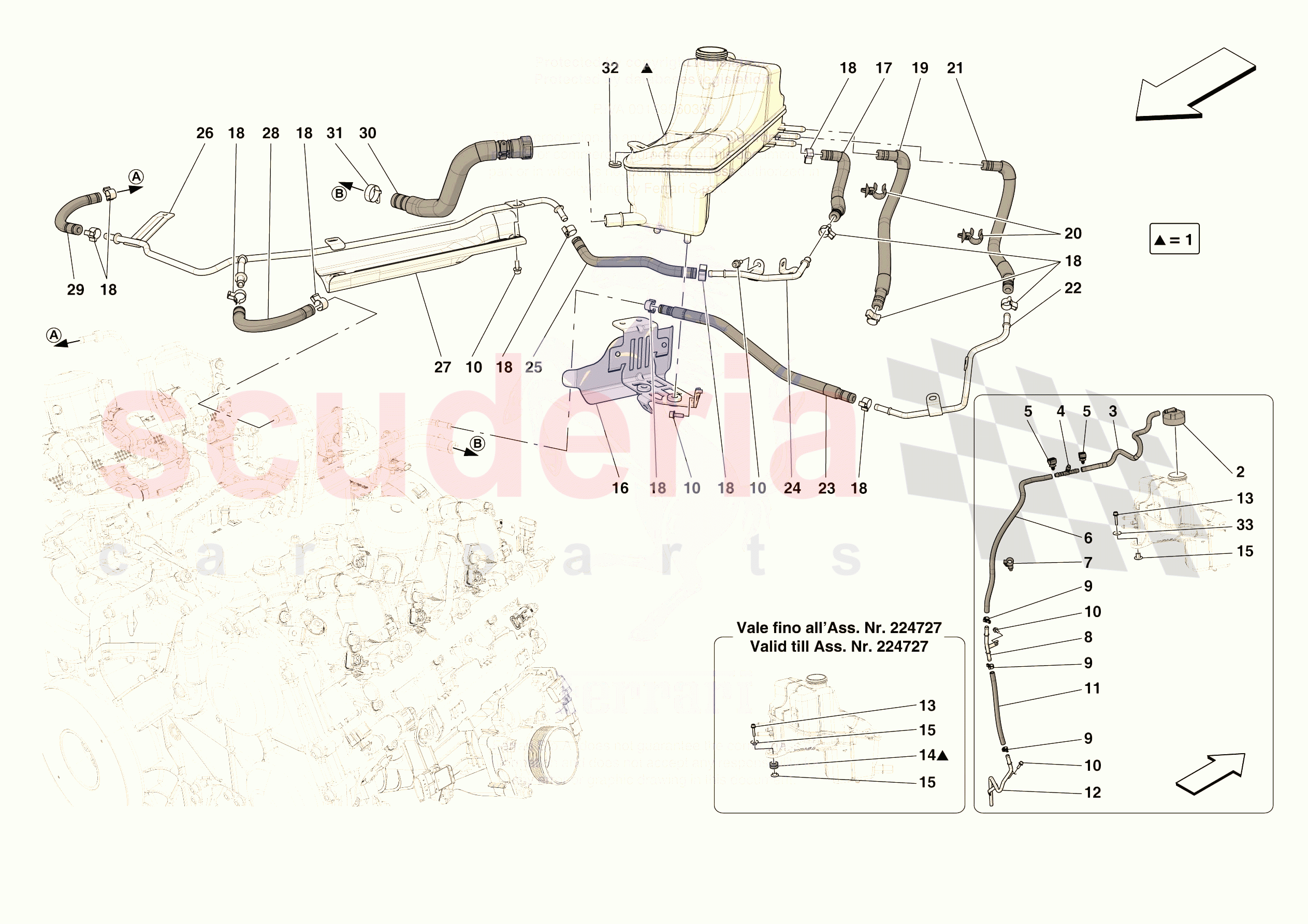

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	857210	HEADER TANK	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	374030103	TANK PLUG	Enquire	To Order
	893722	COMPL. HEADER TANK CAP	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	871264	PREFORMED RUBBER HEADER TANK PIPE	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	841922	T UNION	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	10884087	CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	812958	HEADER TANK RUBBER DRAIN PIPE	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	787886	LOWER BREATHER PIPE	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13125170	CLAMP	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	917996	RUBBER PIPE	$11.38	To Order

Photo	Part No	Description	Price (each)	Stock
	787867	LOWER BREATHER PIPE	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	797729	SCREW	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$14.75	To Order
	819489	FLANGED BUSHING	$14.75	To Order

Photo	Part No	Description	Price (each)	Stock
	972927	HEADER TANK MOUNTING BRACKET	$188.53	To Order

Photo	Part No	Description	Price (each)	Stock
	788831	RUBBER PIPE WITH SHEATH	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	789191	RUBBER PIPE	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	106847	CLIP	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	789242	RUBBER PIPE WITH SHEATH	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	792705	HEADER TANK - CYL. HEAD RIGID PIPE	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	908645	CYL. HEAD - HEADER TANK PIPE	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	835534	HEADER TANK RIGID PIPE	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	767126	HEADER TANK - TURBO PIPE	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	820373	HEADER TANK - TURBO RIGID PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	944740	COMPL. LH HEAT SHIELD	$80.21	To Order
	944738	COMPL. RH HEAT SHIELD	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	909208	RUBBER PIPE	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	910415	RUBBER PIPE	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	959110	FILLER PIPE	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	917701	RUBBER PAD	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	857210	HEADER TANK	857210 HEADER TANK	$609.73	1
0002	374030103	TANK PLUG	374030103 TANK PLUG	-	1	Enquire
0002	893722	COMPL. HEADER TANK CAP	893722 COMPL. HEADER TANK CAP Carbon version	$609.73	1
0003	871264	PREFORMED RUBBER HEADER TANK PIPE	871264 PREFORMED RUBBER HEADER TANK PIPE	$64.17	1
0004	841922	T UNION	841922 T UNION	$4.80	1
0005	10884087	CLIP	10884087 CLIP	$0.28	3
0006	812958	HEADER TANK RUBBER DRAIN PIPE	812958 HEADER TANK RUBBER DRAIN PIPE	$30.44	1
0007	316888	CLIP IN STOCK	316888 CLIP IN STOCK	$0.23	1
0008	787886	LOWER BREATHER PIPE	787886 LOWER BREATHER PIPE	$80.21	1
0009	13125170	CLAMP	13125170 CLAMP	$0.78	3
0010	797724	SCREW	797724 SCREW M5 X 14	$0.47	14
0011	917996	RUBBER PIPE	917996 RUBBER PIPE	$11.38	1
0012	787867	LOWER BREATHER PIPE	787867 LOWER BREATHER PIPE	$105.89	1
0013	797729	SCREW	797729 SCREW M5 X 25	$0.84	1
0014	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.67	1
0015	819489	FLANGED BUSHING	819489 FLANGED BUSHING For vehicles up to Ass.ly No. 224727, also order washer 12643778 ref. 33	$14.75	1
0015	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$14.75	1
0016	972927	HEADER TANK MOUNTING BRACKET	972927 HEADER TANK MOUNTING BRACKET	$188.53	1
0017	788831	RUBBER PIPE WITH SHEATH	788831 RUBBER PIPE WITH SHEATH	$256.72	1
0018	13125470	COLLAR IN STOCK	13125470 COLLAR IN STOCK	$0.66	14
0019	789191	RUBBER PIPE	789191 RUBBER PIPE	$68.98	1
0020	106847	CLIP	106847 CLIP	$0.91	2
0021	789242	RUBBER PIPE WITH SHEATH	789242 RUBBER PIPE WITH SHEATH	$272.77	1
0022	792705	HEADER TANK - CYL. HEAD RIGID PIPE	792705 HEADER TANK - CYL. HEAD RIGID PIPE	$94.66	1
0023	908645	CYL. HEAD - HEADER TANK PIPE	908645 CYL. HEAD - HEADER TANK PIPE	$70.59	1
0024	835534	HEADER TANK RIGID PIPE	835534 HEADER TANK RIGID PIPE	$99.47	1
0025	767126	HEADER TANK - TURBO PIPE	767126 HEADER TANK - TURBO PIPE	$36.89	1
0026	820373	HEADER TANK - TURBO RIGID PIPE	820373 HEADER TANK - TURBO RIGID PIPE	$240.67	1
0027	944740	COMPL. LH HEAT SHIELD	944740 COMPL. LH HEAT SHIELD	$80.21	1
0027	944738	COMPL. RH HEAT SHIELD	944738 COMPL. RH HEAT SHIELD	$67.38	1
0028	909208	RUBBER PIPE	909208 RUBBER PIPE D. 7 - 14 X 140	$25.66	1
0029	910415	RUBBER PIPE	910415 RUBBER PIPE D. 7 - 14 X 160	$25.66	1
0030	959110	FILLER PIPE	959110 FILLER PIPE	$176.49	1
0031	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP D.17 - 25 IN STOCK	$1.64	1
0032	917701	RUBBER PAD	917701 RUBBER PAD	$3.45	1
0033	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5 18 X 1.5	$0.29 MSRP: ~~0.50~~ (42% off)	1

Expansion Tank

Ferrari 296 GTS USA

Ferrari 296 GTS USA - EXPANSION TANK
