COMPLETE WHEELS of Ferrari Ferrari 296 GTS USA

View All

Ferrari 296 GTS USA - COMPLETE WHEELS

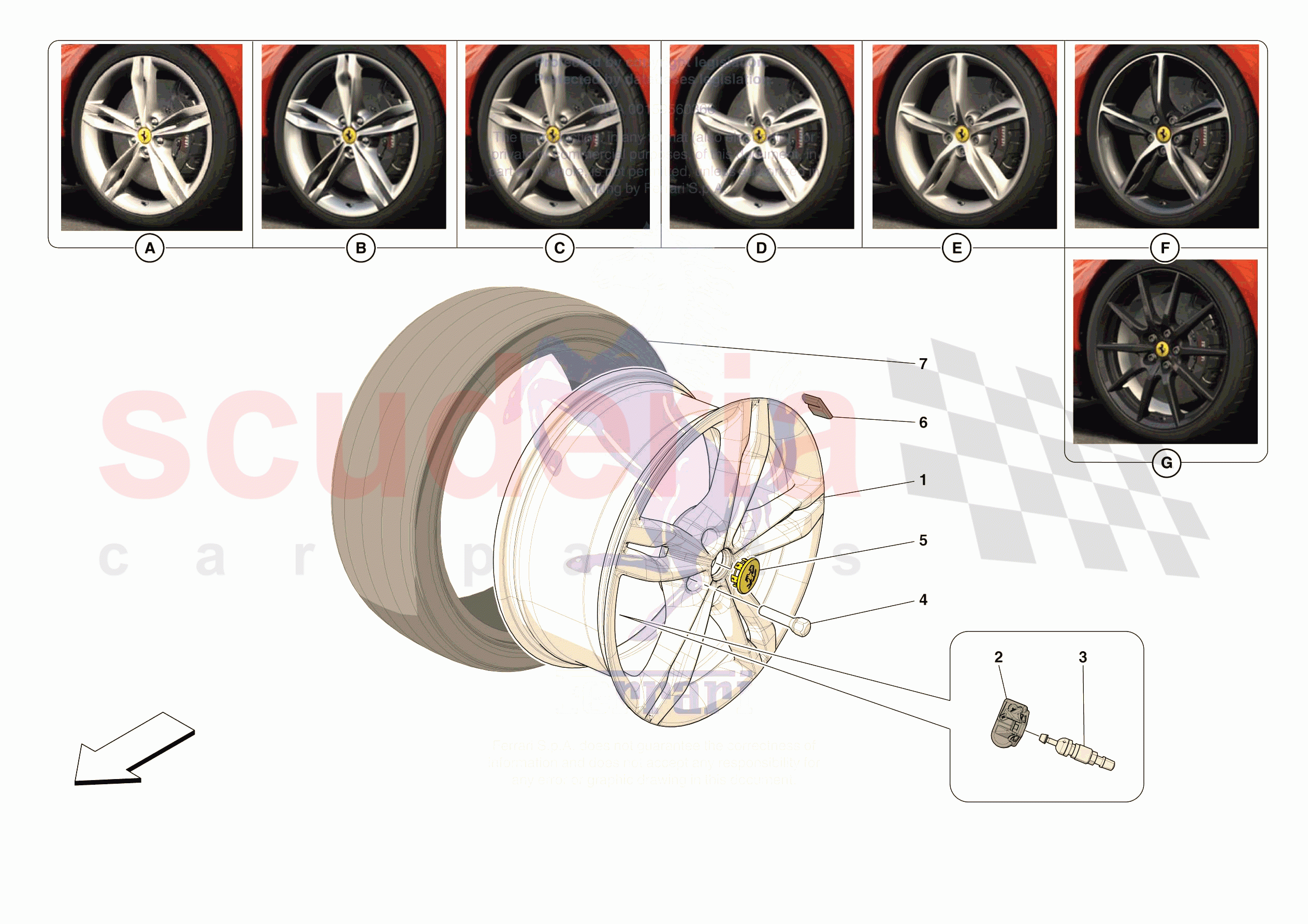

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	966447	FRONT WHEEL	Enquire	IN STOCK
	984954	FRONT WHEEL	Enquire	To Order
	984957	FRONT WHEEL	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	939581	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order
	939582	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	913102	VALVE	Enquire	To Order
	913104	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55031812	WHEEL STUD BOLT	Enquire	To Order
	206274	WHEEL STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11F2721CP	SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205	Enquire	IN STOCK
	889561	HUB CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	Enquire	To Order
	308296	ADHESIVE WHEEL BALANCER WEIGHT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	966447	FRONT WHEEL IN STOCK	966447 FRONT WHEEL Cast - Glossy silver - See box A - Modis code STANDARD; 9J X 20" IN STOCK	-	2	Enquire
0001	984954	FRONT WHEEL	984954 FRONT WHEEL Cast - Matte silver - See box B - Modis code RICS; 9J X 20"	-	2	Enquire
0001	984957	FRONT WHEEL	984957 FRONT WHEEL Cast - Matte Corsa grey - See box C - Modis code RMSC; 9J X 20"	-	2	Enquire
0001	976807	LH FRONT WHEEL	976807 LH FRONT WHEEL Forged - High gloss silver - See box D - Modis code RMSV; 9J X 20"	-	1	Enquire
0001	966456	RH FRONT WHEEL	966456 RH FRONT WHEEL Forged - High gloss silver - See box D - Modis code RMSV; 9J X 20"	-	1	Enquire
0001	986212	LH FRONT WHEEL	986212 LH FRONT WHEEL Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 9J X 20"	-	1	Enquire
0001	986213	RH FRONT WHEEL	986213 RH FRONT WHEEL Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 9J X 20"	-	1	Enquire
0001	986211	LH FRONT WHEEL	986211 LH FRONT WHEEL Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 9J X 20"	-	1	Enquire
0001	986217	RH FRONT WHEEL	986217 RH FRONT WHEEL Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 9J X 20"	-	1	Enquire
0001	976575	FRONT WHEEL	976575 FRONT WHEEL Carbon version - See box G - Modis code RMCF	-	2	Enquire
0001	976558	REAR WHEEL	976558 REAR WHEEL Cast - Glossy silver - See box A - Modis code STANDARD; 11J X 20"	-	2	Enquire
0001	984955	REAR WHEEL	984955 REAR WHEEL Cast - Matte silver - See box B - Modis code RICS; 11J X 20"	-	2	Enquire
0001	984956	REAR WHEEL	984956 REAR WHEEL Cast - Matte Corsa grey - See box C - Modis code RMSC; 11J X 20"	-	2	Enquire
0001	976570	LH REAR WHEEL	976570 LH REAR WHEEL Forged - High gloss silver - See box D - Modis code RMSV; 11J X 20"	-	1	Enquire
0001	976579	RH REAR WHEEL	976579 RH REAR WHEEL Forged - High gloss silver - See box D - Modis code RMSV; 11J X 20"	-	1	Enquire
0001	986223	LH REAR WHEEL	986223 LH REAR WHEEL Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 11J X 20"	-	1	Enquire
0001	986229	RH REAR WHEEL	986229 RH REAR WHEEL Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 11J X 20"	-	1	Enquire
0001	986220	LH REAR WHEEL	986220 LH REAR WHEEL Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 11J X 20"	-	1	Enquire
0001	986224	RH REAR WHEEL	986224 RH REAR WHEEL Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 11J X 20"	-	1	Enquire
0001	976577	REAR WHEEL	976577 REAR WHEEL Carbon version - See box G - Modis code RMCF	-	2	Enquire
0001	70007636	FRONT WHEEL	70007636 FRONT WHEEL 9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See detail A/C; Off-catalogue version	-	2	Enquire
0001	70007637	LH FRONT WHEEL	70007637 LH FRONT WHEEL 9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version	-	1	Enquire
0001	70007638	RH FRONT WHEEL	70007638 RH FRONT WHEEL 9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version	-	1	Enquire
0001	70007639	REAR WHEEL	70007639 REAR WHEEL 11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See detail A/C; Off-catalogue version	-	2	Enquire
0001	70007640	LH REAR WHEEL	70007640 LH REAR WHEEL 11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version	-	1	Enquire
0001	70007641	RH REAR WHEEL	70007641 RH REAR WHEEL 11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version	-	1	Enquire
0002	939581	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	939581 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	-	4	Enquire
0002	939582	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	939582 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	-	4	Enquire
0003	913102	VALVE	913102 VALVE	-	4	Enquire
0003	913104	VALVE	913104 VALVE Applicable for carbon fibre wheels; Black	-	4	Enquire
0004	55031812	WHEEL STUD BOLT	55031812 WHEEL STUD BOLT Applicable for STD, RICS and RMSC wheels	-	20	Enquire
0004	206274	WHEEL STUD BOLT IN STOCK	206274 WHEEL STUD BOLT Applicable for RMCF, RMSV, RSFD and RSFG wheels; Titanium IN STOCK	-	20	Enquire
0005	11F2721CP	SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205 IN STOCK	11F2721CP SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205 IN STOCK	-	4	Enquire
0005	889561	HUB CAP	889561 HUB CAP Carbon	-	4	Enquire
0006	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT Not for rmcf carbon fibre wheels	-	-	Enquire
0006	308296	ADHESIVE WHEEL BALANCER WEIGHT	308296 ADHESIVE WHEEL BALANCER WEIGHT Applicable for RMCF carbon fibre wheels	-	-	Enquire
