EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari 296 GTS USA

View All

Ferrari 296 GTS USA - EXHAUST SYSTEM - FRONT SECTION

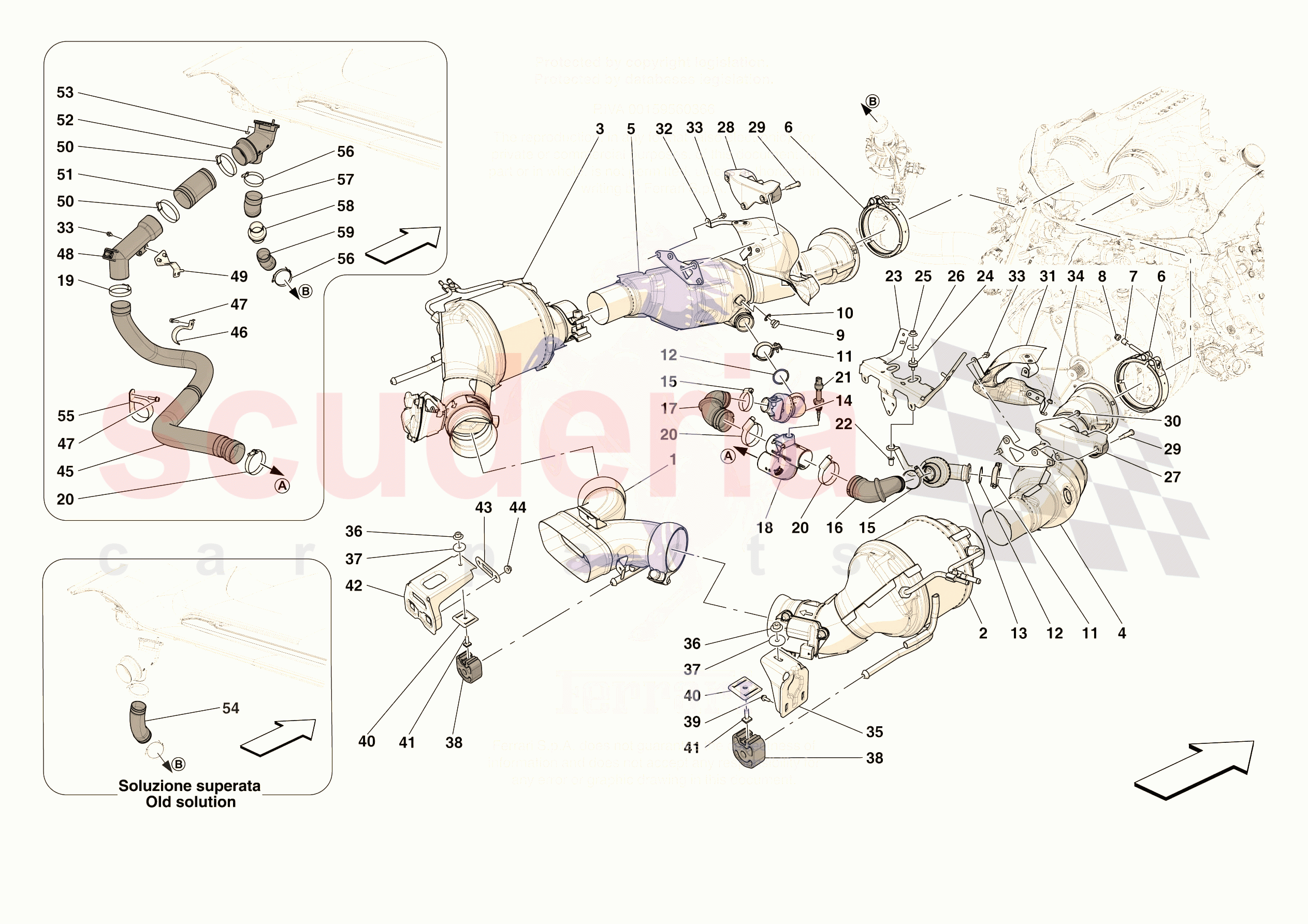

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	769752	TAILPIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876357	COMPL. RH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876361	COMPL. LH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814772	COMPL. RH. PRE-CAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814926	COMPL. LH. PRE-CAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292946	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292945	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	855141	V-CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898288	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	745957	RH RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	745958	LH RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	890701	RH HOT PIPE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	890830	LH HOT PIPE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	888606	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	890950	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248153	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	905806	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059221	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801190	COMPL. RH PRE-CAT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801200	COMPL. LH PRE-CAT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	934525	THREADED PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818503	RH PRE-CAT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818490	LH PRE-CAT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	783566	GPF MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239798	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	783565	TAILPIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	784547	FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821928	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880303	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797726	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824897	RIGID HOT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834616	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262383	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827166	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825404	HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	833470	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	920159	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819346	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786536	COMPL. MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818449	HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	769752	TAILPIPE	769752 TAILPIPE	-	1	Enquire
0002	876357	COMPL. RH GPF	876357 COMPL. RH GPF	-	1	Enquire
0003	876361	COMPL. LH GPF	876361 COMPL. LH GPF	-	1	Enquire
0004	814772	COMPL. RH. PRE-CAT	814772 COMPL. RH. PRE-CAT	-	1	Enquire
0005	814926	COMPL. LH. PRE-CAT	814926 COMPL. LH. PRE-CAT	-	1	Enquire
0006	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	290743 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	-	2	Enquire
0007	292946	SPACER	292946 SPACER	-	2	Enquire
0008	292945	NUT	292945 NUT M8 X1.25 X 11	-	2	Enquire
0009	110860	THREADED PLUG	110860 THREADED PLUG	-	2	Enquire
0010	10298460	GASKET	10298460 GASKET	-	2	Enquire
0011	855141	V-CLAMP	855141 V-CLAMP	-	2	Enquire
0012	898288	GASKET	898288 GASKET	-	2	Enquire
0013	745957	RH RESONATOR	745957 RH RESONATOR	-	1	Enquire
0014	745958	LH RESONATOR	745958 LH RESONATOR	-	1	Enquire
0015	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
0016	890701	RH HOT PIPE HOSE	890701 RH HOT PIPE HOSE	-	1	Enquire
0017	890830	LH HOT PIPE HOSE	890830 LH HOT PIPE HOSE	-	1	Enquire
0018	888606	3-WAY CONNECTOR	888606 3-WAY CONNECTOR	-	1	Enquire
0019	262116	COLLAR	262116 COLLAR	-	1	Enquire
0020	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	3	Enquire
0021	890950	TEMPERATURE SENSOR	890950 TEMPERATURE SENSOR	-	1	Enquire
0022	248153	RIVET	248153 RIVET	-	2	Enquire
0023	905806	BRACKET	905806 BRACKET	-	1	Enquire
0024	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	2	Enquire
0025	14059221	NUT	14059221 NUT	-	2	Enquire
0026	12647724	WASHER	12647724 WASHER	-	2	Enquire
0027	801190	COMPL. RH PRE-CAT MOUNTING BRACKET	801190 COMPL. RH PRE-CAT MOUNTING BRACKET	-	1	Enquire
0028	801200	COMPL. LH PRE-CAT MOUNTING BRACKET	801200 COMPL. LH PRE-CAT MOUNTING BRACKET	-	1	Enquire
0029	934525	THREADED PIN	934525 THREADED PIN	-	4	Enquire
0030	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	-	8	Enquire
0031	818503	RH PRE-CAT HEAT SHIELD	818503 RH PRE-CAT HEAT SHIELD	-	1	Enquire
0032	818490	LH PRE-CAT HEAT SHIELD	818490 LH PRE-CAT HEAT SHIELD	-	1	Enquire
0033	797724	SCREW	797724 SCREW M5 X 14	-	8	Enquire
0034	14059190	NUT	14059190 NUT M5	-	2	Enquire
0035	783566	GPF MOUNTING BRACKET	783566 GPF MOUNTING BRACKET	-	2	Enquire
0036	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
0037	12648978	WASHER	12648978 WASHER	-	3	Enquire
0038	239798	FLEXIBLE SILENCER MOUNTING BUSH	239798 FLEXIBLE SILENCER MOUNTING BUSH	-	3	Enquire
0039	85833700	SCREW	85833700 SCREW M5 X 16	-	5	Enquire
0040	240598	PLATE	240598 PLATE	-	3	Enquire
0041	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM M6 X 18.5	-	3	Enquire
0042	783565	TAILPIPE FASTENER BRACKET	783565 TAILPIPE FASTENER BRACKET	-	1	Enquire
0043	784547	FASTENER PLATE	784547 FASTENER PLATE	-	1	Enquire
0044	14059211	NUT	14059211 NUT M6	-	2	Enquire
0045	821928	COILED PIPE	821928 COILED PIPE	-	1	Enquire
0046	880303	BRACKET	880303 BRACKET	-	1	Enquire
0047	797726	SCREW	797726 SCREW M5 X 20	-	1	Enquire
0048	824897	RIGID HOT PIPE	824897 RIGID HOT PIPE	-	1	Enquire
0049	834616	BRACKET	834616 BRACKET	-	1	Enquire
0050	262383	COLLAR	262383 COLLAR	-	2	Enquire
0051	827166	HOSE	827166 HOSE	-	1	Enquire
0052	825404	HORN	825404 HORN	-	1	Enquire
0053	13046011	NUT	13046011 NUT	-	1	Enquire
0054	833470	HOSE	833470 HOSE	-	1	Enquire
0055	920159	BRACKET	920159 BRACKET	-	1	Enquire
0056	262114	COLLAR	262114 COLLAR	-	4	Enquire
0057	819346	HOSE	819346 HOSE	-	1	Enquire
0058	786536	COMPL. MEMBRANE HOLDER PIPE	786536 COMPL. MEMBRANE HOLDER PIPE	-	1	Enquire
0059	818449	HOSE	818449 HOSE	-	1	Enquire
