INVERTER COOLING of Ferrari Ferrari 296 GTB USA

View All

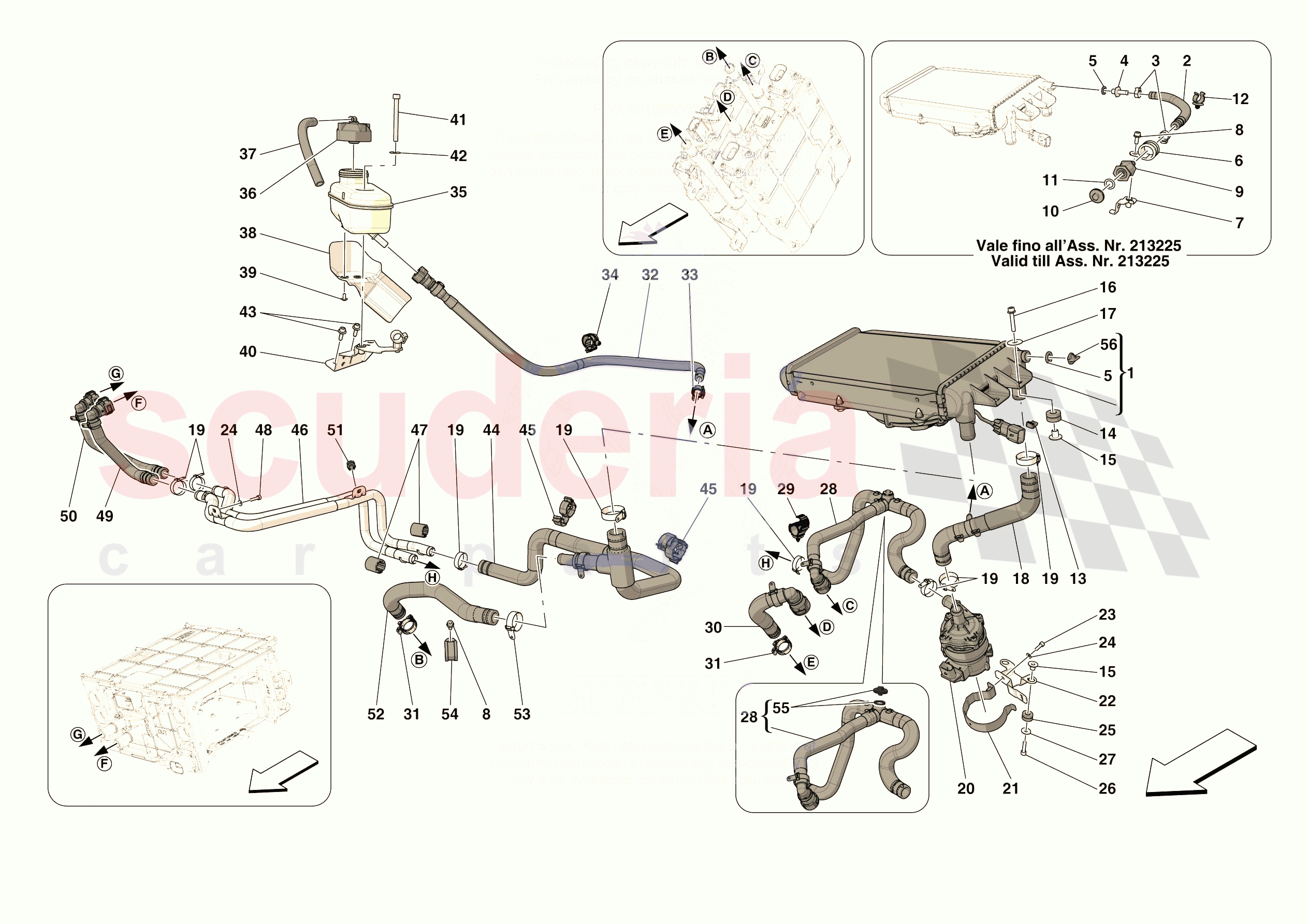

Ferrari 296 GTB USA - INVERTER COOLING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	916353	COMPL. INVERTER COOLING WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	742233	RADIATOR BREATHER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	746792	RADIATOR SIDE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	746585	RADIATOR BREATHER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	742124	BREATHER HOSE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	746806	VALVE SIDE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851664	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14457285	SEAL	Enquire	To Order
	784711	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	773116	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	870715	HOSE FROM RADIATOR OUTLET TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	908587	PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	798517	U-BOLT FOR WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	960250	INVERTER PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304287	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305487	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	870714	HOSE FROM PUMP TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958817	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292980	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	798460	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868787	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828986	INVERTER COOLING TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145030	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791804	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777874	INVERTER COOLING TANK SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	951756	INVERTER COOLING TANK MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968516	RADIATOR INLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	928316	ALUMINIUM DELIVERY AND RETURN PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316986	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304387	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958816	INVERTER OUTLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958821	INVERTER INLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788664	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	799507	BLEED VALVE SCREW COMPL. WITH OR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	987355	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	916353	COMPL. INVERTER COOLING WATER RADIATOR	916353 COMPL. INVERTER COOLING WATER RADIATOR	-	1	Enquire
0002	742233	RADIATOR BREATHER HOSE	742233 RADIATOR BREATHER HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	-	1	Enquire
0003	13126970	COLLAR	13126970 COLLAR	-	2	Enquire
0004	746792	RADIATOR SIDE HOSE	746792 RADIATOR SIDE HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	-	1	Enquire
0005	746585	RADIATOR BREATHER GASKET	746585 RADIATOR BREATHER GASKET	-	1	Enquire
0006	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	1	Enquire
0007	742124	BREATHER HOSE MOUNTING BRACKET	742124 BREATHER HOSE MOUNTING BRACKET After depletion, order cap 987355 ref. 56; Applies until depletion	-	1	Enquire
0008	797724	SCREW	797724 SCREW M5 X 14	-	2	Enquire
0009	746806	VALVE SIDE HOSE	746806 VALVE SIDE HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	-	1	Enquire
0010	851664	BLEED SCREW	851664 BLEED SCREW After depletion, order cap 987355 ref. 56; Applies until depletion	-	1	Enquire
0011	14457285	SEAL	14457285 SEAL After depletion, order cap 987355 ref. 56; No longer supplied - Replaced by 784711	-	1	Enquire
0011	784711	O-RING	784711 O-RING Applies until depletion	-	1	Enquire
0012	257273	CLIP	257273 CLIP	-	1	Enquire
0013	773116	PIN	773116 PIN No longer supplied	-	1	Enquire
0014	177576	CABLE GROMMET	177576 CABLE GROMMET	-	3	Enquire
0015	149707	SPACER	149707 SPACER	-	5	Enquire
0016	797730	SCREW	797730 SCREW M5 X 30	-	3	Enquire
0017	12647778	WASHER	12647778 WASHER	-	3	Enquire
0018	870715	HOSE FROM RADIATOR OUTLET TO PUMP	870715 HOSE FROM RADIATOR OUTLET TO PUMP	-	1	Enquire
0019	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	8	Enquire
0020	908587	PUMP	908587 PUMP	-	1	Enquire
0021	798517	U-BOLT FOR WATER PUMP	798517 U-BOLT FOR WATER PUMP	-	1	Enquire
0022	960250	INVERTER PUMP MOUNTING BRACKET	960250 INVERTER PUMP MOUNTING BRACKET	-	1	Enquire
0023	14304287	SCREW	14304287 SCREW M5 X 16	-	1	Enquire
0024	62769800	WASHER	62769800 WASHER	-	3	Enquire
0025	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
0026	14305487	SCREW	14305487 SCREW M6 X 25	-	2	Enquire
0027	12643778	WASHER	12643778 WASHER 18 X 1.5	-	2	Enquire
0028	870714	HOSE FROM PUMP TO DISCONNECTOR	870714 HOSE FROM PUMP TO DISCONNECTOR	-	1	Enquire
0029	248061	CLIP	248061 CLIP	-	1	Enquire
0030	958817	HOSE	958817 HOSE	-	1	Enquire
0031	292980	COLLAR	292980 COLLAR	-	2	Enquire
0032	798460	HOSE	798460 HOSE	-	1	Enquire
0033	868787	COLLAR	868787 COLLAR	-	1	Enquire
0034	259508	CLIP	259508 CLIP 1 compartment-	-	1	Enquire
0035	828986	INVERTER COOLING TANK	828986 INVERTER COOLING TANK	-	1	Enquire
0036	145030	CAP WITH BREATHER	145030 CAP WITH BREATHER	-	1	Enquire
0037	791804	RUBBER PIPE	791804 RUBBER PIPE	-	1	Enquire
0038	777874	INVERTER COOLING TANK SHIELD	777874 INVERTER COOLING TANK SHIELD	-	1	Enquire
0039	15689501	SCREW	15689501 SCREW	-	2	Enquire
0040	951756	INVERTER COOLING TANK MOUNTING BRACKET	951756 INVERTER COOLING TANK MOUNTING BRACKET	-	1	Enquire
0041	14303834	SCREW	14303834 SCREW M6 X 60	-	1	Enquire
0042	13577724	WASHER	13577724 WASHER	-	1	Enquire
0043	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
0044	968516	RADIATOR INLET HOSE	968516 RADIATOR INLET HOSE	-	1	Enquire
0045	270085	CLIP	270085 CLIP	-	4	Enquire
0046	928316	ALUMINIUM DELIVERY AND RETURN PIPES	928316 ALUMINIUM DELIVERY AND RETURN PIPES	-	1	Enquire
0047	316986	SPACER	316986 SPACER	-	2	Enquire
0048	14304387	SCREW	14304387 SCREW M5 X 20	-	2	Enquire
0049	958816	INVERTER OUTLET HOSE	958816 INVERTER OUTLET HOSE	-	1	Enquire
0050	958821	INVERTER INLET HOSE	958821 INVERTER INLET HOSE	-	1	Enquire
0051	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
0052	788664	HOSE	788664 HOSE	-	1	Enquire
0053	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP D.17 - 25	-	1	Enquire
0054	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
0055	799507	BLEED VALVE SCREW COMPL. WITH OR	799507 BLEED VALVE SCREW COMPL. WITH OR	-	1	Enquire
0056	987355	CAP	987355 CAP M10 X 15	-	1	Enquire
