AIR FILTER, AIR INTAKE AND DUCTS

Find Your Part

Ferrari 296 GTB USA - AIR FILTER, AIR INTAKE AND DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
807318 COMPL. RH AIR FILTER BOX $760.81 To Order
900155 COMPL. RH AIR FILTER BOX $960.39 To Order
807881 COMPL. RH AIR FILTER BOX $1,026.25 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
807317 COMPL. LH AIR FILTER BOX $760.81 To Order
900147 COMPL. LH AIR FILTER BOX $960.39 To Order
807882 COMPL. LH AIR FILTER BOX $1,026.25 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
741701 AIR FILTER $434.98 To Order
768721 AIR FILTER $726.15 To Order
Photo Part No Description Price (each) Stock
900284 HOSE SCREW COLLAR D.80-100 X 9 $6.06 To Order
900284 HOSE SCREW COLLAR D.80-100 X 9 $6.06 To Order
Photo Part No Description Price (each) Stock
793183 LOWER FASTENER BRACKET $67.36 To Order
Photo Part No Description Price (each) Stock
797730 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
790361 SCREW $1.26 To Order
Photo Part No Description Price (each) Stock
812151 RH INTAKE DUCT CONNECTOR $136.37 To Order
Photo Part No Description Price (each) Stock
812150 LH INTAKE DUCT CONNECTOR $144.40 To Order
Photo Part No Description Price (each) Stock
856171 RH TURBO INTAKE DUCT Enquire To Order
799437 RH TURBO INTAKE DUCT $83.42 To Order
Photo Part No Description Price (each) Stock
856167 LH TURBO INTAKE DUCT Enquire To Order
799436 LH TURBO INTAKE DUCT $80.21 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
859736 PRESSURE AND TEMPERATURE SENSOR $52.25 To Order
Photo Part No Description Price (each) Stock
282394 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
786532 FLANGE GASKET $8.85 To Order
Photo Part No Description Price (each) Stock
308398 SCREW $0.47 To Order
View All

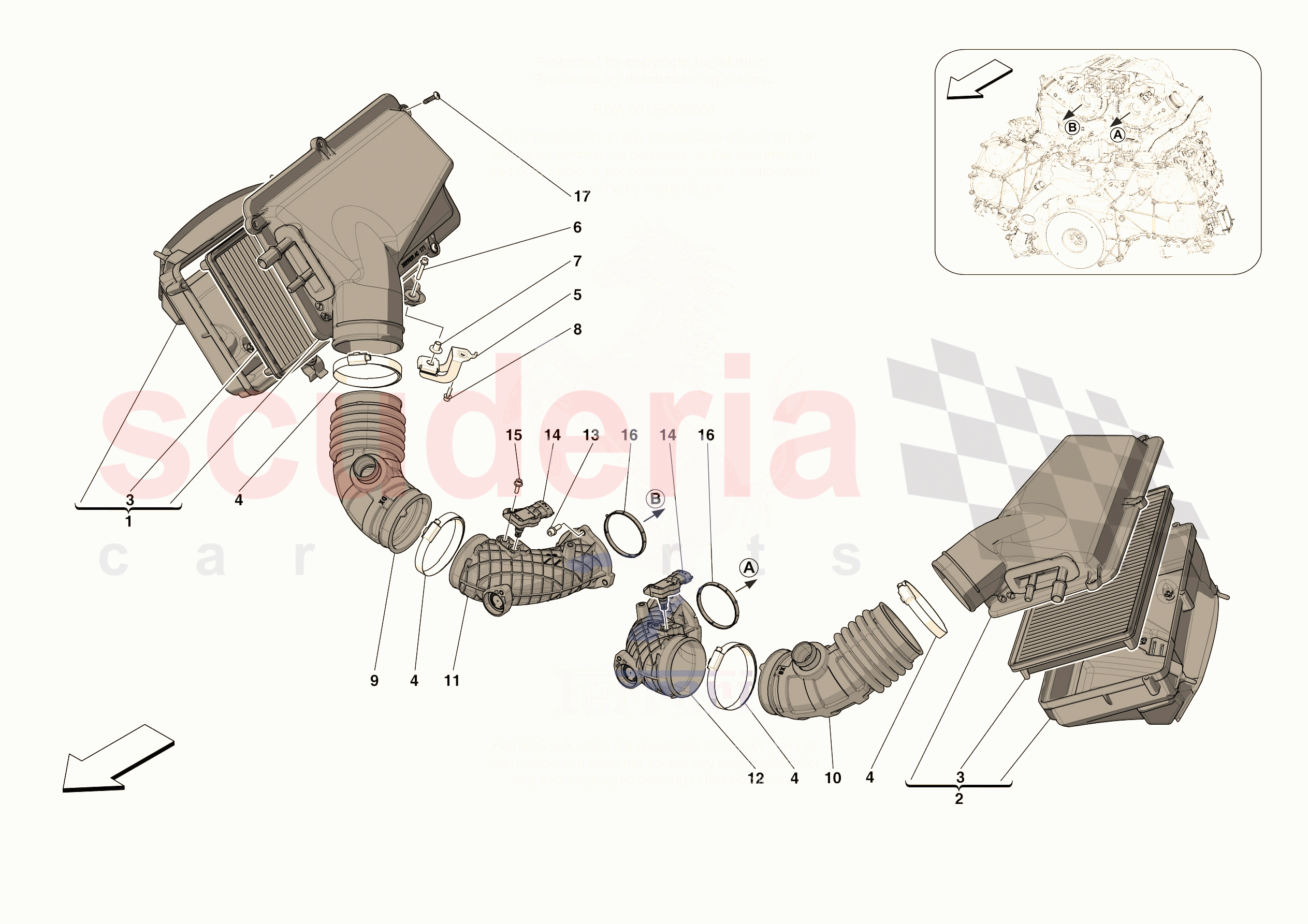

AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 807318
COMPL. RH AIR FILTER BOX
No longer supplied - Replaced by 900155 		$760.81 1
0001 900155
COMPL. RH AIR FILTER BOX 		$960.39 1
0001 807881
COMPL. RH AIR FILTER BOX
No longer supplied - Replaced by 900167 		$1,026.25 1
0001 900167
COMPL. RH AIR FILTER BOX 		$1,275.75 1
0001 831894
COMPL. RH AIR FILTER BOX
Gloss finish carbon version; No longer supplied - Replaced by 875960 		$4,555.96 1
0001 875960
COMPL. RH AIR FILTER BOX
Gloss finish carbon version; Applies until depletion 		$5,475.78 1
0001 900258
COMPL. RH AIR FILTER BOX
Gloss finish carbon version; Applicable after depletion of 875960 		$5,477.22 1
0001 876102
COMPL. RH AIR FILTER BOX
Gloss finish carbon version; Applies until depletion 		$5,624.86 1
0001 900320
COMPL. RH AIR FILTER BOX
Gloss finish carbon version; Applicable after depletion of 876102 		$5,807.03 1
0001 876294
COMPL. RH AIR FILTER BOX
Matte finish carbon version; Applies until depletion 		$5,530.26 1
0001 900323
COMPL. RH AIR FILTER BOX
Matte finish carbon version; Applicable after depletion of 876294 		$5,531.70 1
0001 876301
COMPL. RH AIR FILTER BOX
Matte finish carbon version; Applies until depletion 		$5,680.76 1
0001 902313
COMPL. RH AIR FILTER BOX
Matte finish carbon version; Applicable after depletion of 876301 		$5,680.76 1
0001 70007632
COMPL. RH AIR FILTER BOX
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0001 70007633
COMPL. RH AIR FILTER BOX
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0002 807317
COMPL. LH AIR FILTER BOX
No longer supplied - Replaced by 900147 		$760.81 1
0002 900147
COMPL. LH AIR FILTER BOX 		$960.39 1
0002 807882
COMPL. LH AIR FILTER BOX
No longer supplied - Replaced by 900166 		$1,026.25 1
0002 900166
COMPL. LH AIR FILTER BOX 		$1,275.75 1
0002 831891
COMPL. LH AIR FILTER BOX
Gloss finish carbon version; No longer supplied - Replaced by 875958 		$4,555.96 1
0002 875958
COMPL. LH AIR FILTER BOX
Gloss finish carbon version; Applies until depletion 		$5,475.78 1
0002 900255
COMPL. LH AIR FILTER BOX
Gloss finish carbon version; Applicable after depletion of 875958 		$5,477.22 1
0002 876048
COMPL. LH AIR FILTER BOX
Gloss finish carbon version; Applies until depletion 		$5,624.86 1
0002 900319
COMPL. LH AIR FILTER BOX
Gloss finish carbon version; Applicable after depletion of 876048 		$5,807.03 1
0002 876293
COMPL. LH AIR FILTER BOX
Matte finish carbon version; Applies until depletion 		$5,530.26 1
0002 900322
COMPL. LH AIR FILTER BOX
Matte finish carbon version; Applicable after depletion of 876293 		$5,531.70 1
0002 876298
COMPL. LH AIR FILTER BOX
Matte finish carbon version; Applies until depletion 		$5,680.76 1
0002 902290
COMPL. LH AIR FILTER BOX
Matte finish carbon version; Applicable after depletion of 876298 		$5,680.76 1
0002 70007634
COMPL. LH AIR FILTER BOX
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0002 70007635
COMPL. LH AIR FILTER BOX
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0003 741701
AIR FILTER 		$434.98 2
0003 768721
AIR FILTER 		$726.15 2
0004 900284
HOSE SCREW COLLAR D.80-100 X 9 		$6.06 4
0004 900284
HOSE SCREW COLLAR D.80-100 X 9 		$6.06 4
0005 793183
LOWER FASTENER BRACKET 		$67.36 2
0006 797730
SCREW
M5 X 30 		$0.58 2
0007 149707
SPACER 		$1.17 (33.1% off) 4
0008 790361
SCREW
M5 X 16 		$1.26 2
0009 812151
RH INTAKE DUCT CONNECTOR 		$136.37 1
0010 812150
LH INTAKE DUCT CONNECTOR 		$144.40 1
0011 856171
RH TURBO INTAKE DUCT
No longer supplied - Replaced by 799437 		- 1 Enquire
0011 799437
RH TURBO INTAKE DUCT 		$83.42 1
0012 856167
LH TURBO INTAKE DUCT
No longer supplied - Replaced by 799436 		- 1 Enquire
0012 799436
LH TURBO INTAKE DUCT 		$80.21 1
0013 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 2
0014 859736
PRESSURE AND TEMPERATURE SENSOR 		$52.25 2
0015 282394
SCREW
M6 X 18 		$0.73 6
0016 786532
FLANGE GASKET 		$8.85 2
0017 308398
SCREW 		$0.47 8
