EXHAUST SYSTEM - FRONT SECTION

Find Your Part

Ferrari 296 GTB USA - EXHAUST SYSTEM - FRONT SECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
769752 TAILPIPE $692.94 To Order
Photo Part No Description Price (each) Stock
787839 COMPL. RH GPF Enquire To Order
876357 COMPL. RH GPF $14,943.61 To Order
Photo Part No Description Price (each) Stock
787856 COMPL. LH GPF Enquire To Order
876361 COMPL. LH GPF $14,943.61 To Order
Photo Part No Description Price (each) Stock
814772 COMPL. RH. PRE-CAT $16,251.08 To Order
Photo Part No Description Price (each) Stock
814926 COMPL. LH. PRE-CAT $16,315.59 To Order
Photo Part No Description Price (each) Stock
290743 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD $107.49 To Order
Photo Part No Description Price (each) Stock
292946 SPACER $7.93 To Order
Photo Part No Description Price (each) Stock
292945 NUT $13.70 To Order
Photo Part No Description Price (each) Stock
110860 THREADED PLUG $15.48 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 To Order
Photo Part No Description Price (each) Stock
855141 V-CLAMP $45.85 To Order
Photo Part No Description Price (each) Stock
898288 GASKET $21.17 To Order
Photo Part No Description Price (each) Stock
745957 RH RESONATOR $888.72 To Order
Photo Part No Description Price (each) Stock
745958 LH RESONATOR $888.72 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.00 To Order
Photo Part No Description Price (each) Stock
890701 RH HOT PIPE HOSE $65.92 To Order
Photo Part No Description Price (each) Stock
890830 LH HOT PIPE HOSE $65.92 To Order
Photo Part No Description Price (each) Stock
262116 COLLAR $3.13 To Order
Photo Part No Description Price (each) Stock
888606 3-WAY CONNECTOR $101.75 To Order
Photo Part No Description Price (each) Stock
248153 RIVET $1.46 To Order
Photo Part No Description Price (each) Stock
905806 BRACKET $117.52 To Order
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
890950 TEMPERATURE SENSOR $113.05 To Order
Photo Part No Description Price (each) Stock
87940800 NUT $3.16 To Order
Photo Part No Description Price (each) Stock
801190 COMPL. RH PRE-CAT MOUNTING BRACKET $240.67 To Order
Photo Part No Description Price (each) Stock
801200 COMPL. LH PRE-CAT MOUNTING BRACKET $240.67 To Order
Photo Part No Description Price (each) Stock
934525 THREADED PIN $7.84 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
818503 RH PRE-CAT HEAT SHIELD $372.69 To Order
Photo Part No Description Price (each) Stock
818490 LH PRE-CAT HEAT SHIELD $372.69 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
783566 GPF MOUNTING BRACKET $61.62 To Order
Photo Part No Description Price (each) Stock
239798 FLEXIBLE SILENCER MOUNTING BUSH $78.61 To Order
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM $2.51 To Order
Photo Part No Description Price (each) Stock
240598 BRACKET PLATE $14.10 To Order
240598 BRACKET PLATE $14.10 To Order
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
783565 TAILPIPE FASTENER BRACKET $60.18 To Order
Photo Part No Description Price (each) Stock
784547 FASTENER PLATE $9.60 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 To Order
14059211 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
14059190 NUT $0.28 To Order
Photo Part No Description Price (each) Stock
821928 COILED PIPE $372.69 To Order
Photo Part No Description Price (each) Stock
812266 RIGID PIPE $77.39 To Order
Photo Part No Description Price (each) Stock
904497 COILED PIPE $315.34 To Order
Photo Part No Description Price (each) Stock
910470 HORN $186.33 To Order
Photo Part No Description Price (each) Stock
904486 COILED PIPE Enquire To Order
867958 COILED PIPE $358.34 To Order
Photo Part No Description Price (each) Stock
920266 COILED PIPE MOUNTING BRACKET $24.34 To Order
Photo Part No Description Price (each) Stock
811893 CLAMP $1.26 To Order
Photo Part No Description Price (each) Stock
919968 CLIP $1.07 To Order
Photo Part No Description Price (each) Stock
297483 COLLAR $5.77 To Order
Photo Part No Description Price (each) Stock
16285127 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
303339 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
880303 BRACKET $27.21 To Order
Photo Part No Description Price (each) Stock
920159 BRACKET $18.62 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
896155 BRACKET $17.18 To Order
Photo Part No Description Price (each) Stock
900420 CLAMP $1.07 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
262383 COLLAR $3.13 To Order
Photo Part No Description Price (each) Stock
797726 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.00 To Order
View All

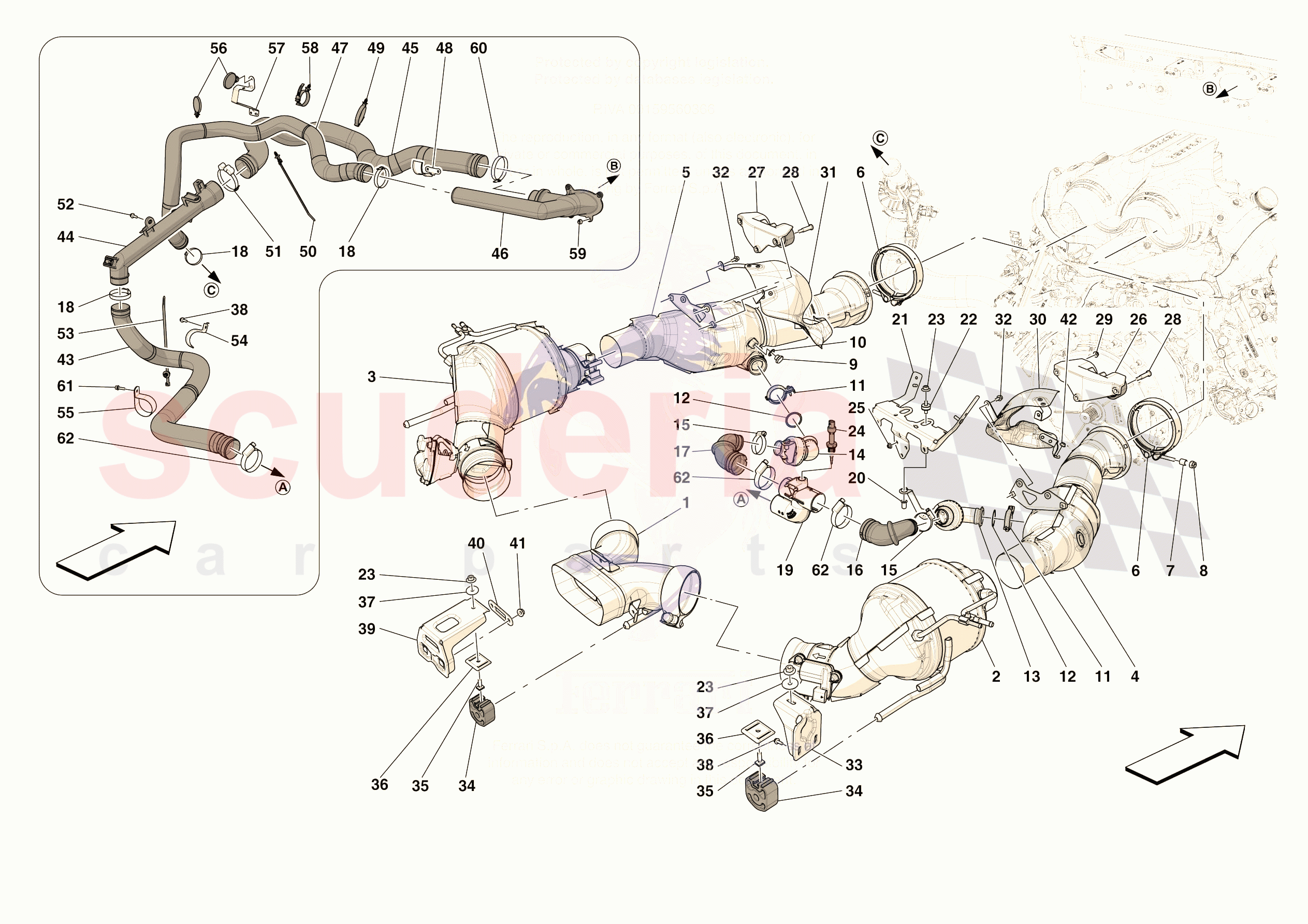

EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 769752
TAILPIPE 		$692.94 1
0002 787839
COMPL. RH GPF
In case of replacement, also order LH GPF 787856; No longer supplied - Replaced by 876357 		- 1 Enquire
0002 876357
COMPL. RH GPF
In case of replacement, also order LH GPF 876361 		$14,943.61 1
0003 787856
COMPL. LH GPF
In case of replacement, also order RH GPF 787839; No longer supplied - Replaced by 876361 		- 1 Enquire
0003 876361
COMPL. LH GPF
In case of replacement, also order RH GPF 876357 		$14,943.61 1
0004 814772
COMPL. RH. PRE-CAT 		$16,251.08 1
0005 814926
COMPL. LH. PRE-CAT 		$16,315.59 1
0006 290743
V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD 		$107.49 2
0007 292946
SPACER 		$7.93 2
0008 292945
NUT
M8 X1.25 X 11 		$13.70 2
0009 110860
THREADED PLUG 		$15.48 (14% off) 2
0010 10298460
GASKET 		$0.15 (88% off) 2
0011 855141
V-CLAMP 		$45.85 2
0012 898288
GASKET 		$21.17 2
0013 745957
RH RESONATOR 		$888.72 1
0014 745958
LH RESONATOR 		$888.72 1
0015 296781
COLLAR 30-45MM 		$9.00 2
0016 890701
RH HOT PIPE HOSE 		$65.92 1
0017 890830
LH HOT PIPE HOSE 		$65.92 1
0018 262116
COLLAR 		$3.13 3
0019 888606
3-WAY CONNECTOR 		$101.75 1
0020 248153
RIVET 		$1.46 2
0021 905806
BRACKET 		$117.52 1
0022 239829
VIBRATION DAMPER 		- 2 Enquire
0023 14059290
FLANGED NUT M6 		$1.51 5
0024 890950
TEMPERATURE SENSOR 		$113.05 1
0025 87940800
NUT 		$3.16 3
0026 801190
COMPL. RH PRE-CAT MOUNTING BRACKET 		$240.67 1
0027 801200
COMPL. LH PRE-CAT MOUNTING BRACKET 		$240.67 1
0028 934525
THREADED PIN 		$7.84 4
0029 14059290
FLANGED NUT M6
M5 		$1.51 8
0030 818503
RH PRE-CAT HEAT SHIELD 		$372.69 1
0031 818490
LH PRE-CAT HEAT SHIELD 		$372.69 1
0032 797724
SCREW
M5 X 14 		$0.47 3
0033 783566
GPF MOUNTING BRACKET 		$61.62 2
0034 239798
FLEXIBLE SILENCER MOUNTING BUSH 		$78.61 (13.8% off) 3
0035 283425
SQUARE HEADED SCREW M6 X 18.5MM
M6 X 18.5 		$2.51 3
0036 240598
BRACKET PLATE 		$14.10 (28.1% off) 3
0036 240598
BRACKET PLATE 		$14.10 (28.1% off) 3
0037 12648978
WASHER 		$0.55 3
0038 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 5
0039 783565
TAILPIPE FASTENER BRACKET 		$60.18 1
0040 784547
FASTENER PLATE 		$9.60 1
0041 14059211
NUT
M6 		$0.06 2
0041 14059211
NUT
M6 		$0.06 2
0042 14059190
NUT
M5 		$0.28 2
0043 821928
COILED PIPE 		$372.69 1
0044 812266
RIGID PIPE 		$77.39 1
0045 904497
COILED PIPE 		$315.34 1
0046 910470
HORN 		$186.33 1
0047 904486
COILED PIPE
No longer supplied - Replaced by 867958 		- 1 Enquire
0047 867958
COILED PIPE 		$358.34 1
0048 920266
COILED PIPE MOUNTING BRACKET 		$24.34 1
0049 811893
CLAMP 		$1.26 3
0050 919968
CLIP 		$1.07 1
0051 297483
COLLAR 		$5.77 1
0052 16285127
SCREW
M5 X 16 		$0.58 2
0053 303339
CLIP 		$0.31 1
0054 880303
BRACKET 		$27.21 1
0055 920159
BRACKET 		$18.62 1
0056 303385
CLIP
170 mm 		$0.31 3
0057 896155
BRACKET 		$17.18 1
0058 900420
CLAMP 		$1.07 1
0059 13046011
NUT 		$0.39 9
0060 262383
COLLAR 		$3.13 1
0061 797726
SCREW
M5 X 20 		$0.55 1
0062 296781
COLLAR 30-45MM 		$9.00 3
