Name: TANK MOUNTS
Rating: 5.0 (1 reviews)

View All

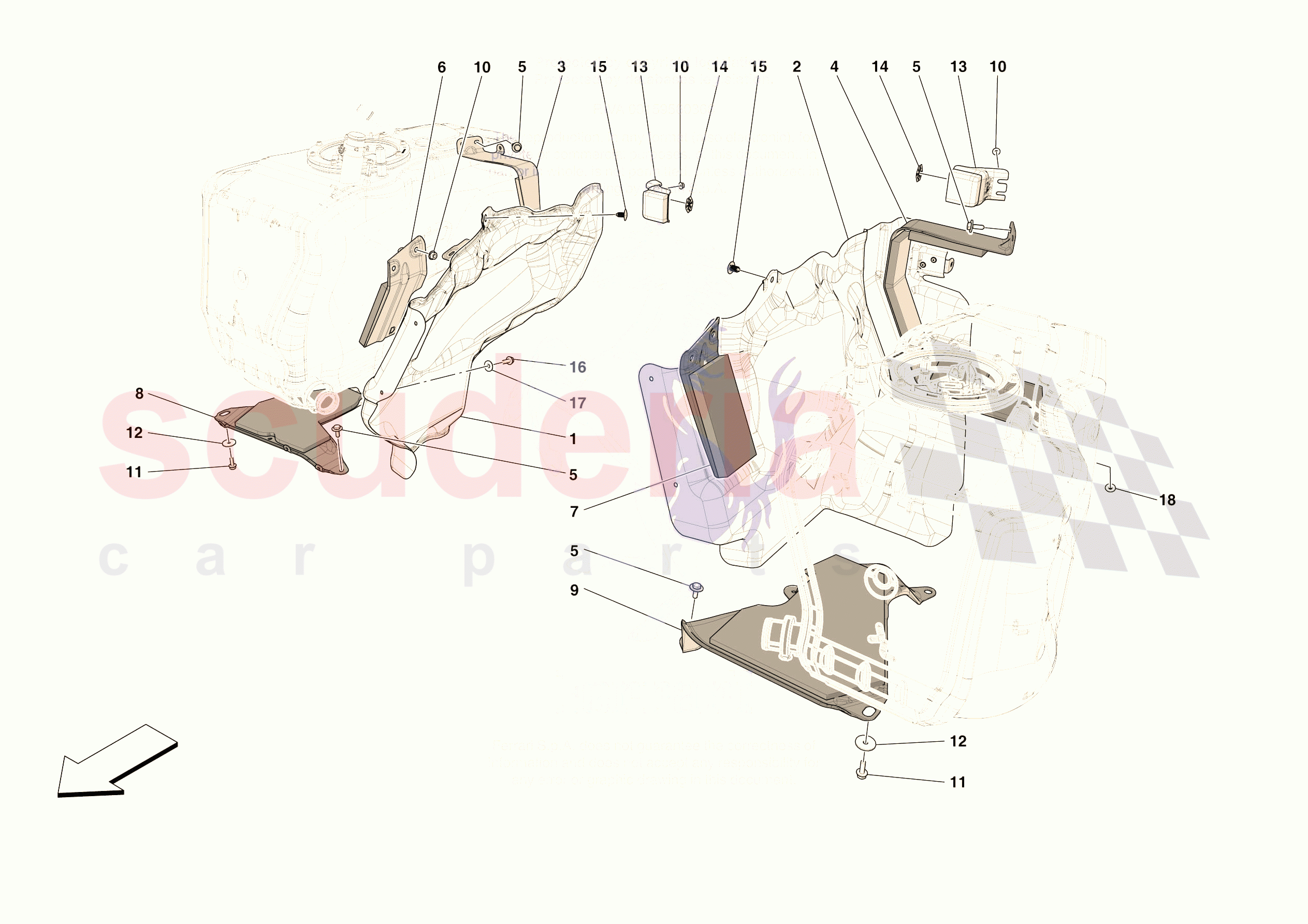

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	963428	RH TANK HEAT INSULATION	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	961534	LH TANK HEAT INSULATION	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	811842	RH REAR RETAINER	$118.95	To Order

Photo	Part No	Description	Price (each)	Stock
	811828	LH REAR RETAINER	$118.95	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	965951	RH FRONT RETAINER	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	965949	LH FRONT RETAINER	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	907328	RH LOWER SUPPORT	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	965945	LH LOWER SUPPORT	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	81923100	SCREW	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	965940	REAR TANK RETAINER	$65.92	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16281824	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	963428	RH TANK HEAT INSULATION	963428 RH TANK HEAT INSULATION	$215.00	1
0002	961534	LH TANK HEAT INSULATION	961534 LH TANK HEAT INSULATION	$215.00	1
0003	811842	RH REAR RETAINER	811842 RH REAR RETAINER	$118.95	1
0004	811828	LH REAR RETAINER	811828 LH REAR RETAINER	$118.95	1
0005	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 18	$6.18	13
0006	965951	RH FRONT RETAINER	965951 RH FRONT RETAINER	$54.46	1
0007	965949	LH FRONT RETAINER	965949 LH FRONT RETAINER	$57.33	1
0008	907328	RH LOWER SUPPORT	907328 RH LOWER SUPPORT	$150.82	1
0009	965945	LH LOWER SUPPORT	965945 LH LOWER SUPPORT	$172.00	1
0010	14040614	NUT	14040614 NUT	$0.15	8
0011	81923100	SCREW	81923100 SCREW M6 X 18	$0.60	2
0012	12640624	WASHER	12640624 WASHER	$0.16 MSRP: ~~0.29~~ (44.8% off)	2
0013	965940	REAR TANK RETAINER	965940 REAR TANK RETAINER	$65.92	2
0014	67315400	WASHER	67315400 WASHER	$0.44	2
0015	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	$0.06 MSRP: ~~0.49~~ (87.8% off)	2
0016	16281824	SCREW	16281824 SCREW M5 X 14	$0.42 MSRP: ~~1.00~~ (58% off)	4
0017	12647724	WASHER	12647724 WASHER D. 5.50 - 15 X 1	$0.15	4
0018	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
