vacuum system Engine of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - vacuum system Engine (133080)

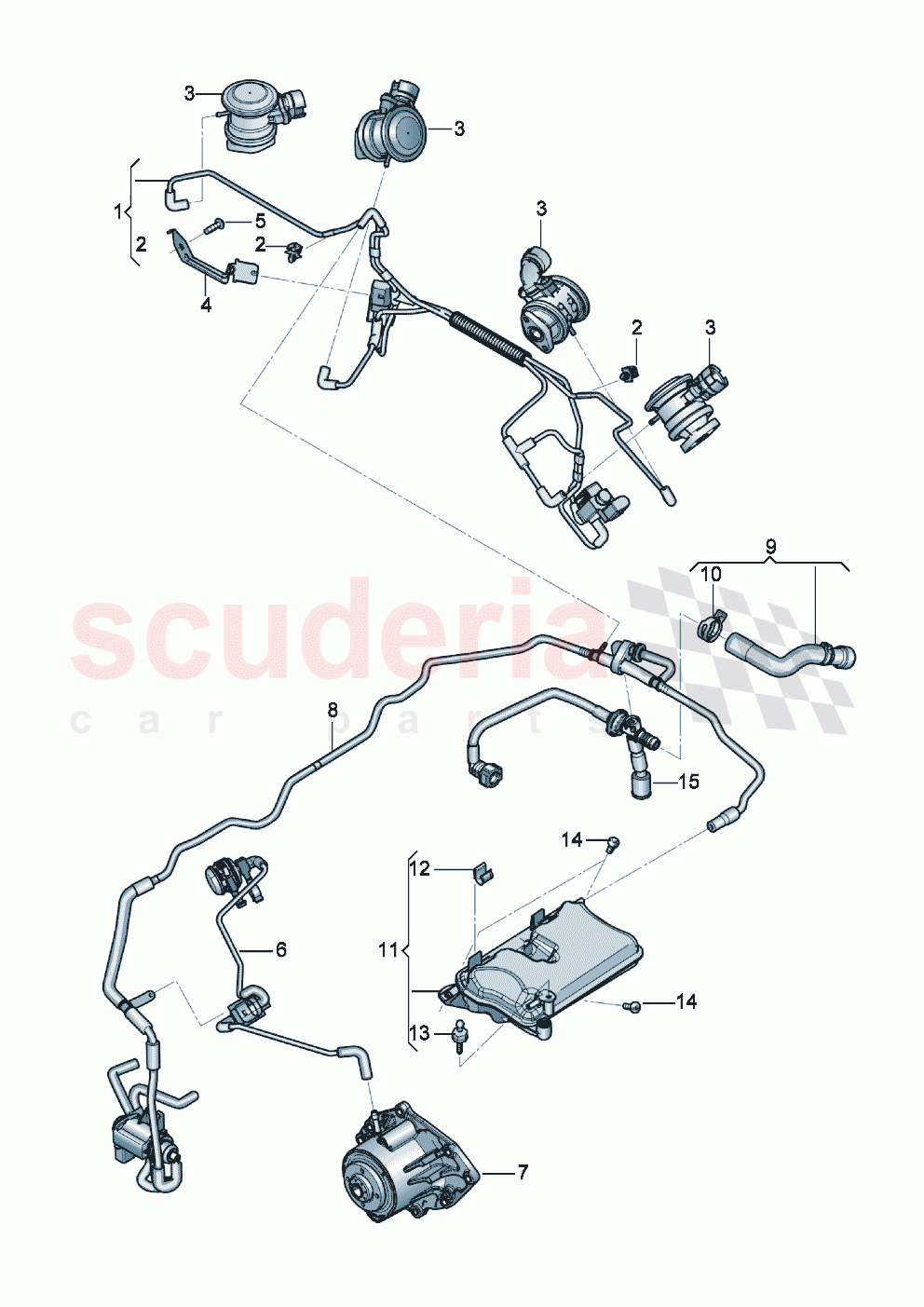

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P133778AA	1 set of vacuum pipes Secondary air valve D - 26.11.2018>> - 27.11.2023	Enquire
	7P133778AB	1 set of vacuum pipes Secondary air valve D - 27.11.2023>>	Enquire
	6M131055HB	Vacuum line	Enquire

Photo	Part No	Description	Price (each)	Stock
	37906283F	Solenoid valve	Enquire
	P2133167C	Bracket for AKF valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M906609A	Pressure converter (For turbocharger) D - 13.01.2020>>	Enquire
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P131086	Retainer for valve	Enquire
	P2131055H	1 set of vacuum pipes	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10473402	round hd. screw	Enquire
	6M130407K	Bracket	Enquire
	6H906283B	Solenoid valve See TPI	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133778G	1 set of vacuum pipes Secondary air valve See TPI D >> - 27.11.2023	Enquire
	7P133778AC	1 set of vacuum pipes (Coolant pump/pipe) See TPI D - 27.11.2023>>	Enquire
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6M919501	Temperature sensor	Enquire
	6M906609A	Pressure converter (For turbocharger) D - 13.01.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire
	P2130405C	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	975612067C	Vacuum hose does not include: D - 11.03.2019>> - 06.11.2023	Enquire
	975612067G	Vacuum hose does not include: D - 06.11.2023>>	Enquire
	6M131087F	Bracket Non-return valve	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10255601	clamp D - 11.03.2019>>	Enquire
	N90638104	Oval-head screw	Enquire
	N10335206	Hexagon socket flat head bolt	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7P133896C	vacuum reservoir D - 18.03.2019>>	Enquire
	P2133169D	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P943809	clip	Enquire
	7P5145863	Bungs	Enquire
	P2133193B	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005311	Ball screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P611931F	Vacuum hose with non-return valve D - 19.07.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2131179	Vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	79133369A	Sealing cap	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P133778AA	1 set of vacuum pipes Secondary air valve D - 26.11.2018>> - 27.11.2023	7P133778AA 1 set of vacuum pipes Secondary air valve D - 26.11.2018>> - 27.11.2023	-	1	Enquire
1	7P133778AB	1 set of vacuum pipes Secondary air valve D - 27.11.2023>>	7P133778AB 1 set of vacuum pipes Secondary air valve D - 27.11.2023>>	-	1	Enquire
1	6M131055HB	Vacuum line	6M131055HB Vacuum line	-	1	Enquire
2	37906283F	Solenoid valve	37906283F Solenoid valve	-	2	Enquire
2	P2133167C	Bracket for AKF valve	P2133167C Bracket for AKF valve side, left	-	1	Enquire
3	6M906609A	Pressure converter (For turbocharger) D - 13.01.2020>>	6M906609A Pressure converter (For turbocharger) D - 13.01.2020>>	-	2	Enquire
3	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20	-	6	Enquire
4	7P131086	Retainer for valve	7P131086 Retainer for valve	-	1	Enquire
4	P2131055H	1 set of vacuum pipes	P2131055H 1 set of vacuum pipes	-	1	Enquire
5	N10473402	round hd. screw	N10473402 round hd. screw 6X20	-	1	Enquire
5	6M130407K	Bracket	6M130407K Bracket	-	1	Enquire
5	6H906283B	Solenoid valve See TPI	6H906283B Solenoid valve See TPI 2061369/-	-	1	Enquire
6	7P133778G	1 set of vacuum pipes Secondary air valve See TPI D >> - 27.11.2023	7P133778G 1 set of vacuum pipes Secondary air valve See TPI D >> - 27.11.2023 2065919/-	-	1	Enquire
6	7P133778AC	1 set of vacuum pipes (Coolant pump/pipe) See TPI D - 27.11.2023>>	7P133778AC 1 set of vacuum pipes (Coolant pump/pipe) See TPI D - 27.11.2023>> 2065919/-	-	1	Enquire
6	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	3	Enquire
6	6M906609A	Pressure converter (For turbocharger) D - 13.01.2020>>	6M906609A Pressure converter (For turbocharger) D - 13.01.2020>>	-	1	Enquire
7	6M919501	Temperature sensor	6M919501 Temperature sensor	-	1	Enquire
7	6M906609A	Pressure converter (For turbocharger) D - 13.01.2020>>	6M906609A Pressure converter (For turbocharger) D - 13.01.2020>> left rear	-	1	Enquire
8	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	1	Enquire
8	P2130405C	Bracket	P2130405C Bracket side, left	-	1	Enquire
9	975612067C	Vacuum hose does not include: D - 11.03.2019>> - 06.11.2023	975612067C Vacuum hose does not include: D - 11.03.2019>> - 06.11.2023 10	-	1	Enquire
9	975612067G	Vacuum hose does not include: D - 06.11.2023>>	975612067G Vacuum hose does not include: D - 06.11.2023>> 10	-	1	Enquire
9	6M131087F	Bracket Non-return valve	6M131087F Bracket Non-return valve	-	1	Enquire
9	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	3	Enquire
10	N10255601	clamp D - 11.03.2019>>	N10255601 clamp D - 11.03.2019>> 23,5X7X0,6	-	1	Enquire
10	N90638104	Oval-head screw	N90638104 Oval-head screw M6X12	-	2	Enquire
10	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	2	Enquire
10	P2130407	Bracket	P2130407 Bracket side, right	-	1	Enquire
11	7P133896C	vacuum reservoir D - 18.03.2019>>	7P133896C vacuum reservoir D - 18.03.2019>>	-	1	Enquire
11	P2133169D	Bracket	P2133169D Bracket right front	-	1	Enquire
12	7P943809	clip	7P943809 clip D=10MM	-	2	Enquire
12	7P5145863	Bungs	7P5145863 Bungs	-	1	Enquire
12	P2133193B	Bracket	P2133193B Bracket left front	-	1	Enquire
13	WHT005311	Ball screw	WHT005311 Ball screw 8X5	-	1	Enquire
14	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16	-	3	Enquire
15	7P611931F	Vacuum hose with non-return valve D - 19.07.2019>>	7P611931F Vacuum hose with non-return valve D - 19.07.2019>>	-	1	Enquire
16	P2131179	Vacuum hose	P2131179 Vacuum hose	-	1	Enquire
18	79133369A	Sealing cap	79133369A Sealing cap	-	1	Enquire
