oil filter with flange Oil cooler tube for oil dipstick of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - oil filter with flange Oil cooler tube for oil dipstick (115030)

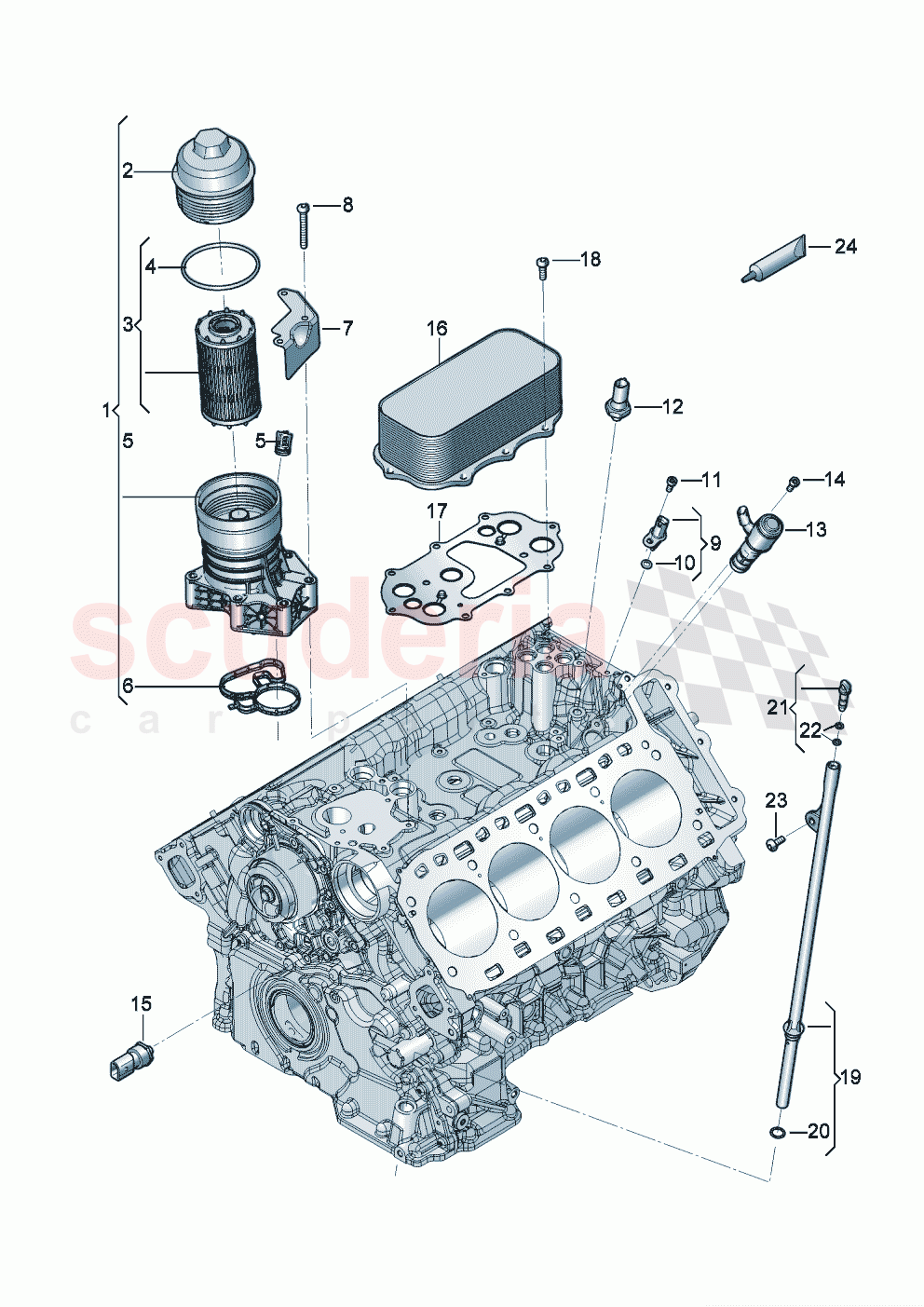

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6M115401L	Filter housing D - 22.01.2021>>	Enquire
	6M115401L	Filter housing D - 22.01.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115311E	Cover for oil filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M198405F	filter element with gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M115331A	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103175C	Non-return valve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M115441G	Seal D - 22.01.2021>>	Enquire	IN STOCK
	6M115441G	Seal D - 22.01.2021>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2119275	Heat shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10470703	round hd. screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79919525D	Temperature sensor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10285505	Socket head bolt with inner hex round head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79919081D	Oil pressure switch Low-pressure sensor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2115243D	Control valve D - 27.08.2020>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10285505	Socket head bolt with inner hex round head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6E906054J	Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023	Enquire	IN STOCK
	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2117015	Oil cooler additionally to be used items:	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2103161A	gasket for oil cooler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2115609B	tube for oil dipstick D >> - 07.11.2023	Enquire	IN STOCK
	P2115631B	tube for oil dipstick does not include: D - 07.11.2023>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	34115427B	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	59115418A	Sealing stud D >> - 07.11.2023	Enquire	IN STOCK
	4E115418B	Bungs D - 07.11.2023>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT004757	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91126601	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6M115401L	Filter housing D - 22.01.2021>>	6M115401L Filter housing D - 22.01.2021>>	-	1	Enquire
1	6M115401L	Filter housing D - 22.01.2021>>	6M115401L Filter housing D - 22.01.2021>>	-	1	Enquire
2	6M115311E	Cover for oil filter	6M115311E Cover for oil filter	-	1	Enquire
3	6M198405F	filter element with gasket IN STOCK	6M198405F filter element with gasket IN STOCK	-	1	Enquire
4	6M115331A	O-ring	6M115331A O-ring 72X3,9	-	1	Enquire
5	6M103175C	Non-return valve	6M103175C Non-return valve	-	1	Enquire
6	6M115441G	Seal D - 22.01.2021>>	6M115441G Seal D - 22.01.2021>>	-	1	Enquire
6	6M115441G	Seal D - 22.01.2021>>	6M115441G Seal D - 22.01.2021>>	-	1	Enquire
7	P2119275	Heat shield	P2119275 Heat shield	-	1	Enquire
8	N10470703	round hd. screw	N10470703 round hd. screw M6X50	-	6	Enquire
9	79919525D	Temperature sensor	79919525D Temperature sensor	-	1	Enquire
10	WHT002287C	O-ring	WHT002287C O-ring 5,6X2	-	1	Enquire
11	N10285505	Socket head bolt with inner hex round head	N10285505 Socket head bolt with inner hex round head M6X12	-	1	Enquire
12	79919081D	Oil pressure switch Low-pressure sensor	79919081D Oil pressure switch Low-pressure sensor 0,3-0,6 BAR 1 pin turquoise(gr.) M10X1	-	1	Enquire
13	P2115243D	Control valve D - 27.08.2020>>	P2115243D Control valve D - 27.08.2020>>	-	1	Enquire
14	N10285505	Socket head bolt with inner hex round head	N10285505 Socket head bolt with inner hex round head M6X12	-	1	Enquire
15	6E906054J	Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023	6E906054J Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023 3SA 971 595 AF	-	1	Enquire
15	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	5E906060A Oil pressure sender use only in conjunction with: D - 26.05.2023>> 3SA 971 595 AK	-	1	Enquire
16	P2117015	Oil cooler additionally to be used items:	P2117015 Oil cooler additionally to be used items: 17,24	-	1	Enquire
17	P2103161A	gasket for oil cooler	P2103161A gasket for oil cooler	-	1	Enquire
18	N10124306	Hexagon socket flat head bolt IN STOCK	N10124306 Hexagon socket flat head bolt M6X20 IN STOCK	-	8	Enquire
19	P2115609B	tube for oil dipstick D >> - 07.11.2023	P2115609B tube for oil dipstick D >> - 07.11.2023	-	1	Enquire
19	P2115631B	tube for oil dipstick does not include: D - 07.11.2023>>	P2115631B tube for oil dipstick does not include: D - 07.11.2023>> 20	-	1	Enquire
20	34115427B	O-ring	34115427B O-ring 12X2	-	1	Enquire
21	59115418A	Sealing stud D >> - 07.11.2023	59115418A Sealing stud D >> - 07.11.2023	-	1	Enquire
21	4E115418B	Bungs D - 07.11.2023>>	4E115418B Bungs D - 07.11.2023>>	-	1	Enquire
22	WHT004757	O-ring	WHT004757 O-ring 5X1,9	-	2	Enquire
23	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	-	1	Enquire
24	D176501A1	Silicon sealant	D176501A1 Silicon sealant	-	1	Enquire
