oil pump oil filter Oil filter bracket Oil cooler tube for oil dipstick of Bentley Bentley New Flying Spur (2020-2024)

View All

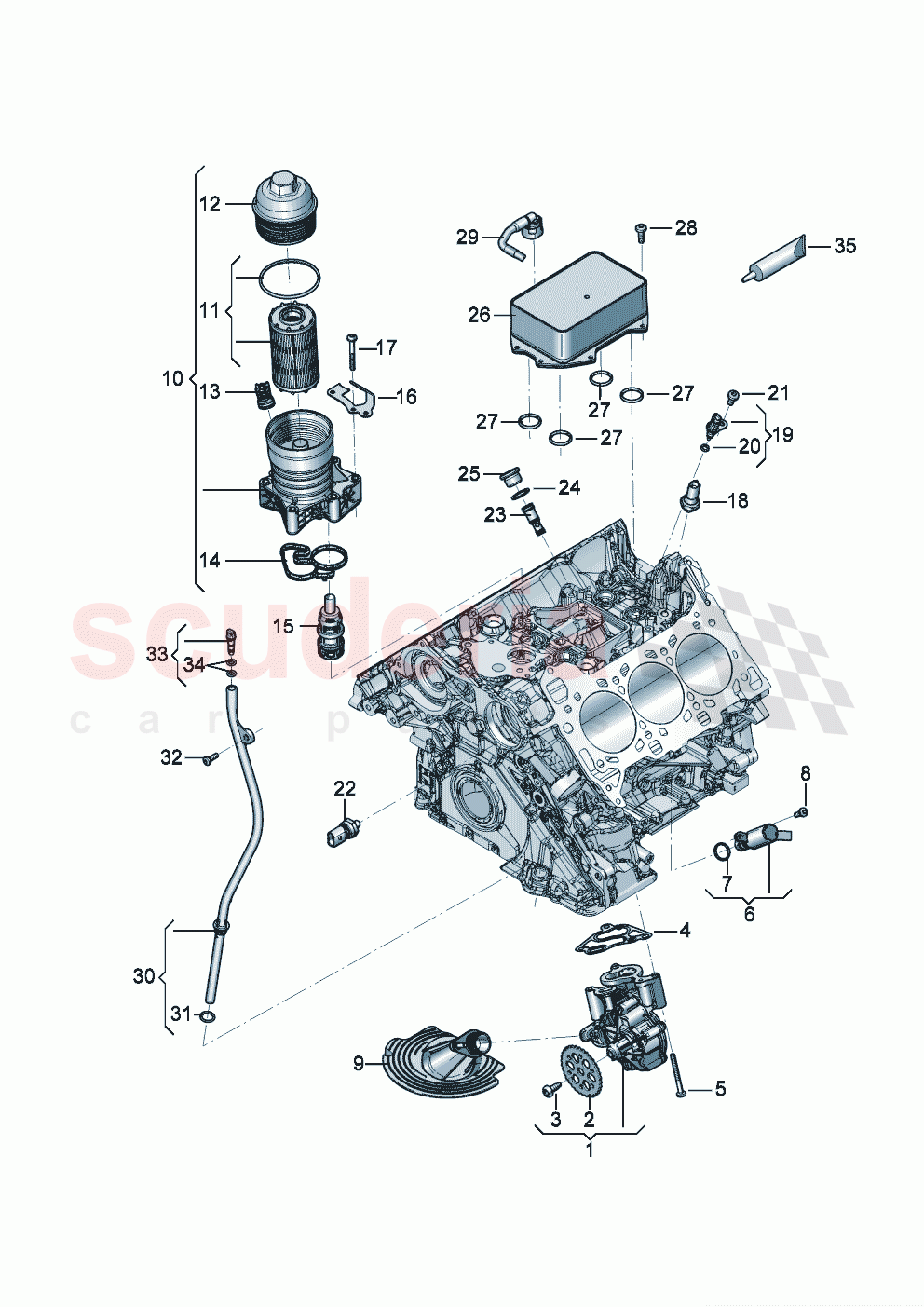

Bentley New Flying Spur (2020-2024) - oil pump oil filter Oil filter bracket Oil cooler tube for oil dipstick (115020)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6M115103T	oil pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT008061	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103161E	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10562602	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115393D	control valve D >> - 13.12.2021	Enquire
	6M115393F	control valve D - 13.12.2021>>	Enquire
	6M115393G	control valve D - 16.01.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115475	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115401L	Filter housing D - 22.01.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M198405F	filter element with gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115311E	Cover for oil filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103175C	Non-return valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115441G	Seal D - 22.01.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115201F	thermostat	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10470703	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919081D	Oil pressure switch Low-pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919525D	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E906054J	Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023	Enquire
	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103208C	Valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138272	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005804	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M117015M	Oil cooler also use: See workshop manual	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M117070G	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115609M	guide tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	34115427B	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	59115418A	Sealing stud D >> - 07.11.2023	Enquire
	4E115418B	Bungs D - 07.11.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004757	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6M115103T	oil pump	6M115103T oil pump	-	1	Enquire
3	WHT008061	Oval hexagon socket head bolt	WHT008061 Oval hexagon socket head bolt M8X22	-	1	Enquire
4	6M103161E	Seal	6M103161E Seal	-	1	Enquire
5	N10562602	round hd. screw	N10562602 round hd. screw M6X60	-	3	Enquire
6	6M115393D	control valve D >> - 13.12.2021	6M115393D control valve D >> - 13.12.2021	-	1	Enquire
6	6M115393F	control valve D - 13.12.2021>>	6M115393F control valve D - 13.12.2021>>	-	1	Enquire
6	6M115393G	control valve D - 16.01.2023>>	6M115393G control valve D - 16.01.2023>>	-	1	Enquire
7	6M115475	O-ring	6M115475 O-ring 14X2	-	1	Enquire
8	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	1	Enquire
10	6M115401L	Filter housing D - 22.01.2021>>	6M115401L Filter housing D - 22.01.2021>>	-	1	Enquire
11	6M198405F	filter element with gasket	6M198405F filter element with gasket	-	1	Enquire
12	6M115311E	Cover for oil filter	6M115311E Cover for oil filter	-	1	Enquire
13	6M103175C	Non-return valve	6M103175C Non-return valve	-	1	Enquire
14	6M115441G	Seal D - 22.01.2021>>	6M115441G Seal D - 22.01.2021>>	-	1	Enquire
15	6M115201F	thermostat	6M115201F thermostat	-	1	Enquire
17	N10470703	round hd. screw	N10470703 round hd. screw M6X50	-	6	Enquire
18	79919081D	Oil pressure switch Low-pressure sensor	79919081D Oil pressure switch Low-pressure sensor	-	1	Enquire
19	79919525D	Temperature sensor	79919525D Temperature sensor	-	1	Enquire
20	WHT002287C	O-ring	WHT002287C O-ring 5,6X2	-	1	Enquire
21	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	1	Enquire
22	6E906054J	Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023	6E906054J Pressure sensor Oil pressure sender use only in conjunction with: D >> - 26.05.2023 3SA 971 595 S	-	1	Enquire
22	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	5E906060A Oil pressure sender use only in conjunction with: D - 26.05.2023>> 3SA 971 595 AJ	-	1	Enquire
23	6M103208C	Valve	6M103208C Valve	-	1	Enquire
24	N0138272	seal ring	N0138272 seal ring 22X27	-	1	Enquire
25	WHT005804	sealing plug	WHT005804 sealing plug M22X1,5	-	1	Enquire
26	6M117015M	Oil cooler also use: See workshop manual	6M117015M Oil cooler also use: See workshop manual D 176 501 A1	-	1	Enquire
27	6M117070G	Seal	6M117070G Seal	-	4	Enquire
28	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	8	Enquire
30	6M115609M	guide tube	6M115609M guide tube	-	1	Enquire
31	34115427B	O-ring	34115427B O-ring 12X2	-	1	Enquire
32	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	1	Enquire
33	59115418A	Sealing stud D >> - 07.11.2023	59115418A Sealing stud D >> - 07.11.2023	-	1	Enquire
33	4E115418B	Bungs D - 07.11.2023>>	4E115418B Bungs D - 07.11.2023>>	-	1	Enquire
34	WHT004757	O-ring	WHT004757 O-ring 5X1,19	-	2	Enquire
35	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	-	-	Enquire
