Engine oil sump upper part Engine oil sump lower part oil level sensor of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Engine oil sump upper part Engine oil sump lower part oil level sensor (103007)

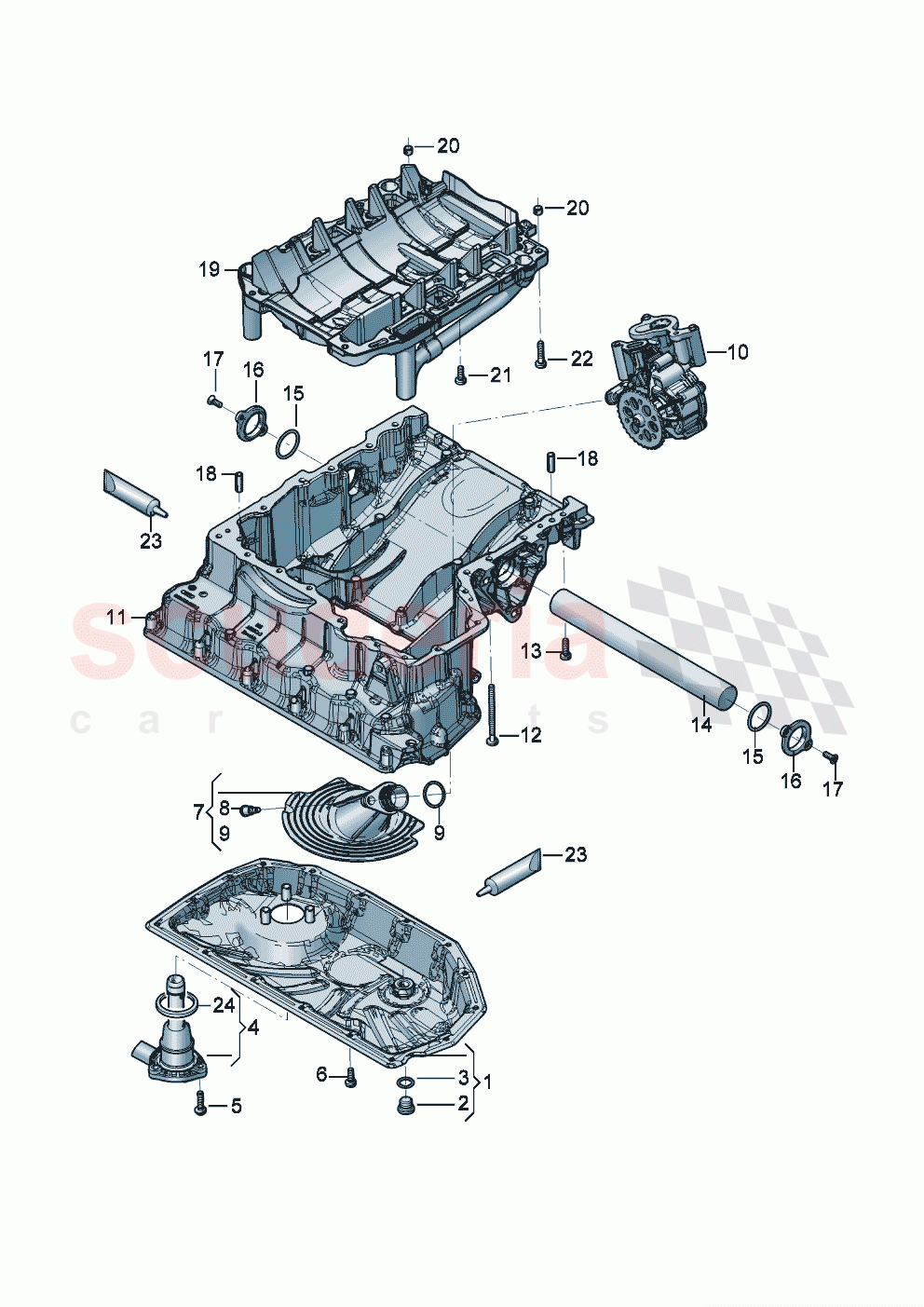

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6M103602R	oil sump	Enquire

Photo	Part No	Description	Price (each)	Stock

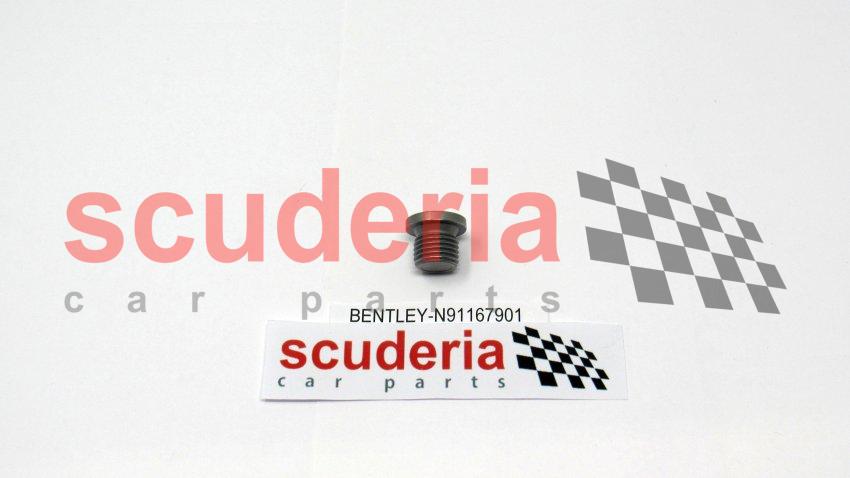

	N91167901	sealing plug	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0138498	seal ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79907660A	oil level sensor D >> - 25.01.2024	Enquire	IN STOCK
	6M907637B	oil level sensor D - 25.01.2024>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91168702	Hex socket head collared bolt see workshop manual M >> DGP 051 950	Enquire	IN STOCK
	N10653301	Hex collared bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M115155K	intake manifold	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M115113	Hex socket head bolt (combi) with: bush	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91069701	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103603AL	oil sump-upper part	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91131001	Hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10700201	Hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103689D	Tube	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90713203	O-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103708E	Cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10448506	countersunk bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	77115143B	Centre sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M115287AJ	Oil baffle plate	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	58103139	dowel sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10156206	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	38103196C	seal ring	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6M103602R	oil sump	6M103602R oil sump lower	-	1	Enquire
2	N91167901	sealing plug IN STOCK	N91167901 sealing plug M14X1,5 IN STOCK	-	1	Enquire
3	N0138498	seal ring IN STOCK	N0138498 seal ring A14X20 IN STOCK	-	1	Enquire
4	79907660A	oil level sensor D >> - 25.01.2024	79907660A oil level sensor D >> - 25.01.2024	-	1	Enquire
4	6M907637B	oil level sensor D - 25.01.2024>>	6M907637B oil level sensor D - 25.01.2024>>	-	1	Enquire
5	N10413405	Hexagon socket flat head bolt IN STOCK	N10413405 Hexagon socket flat head bolt M6X25 IN STOCK	-	3	Enquire
6	N91168702	Hex socket head collared bolt see workshop manual M >> DGP 051 950	N91168702 Hex socket head collared bolt see workshop manual M >> DGP 051 950 M6X18 aluminium	-	16	Enquire
6	N10653301	Hex collared bolt	N10653301 Hex collared bolt M6X20 steel	-	16	Enquire
7	6M115155K	intake manifold	6M115155K intake manifold	-	1	Enquire
8	6M115113	Hex socket head bolt (combi) with: bush	6M115113 Hex socket head bolt (combi) with: bush M6X26	-	1	Enquire
9	N91069701	O-ring	N91069701 O-ring 26X2,5	-	1	Enquire
11	6M103603AL	oil sump-upper part	6M103603AL oil sump-upper part	-	1	Enquire
12	N91131001	Hexagon socket head bolt	N91131001 Hexagon socket head bolt M6X80X70	-	7	Enquire
13	N10700201	Hexagon socket head bolt IN STOCK	N10700201 Hexagon socket head bolt M6X22 IN STOCK	-	12	Enquire
14	6M103689D	Tube	6M103689D Tube	-	1	Enquire
15	N90713203	O-ring IN STOCK	N90713203 O-ring 31X3 IN STOCK	-	2	Enquire
16	6M103708E	Cover	6M103708E Cover	-	2	Enquire
17	N10448506	countersunk bolt	N10448506 countersunk bolt M6X16	-	4	Enquire
18	77115143B	Centre sleeve	77115143B Centre sleeve 6,15X18	-	2	Enquire
19	6M115287AJ	Oil baffle plate	6M115287AJ Oil baffle plate	-	1	Enquire
20	58103139	dowel sleeve	58103139 dowel sleeve 8,2X6,5	-	2	Enquire
21	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	3	Enquire
22	N10156206	Oval hexagon socket head bolt	N10156206 Oval hexagon socket head bolt M6X30	-	13	Enquire
23	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	-	-	Enquire
24	38103196C	seal ring	38103196C seal ring	-	1	Enquire
