Crankcase housing Sealing flange balancer shaft of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Crankcase housing Sealing flange balancer shaft (103005)

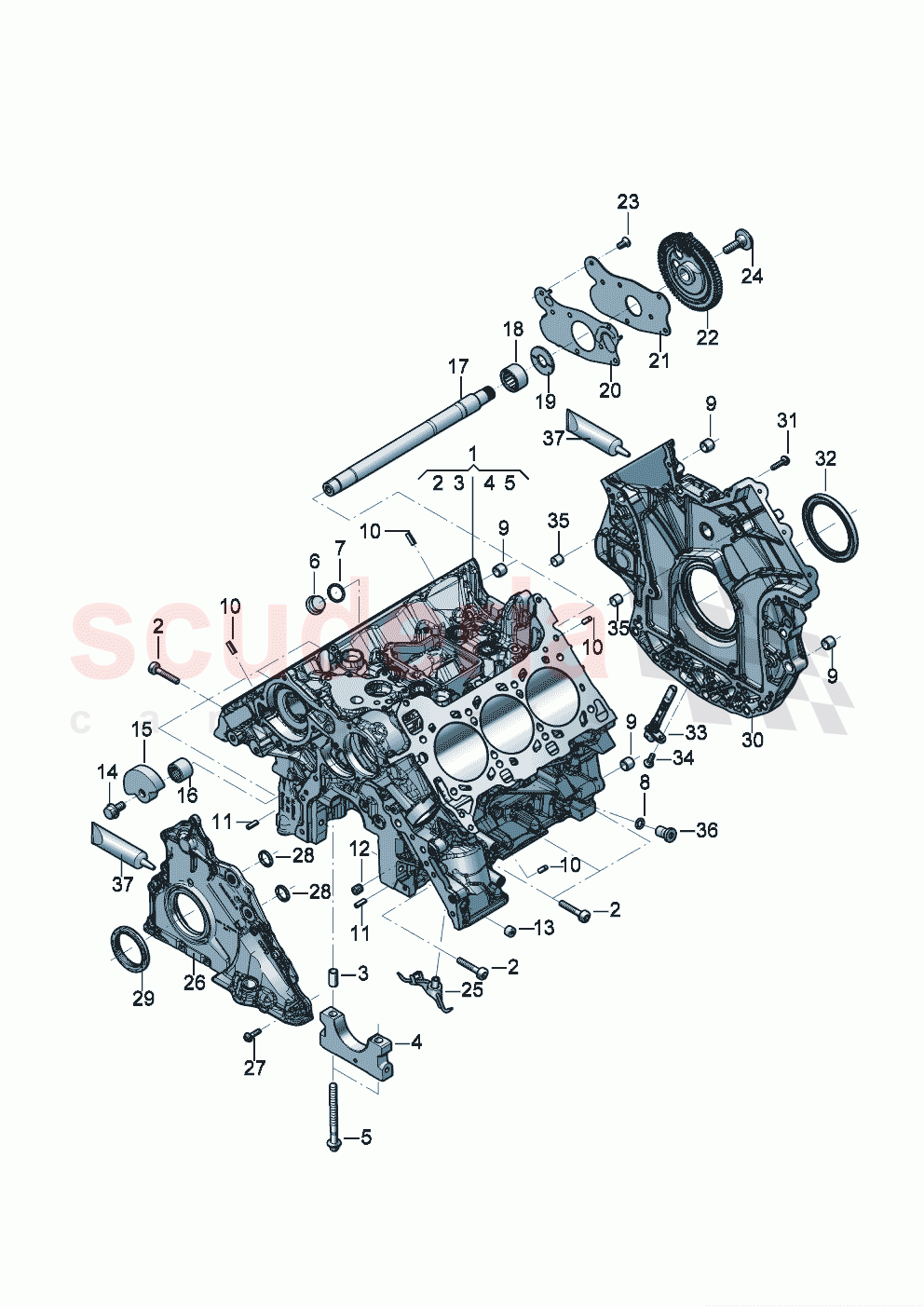

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT007932	Screw with int. serrations	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115143G	Centre sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005804	sealing plug	Enquire
	WHT003487	sealing plug D - 21.08.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138272	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	55105277	spring pin	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	77115143B	Centre sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L109291	Bungs	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91180601	Seal bolt (combination)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10768201	fitted bolt, hexagon head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103332J	Balancer weight	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103869D	needle bearing -	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103303G	balancer shaft	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103869F	needle bearing -	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103323K	axial bearing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103147E	Seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103407G	End cap	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103293BA	gear	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10448506	countersunk bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103448	Locating bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103158R	jet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103153J	Sealing flange	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91096901	round hd. screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103121F	seal ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103051B	Shaft oil seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6M103173K	Sealing flange	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6E103051J	Shaft oil seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	57906433B	impulse sender D >> - 26.07.2022	Enquire	IN STOCK
	57906433C	impulse sender D - 26.07.2022>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91168702	Hex socket head collared bolt see workshop manual M >> DGP 051 950	Enquire	IN STOCK
	N10196103	Oval socket head bolt with hex drive	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12301153H	dowel sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT008883	sealing plug	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	WHT007932	Screw with int. serrations	WHT007932 Screw with int. serrations M8X45	-	8	Enquire
3	6M115143G	Centre sleeve	6M115143G Centre sleeve	-	8	Enquire
6	WHT005804	sealing plug	WHT005804 sealing plug M22X1,5	-	1	Enquire
6	WHT003487	sealing plug D - 21.08.2024>>	WHT003487 sealing plug D - 21.08.2024>> M22X1,5	-	1	Enquire
7	N0138272	seal ring	N0138272 seal ring 22X27	-	1	Enquire
9	22103139B	dowel sleeve IN STOCK	22103139B dowel sleeve 16X13,5 IN STOCK	-	4	Enquire
10	55105277	spring pin	55105277 spring pin 6,2X22	-	4	Enquire
11	77115143B	Centre sleeve	77115143B Centre sleeve 6,15X18	-	2	Enquire
12	7L109291	Bungs	7L109291 Bungs 8MM	-	1	Enquire
13	N91180601	Seal bolt (combination)	N91180601 Seal bolt (combination) M14X1,5X12	-	1	Enquire
14	N10768201	fitted bolt, hexagon head	N10768201 fitted bolt, hexagon head M10X20	-	1	Enquire
15	6M103332J	Balancer weight	6M103332J Balancer weight front	-	1	Enquire
16	6M103869D	needle bearing -	6M103869D needle bearing - 29X22X22	-	1	Enquire
17	6M103303G	balancer shaft	6M103303G balancer shaft	-	1	Enquire
18	6M103869F	needle bearing -	6M103869F needle bearing - 36X25X20	-	1	Enquire
19	6M103323K	axial bearing	6M103323K axial bearing	-	1	Enquire
20	6M103147E	Seal	6M103147E Seal	-	1	Enquire
21	6M103407G	End cap	6M103407G End cap	-	1	Enquire
22	6M103293BA	gear	6M103293BA gear	-	1	Enquire
23	N10448506	countersunk bolt	N10448506 countersunk bolt M6X16	-	7	Enquire
24	6M103448	Locating bolt	6M103448 Locating bolt M10X30	-	1	Enquire
25	6M103158R	jet	6M103158R jet	-	3	Enquire
26	6M103153J	Sealing flange	6M103153J Sealing flange front	-	1	Enquire
27	N91096901	round hd. screw IN STOCK	N91096901 round hd. screw M6X22 IN STOCK	-	11	Enquire
28	6M103121F	seal ring	6M103121F seal ring 24,4X3,95	-	2	Enquire
29	6M103051B	Shaft oil seal	6M103051B Shaft oil seal 55X70X8	-	1	Enquire
30	6M103173K	Sealing flange	6M103173K Sealing flange rear	-	1	Enquire
31	N10413405	Hexagon socket flat head bolt IN STOCK	N10413405 Hexagon socket flat head bolt M6X25 IN STOCK	-	19	Enquire
32	6E103051J	Shaft oil seal	6E103051J Shaft oil seal 85X105,34X8,8	-	1	Enquire
33	57906433B	impulse sender D >> - 26.07.2022	57906433B impulse sender D >> - 26.07.2022	-	1	Enquire
33	57906433C	impulse sender D - 26.07.2022>>	57906433C impulse sender D - 26.07.2022>>	-	1	Enquire
34	N91168702	Hex socket head collared bolt see workshop manual M >> DGP 051 950	N91168702 Hex socket head collared bolt see workshop manual M >> DGP 051 950 M6X18	-	1	Enquire
34	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18	-	1	Enquire
35	12301153H	dowel sleeve	12301153H dowel sleeve 12X13,5	-	2	Enquire
36	WHT008883	sealing plug	WHT008883 sealing plug M14X1,5	-	1	Enquire
37	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	-	-	Enquire
