Coolant cooling system for turbocharger of Bentley Bentley New Flying Spur (2020-2024)

View All

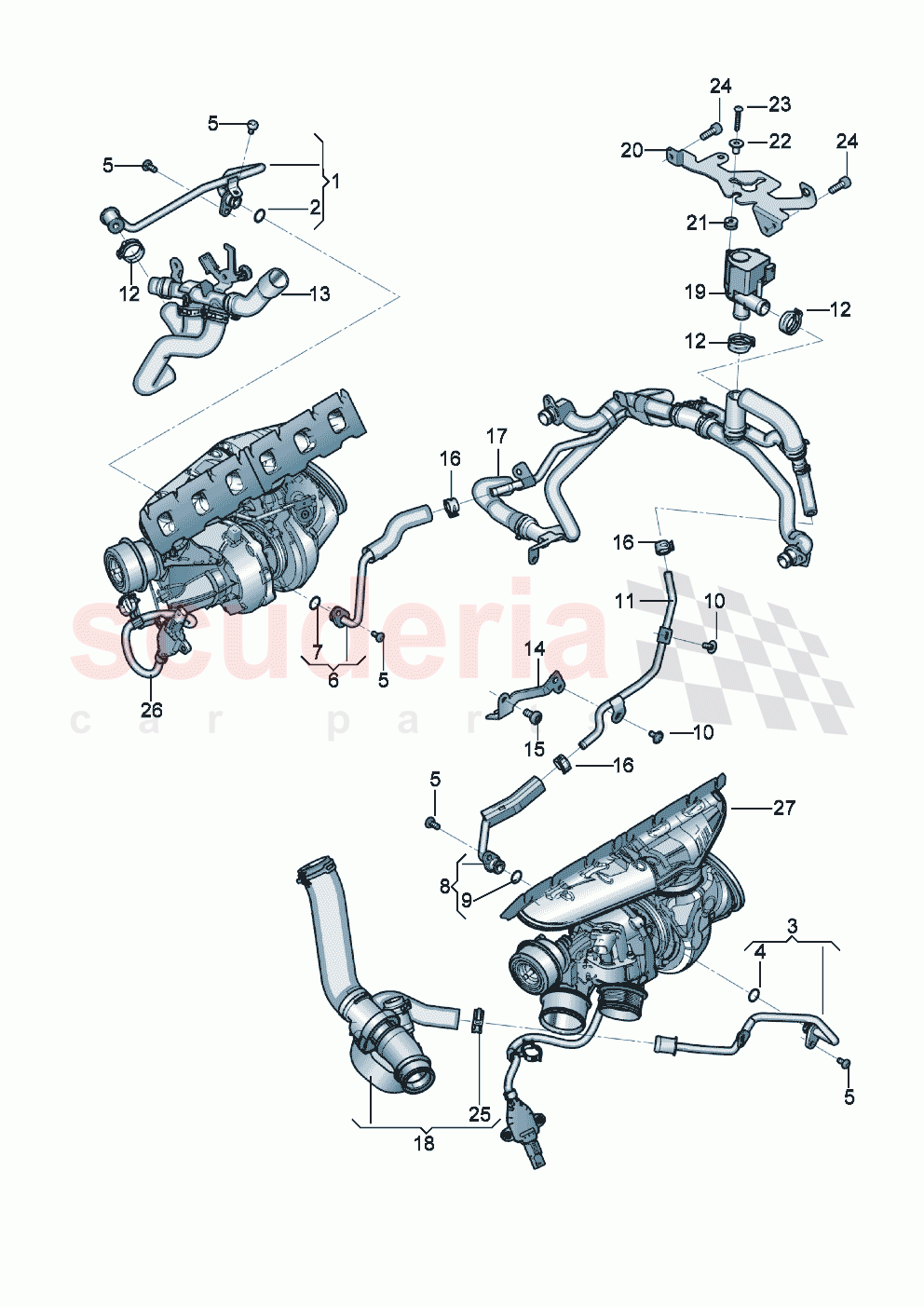

Bentley New Flying Spur (2020-2024) - Coolant cooling system for turbocharger (121020)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P121070AH	Coolant pipe	Enquire
	6M145948G	Coolant hose	Enquire
	P2145948	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121091A	O-ring	Enquire
	WHT007689	O-ring	Enquire
	WHT006537	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121050E	Coolant pipe	Enquire
	6M145947G	Coolant hose	Enquire
	P2145947	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121091A	O-ring	Enquire
	WHT007689	O-ring	Enquire
	WHT006537	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire
	6M145910G	Coolant pipe	Enquire
	P2145910B	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121070R	Coolant pipe	Enquire
	WHT007689	O-ring	Enquire
	WHT006537	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121091A	O-ring	Enquire
	6M145909G	Coolant pipe	Enquire
	P2145909A	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121050AA	Coolant pipe	Enquire
	WHT007689	O-ring	Enquire
	WHT006537	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121091A	O-ring	Enquire
	6M121085S	Coolant pipe	Enquire
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire
	N10845201	Clamp	Enquire
	P2145337	Securing plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121511F	Coolant pipe	Enquire
	N10405604	Oval hexagon socket head bolt	Enquire
	N91126601	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	7L6422379	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121079T	Bracket for coolant pipe D - 07.10.2019>>	Enquire
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90962401	Socket head bolt with inner multipoint head	Enquire
	6B145917A	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90770201	Spring band clamp	Enquire
	6M121054D	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	6H121601M	Coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	5Q0965561B	Additional coolant pump	Enquire
	6M121093K	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121079AB	Bracket for additional coolant pump D - 19.08.2019>>	Enquire
	WHT003361	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121275	Rubber bush	Enquire
	N91044802	double stud with hexagon drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121199	Sleeve	Enquire
	6M121052E	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003361	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P121070AH	Coolant pipe	7P121070AH Coolant pipe Cylinder 1-6 return	-	1	Enquire
1	6M145948G	Coolant hose	6M145948G Coolant hose right outer return	-	1	Enquire
1	P2145948	Coolant pipe	P2145948 Coolant pipe side, right return	-	1	Enquire
2	7P121091A	O-ring	7P121091A O-ring 15X2	-	1	Enquire
2	WHT007689	O-ring	WHT007689 O-ring 9,7X2	-	2	Enquire
2	WHT006537	O-ring	WHT006537 O-ring 11X2,8	-	2	Enquire
3	7P121050E	Coolant pipe	7P121050E Coolant pipe cylinders 7-12 return	-	1	Enquire
3	6M145947G	Coolant hose	6M145947G Coolant hose left outer return	-	1	Enquire
3	P2145947	Coolant pipe	P2145947 Coolant pipe side, left return	-	1	Enquire
4	7P121091A	O-ring	7P121091A O-ring 15X2	-	1	Enquire
4	WHT007689	O-ring	WHT007689 O-ring 9,7X2	-	2	Enquire
4	WHT006537	O-ring	WHT006537 O-ring 11X2,8	-	2	Enquire
5	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	5	Enquire
5	6M145910G	Coolant pipe	6M145910G Coolant pipe right rear feed	-	1	Enquire
5	P2145910B	Coolant hose	P2145910B Coolant hose side, right feed	-	1	Enquire
6	7P121070R	Coolant pipe	7P121070R Coolant pipe Cylinder 1-6 feed	-	1	Enquire
6	WHT007689	O-ring	WHT007689 O-ring 9,7X2	-	1	Enquire
6	WHT006537	O-ring	WHT006537 O-ring 11X2,8	-	2	Enquire
7	7P121091A	O-ring	7P121091A O-ring 15X2	-	1	Enquire
7	6M145909G	Coolant pipe	6M145909G Coolant pipe left rear feed	-	1	Enquire
7	P2145909A	Coolant hose	P2145909A Coolant hose side, left feed	-	1	Enquire
8	7P121050AA	Coolant pipe	7P121050AA Coolant pipe cylinders 7-12 feed	-	1	Enquire
8	WHT007689	O-ring	WHT007689 O-ring 9,7X2	-	1	Enquire
8	WHT006537	O-ring	WHT006537 O-ring 11X2,8	-	2	Enquire
9	7P121091A	O-ring	7P121091A O-ring 15X2	-	1	Enquire
9	6M121085S	Coolant pipe	6M121085S Coolant pipe centre/rear feed	-	1	Enquire
9	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	4	Enquire
10	N90737107	Oval hexagon socket head bolt	N90737107 Oval hexagon socket head bolt M6X12	-	2	Enquire
10	N10845201	Clamp	N10845201 Clamp 14X15	-	1	Enquire
10	P2145337	Securing plate	P2145337 Securing plate	-	1	Enquire
11	7P121511F	Coolant pipe	7P121511F Coolant pipe cylinders 7-12 feed	-	1	Enquire
11	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	1	Enquire
11	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	-	1	Enquire
12	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	3	Enquire
12	7L6422379	Spring band clamp	7L6422379 Spring band clamp 16X12	-	2	Enquire
13	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16	-	2	Enquire
14	7P121079T	Bracket for coolant pipe D - 07.10.2019>>	7P121079T Bracket for coolant pipe D - 07.10.2019>>	-	1	Enquire
14	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	4	Enquire
15	N90962401	Socket head bolt with inner multipoint head	N90962401 Socket head bolt with inner multipoint head	-	1	Enquire
15	6B145917A	Spring band clamp	6B145917A Spring band clamp 35X12	-	1	Enquire
16	N90770201	Spring band clamp	N90770201 Spring band clamp 17X12	-	3	Enquire
16	6M121054D	Coolant hose	6M121054D Coolant hose	-	1	Enquire
17	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	3	Enquire
18	6H121601M	Coolant pump	6H121601M Coolant pump	-	1	Enquire
19	5Q0965561B	Additional coolant pump	5Q0965561B Additional coolant pump	-	1	Enquire
19	6M121093K	Bracket	6M121093K Bracket	-	1	Enquire
20	7P121079AB	Bracket for additional coolant pump D - 19.08.2019>>	7P121079AB Bracket for additional coolant pump D - 19.08.2019>>	-	1	Enquire
20	WHT003361	Hexagon socket flat head bolt	WHT003361 Hexagon socket flat head bolt 3,5X20	-	3	Enquire
21	3L121275	Rubber bush	3L121275 Rubber bush	-	3	Enquire
21	N91044802	double stud with hexagon drive	N91044802 double stud with hexagon drive M6X14/M6X14	-	2	Enquire
22	3L121199	Sleeve	3L121199 Sleeve	-	3	Enquire
22	6M121052E	Coolant hose	6M121052E Coolant hose	-	1	Enquire
23	WHT003361	Hexagon socket flat head bolt	WHT003361 Hexagon socket flat head bolt 3,5X20	-	3	Enquire
24	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16	-	3	Enquire
25	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	1	Enquire
