Engine mounting, mount for elevating mechan. of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - Engine mounting, mount for elevating mechan.

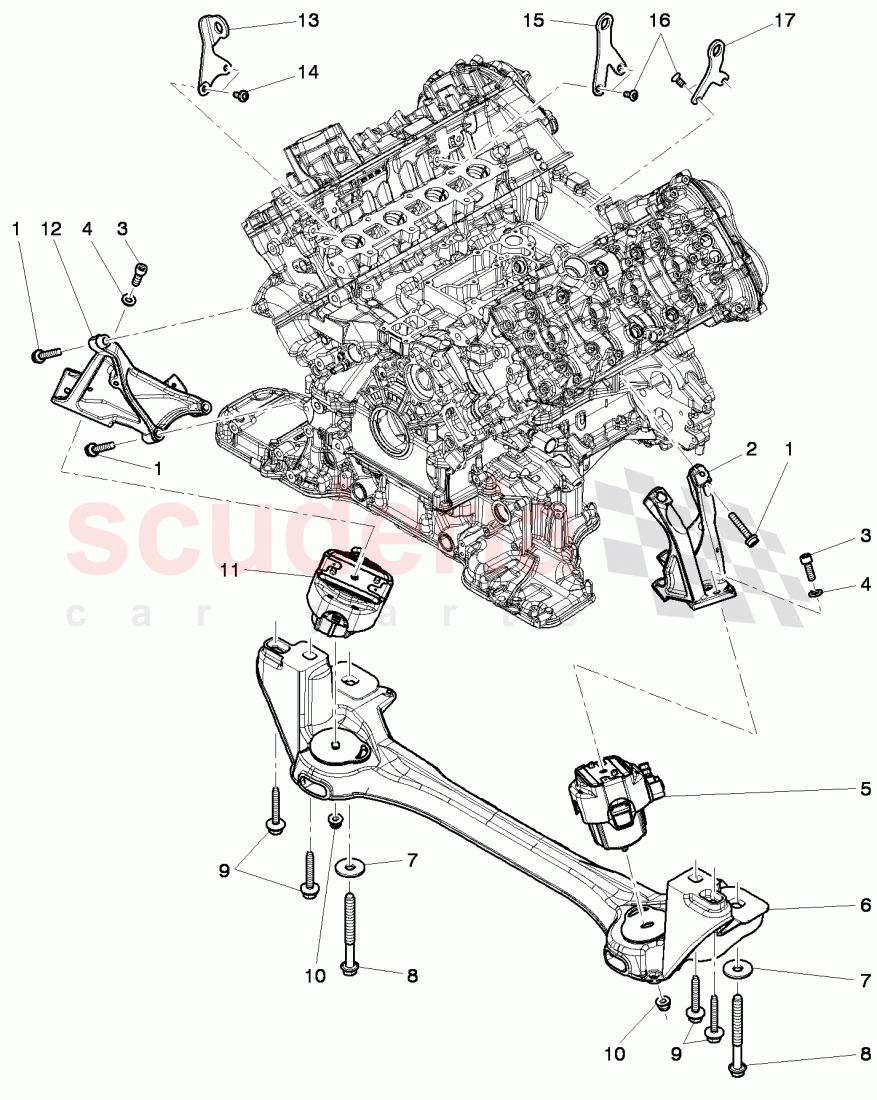

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91151001	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199307J	engine mounting bracket, D - 20.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01472310	bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90452704	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0199379BM	hydro-mounting, D >> - 16.09.2013	Enquire
	3W0199383	Engine mounting, D - 16.09.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199205A	engine carrier	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90663002	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10272302	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0199382BP	hydro-mounting, D >> - 16.09.2013	Enquire
	3W0199384	Engine mounting, D - 16.09.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199308K	engine mounting bracket, D - 20.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103392	mount for elevating mechan., D >> - 16.05.2012	Enquire
	79103392A	mount for elevating mechan., D - 16.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90962401	Socket head bolt with inner multipoint head	Enquire
	N10586001	screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103390BK	mount for elevating mechan.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10586001	screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103075	mount for elevating mechan.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N91151001	socket hd. screw with polygon, socket	N91151001 socket hd. screw with polygon, socket M10X50,	-	7	Enquire
2	3W0199307J	engine mounting bracket, D - 20.02.2017>>	3W0199307J engine mounting bracket, D - 20.02.2017>> cylinders 5-8,	-	1	Enquire
3	N01472310	bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N01472310 bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M10X30,	-	2	Enquire
4	N90452704	washer	N90452704 washer 10,2X20X3,	-	2	Enquire
5	4F0199379BM	hydro-mounting, D >> - 16.09.2013	4F0199379BM hydro-mounting, D >> - 16.09.2013 cylinders 5-8,	-	1	Enquire
5	3W0199383	Engine mounting, D - 16.09.2013>>	3W0199383 Engine mounting, D - 16.09.2013>> cylinders 5-8,	-	1	Enquire
6	3W0199205A	engine carrier	3W0199205A engine carrier	-	1	Enquire
7	N90625003	washer	N90625003 washer 15X44X4,	-	2	Enquire
8	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X1,5X135X90,	-	2	Enquire
9	N90663002	bolt,hex.hd.with shoul.(combi)	N90663002 bolt,hex.hd.with shoul.(combi) M10X70,	-	4	Enquire
10	N10272302	Hexagon collar nut self-locking	N10272302 Hexagon collar nut self-locking M10,	-	2	Enquire
11	4F0199382BP	hydro-mounting, D >> - 16.09.2013	4F0199382BP hydro-mounting, D >> - 16.09.2013 cylinders 1-4,	-	1	Enquire
11	3W0199384	Engine mounting, D - 16.09.2013>>	3W0199384 Engine mounting, D - 16.09.2013>> cylinders 1-4,	-	1	Enquire
12	3W0199308K	engine mounting bracket, D - 20.02.2017>>	3W0199308K engine mounting bracket, D - 20.02.2017>> cylinders 1-4,	-	1	Enquire
13	79103392	mount for elevating mechan., D >> - 16.05.2012	79103392 mount for elevating mechan., D >> - 16.05.2012 right front,	-	1	Enquire
13	79103392A	mount for elevating mechan., D - 16.05.2012>>	79103392A mount for elevating mechan., D - 16.05.2012>> right front,	-	1	Enquire
14	N90962401	Socket head bolt with inner multipoint head	N90962401 Socket head bolt with inner multipoint head M8X16, 079 103 392,	-	2	Enquire
14	N10586001	screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>>	N10586001 screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>> M8X18, 079 103 392 A,	-	2	Enquire
15	79103390BK	mount for elevating mechan.	79103390BK mount for elevating mechan. right rear,	-	1	Enquire
16	N10586001	screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>>	N10586001 screw, csk. hd. with polygon, socket hd., only for:, D - 16.05.2012>> M8X18,	-	4	Enquire
17	79103075	mount for elevating mechan.	79103075 mount for elevating mechan. left rear,	-	1	Enquire
