Exhaust gas turbocharger, (water-cooled), oil return line, oil pressure line, Servomotor for turbocharger of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - Exhaust gas turbocharger, (water-cooled), oil return line, oil pressure line, Servomotor for...

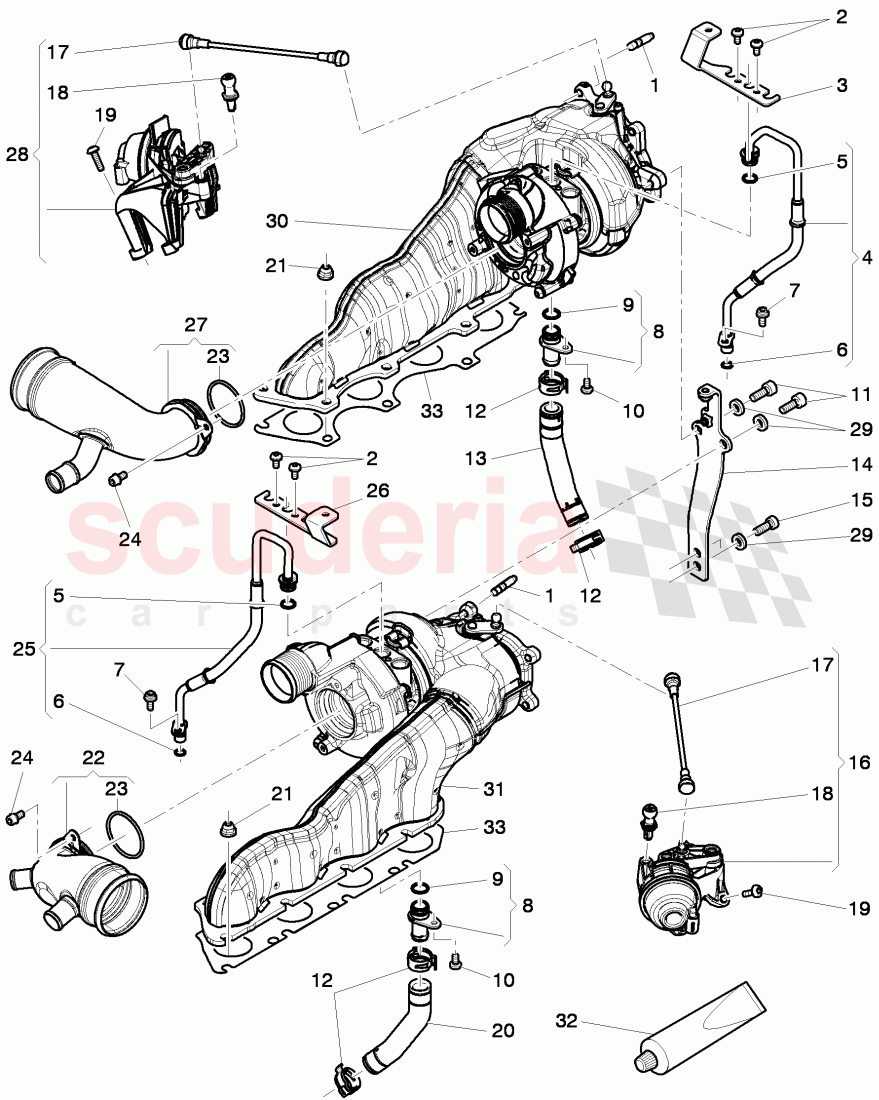

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91153902	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145140F	oil pipe, (For turbocharger), D - 21.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91056801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90303801	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145748B	adapter, oil return hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006901A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91046101	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145742C	oil return hose, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10517304	Cylinder head screw with torx, head, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145461K	Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145484C	connecting link, only to be used with:, D >> - 14.10.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096901	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145743A	oil return hose, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90894601	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	79129571L	air pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005529	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10619201	bolt, with hex. socket hd., (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145141F	oil pipe, (For turbocharger), D - 21.05.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79129572Q	air pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145462M	Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90357201	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145722A	Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145721A	Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	G052112A3	hot-bolt-paste	Enquire

Photo	Part No	Description	Price (each)	Stock
	79253039M	gasket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N91153902	stud	N91153902 stud M8X30,	-	13	Enquire
2	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12,	-	4	Enquire
4	79145140F	oil pipe, (For turbocharger), D - 21.05.2012>>	79145140F oil pipe, (For turbocharger), D - 21.05.2012>> supply, side right,	-	1	Enquire
5	N91056801	O-ring	N91056801 O-ring 12X2,	-	2	Enquire
6	N90303801	O-Ring	N90303801 O-Ring 9X1,5,	-	2	Enquire
7	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	2	Enquire
8	79145748B	adapter, oil return hose	79145748B adapter, oil return hose	-	2	Enquire
9	WHT006901A	O-ring	WHT006901A O-ring 14,5X2,	-	2	Enquire
10	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12,	-	2	Enquire
11	N91046101	socket hd. screw with polygon, socket	N91046101 socket hd. screw with polygon, socket M8X22,	-	2	Enquire
12	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12,	-	4	Enquire
13	79145742C	oil return hose, (For turbocharger)	79145742C oil return hose, (For turbocharger) side right,	-	1	Enquire
15	N10517304	Cylinder head screw with torx, head, self-locking	N10517304 Cylinder head screw with torx, head, self-locking M8X22,	-	2	Enquire
16	79145461K	Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>>	79145461K Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>> side left,	-	1	Enquire
17	79145484C	connecting link, only to be used with:, D >> - 14.10.2013	79145484C connecting link, only to be used with:, D >> - 14.10.2013 079 145 461 H, 079 145 462 K,	-	2	Enquire
19	N91096901	round hd. screw	N91096901 round hd. screw M6X22,	-	6	Enquire
20	79145743A	oil return hose, (For turbocharger)	79145743A oil return hose, (For turbocharger) side left,	-	1	Enquire
21	N90894601	hexagon nut, self-locking	N90894601 hexagon nut, self-locking M8,	-	16	Enquire
22	79129571L	air pipe	79129571L air pipe side left,	-	1	Enquire
23	WHT005529	O-Ring	WHT005529 O-Ring 48X3,	-	2	Enquire
24	N10619201	bolt, with hex. socket hd., (combi.)	N10619201 bolt, with hex. socket hd., (combi.) M6X15,	-	4	Enquire
25	79145141F	oil pipe, (For turbocharger), D - 21.05.2012>>	79145141F oil pipe, (For turbocharger), D - 21.05.2012>> supply, side left,	-	1	Enquire
27	79129572Q	air pipe	79129572Q air pipe side right,	-	1	Enquire
28	79145462M	Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>>	79145462M Vacuum unit for, exhaust gas turbocharger, D - 14.10.2013>> side right,	-	1	Enquire
29	N90357201	Washer	N90357201 Washer 8,4X17X4,	-	4	Enquire
30	79145722A	Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>>	79145722A Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>> side right,	-	1	Enquire
31	79145721A	Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>>	79145721A Exhaust gas turbocharger, (water-cooled), D - 15.08.2016>> side left,	-	1	Enquire
32	G052112A3	hot-bolt-paste	G052112A3 hot-bolt-paste 170G,	-	-	Enquire
33	79253039M	gasket	79253039M gasket left a. right,	-	2	Enquire
