Coolant hoses and pipes, Engine bay, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-082 780>> 3W-E-096 907, F ZA-E-082 780>> ZA-E-096 907 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - Coolant hoses and pipes, Engine bay, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-082 780>>...

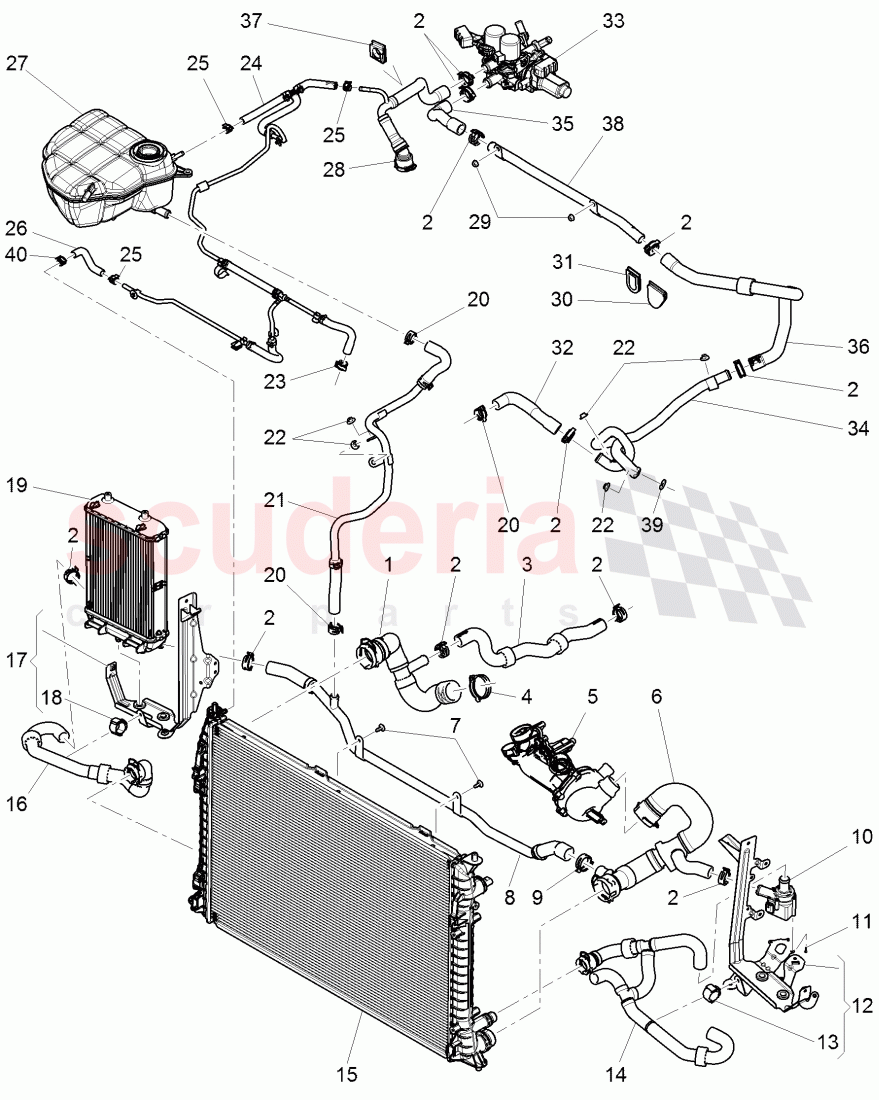

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0122101F	water hose with quick-, coupling piece, D - 04.06.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90926501	spring band clamp D - >> 26.03.2007	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0122051F	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90817003	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121550A	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90687101	spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121012A	additional coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002306	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121559A	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121064R	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91173301	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90770201	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121632C	Vent tube, (reservoir > adapter >, radiator)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121052A	Vent hose with, valve, D - 29.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1121507A	water hose with quick-, coupling piece and adapter-, breather	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0819345G	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260753E	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121623A	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121611D	water tube, also use:, D >> - 29.06.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1121650A	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1121516A	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1819346A	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121642B	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90543602	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121120F	spring clip, F >> 3W-C-072 018, F >> ZA-C-072 018	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0122101F	water hose with quick-, coupling piece, D - 04.06.2012>>	3W0122101F water hose with quick-, coupling piece, D - 04.06.2012>> right upper,	-	1	Enquire
2	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	11	Enquire
4	N90926501	spring band clamp D - >> 26.03.2007	N90926501 spring band clamp D - >> 26.03.2007 47X12,	-	1	Enquire
6	3W0122051F	water hose with quick-, coupling piece	3W0122051F water hose with quick-, coupling piece left lower,	-	1	Enquire
7	N90817003	Hexagon socket head panel bolt	N90817003 Hexagon socket head panel bolt 6,22X17,	-	1	Enquire
8	3W0121550A	water coolant pipe with, water hose	3W0121550A water coolant pipe with, water hose front, lower,	-	1	Enquire
9	N90687101	spring band clamp	N90687101 spring band clamp 32X12,	-	1	Enquire
10	59121012A	additional coolant pump	59121012A additional coolant pump	-	1	Enquire
11	WHT002306	self-tapping screw	WHT002306 self-tapping screw 3,5X12,	-	3	Enquire
13	1C0422705A	Clip	1C0422705A Clip 23MM,	-	1	Enquire
16	3W0121559A	water hose with quick-, coupling piece	3W0121559A water hose with quick-, coupling piece right lower, outer,	-	1	Enquire
18	1C0422705A	Clip	1C0422705A Clip 23MM,	-	1	Enquire
20	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12,	-	3	Enquire
21	3W0121064R	water coolant pipe with, water hose	3W0121064R water coolant pipe with, water hose	-	1	Enquire
22	N91173301	hex. nut with washer	N91173301 hex. nut with washer M6,	-	5	Enquire
23	N90770201	Spring band clamp	N90770201 Spring band clamp 17X12,	-	1	Enquire
24	3W0121632C	Vent tube, (reservoir > adapter >, radiator)	3W0121632C Vent tube, (reservoir > adapter >, radiator)	-	1	Enquire
25	N90686701	Spring band clamp	N90686701 Spring band clamp 14X12,	-	3	Enquire
26	3W0121052A	Vent hose with, valve, D - 29.04.2013>>	3W0121052A Vent hose with, valve, D - 29.04.2013>>	-	1	Enquire
28	3W1121507A	water hose with quick-, coupling piece and adapter-, breather	3W1121507A water hose with quick-, coupling piece and adapter-, breather	-	1	Enquire
29	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
30	3W0819345G	grommet	3W0819345G grommet	-	1	Enquire
31	3W0260753E	grommet	3W0260753E grommet	-	1	Enquire
32	3W0121623A	water hose	3W0121623A water hose	-	1	Enquire
34	3W0121611D	water tube, also use:, D >> - 29.06.2015	3W0121611D water tube, also use:, D >> - 29.06.2015 left outer, N 905 436 02,	-	1	Enquire
35	3W1121650A	water hose	3W1121650A water hose	-	1	Enquire
36	3W1121516A	water hose	3W1121516A water hose	-	1	Enquire
37	3W1819346A	grommet	3W1819346A grommet 1 hole,	-	1	Enquire
38	3W0121642B	water tube	3W0121642B water tube	-	1	Enquire
39	N90543602	Washer	N90543602 Washer 6,4X22X3,	-	2	Enquire
40	3W0121120F	spring clip, F >> 3W-C-072 018, F >> ZA-C-072 018	3W0121120F spring clip, F >> 3W-C-072 018, F >> ZA-C-072 018 12,4X8,	-	1	Enquire
