Find Your Part

Engine oil sump lower part, Engine oil sump upper part, crankcase, sealing flange of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - Engine oil sump lower part, Engine oil sump upper part, crankcase, sealing flange

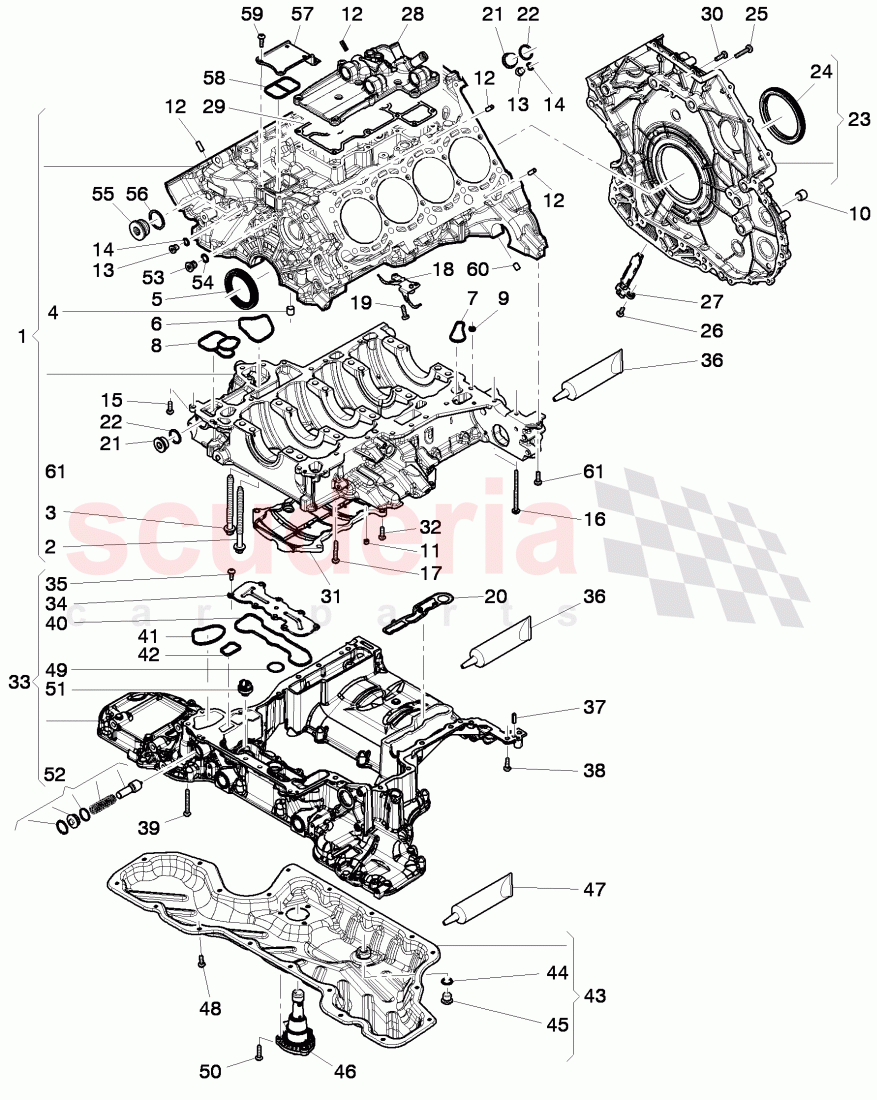

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	79103011GE	crankcase, also use:, see workshop manual, D - 27.08.2015>>	Enquire
	79103011GE	crankcase, also use:, see workshop manual, D - 27.08.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103039A	Hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003798	Hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	77115143D	centering sleeve, D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7L103051D	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CL	gasket, D - 21.03.2013>>	Enquire
	79103121CL	gasket, D - 21.03.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CJ	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CH	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121AC	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	58103139	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	55105277	spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91119401	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138063	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91097501	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10582103	oval head countersunk bolt with multi-point socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103158H	jet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10682101	bolt, with polygon socket hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103161AH	gasket, D - 08.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003487A	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138272	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103171AQ	sealing flange	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103051F	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10156206	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79115289AC	insert, D - 07.01.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124304	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103803DA	oil sump-upper part, D - MJ 2015>>	Enquire
	79103803DA	oil sump-upper part, D - MJ 2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	77115143B	Centre sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10470706	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CD	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CF	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103602CF	Engine oil sump lower part, D - 02.04.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	Enquire
	N0138494	seal ring use only in conjunction with: D >> - 07.12.2018	Enquire
	N0138498	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0160276	threaded plug, D >> - 24.09.2015	Enquire
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	3F907660E	oil level sensor, contains:, O-Ring, D >> - 11.06.2012	Enquire
	79907660A	oil level sensor D >> - 25.01.2024	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90965401	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138182	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10712703	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10535403	cover plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103525AK	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103121CK	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096703	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10570501	threaded pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	79103765A	valve	79103765A valve	-	1	Enquire
-	38103196B	seal ring	38103196B seal ring	-	1	Enquire
1	79103011GE	crankcase, also use:, see workshop manual, D - 27.08.2015>>	79103011GE crankcase, also use:, see workshop manual, D - 27.08.2015>> 079 103 765 A, CMMC,CMMD	-	1	Enquire
1	79103011GE	crankcase, also use:, see workshop manual, D - 27.08.2015>>	79103011GE crankcase, also use:, see workshop manual, D - 27.08.2015>> 079 103 765 A, CYCA,CYCB	-	1	Enquire
2	79103039A	Hexagon head bolt	79103039A Hexagon head bolt M10X125,	-	10	Enquire
3	WHT003798	Hexagon head bolt	WHT003798 Hexagon head bolt M10X111,	-	10	Enquire
4	77115143D	centering sleeve, D - 29.05.2006>>	77115143D centering sleeve, D - 29.05.2006>> 10,4X12X12,	-	2	Enquire
5	7L103051D	seal	7L103051D seal 55X74X10,	-	1	Enquire
6	79103121CL	gasket, D - 21.03.2013>>	79103121CL gasket, D - 21.03.2013>> 30X2,5,	-	1	Enquire
6	79103121CL	gasket, D - 21.03.2013>>	79103121CL gasket, D - 21.03.2013>>	-	1	Enquire
7	79103121CJ	gasket	79103121CJ gasket	-	1	Enquire
8	79103121CH	gasket	79103121CH gasket	-	1	Enquire
9	79103121AC	gasket	79103121AC gasket	-	1	Enquire
11	58103139	dowel sleeve	58103139 dowel sleeve 8,2X6,5,	-	2	Enquire
12	55105277	spring pin	55105277 spring pin 6,2X22,	-	4	Enquire
13	N91119401	threaded plug	N91119401 threaded plug M10X1X10,	-	2	Enquire
14	N0138063	seal ring	N0138063 seal ring 10X14,	-	2	Enquire
15	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	5	Enquire
16	N91097501	Hexagon socket flat, head bolt	N91097501 Hexagon socket flat, head bolt M6X85,	-	2	Enquire
17	N10582103	oval head countersunk bolt with multi-point socket head	N10582103 oval head countersunk bolt with multi-point socket head M6X40,	-	13	Enquire
18	79103158H	jet	79103158H jet D=1,2,	-	4	Enquire
19	N10682101	bolt, with polygon socket hd.	N10682101 bolt, with polygon socket hd. M6X15,	-	8	Enquire
20	79103161AH	gasket, D - 08.04.2013>>	79103161AH gasket, D - 08.04.2013>>	-	1	Enquire
21	WHT003487A	threaded plug	WHT003487A threaded plug M22X1,5X9,5,	-	2	Enquire
22	N0138272	seal ring	N0138272 seal ring 22X27,	-	2	Enquire
23	79103171AQ	sealing flange	79103171AQ sealing flange	-	1	Enquire
24	79103051F	seal	79103051F seal 105X85X8,8,	-	1	Enquire
25	N10156206	Oval hexagon socket head bolt	N10156206 Oval hexagon socket head bolt M6X30,	-	11	Enquire
30	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	15	Enquire
31	79115289AC	insert, D - 07.01.2013>>	79115289AC insert, D - 07.01.2013>>	-	1	Enquire
32	N10124304	Oval hexagon socket head bolt	N10124304 Oval hexagon socket head bolt M6X20,	-	6	Enquire
33	79103803DA	oil sump-upper part, D - MJ 2015>>	79103803DA oil sump-upper part, D - MJ 2015>> CMMC,CMMD	-	1	Enquire
33	79103803DA	oil sump-upper part, D - MJ 2015>>	79103803DA oil sump-upper part, D - MJ 2015>> CYCA,CYCB	-	1	Enquire
36	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml,	-	-	Enquire
37	77115143B	Centre sleeve	77115143B Centre sleeve 6,15X18,	-	3	Enquire
38	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	16	Enquire
39	N10470706	round hd. screw	N10470706 round hd. screw M6X50,	-	3	Enquire
41	79103121CD	gasket	79103121CD gasket	-	1	Enquire
42	79103121CF	gasket	79103121CF gasket	-	1	Enquire
43	79103602CF	Engine oil sump lower part, D - 02.04.2016>>	79103602CF Engine oil sump lower part, D - 02.04.2016>>	-	1	Enquire
44	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	N0138157 seal ring use only in conjunction with: D - 07.12.2018>> 14X20X2,	-	1	Enquire
44	N0138494	seal ring use only in conjunction with: D >> - 07.12.2018	N0138494 seal ring use only in conjunction with: D >> - 07.12.2018 A14X20,	-	1	Enquire
44	N0138498	seal ring	N0138498 seal ring A14X20,	-	1	Enquire
45	N0160276	threaded plug, D >> - 24.09.2015	N0160276 threaded plug, D >> - 24.09.2015 M14X1,5,	-	1	Enquire
45	N91167901	sealing plug	N91167901 sealing plug M14X1,5,	-	1	Enquire
46	3F907660E	oil level sensor, contains:, O-Ring, D >> - 11.06.2012	3F907660E oil level sensor, contains:, O-Ring, D >> - 11.06.2012 038 103 196 B, CMMC,CMMD	-	1	Enquire
46	79907660A	oil level sensor D >> - 25.01.2024	79907660A oil level sensor D >> - 25.01.2024 038 103 196 B, CYCA,CYCB	-	1	Enquire
47	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml,	-	-	Enquire
48	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	19	Enquire
50	N10413405	Hexagon socket flat head bolt	N10413405 Hexagon socket flat head bolt M6X25,	-	3	Enquire
53	N90965401	threaded plug	N90965401 threaded plug M12X1,5X12,	-	1	Enquire
54	N0138182	seal ring	N0138182 seal ring 12X16,	-	1	Enquire
55	N10712703	threaded plug	N10712703 threaded plug M30X1,5X16,	-	1	Enquire
56	N10535403	cover plate	N10535403 cover plate 35,9X30,3X2,	-	1	Enquire
57	79103525AK	cover	79103525AK cover	-	1	Enquire
58	79103121CK	gasket	79103121CK gasket	-	1	Enquire
59	N91096703	Oval hexagon socket head bolt	N91096703 Oval hexagon socket head bolt M6X16,	-	4	Enquire
60	N10570501	threaded pin	N10570501 threaded pin M8X12,	-	4	Enquire
61	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	1	Enquire
