Bentley Continental GTC (2011+) - charge air cooler, air duct for charge, air cooler, D - MJ 2015>> - MJ 2015

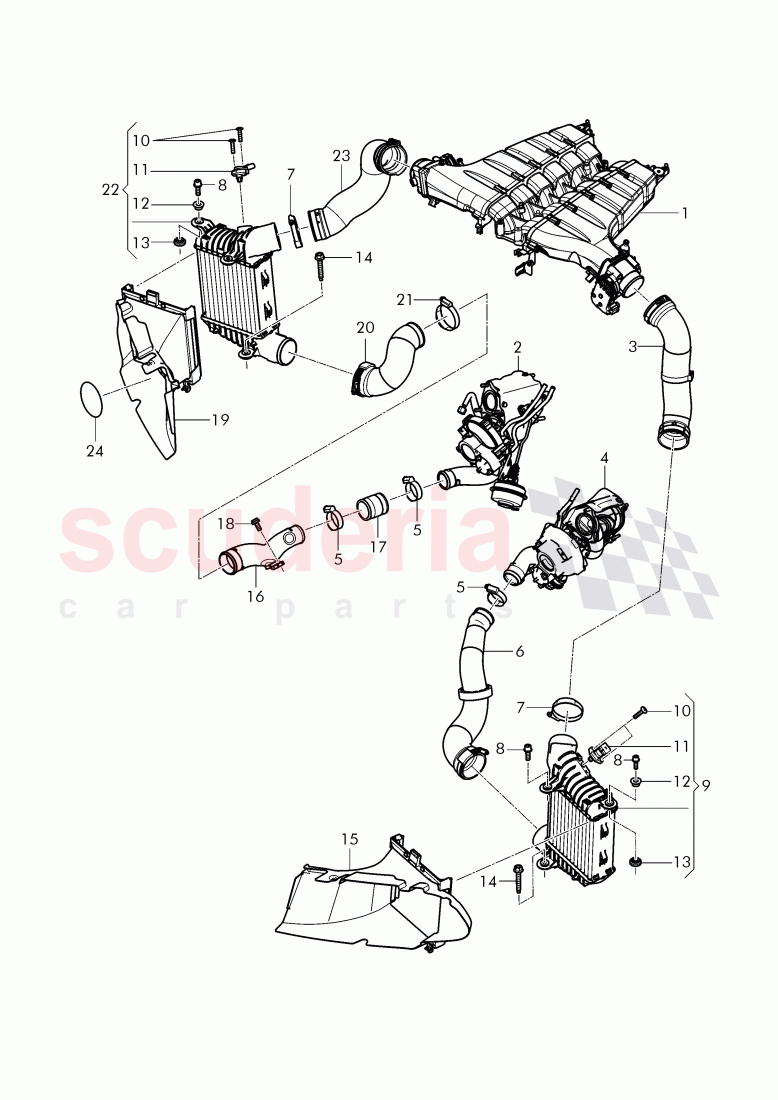

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0145737B	pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10518801	Hose Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0145828H	pressure hose, charge air cooler, contains:, D - 03.03.2014>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10227805	socket head bolt with hexagon socket head (combination)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0145803E	LH Intercooler / Charge Air Cooler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90172004	tapping screw, fill. hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	38906051D	pressure sensor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	bush	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	867129669	Grommet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90652902	screw, hex. hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0121467L	air guide for charge air cooler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0145840F	charge air tube	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0145828E	pressure hose, charge air cooler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0121468N	air duct for charge, air cooler, contains additional positions:	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0145832H	pressure hose, charge air cooler, contains:, D - 30.09.2013>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10544401	Hose Clamp	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0145804E	RH Intercooler / Charge Air Cooler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0145738A	pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W8864820	Adhesive tape	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
3	4W0145737B	pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015	4W0145737B pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015 left upper,	-	1	Enquire
5	N10518801	Hose Clamp	N10518801 Hose Clamp 40-60X12,	-	3	Enquire
6	3W0145828H	pressure hose, charge air cooler, contains:, D - 03.03.2014>> IN STOCK	3W0145828H pressure hose, charge air cooler, contains:, D - 03.03.2014>> left lower, IN STOCK	-	1	Enquire
8	N10227805	socket head bolt with hexagon socket head (combination) IN STOCK	N10227805 socket head bolt with hexagon socket head (combination) M6X20, IN STOCK	-	4	Enquire
9	3W0145803E	LH Intercooler / Charge Air Cooler IN STOCK	3W0145803E LH Intercooler / Charge Air Cooler left, IN STOCK	-	1	Enquire
10	N90172004	tapping screw, fill. hd. IN STOCK	N90172004 tapping screw, fill. hd. 5X22, IN STOCK	-	4	Enquire
11	38906051D	pressure sensor IN STOCK	38906051D pressure sensor IN STOCK	-	2	Enquire
12	1K0129734B	bush	1K0129734B bush	-	6	Enquire
13	867129669	Grommet IN STOCK	867129669 Grommet IN STOCK	-	6	Enquire
14	N90652902	screw, hex. hd. IN STOCK	N90652902 screw, hex. hd. M6X40, IN STOCK	-	2	Enquire
15	3W0121467L	air guide for charge air cooler	3W0121467L air guide for charge air cooler left outer,	-	1	Enquire
16	3W0145840F	charge air tube	3W0145840F charge air tube right lower,	-	1	Enquire
17	3W0145828E	pressure hose, charge air cooler	3W0145828E pressure hose, charge air cooler right lower, rear,	-	1	Enquire
18	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	1	Enquire
19	3W0121468N	air duct for charge, air cooler, contains additional positions: IN STOCK	3W0121468N air duct for charge, air cooler, contains additional positions: right outer, 24, IN STOCK	-	1	Enquire
20	3W0145832H	pressure hose, charge air cooler, contains:, D - 30.09.2013>>	3W0145832H pressure hose, charge air cooler, contains:, D - 30.09.2013>> right lower, front,	-	1	Enquire
21	N10544401	Hose Clamp IN STOCK	N10544401 Hose Clamp A60-80X12, IN STOCK	-	1	Enquire
22	3W0145804E	RH Intercooler / Charge Air Cooler	3W0145804E RH Intercooler / Charge Air Cooler right,	-	1	Enquire
23	4W0145738A	pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015	4W0145738A pressure hose, charge air cooler, contains:, D - 03.03.2014>>, D >> - MJ 2015 right upper,	-	1	Enquire
24	3W8864820	Adhesive tape IN STOCK	3W8864820 Adhesive tape IN STOCK	-	1	Enquire
