oil dipstick with tube, oil filter, oil cooler, D - MJ 2015>> of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - oil dipstick with tube, oil filter, oil cooler, D - MJ 2015>>

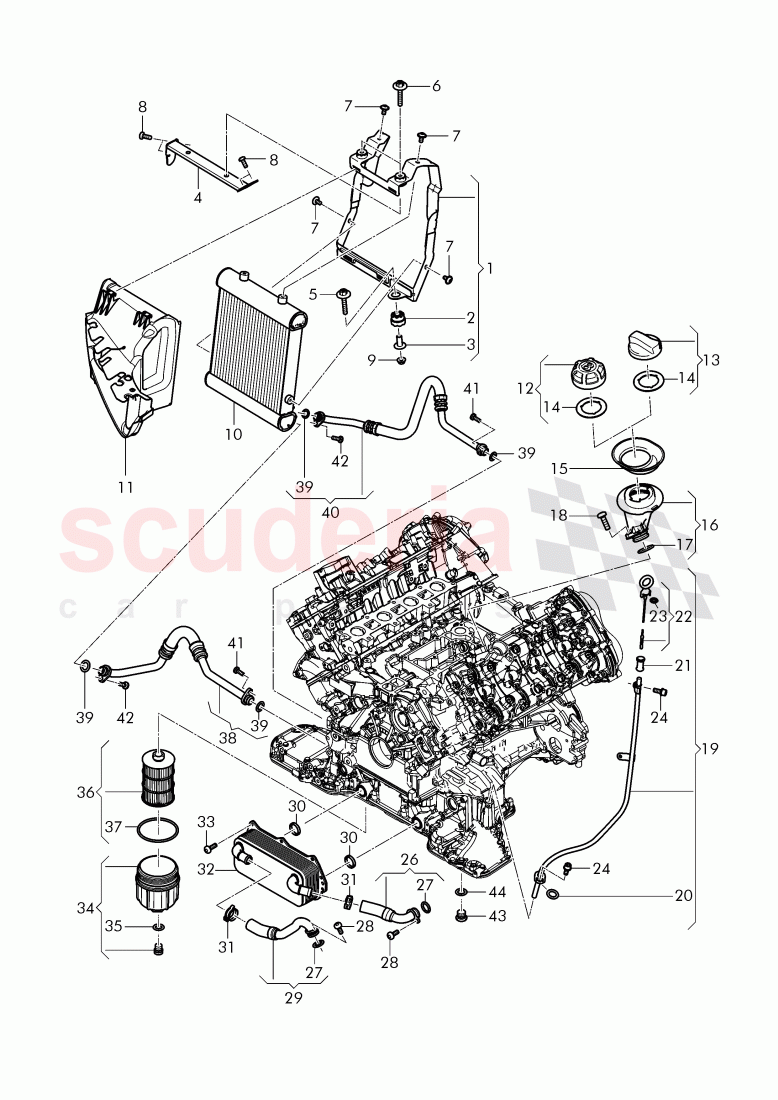

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0121234A	bracket for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0253365	mounting for pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006983	spacer sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0121660	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91066401	Hexagon socket head, bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91066401	Hexagon socket head, bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0117021	oil cooler, engine oil	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121346D	air duct, oil cooler, contains:, D >> - MJ 2015	Enquire
	3W0121346J	air duct, oil cooler, D - MJ 2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0103485J	Cap oil filler pipe D - 18.11.2019>>	Enquire
	3W0103485J	Cap oil filler pipe D - 18.11.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0103485G	Cap oil filler pipe	Enquire
	3W0103485G	Cap oil filler pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A103483D	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0103544	splash shield, oil filler tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103499AF	oil filler tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90544502	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0115609D	oil dipstick with tube, D - 07.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91056801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C115636D	guide sleeve, D - 07.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0115611A	oil dipstick	Enquire

Photo	Part No	Description	Price (each)	Stock
	30115444	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10347003	bolt, with hex. socket hd., (combi.), F 3W-E-094 630>> 3W-E-097 155, F ZA-E-094 630>> ZA-E-097 155, F 3W-E-040 000>> 3W-E-087 093, F ZA-E-040 000>> ZA-E-087 093	Enquire

Photo	Part No	Description	Price (each)	Stock
	79121081	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90465003	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79121081B	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	79117070D	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	79117015M	oil cooler, D - 11.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	79115433C	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	79198405D	Oil Filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317815	oil pressure line for, engine oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91044501	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317813	oil pressure line for, engine oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3W8864820	Adhesive tape	3W8864820 Adhesive tape	-	1	Enquire
1	4W0121234A	bracket for oil cooler	4W0121234A bracket for oil cooler side right,	-	1	Enquire
2	3Z0253365	mounting for pump	3Z0253365 mounting for pump	-	3	Enquire
3	WHT006983	spacer sleeve	WHT006983 spacer sleeve	-	3	Enquire
4	4W0121660	bracket	4W0121660 bracket right upper,	-	1	Enquire
5	N91066401	Hexagon socket head, bolt (combi)	N91066401 Hexagon socket head, bolt (combi) M6X40,	-	1	Enquire
6	N91066401	Hexagon socket head, bolt (combi)	N91066401 Hexagon socket head, bolt (combi) M6X40,	-	2	Enquire
7	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	4	Enquire
8	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	4	Enquire
9	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	1	Enquire
10	4W0117021	oil cooler, engine oil	4W0117021 oil cooler, engine oil	-	1	Enquire
11	3W0121346D	air duct, oil cooler, contains:, D >> - MJ 2015	3W0121346D air duct, oil cooler, contains:, D >> - MJ 2015 side right, 3W8 864 820,	-	1	Enquire
11	3W0121346J	air duct, oil cooler, D - MJ 2016>>	3W0121346J air duct, oil cooler, D - MJ 2016>> side right,	-	1	Enquire
12	3W0103485J	Cap oil filler pipe D - 18.11.2019>>	3W0103485J Cap oil filler pipe D - 18.11.2019>> chrome (matt), PR-NM3	-	1	Enquire
12	3W0103485J	Cap oil filler pipe D - 18.11.2019>>	3W0103485J Cap oil filler pipe D - 18.11.2019>> chrome (matt), PR-JF9	-	1	Enquire
13	3W0103485G	Cap oil filler pipe	3W0103485G Cap oil filler pipe Standard, PR-NM1	-	1	Enquire
13	3W0103485G	Cap oil filler pipe	3W0103485G Cap oil filler pipe Standard, PR-JF8	-	1	Enquire
14	6A103483D	Seal	6A103483D Seal	-	1	Enquire
15	3W0103544	splash shield, oil filler tube	3W0103544 splash shield, oil filler tube	-	1	Enquire
16	79103499AF	oil filler tube	79103499AF oil filler tube	-	1	Enquire
17	N90544502	seal ring	N90544502 seal ring	-	1	Enquire
18	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	1	Enquire
19	3W0115609D	oil dipstick with tube, D - 07.11.2016>>	3W0115609D oil dipstick with tube, D - 07.11.2016>>	-	1	Enquire
20	N91056801	O-ring	N91056801 O-ring 12X2,	-	1	Enquire
21	7C115636D	guide sleeve, D - 07.11.2016>>	7C115636D guide sleeve, D - 07.11.2016>>	-	1	Enquire
22	3W0115611A	oil dipstick	3W0115611A oil dipstick	-	1	Enquire
23	30115444	o-ring	30115444 o-ring 6,16X2,35,	-	1	Enquire
24	N10347003	bolt, with hex. socket hd., (combi.), F 3W-E-094 630>> 3W-E-097 155, F ZA-E-094 630>> ZA-E-097 155, F 3W-E-040 000>> 3W-E-087 093, F ZA-E-040 000>> ZA-E-087 093	N10347003 bolt, with hex. socket hd., (combi.), F 3W-E-094 630>> 3W-E-097 155, F ZA-E-094 630>> ZA-E-097 155, F 3W-E-040 000>> 3W-E-087 093, F ZA-E-040 000>> ZA-E-087 093 M6X16,	-	2	Enquire
26	79121081	water coolant pipe with, water hose	79121081 water coolant pipe with, water hose left,	-	1	Enquire
27	N90465003	O-Ring	N90465003 O-Ring	-	2	Enquire
28	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X15,0,	-	2	Enquire
29	79121081B	water coolant pipe with, water hose	79121081B water coolant pipe with, water hose right,	-	1	Enquire
30	79117070D	seal ring	79117070D seal ring	-	2	Enquire
31	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
32	79117015M	oil cooler, D - 11.08.2016>>	79117015M oil cooler, D - 11.08.2016>>	-	1	Enquire
33	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive	-	7	Enquire
34	79115433C	sealing cap	79115433C sealing cap	-	1	Enquire
36	79198405D	Oil Filter	79198405D Oil Filter	-	1	Enquire
38	4W0317815	oil pressure line for, engine oil cooling	4W0317815 oil pressure line for, engine oil cooling	-	1	Enquire
39	N91044501	O-Ring	N91044501 O-Ring 16,7X1,78,	-	4	Enquire
40	4W0317813	oil pressure line for, engine oil cooling	4W0317813 oil pressure line for, engine oil cooling	-	1	Enquire
41	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive	-	2	Enquire
42	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	2	Enquire
