IP Trimmed Panels of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - IP Trimmed Panels

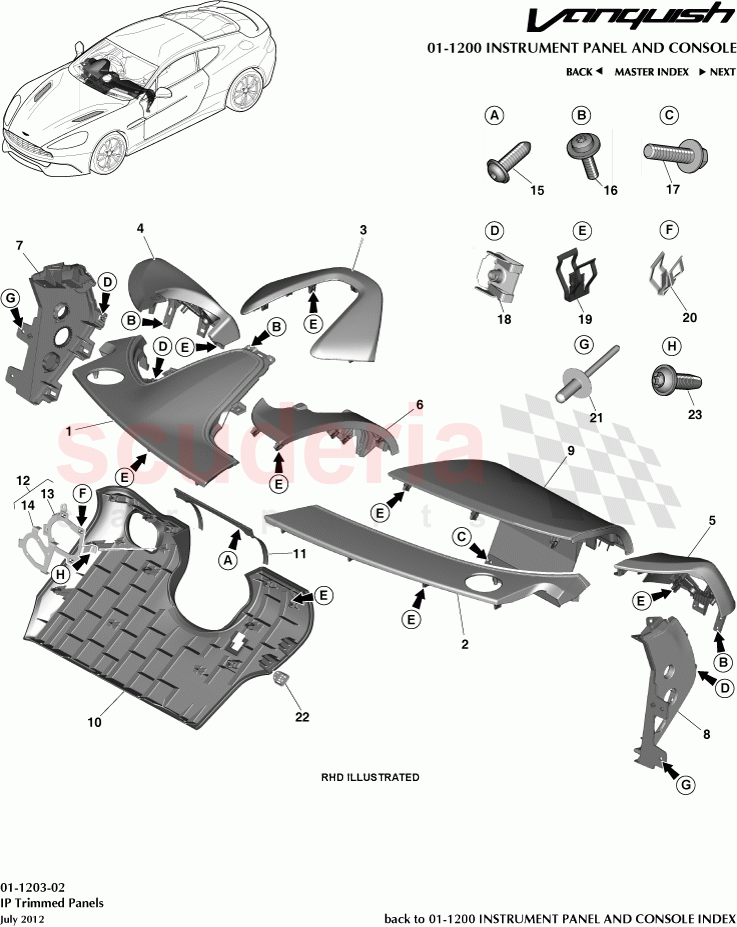

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD33C043C54BCW	DRIVER UPPER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C043C54DCW	PASS UPPER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C04606DAW	Bezel, IP Top Trim, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C04634BBW	Panel Assy, IP Upper, Driver Side, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C04635BAW	Panel Assy, IP Upper, Passenger Side, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3302695BCW	DRVR UPR INNER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3304316AAW	End Panel Assy, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3304317AAW	End Panel Assy, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C044H58BCW	Door, Passenger Airbag, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C04325BBW	Panel Assy, Lower Driver Side, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD333T501AAW	Cover, Steering Column Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD332C356BC	Bracket Assy, Master Light Switch, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3311A678AC	Bracket, Master Light Switch, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3311A678CC	Bracket, Master Light Switch, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43015371AA	CAPTIVE U NUT M4 LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707491	Clip, Push-on, 8.5 x 16.0 x 1.7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3368172AA	Spring Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43R8200AA	Grille, Panel Assy Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701447	Screw, M4 x 12, Pan Head, Torx Screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33C043C54ACW	DRIVER UPPER LHD	CD33C043C54ACW DRIVER UPPER LHD Includes Items 18 and 19	-	1	Enquire
-	CD33C043C54CCW	PASS UP LHD	CD33C043C54CCW PASS UP LHD Includes Item 19	-	1	Enquire
-	CD33C04606BAW	Bezel, IP Top Trim, LHD	CD33C04606BAW Bezel, IP Top Trim, LHD Includes Item 19	-	1	Enquire
-	CD33C04635ACW	PASS UPR OUTER LHD	CD33C04635ACW PASS UPR OUTER LHD Includes Item 19	-	1	Enquire
-	CD33C04634ABW	Panel Assy, IP Upper, Driver Side, LHD	CD33C04634ABW Panel Assy, IP Upper, Driver Side, LHD Includes Item 19	-	1	Enquire
-	CD3302695ACW	DRVR UPR INNER LHD	CD3302695ACW DRVR UPR INNER LHD Includes Item 19	-	1	Enquire
-	CD33C044H58ADW	PASS A/BAG DOOR LHD	CD33C044H58ADW PASS A/BAG DOOR LHD Includes Item 19	-	1	Enquire
-	CD33C04325ABW	Panel Assy, Lower Driver Side, LHD	CD33C04325ABW Panel Assy, Lower Driver Side, LHD Includes Items 19 and 21	-	1	Enquire
-	DD332C356AB	Bracket Assy, Master Light Switch, LHD	DD332C356AB Bracket Assy, Master Light Switch, LHD Includes Item 20	-	1	Enquire
-	DD3311A678BC	Bracket, Master Light Switch, LHD	DD3311A678BC Bracket, Master Light Switch, LHD	-	1	Enquire
-	DD3311A678DB	Bracket, Master Light Switch, LHD	DD3311A678DB Bracket, Master Light Switch, LHD	-	1	Enquire
1	CD33C043C54BCW	DRIVER UPPER RHD	CD33C043C54BCW DRIVER UPPER RHD Includes Items 18 and 19	-	1	Enquire
2	CD33C043C54DCW	PASS UPPER RHD	CD33C043C54DCW PASS UPPER RHD Includes Item 19	-	1	Enquire
3	CD33C04606DAW	Bezel, IP Top Trim, RHD	CD33C04606DAW Bezel, IP Top Trim, RHD Includes Item 19	-	1	Enquire
4	CD33C04634BBW	Panel Assy, IP Upper, Driver Side, RHD	CD33C04634BBW Panel Assy, IP Upper, Driver Side, RHD Includes Item 19	-	1	Enquire
5	CD33C04635BAW	Panel Assy, IP Upper, Passenger Side, RHD	CD33C04635BAW Panel Assy, IP Upper, Passenger Side, RHD Includes Item 19	-	1	Enquire
6	CD3302695BCW	DRVR UPR INNER RHD	CD3302695BCW DRVR UPR INNER RHD Includes Item 19	-	1	Enquire
7	DD3304316AAW	End Panel Assy, RH	DD3304316AAW End Panel Assy, RH Includes Item 18	-	1	Enquire
8	DD3304317AAW	End Panel Assy, LH	DD3304317AAW End Panel Assy, LH Includes Item 18	-	1	Enquire
9	CD33C044H58BCW	Door, Passenger Airbag, RHD	CD33C044H58BCW Door, Passenger Airbag, RHD Includes Item 19	-	1	Enquire
10	CD33C04325BBW	Panel Assy, Lower Driver Side, RHD	CD33C04325BBW Panel Assy, Lower Driver Side, RHD Includes Items 19 and 21	-	1	Enquire
11	DD333T501AAW	Cover, Steering Column Upper	DD333T501AAW Cover, Steering Column Upper	-	1	Enquire
12	DD332C356BC	Bracket Assy, Master Light Switch, RHD	DD332C356BC Bracket Assy, Master Light Switch, RHD Includes Item 20	-	1	Enquire
13	DD3311A678AC	Bracket, Master Light Switch, RHD	DD3311A678AC Bracket, Master Light Switch, RHD	-	1	Enquire
14	DD3311A678CC	Bracket, Master Light Switch, RHD	DD3311A678CC Bracket, Master Light Switch, RHD	-	1	Enquire
15	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping	-	2	Enquire
16	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	13	Enquire
17	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	3	Enquire
18	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	3	Enquire
19	707491	Clip, Push-on, 8.5 x 16.0 x 1.7	707491 Clip, Push-on, 8.5 x 16.0 x 1.7	-	45	Enquire
20	DD3368172AA	Spring Clip	DD3368172AA Spring Clip	-	4	Enquire
21	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL	-	4	Enquire
22	4G43R8200AA	Grille, Panel Assy Lower	4G43R8200AA Grille, Panel Assy Lower	-	1	Enquire
23	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	3	Enquire
