Load Compartment Trim, Coupe

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Load Compartment Trim, COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD3344866AAW Floor Carpet, Load Compartment, Rear Enquire To Order
Photo Part No Description Price (each) Stock
CD3317B048CA FLOOR BRACKET RH Enquire To Order
Photo Part No Description Price (each) Stock
CD3317B049BA FLOOR BRACKET LH Enquire To Order
Photo Part No Description Price (each) Stock
703738 SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 Enquire To Order
Photo Part No Description Price (each) Stock
CD33130B64AAW Trim Assy, Side Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
CD33130B65AAW Trim Assy, Side Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
DD33100A86AAW Carpet Assy, Latch Bracket Enquire To Order
Photo Part No Description Price (each) Stock
4G432705AA Rivet Plastic Enquire To Order
Photo Part No Description Price (each) Stock
CD33454B04ACW CRPT FLR L/C FRT Enquire To Order
Photo Part No Description Price (each) Stock
DD33F27862CA UPR SD BRKT RH Enquire To Order
Photo Part No Description Price (each) Stock
DD33F27863CA UPR SD BRKT LH Enquire To Order
Photo Part No Description Price (each) Stock
703073 Screw, M6 x 16, Countersunk, Black Enquire To Order
Photo Part No Description Price (each) Stock
CD3313152AAW Trim Assembly, Side Floor Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
CD3313153AAW Trim Assy, Side Floor Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
DD33130A60AAW Trim Assembly, Access Panel Enquire To Order
Photo Part No Description Price (each) Stock
DD33425A82AA Plate, Fuel Filler Enquire To Order
Photo Part No Description Price (each) Stock
DD33045L27AB MLDG L/C AUX PWR Enquire To Order
Photo Part No Description Price (each) Stock
DD330416AA Screw, 3.9 x 19mm Enquire To Order
Photo Part No Description Price (each) Stock
701653 Spring Nut, U Type, 4.2 x 0.7-2 Enquire To Order
Photo Part No Description Price (each) Stock
7G43700712BC ASTON MARTIN BLACK UMBRELLA Enquire To Order
Photo Part No Description Price (each) Stock
4G43N623361AA Clip, U Type, Emergency Handle Enquire To Order
Photo Part No Description Price (each) Stock
CD33423A34BA ANGLE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
CD33423A35BA ANGLE BRACKETS LH Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
5R13FA0036AA Screw and Washer M6x28 Pan hd Enquire To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head Enquire To Order
Photo Part No Description Price (each) Stock

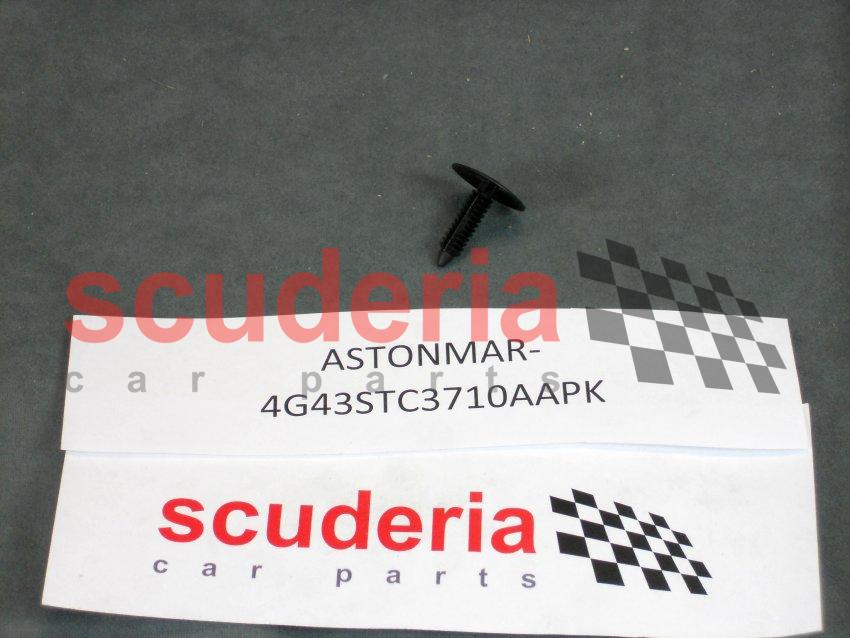

4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
4G4316C695ABPK Nut M6 Black Nylon Domed Pack (Pack of 10) Enquire To Order
View All

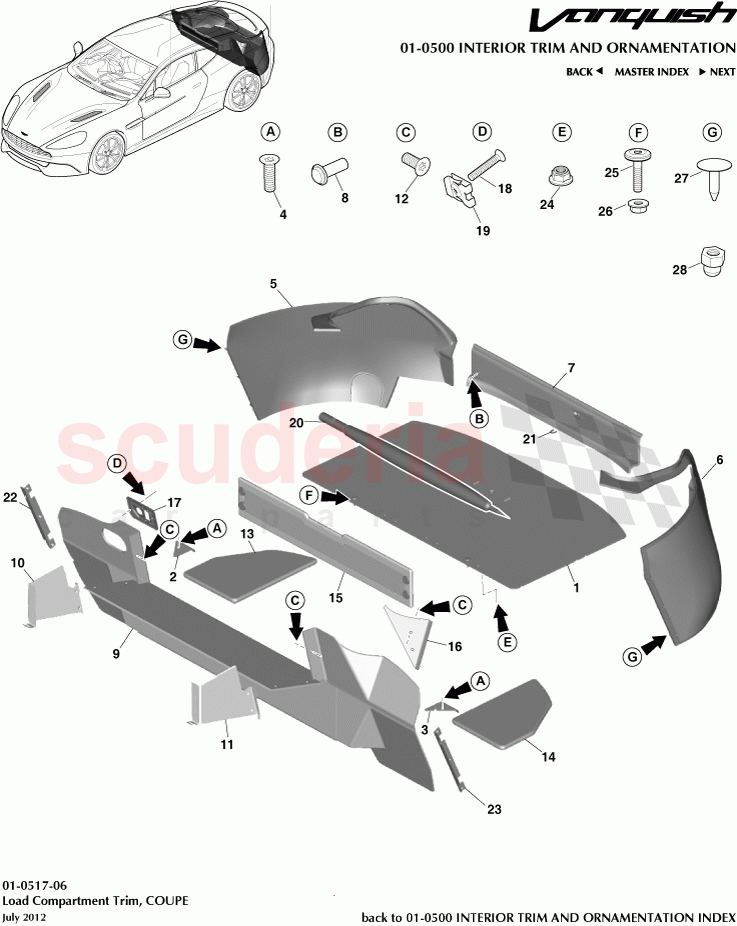

Load Compartment Trim, COUPE of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33130A60BAW
Trim Assembly, Access Panel
For CD Autochanger 		- 1 Enquire
1 CD3344866AAW
Floor Carpet, Load Compartment, Rear 		- 1 Enquire
2 CD3317B048CA
FLOOR BRACKET RH 		- 1 Enquire
3 CD3317B049BA
FLOOR BRACKET LH 		- 1 Enquire
4 703738
SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 		- 2 Enquire
5 CD33130B64AAW
Trim Assy, Side Panel, RH 		- 1 Enquire
6 CD33130B65AAW
Trim Assy, Side Panel, LH 		- 1 Enquire
7 DD33100A86AAW
Carpet Assy, Latch Bracket 		- 1 Enquire
8 4G432705AA
Rivet Plastic 		- 6 Enquire
9 CD33454B04ACW
CRPT FLR L/C FRT 		- 1 Enquire
10 DD33F27862CA
UPR SD BRKT RH 		- 1 Enquire
11 DD33F27863CA
UPR SD BRKT LH 		- 1 Enquire
12 703073
Screw, M6 x 16, Countersunk, Black 		- 6 Enquire
13 CD3313152AAW
Trim Assembly, Side Floor Panel, RH 		- 1 Enquire
14 CD3313153AAW
Trim Assy, Side Floor Panel, LH 		- 1 Enquire
15 DD33130A60AAW
Trim Assembly, Access Panel 		- 1 Enquire
16 DD33425A82AA
Plate, Fuel Filler 		- 1 Enquire
17 DD33045L27AB
MLDG L/C AUX PWR 		- 1 Enquire
18 DD330416AA
Screw, 3.9 x 19mm 		- 2 Enquire
19 701653
Spring Nut, U Type, 4.2 x 0.7-2 		- 2 Enquire
20 7G43700712BC
ASTON MARTIN BLACK UMBRELLA 		- 1 Enquire
21 4G43N623361AA
Clip, U Type, Emergency Handle 		- 1 Enquire
22 CD33423A34BA
ANGLE BRACKET 		- 1 Enquire
23 CD33423A35BA
ANGLE BRACKETS LH 		- 1 Enquire
24 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 4 Enquire
25 5R13FA0036AA
Screw and Washer M6x28 Pan hd
Part of Item 1 		- 2 Enquire
26 702944
Nut, M6, Hex Flanged Head
Part of Item 1 		- 2 Enquire
27 4G43STC3710AAPK
Fir Tree 8mm Fastener (Pack of 20)
Part of Items 5 & 6. Pack of 20 		- 6 Enquire
28 4G4316C695ABPK
Nut M6 Black Nylon Domed Pack (Pack of 10)
Pack of 20 		- 6 Enquire
