Cross Car Beam Assembly of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Cross Car Beam Assembly

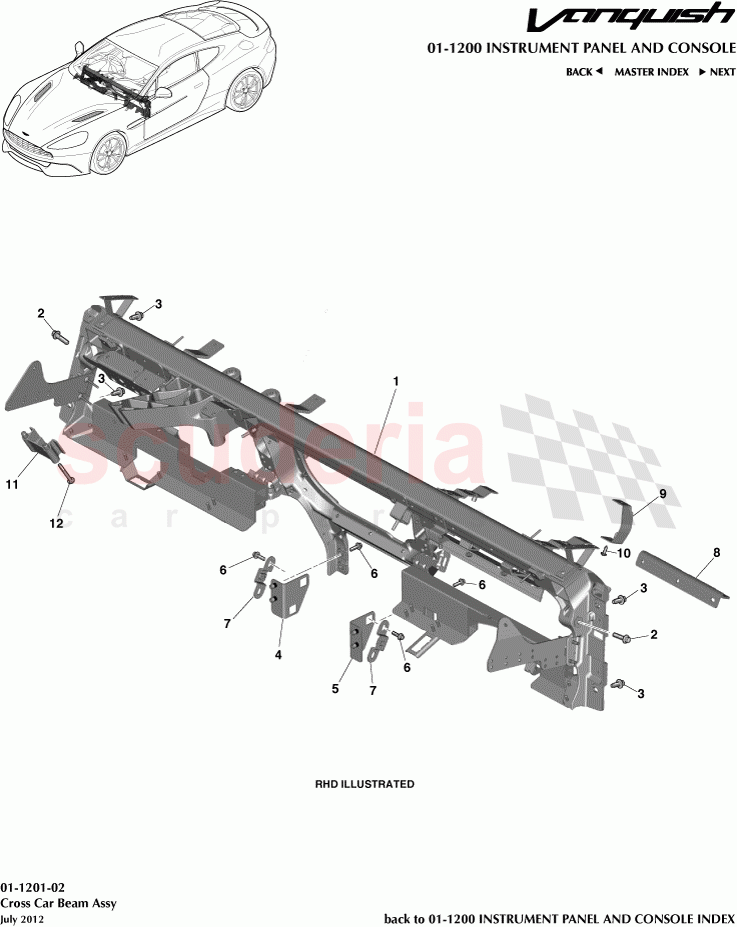

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DD33044B52BA	Cross Car Beam Assembly, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33AWR3369AA	Bracket, Cross Car Beam Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33AWR3368AA	Bracket, Cross Car Beam Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3319080AA	Mounting Bracket, Loudspeaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD334073AAA	Clamp, Passenger Airbag Door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4327946AA	Bracket, CCB Support, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W502670S442	Screw, 4.2 x 16, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43044C32BA	Bracket, Instrument Panel to Cowl Top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DD33044B51BA	Cross Car Beam Assembly, LHD	DD33044B51BA Cross Car Beam Assembly, LHD	-	1	Enquire
-	ED33044B51BA	Cross Car Beam Assembly, Federal	ED33044B51BA Cross Car Beam Assembly, Federal	-	1	Enquire
-	8G4327947AA	Bracket, CCB Support, LHD	8G4327947AA Bracket, CCB Support, LHD	-	1	Enquire
1	DD33044B52BA	Cross Car Beam Assembly, RHD	DD33044B52BA Cross Car Beam Assembly, RHD	-	1	Enquire
2	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
3	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
4	6G33AWR3369AA	Bracket, Cross Car Beam Mounting, RH	6G33AWR3369AA Bracket, Cross Car Beam Mounting, RH	-	1	Enquire
5	6G33AWR3368AA	Bracket, Cross Car Beam Mounting, LH	6G33AWR3368AA Bracket, Cross Car Beam Mounting, LH	-	1	Enquire
6	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	8	Enquire
7	9D3319080AA	Mounting Bracket, Loudspeaker	9D3319080AA Mounting Bracket, Loudspeaker	-	2	Enquire
8	DD334073AAA	Clamp, Passenger Airbag Door	DD334073AAA Clamp, Passenger Airbag Door	-	1	Enquire
9	8G4327946AA	Bracket, CCB Support, RHD	8G4327946AA Bracket, CCB Support, RHD	-	1	Enquire
10	W502670S442	Screw, 4.2 x 16, Self Tapping	W502670S442 Screw, 4.2 x 16, Self Tapping	-	2	Enquire
11	9G43044C32BA	Bracket, Instrument Panel to Cowl Top	9G43044C32BA Bracket, Instrument Panel to Cowl Top	-	1	Enquire
12	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10) Pack of 10	-	2	Enquire
