Rear Quarter Trim Panel, VOLANTE of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Rear Quarter Trim Panel, VOLANTE

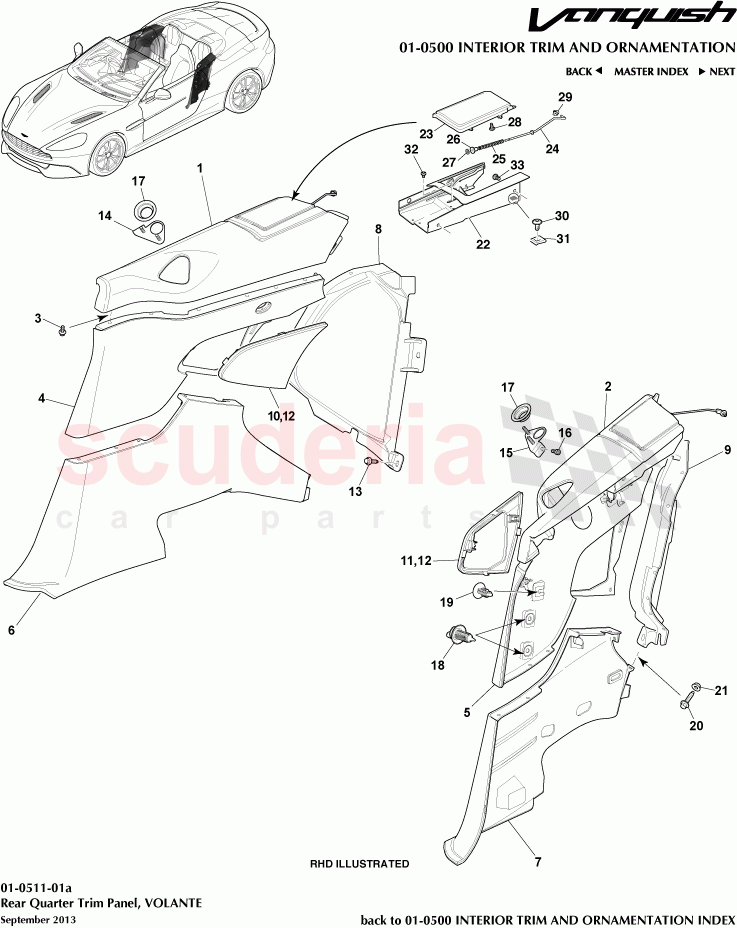

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED33L31112ACW	Trim Panel, Rear Quarter Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L31113ACW	Trim Panel, Rear Quarter Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W500002S440	Screw, M5 X 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L31486ABW	Panel Assembly, Rear Quarter Middle, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L31487ABW	Panel Assembly, Rear Quarter Middle, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L312A06AAW	Trim Panel, Rear Quarter Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L312A07AAW	Trim Panel, Rear Quarter Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L60594ABW	Panel Assembly, Rear Seat Back, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L60595ABW	Panel Assembly, Rear Seat Back, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L312A94BD	Speaker Grille, Rear Quarter, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L312A95BD	Speaker Grille, Rear Quarter, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707620	Nut-M4 HEX FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L24858AB	Bezel Assembly, Front Seat Belt, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33L24859AB	Bezel Assembly, Front Seat Belt, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43V850063AA	Screw, Cap Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3361236AA	Bezel, Seat Belt Gap Hider Moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43STC3710BA	Fir Tree, Key Hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703732	Screw, M5 x 20, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33LB605H20AA	Frame and Finisher Assembly, C-Flap, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED33539A36ABW	Flap Assembly, Flip Top, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L53296AA	Link Rod, Flap Top RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317431AA	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43338013AA	PLUG BLANKING (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103021AB	Fix, Push On	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703027	SCREW M4x10 PAN HD TORX S/TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431861AA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701440	Screw Self Tapping Washer Head 4.2 x 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701653	Spring Nut, U Type, 4.2 x 0.7-2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702211	SCREW M5x8.0x0.80 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED33L31012ADW	Trim Panel, Rear Quarter Complete, RH	ED33L31012ADW Trim Panel, Rear Quarter Complete, RH	-	1	Enquire
-	ED33L31013ADW	Trim Panel, Rear Quarter Complete, LH	ED33L31013ADW Trim Panel, Rear Quarter Complete, LH	-	1	Enquire
-	ED33L312A94FA	Grille, Rear Quarter, RH	ED33L312A94FA Grille, Rear Quarter, RH Iridium From VIN K01281	-	1	Enquire
-	9D33L312A94BA	REAR QUARTER SPEAKER RHS BLACK	9D33L312A94BA REAR QUARTER SPEAKER RHS BLACK Black	-	1	Enquire
-	ED33L312A95FA	Grille, Rear Quarter, LH	ED33L312A95FA Grille, Rear Quarter, LH Iridium From VIN K01281	-	1	Enquire
-	9D33L312A95BA	REAR QUARTER SPEAKER LHS BLACK	9D33L312A95BA REAR QUARTER SPEAKER LHS BLACK Black	-	1	Enquire
-	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH Satin Chrome	-	1	Enquire
-	ED33LB605H21AA	Frame and Finisher Assembly, C-Flap, LH	ED33LB605H21AA Frame and Finisher Assembly, C-Flap, LH Shadow Bronze	-	1	Enquire
-	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH Satin Chrome	-	1	Enquire
-	4G43539A36AEW	Flap Assembly, Flip Top, RH	4G43539A36AEW Flap Assembly, Flip Top, RH Satin Chrome (Includes 24-28)	-	1	Enquire
-	ED33539A37ABW	Flap Assembly, Flip Top, LH	ED33539A37ABW Flap Assembly, Flip Top, LH Shadow Bronze (Includes 24-28)	-	1	Enquire
-	4G43539A37AEW	Flap Assembly, Flip Top, LH	4G43539A37AEW Flap Assembly, Flip Top, LH Satin Chrome (Includes 24-28)	-	1	Enquire
-	4G43L53297AA	Link Rod, Flap Top LH	4G43L53297AA Link Rod, Flap Top LH	-	1	Enquire
1	ED33L31112ACW	Trim Panel, Rear Quarter Upper, RH	ED33L31112ACW Trim Panel, Rear Quarter Upper, RH	-	1	Enquire
2	ED33L31113ACW	Trim Panel, Rear Quarter Upper, LH	ED33L31113ACW Trim Panel, Rear Quarter Upper, LH	-	1	Enquire
3	W500002S440	Screw, M5 X 12, Hex Flange Head	W500002S440 Screw, M5 X 12, Hex Flange Head	-	12	Enquire
4	ED33L31486ABW	Panel Assembly, Rear Quarter Middle, RH	ED33L31486ABW Panel Assembly, Rear Quarter Middle, RH Includes Items 10 and 12	-	1	Enquire
5	ED33L31487ABW	Panel Assembly, Rear Quarter Middle, LH	ED33L31487ABW Panel Assembly, Rear Quarter Middle, LH Includes Items 11 and 12	-	1	Enquire
6	ED33L312A06AAW	Trim Panel, Rear Quarter Lower, RH	ED33L312A06AAW Trim Panel, Rear Quarter Lower, RH	-	1	Enquire
7	ED33L312A07AAW	Trim Panel, Rear Quarter Lower, LH	ED33L312A07AAW Trim Panel, Rear Quarter Lower, LH	-	1	Enquire
8	ED33L60594ABW	Panel Assembly, Rear Seat Back, RH	ED33L60594ABW Panel Assembly, Rear Seat Back, RH	-	1	Enquire
9	ED33L60595ABW	Panel Assembly, Rear Seat Back, LH	ED33L60595ABW Panel Assembly, Rear Seat Back, LH	-	1	Enquire
10	9G43L312A94BD	Speaker Grille, Rear Quarter, RH	9G43L312A94BD Speaker Grille, Rear Quarter, RH Silver Up to VIN K01280	-	1	Enquire
11	9G43L312A95BD	Speaker Grille, Rear Quarter, LH	9G43L312A95BD Speaker Grille, Rear Quarter, LH Silver Up to VIN K01280	-	1	Enquire
12	707620	Nut-M4 HEX FLANGED	707620 Nut-M4 HEX FLANGED Pack of 20	-	6	Enquire
13	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
14	ED33L24858AB	Bezel Assembly, Front Seat Belt, RH	ED33L24858AB Bezel Assembly, Front Seat Belt, RH	-	1	Enquire
15	ED33L24859AB	Bezel Assembly, Front Seat Belt, LH	ED33L24859AB Bezel Assembly, Front Seat Belt, LH	-	1	Enquire
16	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd	-	2	Enquire
17	DD3361236AA	Bezel, Seat Belt Gap Hider Moulding	DD3361236AA Bezel, Seat Belt Gap Hider Moulding	-	2	Enquire
18	4G43STC3710BA	Fir Tree, Key Hole	4G43STC3710BA Fir Tree, Key Hole	-	4	Enquire
19	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20) Pack of 20	-	2	Enquire
20	703732	Screw, M5 x 20, Hex Flange Head	703732 Screw, M5 x 20, Hex Flange Head	-	16	Enquire
21	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	18	Enquire
22	ED33LB605H20AA	Frame and Finisher Assembly, C-Flap, RH	ED33LB605H20AA Frame and Finisher Assembly, C-Flap, RH Shadow Bronze	-	1	Enquire
23	ED33539A36ABW	Flap Assembly, Flip Top, RH	ED33539A36ABW Flap Assembly, Flip Top, RH Shadow Bronze (Includes 24-28)	-	1	Enquire
24	4G43L53296AA	Link Rod, Flap Top RH	4G43L53296AA Link Rod, Flap Top RH	-	1	Enquire
25	4G4317431AA	SPRING	4G4317431AA SPRING	-	2	Enquire
26	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6)	-	2	Enquire
27	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On	-	2	Enquire
28	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	4	Enquire
29	4G431861AA	CLIP	4G431861AA CLIP	-	2	Enquire
30	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5	-	2	Enquire
31	701653	Spring Nut, U Type, 4.2 x 0.7-2	701653 Spring Nut, U Type, 4.2 x 0.7-2	-	2	Enquire
32	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD	-	2	Enquire
33	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx	-	4	Enquire
