Exterior Mirror of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Exterior Mirror

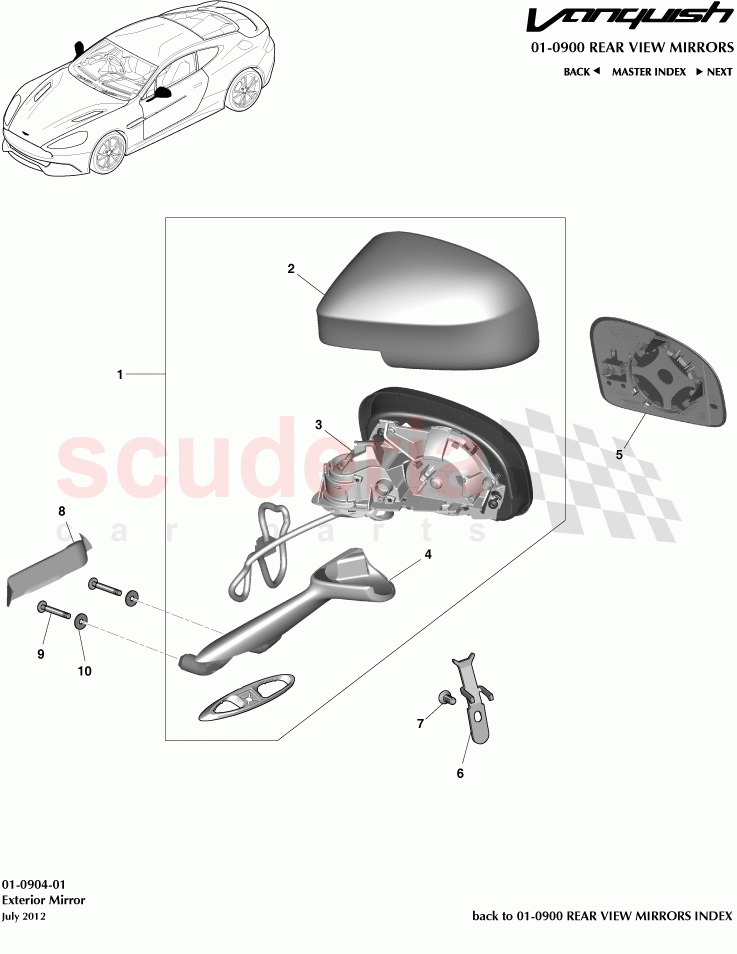

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3317683BE	MIRROR ASSY REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3339979063BD	Mirror Cap, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3317K07BA	Mirror Head, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3317E943AB	Mirror Base, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG333063473AC	Mirror Glass, Convex, LH, Passenger Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3327951AB	Strut, Mirror, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4327960AA	SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33243B01AA	Decal, Front Door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3317683AD	MRR ASSY RR VW O/S L	CD3317683AD MRR ASSY RR VW O/S L Body Colour	-	1	Enquire
-	CD3317682BE	MIRROR ASSY REAR	CD3317682BE MIRROR ASSY REAR Carbon	-	1	Enquire
-	CD3317682AD	MIRR ASSY RR VW O/S	CD3317682AD MIRR ASSY RR VW O/S Body Colour	-	1	Enquire
-	AG3339979063AC	Cap, Door Mirror, LH	AG3339979063AC Cap, Door Mirror, LH Body Colour	-	1	Enquire
-	CD3339979062BD	Mirror Cap, RH	CD3339979062BD Mirror Cap, RH Carbon	-	1	Enquire
-	AG3339979062AC	External Rear View Mirror Cap RH	AG3339979062AC External Rear View Mirror Cap RH Body Colour	-	1	Enquire
-	CD3317K06BA	Mirror Head, RH	CD3317K06BA Mirror Head, RH Carbon Only	-	1	Enquire
-	CD3317E942AB	Mirror Base, RH	CD3317E942AB Mirror Base, RH Carbon Only	-	1	Enquire
-	AG333063473DB	EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE	AG333063473DB EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE LHD	-	1	Enquire
-	AG333063473BC	Mirror Glass, Flat, LH, Driver Side	AG333063473BC Mirror Glass, Flat, LH, Driver Side Federal	-	1	Enquire
-	AG333063473CC	Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side	AG333063473CC Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side Gulf C.C	-	1	Enquire
-	AG333063472AC	Mirror Glass, Convex, RH, Driver Side	AG333063472AC Mirror Glass, Convex, RH, Driver Side RHD	-	1	Enquire
-	AG333063472DB	Mirror Glass, Convex, RH, Passenger Side ARRIVING SOON	AG333063472DB Mirror Glass, Convex, RH, Passenger Side LHD ARRIVING SOON	-	1	Enquire
-	AG333063472BC	Mirror Glass, Convex, RH, Passenger Side	AG333063472BC Mirror Glass, Convex, RH, Passenger Side Federal	-	1	Enquire
-	AG333063472CC	Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side	AG333063472CC Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side Gulf C.C	-	1	Enquire
-	CD3327950AB	Strut, Mirror, RH	CD3327950AB Strut, Mirror, RH	-	1	Enquire
-	CD33243B00AA	Decal, Front Door, RH	CD33243B00AA Decal, Front Door, RH	-	1	Enquire
1	CD3317683BE	MIRROR ASSY REAR	CD3317683BE MIRROR ASSY REAR Carbon	-	1	Enquire
2	CD3339979063BD	Mirror Cap, LH	CD3339979063BD Mirror Cap, LH Carbon	-	1	Enquire
3	CD3317K07BA	Mirror Head, LH	CD3317K07BA Mirror Head, LH Carbon Only	-	1	Enquire
4	CD3317E943AB	Mirror Base, LH	CD3317E943AB Mirror Base, LH Carbon Only	-	1	Enquire
5	AG333063473AC	Mirror Glass, Convex, LH, Passenger Side	AG333063473AC Mirror Glass, Convex, LH, Passenger Side RHD	-	1	Enquire
6	CD3327951AB	Strut, Mirror, LH	CD3327951AB Strut, Mirror, LH	-	1	Enquire
7	AD4327960AA	SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	AD4327960AA SCREW M8 X 20 CSK HEAD HEX DRIVE ERD 8.8	-	2	Enquire
8	CD33243B01AA	Decal, Front Door, LH	CD33243B01AA Decal, Front Door, LH	-	1	Enquire
9	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	-	4	Enquire
10	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
