Name: Second Row Seat Assembly, COUPE
Rating: 4.5 (1 reviews)

Second Row Seat Assembly, COUPE of Aston Martin Aston Martin Vanquish (2012+)

View All

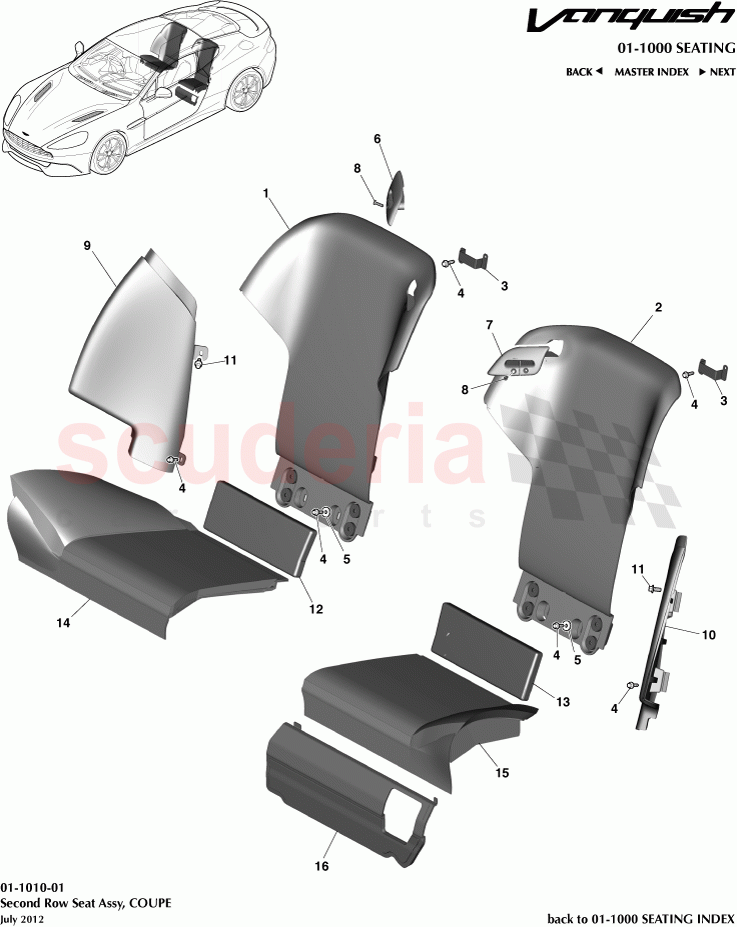

Aston Martin Vanquish (2012+) - Second Row Seat Assembly, COUPE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD3360032ABW	Rear Seat Back Assy, RH	$2,808.30	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3360033ACW	Rear Seat Back Assy, LH	$2,520.86	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341171AB	Bracket, Squab Rear Fixing	$41.20	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	$23.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43611B90BA	Bezel, Rear Seatbelt, RH	$134.02	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43611B91BA	Bezel, Rear Seatbelt, LH	$134.02	To Order

Photo	Part No	Description	Price (each)	Stock
	703076	Screw, M4 x 20, Flat Socket Countersunk	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3360594AAW	Bolster Panel Assy, Rear Seat, RH	$1,339.27	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3360595AAW	Bolster Panel Assy, Rear Seat, LH	$1,339.27	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD3363846AAW	Lumbar Pad, Rear Seat, RH	$659.58	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3363847AAW	Lumbar Pad, Rear Seat, LH	$659.58	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3360080ACW	Cushion, Rear Seat, RH	$1,724.28	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3360081ACW	Cushion, Rear Seat, LH	$1,724.28	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310K973ABW	Heel Board, Rear, LH	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33611B90ABW	Bezel, Rear Seatbelt, RH	CD33611B90ABW Bezel, Rear Seatbelt, RH Dark Chrome	$502.49	1
-	CD33611B91ABW	Bezel, Rear Seatbelt, LH	CD33611B91ABW Bezel, Rear Seatbelt, LH Dark Chrome	$502.49	1
1	CD3360032ABW	Rear Seat Back Assy, RH	CD3360032ABW Rear Seat Back Assy, RH	$2,808.30	1
2	CD3360033ACW	Rear Seat Back Assy, LH	CD3360033ACW Rear Seat Back Assy, LH	$2,520.86	1
3	4G4341171AB	Bracket, Squab Rear Fixing	4G4341171AB Bracket, Squab Rear Fixing	$41.20	2
4	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	$0.21	10
5	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	$23.61	4
6	4G43611B90BA	Bezel, Rear Seatbelt, RH	4G43611B90BA Bezel, Rear Seatbelt, RH Satin Chrome	$134.02	1
7	4G43611B91BA	Bezel, Rear Seatbelt, LH	4G43611B91BA Bezel, Rear Seatbelt, LH Satin Chrome	$134.02	1
8	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	$0.21	4
9	CD3360594AAW	Bolster Panel Assy, Rear Seat, RH	CD3360594AAW Bolster Panel Assy, Rear Seat, RH	$1,339.27	1
10	CD3360595AAW	Bolster Panel Assy, Rear Seat, LH	CD3360595AAW Bolster Panel Assy, Rear Seat, LH	$1,339.27	1
11	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	$0.21	2
12	CD3363846AAW	Lumbar Pad, Rear Seat, RH	CD3363846AAW Lumbar Pad, Rear Seat, RH	$659.58	1
13	CD3363847AAW	Lumbar Pad, Rear Seat, LH	CD3363847AAW Lumbar Pad, Rear Seat, LH	$659.58	1
14	CD3360080ACW	Cushion, Rear Seat, RH	CD3360080ACW Cushion, Rear Seat, RH	$1,724.28	1
15	CD3360081ACW	Cushion, Rear Seat, LH	CD3360081ACW Cushion, Rear Seat, LH	$1,724.28	1
16	CD3310K973ABW	Heel Board, Rear, LH	CD3310K973ABW Heel Board, Rear, LH	-	1	Enquire

Second Row Seat Assembly, Coupe

Aston Martin Vanquish (2012+)

Aston Martin Vanquish (2012+) - Second Row Seat Assembly, COUPE
