Front Seat of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Front Seat

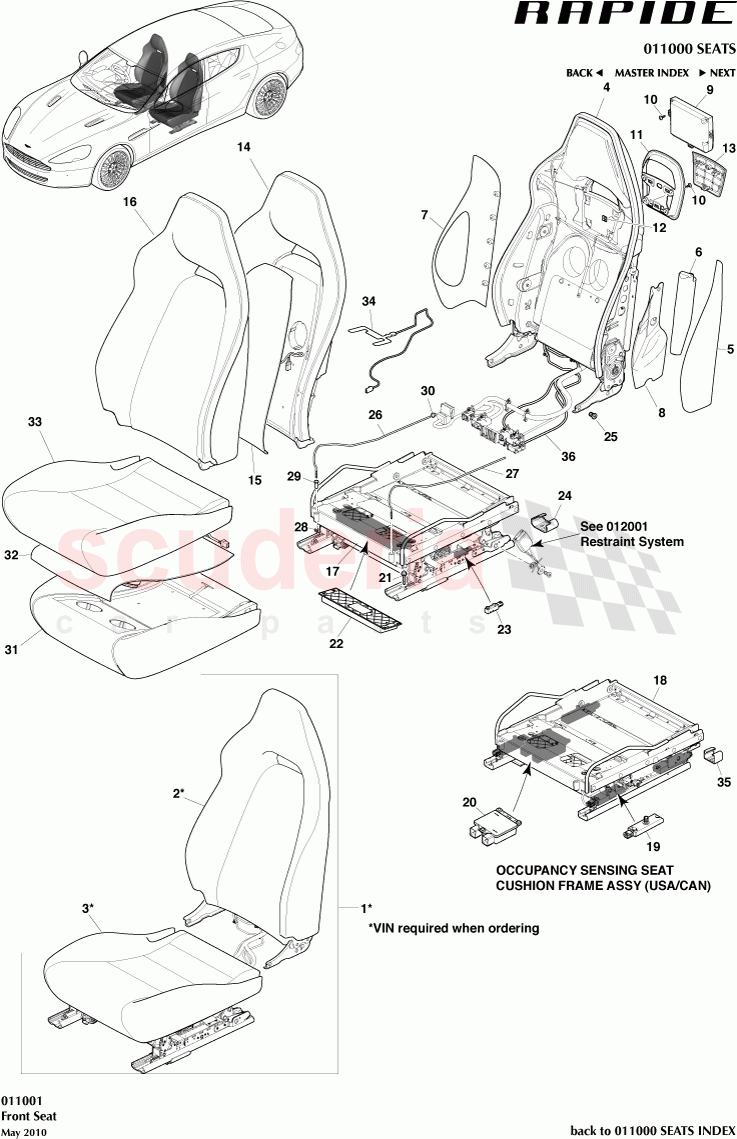

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4360008ABW	Front seat assy, RHS, passenger side	Enquire	To Order
	AD4360009ABW	Front seat assy, LHS, driver side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4360137ABW	Squab assy, LHS, driver side	Enquire	To Order
	AD4360136ABW	Squab assy, LHS, driver side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4360050AAW	Cushion assy, front seat, height adjustable	Enquire	To Order
	AD4360050BAW	Cushion assy, front seat, OCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4364800AB	Squab frame assy	Enquire	To Order
	AD4364800BF	ASY FRT ST SQB FRM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43110002BA	PANEL SEAT BACK EXTENTION SIDE LEFT HAND	Enquire	To Order
	AD43110003BA	PANEL SEAT BACK EXTENTION SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43611D10AB	Airbag, Front Seat Side, LH	Enquire	To Order
	AD43611D11AB	Airbag, Front Seat Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43110003AA	Panel, seat back extention side, LHS	Enquire	To Order
	AD43110002AA	PANEL SEAT BACK EXTENSION SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D456BA	Vac form, seat airbag, LH	Enquire	To Order
	AD43M2D455BA	Vac form, seat airbag, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5H32045M80AB	REAR SEAT ENT HIGH LEVEL DISPLAY REAR 6.5 INCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43644B20AA	Finisher	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43600E68AAW	Panel and pocket assy, seat back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD434D9513BA	FRONT SEAT SQUAB FOAM CLIMATE	Enquire	To Order
	AD434D9513AA	Foam, Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43600B70AB	COOL ASY FRT ST BK	Enquire	To Order
	AD4314D696AB	Heating Element, Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4364573ABW	FRONT SEAT SQUAB LH COVER ASSY	Enquire	To Order
	AD4364572ABW	FRONT SEAT SQUAB RH COVER ASSY	Enquire	To Order
	AD4364573BBW	FRONT SEAT SQUAB COVER LH PERFORATED	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD43L60344AC	FRONT SEAT CUSHION FRAME HEIGHT ADJ	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43L60344BC	ASSY FRONT SEAT CUSHION FRAME NON HEIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B02BA	Sensor Passenger Seat Weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B00CC	Module, Passenger Seat Weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92059	SEAT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314B426AB	Sensor, seat track position	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43629B03AB	FRONT SEAT RUN END CAP 6-WAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4361538AA	BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4363602AB	Wire retainer, cushion cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4363603AB	Wire retainer, cushion cover, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4334388AA	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699684	GROMMET - RECOVERY BOTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439515BC	FRT ST CSHN FM CLMT	Enquire	To Order
	AD439515AB	Foam, cushion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43600B68BB	Cooling assy, cushion	Enquire	To Order
	AD43600B68AD	COOL ASY FRT ST CSHN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4362900AAW	COVER ASSY FRONT SEAT CUSHION	Enquire	To Order
	AD4362900BAW	FRONT SEAT CUSHION COVER PERFORATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314C288AA	Sensor, passenger belt reminder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43629B01AB	Run end cap, 2 way	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314B549AB	WIRE ASSY ENTERTAINMENT SYSTEM REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD4360008ABW	Front seat assy, RHS, passenger side	AD4360008ABW Front seat assy, RHS, passenger side VIN required when ordering	-	1	Enquire
1	AD4360009ABW	Front seat assy, LHS, driver side	AD4360009ABW Front seat assy, LHS, driver side VIN required when ordering	-	1	Enquire
2	AD4360137ABW	Squab assy, LHS, driver side	AD4360137ABW Squab assy, LHS, driver side VIN required when ordering	-	1	Enquire
2	AD4360136ABW	Squab assy, LHS, driver side	AD4360136ABW Squab assy, LHS, driver side VIN required when ordering	-	1	Enquire
3	AD4360050AAW	Cushion assy, front seat, height adjustable	AD4360050AAW Cushion assy, front seat, height adjustable VIN required when ordering	-	1	Enquire
3	AD4360050BAW	Cushion assy, front seat, OCS	AD4360050BAW Cushion assy, front seat, OCS VIN required when ordering	-	1	Enquire
4	AD4364800AB	Squab frame assy	AD4364800AB Squab frame assy Without RSE	-	1	Enquire
4	AD4364800BF	ASY FRT ST SQB FRM	AD4364800BF ASY FRT ST SQB FRM RSE	-	1	Enquire
5	AD43110002BA	PANEL SEAT BACK EXTENTION SIDE LEFT HAND	AD43110002BA PANEL SEAT BACK EXTENTION SIDE LEFT HAND	-	1	Enquire
5	AD43110003BA	PANEL SEAT BACK EXTENTION SIDE	AD43110003BA PANEL SEAT BACK EXTENTION SIDE	-	1	Enquire
6	AD43611D10AB	Airbag, Front Seat Side, LH	AD43611D10AB Airbag, Front Seat Side, LH	-	1	Enquire
6	AD43611D11AB	Airbag, Front Seat Side, RH	AD43611D11AB Airbag, Front Seat Side, RH	-	1	Enquire
7	AD43110003AA	Panel, seat back extention side, LHS	AD43110003AA Panel, seat back extention side, LHS	-	1	Enquire
7	AD43110002AA	PANEL SEAT BACK EXTENSION SIDE	AD43110002AA PANEL SEAT BACK EXTENSION SIDE	-	1	Enquire
8	AD43M2D456BA	Vac form, seat airbag, LH	AD43M2D456BA Vac form, seat airbag, LH	-	1	Enquire
8	AD43M2D455BA	Vac form, seat airbag, LH	AD43M2D455BA Vac form, seat airbag, LH	-	1	Enquire
9	5H32045M80AB	REAR SEAT ENT HIGH LEVEL DISPLAY REAR 6.5 INCH	5H32045M80AB REAR SEAT ENT HIGH LEVEL DISPLAY REAR 6.5 INCH	-	1	Enquire
10	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	7	Enquire
11	AD43644B20AA	Finisher	AD43644B20AA Finisher	-	1	Enquire
12	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	4	Enquire
13	AD43600E68AAW	Panel and pocket assy, seat back	AD43600E68AAW Panel and pocket assy, seat back	-	1	Enquire
14	AD434D9513BA	FRONT SEAT SQUAB FOAM CLIMATE	AD434D9513BA FRONT SEAT SQUAB FOAM CLIMATE Climate	-	1	Enquire
14	AD434D9513AA	Foam, Squab	AD434D9513AA Foam, Squab	-	1	Enquire
15	AD43600B70AB	COOL ASY FRT ST BK	AD43600B70AB COOL ASY FRT ST BK Climate	-	1	Enquire
15	AD4314D696AB	Heating Element, Squab	AD4314D696AB Heating Element, Squab Heated	-	1	Enquire
16	AD4364573ABW	FRONT SEAT SQUAB LH COVER ASSY	AD4364573ABW FRONT SEAT SQUAB LH COVER ASSY Non perforated	-	1	Enquire
16	AD4364572ABW	FRONT SEAT SQUAB RH COVER ASSY	AD4364572ABW FRONT SEAT SQUAB RH COVER ASSY Non perforated	-	1	Enquire
16	AD4364573BBW	FRONT SEAT SQUAB COVER LH PERFORATED	AD4364573BBW FRONT SEAT SQUAB COVER LH PERFORATED Climate	-	1	Enquire
16	AD4364572BBW	FRONT SEAT SQUAB COVER PERFORATED RH	AD4364572BBW FRONT SEAT SQUAB COVER PERFORATED RH Climate	-	1	Enquire
17	AD43L60344AC	FRONT SEAT CUSHION FRAME HEIGHT ADJ	AD43L60344AC FRONT SEAT CUSHION FRAME HEIGHT ADJ NON-OCS	-	1	Enquire
18	AD43L60344BC	ASSY FRONT SEAT CUSHION FRAME NON HEIGHT	AD43L60344BC ASSY FRONT SEAT CUSHION FRAME NON HEIGHT OCS	-	1	Enquire
19	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight	-	4	Enquire
20	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight	-	1	Enquire
21	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	703153 BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	-	4	Enquire
22	92059	SEAT ECU	92059 SEAT ECU	-	1	Enquire
23	7G4314B426AB	Sensor, seat track position	7G4314B426AB Sensor, seat track position	-	1	Enquire
24	AD43629B03AB	FRONT SEAT RUN END CAP 6-WAY	AD43629B03AB FRONT SEAT RUN END CAP 6-WAY	-	2	Enquire
25	AD4361538AA	BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	AD4361538AA BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	-	4	Enquire
26	AD4363602AB	Wire retainer, cushion cover	AD4363602AB Wire retainer, cushion cover	-	1	Enquire
27	AD4363603AB	Wire retainer, cushion cover, LHS	AD4363603AB Wire retainer, cushion cover, LHS	-	1	Enquire
28	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
29	AD4334388AA	BUSH	AD4334388AA BUSH	-	2	Enquire
30	699684	GROMMET - RECOVERY BOTTLE	699684 GROMMET - RECOVERY BOTTLE	-	2	Enquire
31	AD439515BC	FRT ST CSHN FM CLMT	AD439515BC FRT ST CSHN FM CLMT Climate	-	1	Enquire
31	AD439515AB	Foam, cushion	AD439515AB Foam, cushion	-	1	Enquire
32	AD43600B68BB	Cooling assy, cushion	AD43600B68BB Cooling assy, cushion Climate	-	1	Enquire
32	AD43600B68AD	COOL ASY FRT ST CSHN	AD43600B68AD COOL ASY FRT ST CSHN	-	1	Enquire
33	AD4362900AAW	COVER ASSY FRONT SEAT CUSHION	AD4362900AAW COVER ASSY FRONT SEAT CUSHION Non perforated	-	1	Enquire
33	AD4362900BAW	FRONT SEAT CUSHION COVER PERFORATED	AD4362900BAW FRONT SEAT CUSHION COVER PERFORATED Climate	-	1	Enquire
34	AD4314C288AA	Sensor, passenger belt reminder	AD4314C288AA Sensor, passenger belt reminder	-	1	Enquire
35	AD43629B01AB	Run end cap, 2 way	AD43629B01AB Run end cap, 2 way	-	2	Enquire
36	AD4314B549AB	WIRE ASSY ENTERTAINMENT SYSTEM REAR	AD4314B549AB WIRE ASSY ENTERTAINMENT SYSTEM REAR	-	1	Enquire
