Body Rear End Trim Assembly

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Body Rear End Trim Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43130A58AEW CRPT LC RR Enquire To Order
Photo Part No Description Price (each) Stock
AD43130A60ABW REAR LOADSPACE FLOOR ASSY Enquire To Order
Photo Part No Description Price (each) Stock
AD4345422ABW TRM ASY LC SD LWR RH Enquire To Order
Photo Part No Description Price (each) Stock
AD4345423ABW TRM ASY LC LWR LH Enquire To Order
Photo Part No Description Price (each) Stock
AD4345431ABW CARPET PANEL ASY LHS INFIL Enquire To Order
Photo Part No Description Price (each) Stock
AD4345456ABW FRONT FLOOR ASSY WITH RUNNERS Enquire To Order
Photo Part No Description Price (each) Stock
AD43454A15ACW CRPT ASY FLR RR LHS Enquire To Order
Photo Part No Description Price (each) Stock
5R13FA0036AA Screw and Washer M6x28 Pan hd Enquire To Order
Photo Part No Description Price (each) Stock
CD43454A23ABW DR SAY L/C LHS Enquire To Order
Photo Part No Description Price (each) Stock
CD43454A22ABW DR ASY LC RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43454B58AAW LOADSPACE MAIN FLOOR CARPET ASY Enquire To Order
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
AD4345586ABW FOLDING FLOOR PANEL ASSY Enquire To Order
Photo Part No Description Price (each) Stock
AD43454W70AA Bracket assy Enquire To Order
Photo Part No Description Price (each) Stock
703735 Screw, M5 x 12, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
AD43F31148ABW Carpet assy, lamp moulding cover, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F31149ABW Carpet assy, lamp moulding cover, LH Enquire To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
AD43454A16AA RETENTION PANEL ASY L/C FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
AD43130W46AA FUEL TANK CARPET GRIPPER Enquire To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
AD4341852AA Bracket, rear fixing Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
AD43427A48AA Bracket assy, door lower support, RHS Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
AD4340122AB RHS MMM COVER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
AD4342626ADW PLT ASY RR LC SCF Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
4G43N805935AA Flangeless Plug, Black PVC, 17mm Enquire To Order
Photo Part No Description Price (each) Stock
HD43711387AA BOLT-M8x25.5 PN TITE SPL8 Enquire To Order
Photo Part No Description Price (each) Stock
AD4345709BA L/C RR CRPT FOAM SPT Enquire To Order
Photo Part No Description Price (each) Stock
6G33454A28AB REAR LAMP BOLT COVER Enquire To Order
Photo Part No Description Price (each) Stock
AD4318580BAW L/C FOL FLR END ST A Enquire To Order
Photo Part No Description Price (each) Stock
AD43454B16AB Bracket, damper strut cover, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43454B17AB Bracket, damper strut cover, LHS Enquire To Order
Photo Part No Description Price (each) Stock
4G43E820201AA M8 HALF NUT HEX BRASS Enquire To Order
Photo Part No Description Price (each) Stock
AD43454C54AB Cover, damper strut, RHD Enquire To Order
Photo Part No Description Price (each) Stock
AD43454C55AB Cover, damper strut, LHD Enquire To Order
Photo Part No Description Price (each) Stock
AD43C4086AA M4 x 25 FLD HEAD TOR Enquire To Order
Photo Part No Description Price (each) Stock
4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD Enquire To Order
Photo Part No Description Price (each) Stock
701356 Rivet, Blind, M4x10 Enquire To Order
Photo Part No Description Price (each) Stock
7784981PK Tape, Anti Rattle Rear Quarter Wheel Enquire To Order
Photo Part No Description Price (each) Stock
AD4345727AA Foam support, luggage compartment rear floor, LHS Enquire To Order
View All

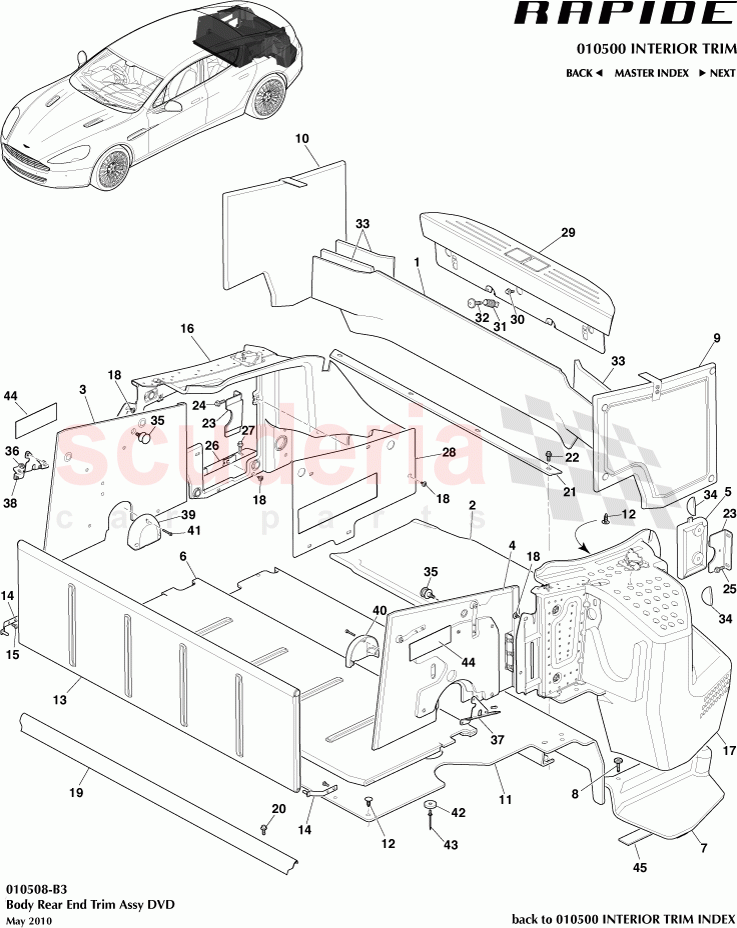

Body Rear End Trim Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43130A58AEW
CRPT LC RR 		- 1 Enquire
2 AD43130A60ABW
REAR LOADSPACE FLOOR ASSY 		- 1 Enquire
3 AD4345422ABW
TRM ASY LC SD LWR RH 		- 1 Enquire
4 AD4345423ABW
TRM ASY LC LWR LH 		- 1 Enquire
5 AD4345431ABW
CARPET PANEL ASY LHS INFIL 		- 1 Enquire
6 AD4345456ABW
FRONT FLOOR ASSY WITH RUNNERS 		- 1 Enquire
7 AD43454A15ACW
CRPT ASY FLR RR LHS 		- 1 Enquire
8 5R13FA0036AA
Screw and Washer M6x28 Pan hd 		- 2 Enquire
9 CD43454A23ABW
DR SAY L/C LHS 		- 2 Enquire
10 CD43454A22ABW
DR ASY LC RHS 		- 2 Enquire
11 AD43454B58AAW
LOADSPACE MAIN FLOOR CARPET ASY 		- 1 Enquire
12 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 		- 5 Enquire
13 AD4345586ABW
FOLDING FLOOR PANEL ASSY 		- 5 Enquire
14 AD43454W70AA
Bracket assy 		- 2 Enquire
15 703735
Screw, M5 x 12, Pan Head
2 per brkt 		- 4 Enquire
16 AD43F31148ABW
Carpet assy, lamp moulding cover, RH 		- 1 Enquire
17 AD43F31149ABW
Carpet assy, lamp moulding cover, LH 		- 1 Enquire
18 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		- 11 Enquire
19 AD43454A16AA
RETENTION PANEL ASY L/C FLOOR 		- 1 Enquire
20 703265
Screw, M6 x 16, Hex Flange Head 		- 4 Enquire
21 AD43130W46AA
FUEL TANK CARPET GRIPPER 		- 1 Enquire
22 703151
Screw M6x16 Washer Hex HD Chrome Free 		- 4 Enquire
23 AD4341852AA
Bracket, rear fixing 		- 2 Enquire
24 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
25 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 2 Enquire
26 AD43427A48AA
Bracket assy, door lower support, RHS 		- 1 Enquire
27 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
28 AD4340122AB
RHS MMM COVER PLATE 		- 1 Enquire
29 AD4342626ADW
PLT ASY RR LC SCF 		- 1 Enquire
30 703265
Screw, M6 x 16, Hex Flange Head 		- 3 Enquire
31 4G43N805935AA
Flangeless Plug, Black PVC, 17mm 		- 2 Enquire
32 HD43711387AA
BOLT-M8x25.5 PN TITE SPL8 		- 2 Enquire
33 AD4345709BA
L/C RR CRPT FOAM SPT 		- 3 Enquire
34 6G33454A28AB
REAR LAMP BOLT COVER 		- 2 Enquire
35 AD4318580BAW
L/C FOL FLR END ST A 		- 2 Enquire
36 AD43454B16AB
Bracket, damper strut cover, RHS 		- 1 Enquire
37 AD43454B17AB
Bracket, damper strut cover, LHS 		- 1 Enquire
38 4G43E820201AA
M8 HALF NUT HEX BRASS
2 per bracket 		- 4 Enquire
39 AD43454C54AB
Cover, damper strut, RHD 		- 1 Enquire
40 AD43454C55AB
Cover, damper strut, LHD 		- 1 Enquire
41 AD43C4086AA
M4 x 25 FLD HEAD TOR
3 per cover 		- 6 Enquire
42 4G43C045F70AB
RETAINER PASSENGER AIRBAG COVER PAD 		- 7 Enquire
43 701356
Rivet, Blind, M4x10 		- 7 Enquire
44 7784981PK
Tape, Anti Rattle Rear Quarter Wheel 		- 2 Enquire
45 AD4345727AA
Foam support, luggage compartment rear floor, LHS 		- 1 Enquire
