Rear Door Trim Assembly of Aston Martin Aston Martin Rapide

View All

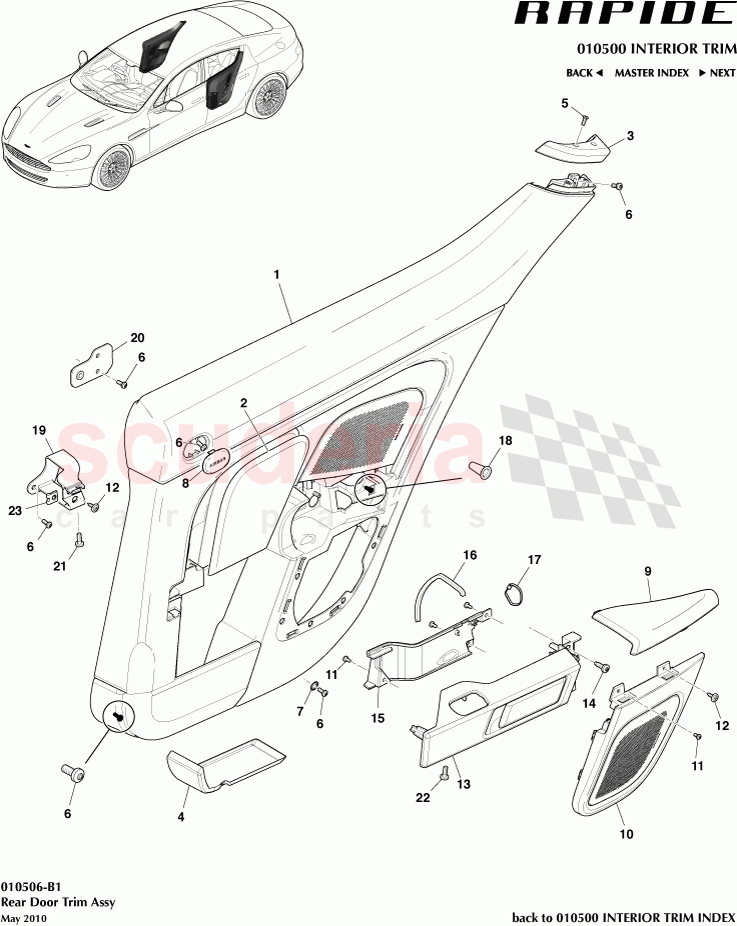

Aston Martin Rapide - Rear Door Trim Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4323948BBW	PNL ASSY REAR DOOR T COMP RHS	Enquire	To Order
	AD4323949BBW	PANEL ASSY REAR DOOR TRIM COMP LHS	Enquire	To Order
	AD4323948ABW	PNL ASY RR DR TR COMP RHS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD438710078	DOOR INSERT SET- RR 2 PCE-PIANO BLACK RAPIDE	Enquire	To Order
	AD438710080	DOOR INSERT SET- RR 2 PCE-MAHOGANY RAPIDE	Enquire	To Order
	AD438710082	DOOR INSERT SET- RR 2 PCE-TAMO ASH RAPIDE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD4323786AB	PNL ASY RR DR FINSHR UPR RHS	Enquire	To Order
	AD4323787AB	PNL ASY RR DR FNSHR UPR LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43101382AA	Mat, rear door pocket RHS	Enquire	To Order
	AD43101383AA	Mat, rear door pocket LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704779	Screw, M4 x 12, Flat Csk Skt Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707142	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4323747AAW	Insert, AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4324006AAW	PAD DR A/REST RR RHS	Enquire	To Order
	AD4324007AAW	PAD DR A/REST RR LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4324004ABW	PAD DR A/REST INR RR LHS	Enquire	To Order
	AD4324005ABW	PAD DR A/REST INR RR RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4322616AG	ASY INSIDE RLSE HNDL	Enquire	To Order
	AD4322617AG	ASY INSIDE RLSE HNDL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4324244AB	RR DR GRAB INSRT RHS	Enquire	To Order
	AD4324245AB	REAR DOOR GRAB INSERT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3790075	Cable Tie, 290mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4323942AA	Clip, tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4314C926AA	Bracket, mounting assy, Rear Door Grab Front RHS	Enquire	To Order
	AD4314C927AA	REAR DOOR GRAB BMOUNTING BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4312A956AA	RR DOOR GRAB MOUNTIN BRACKET RHS	Enquire	To Order
	AD4312A957AA	REAR DOOR GRAB MOUNTING BRACKET LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702293	Screw, M6 x 12mm, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD4323948BBW	PNL ASSY REAR DOOR T COMP RHS	AD4323948BBW PNL ASSY REAR DOOR T COMP RHS -No upper insert	-	1	Enquire
1	AD4323949BBW	PANEL ASSY REAR DOOR TRIM COMP LHS	AD4323949BBW PANEL ASSY REAR DOOR TRIM COMP LHS -No upper insert	-	1	Enquire
1	AD4323948ABW	PNL ASY RR DR TR COMP RHS	AD4323948ABW PNL ASY RR DR TR COMP RHS -Leather Insert	-	1	Enquire
1	AD4323949ABW	Panel assy, Rear Door Trim Complete LHS	AD4323949ABW Panel assy, Rear Door Trim Complete LHS -Leather Insert	-	1	Enquire
2	AD438710078	DOOR INSERT SET- RR 2 PCE-PIANO BLACK RAPIDE	AD438710078 DOOR INSERT SET- RR 2 PCE-PIANO BLACK RAPIDE -Piano black veneer	-	1	Enquire
2	AD438710080	DOOR INSERT SET- RR 2 PCE-MAHOGANY RAPIDE	AD438710080 DOOR INSERT SET- RR 2 PCE-MAHOGANY RAPIDE -Mahogany veneer	-	1	Enquire
2	AD438710082	DOOR INSERT SET- RR 2 PCE-TAMO ASH RAPIDE	AD438710082 DOOR INSERT SET- RR 2 PCE-TAMO ASH RAPIDE -Tamo ash veneer	-	1	Enquire
2	AD438710076	DOOR INSERT SET- RR 2 PCE-WALNUT RAPIDE	AD438710076 DOOR INSERT SET- RR 2 PCE-WALNUT RAPIDE -Walnut veneer	-	1	Enquire
2	AD438710084	DOOR INSERT SET- RR 2 PCE-BAMBOO RAPIDE	AD438710084 DOOR INSERT SET- RR 2 PCE-BAMBOO RAPIDE -Bamboo veneer	-	1	Enquire
3	AD4323786AB	PNL ASY RR DR FINSHR UPR RHS	AD4323786AB PNL ASY RR DR FINSHR UPR RHS	-	1	Enquire
3	AD4323787AB	PNL ASY RR DR FNSHR UPR LHS	AD4323787AB PNL ASY RR DR FNSHR UPR LHS	-	1	Enquire
4	AD43101382AA	Mat, rear door pocket RHS	AD43101382AA Mat, rear door pocket RHS	-	1	Enquire
4	AD43101383AA	Mat, rear door pocket LHS	AD43101383AA Mat, rear door pocket LHS	-	1	Enquire
5	704779	Screw, M4 x 12, Flat Csk Skt Head	704779 Screw, M4 x 12, Flat Csk Skt Head	-	2	Enquire
6	707142	SCREW M5 X 12	707142 SCREW M5 X 12 per Door panel	-	8	Enquire
7	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10 per Door panel	-	1	Enquire
8	AD4323747AAW	Insert, AIRBAG	AD4323747AAW Insert, AIRBAG per Door panel	-	1	Enquire
9	AD4324006AAW	PAD DR A/REST RR RHS	AD4324006AAW PAD DR A/REST RR RHS	-	1	Enquire
9	AD4324007AAW	PAD DR A/REST RR LHS	AD4324007AAW PAD DR A/REST RR LHS	-	1	Enquire
10	AD4324004ABW	PAD DR A/REST INR RR LHS	AD4324004ABW PAD DR A/REST INR RR LHS	-	1	Enquire
10	AD4324005ABW	PAD DR A/REST INR RR RHS	AD4324005ABW PAD DR A/REST INR RR RHS	-	1	Enquire
11	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE per Door panel	-	4	Enquire
12	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) per Door panel	-	1	Enquire
13	AD4322616AG	ASY INSIDE RLSE HNDL	AD4322616AG ASY INSIDE RLSE HNDL	-	1	Enquire
13	AD4322617AG	ASY INSIDE RLSE HNDL	AD4322617AG ASY INSIDE RLSE HNDL	-	1	Enquire
14	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV per Door panel	-	1	Enquire
15	AD4324244AB	RR DR GRAB INSRT RHS	AD4324244AB RR DR GRAB INSRT RHS	-	1	Enquire
15	AD4324245AB	REAR DOOR GRAB INSERT LEFT HAND	AD4324245AB REAR DOOR GRAB INSERT LEFT HAND	-	1	Enquire
16	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS per Door panel	-	1	Enquire
17	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm per Door panel	-	1	Enquire
18	AD4323942AA	Clip, tube	AD4323942AA Clip, tube per Door panel	-	1	Enquire
19	AD4314C926AA	Bracket, mounting assy, Rear Door Grab Front RHS	AD4314C926AA Bracket, mounting assy, Rear Door Grab Front RHS	-	1	Enquire
19	AD4314C927AA	REAR DOOR GRAB BMOUNTING BRACKET LH	AD4314C927AA REAR DOOR GRAB BMOUNTING BRACKET LH	-	1	Enquire
20	AD4312A956AA	RR DOOR GRAB MOUNTIN BRACKET RHS	AD4312A956AA RR DOOR GRAB MOUNTIN BRACKET RHS	-	1	Enquire
20	AD4312A957AA	REAR DOOR GRAB MOUNTING BRACKET LHS	AD4312A957AA REAR DOOR GRAB MOUNTING BRACKET LHS	-	1	Enquire
21	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV per Door panel	-	1	Enquire
22	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head per Door panel	-	1	Enquire
23	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per Door panel	-	1	Enquire
