Floor Trim (Lhd)

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Floor Trim (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FD43281B11ABW KIT ASSY SD CRPT LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
6G3313925AA Push On Button, M5 x 35 Enquire To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
AD43MXC1800AA Fastener, fir tree (FTB055) Enquire To Order
Photo Part No Description Price (each) Stock
AD43130A34ACW CRPT ASY FLR RR RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43130A35ABW HEELEBOARD CARPET ASSY LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43MXC1800AA Fastener, fir tree (FTB055) Enquire To Order
Photo Part No Description Price (each) Stock
AD43311A76BA FOOTWELL SPKR GRL RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43311A77BA FOOTWELL SPKR GRL LH Enquire To Order
Photo Part No Description Price (each) Stock
9D33201A49AA Sheild, Speaker Grille Protection LH Enquire To Order
Photo Part No Description Price (each) Stock
9G4312020BA LHD FOOTREST TOP PAD ASSY Enquire To Order
Photo Part No Description Price (each) Stock
4G433N328BE Bracket, Foot Rest Enquire To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
4G43044J09AC ENERY ABSORBING BLOCK LHD FOOTREST Enquire To Order
Photo Part No Description Price (each) Stock
9G3312020AB Cover plate, footrest, LHD Enquire To Order
Photo Part No Description Price (each) Stock
6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK Enquire To Order
Photo Part No Description Price (each) Stock
AD43281B13ADW KIT ASY FLR CRPT LHD Enquire To Order
Photo Part No Description Price (each) Stock
AD43605B28AB Scuff plate, tunnel, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43605B29AB Scuff plate, tunnel, LHS Enquire To Order
Photo Part No Description Price (each) Stock
707623 Screw and Washer, M4 x 16, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
AD43666A41AB CARPET FINISHER LHS COMMON Enquire To Order
Photo Part No Description Price (each) Stock
AD43666A40AB CARPET FINISHER RHS COMMON Enquire To Order
Photo Part No Description Price (each) Stock
6G3368D11BA Screw, M5 x 20, Cap Head Enquire To Order
Photo Part No Description Price (each) Stock
6G3368D11AA Screw, M5 x 12, Cap Head Enquire To Order
Photo Part No Description Price (each) Stock
AD43132A12AAW PLT FRNT DR SCF RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43132A13AAW PLT FRT DR SCF LH Enquire To Order
Photo Part No Description Price (each) Stock
AD438010005 SILL NAME PLATE FRONT PERSONALISED RAPIDE Enquire To Order
AD438010004 NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE Enquire To Order
Photo Part No Description Price (each) Stock
6G33SS106209ABPK Bolt, M6 x 20, socket head Enquire To Order
Photo Part No Description Price (each) Stock
AD4317F790AA Bracket, scuff plate Enquire To Order
Photo Part No Description Price (each) Stock
AD43132A48ABW PLR RR DR SCF RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43132A49AAW Scuff plate, rear door, LHS Enquire To Order
Photo Part No Description Price (each) Stock
4G4318449BD ACCELERATOR SCUFF PLATE LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G433L657AA Screw, M5 x 20, Countersunk, Black Enquire To Order
Photo Part No Description Price (each) Stock
6G3303837AA BUMPON SQUARE BLOCK Enquire To Order
701554 Screw, M5 x 12, Pan Hd Enquire To Order
View All

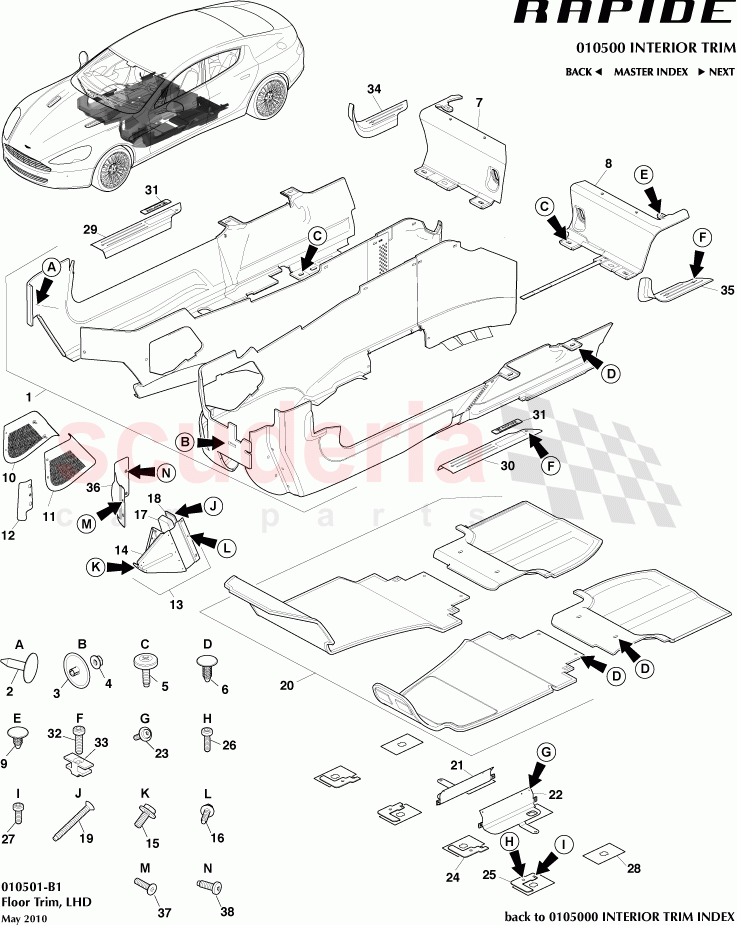

Floor Trim (LHD) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FD43281B11ABW
KIT ASSY SD CRPT LHD 		- 1 Enquire
2 4G43STC3710AAPK
Fir Tree 8mm Fastener (Pack of 20) 		- 3 Enquire
3 6G3313925AA
Push On Button, M5 x 35 		- 2 Enquire
4 702295
Nut, M5, Hex Flange Head 		- 2 Enquire
5 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 8 Enquire
6 AD43MXC1800AA
Fastener, fir tree (FTB055) 		- 24 Enquire
7 AD43130A34ACW
CRPT ASY FLR RR RHS 		- 1 Enquire
8 AD43130A35ABW
HEELEBOARD CARPET ASSY LH 		- 1 Enquire
9 AD43MXC1800AA
Fastener, fir tree (FTB055) 		- 5 Enquire
10 AD43311A76BA
FOOTWELL SPKR GRL RH
includes fixings 		- 1 Enquire
11 AD43311A77BA
FOOTWELL SPKR GRL LH
includes fixings 		- 1 Enquire
12 9D33201A49AA
Sheild, Speaker Grille Protection LH 		- 1 Enquire
13 9G4312020BA
LHD FOOTREST TOP PAD ASSY 		- 1 Enquire
14 4G433N328BE
Bracket, Foot Rest 		- 1 Enquire
15 703151
Screw M6x16 Washer Hex HD Chrome Free 		- 1 Enquire
16 703026
Screw, M5 x 16, Hex Flange Head 		- 3 Enquire
17 4G43044J09AC
ENERY ABSORBING BLOCK LHD FOOTREST 		- 1 Enquire
18 9G3312020AB
Cover plate, footrest, LHD 		- 1 Enquire
19 6G33E801202AA
M5X45MM CSK HEX STAINLESS STEEL BLACK 		- 3 Enquire
20 AD43281B13ADW
KIT ASY FLR CRPT LHD 		- 1 Enquire
21 AD43605B28AB
Scuff plate, tunnel, RHS 		- 1 Enquire
22 AD43605B29AB
Scuff plate, tunnel, LHS 		- 1 Enquire
23 707623
Screw and Washer, M4 x 16, Pan Head 		- 10 Enquire
24 AD43666A41AB
CARPET FINISHER LHS COMMON 		- 2 Enquire
25 AD43666A40AB
CARPET FINISHER RHS COMMON 		- 2 Enquire
26 6G3368D11BA
Screw, M5 x 20, Cap Head 		- 4 Enquire
27 6G3368D11AA
Screw, M5 x 12, Cap Head 		- 4 Enquire
29 AD43132A12AAW
PLT FRNT DR SCF RH 		- 1 Enquire
30 AD43132A13AAW
PLT FRT DR SCF LH 		- 1 Enquire
31 AD438010005
SILL NAME PLATE FRONT PERSONALISED RAPIDE 		- 1 Enquire
31 AD438010004
NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE 		- 1 Enquire
32 6G33SS106209ABPK
Bolt, M6 x 20, socket head 		- 4 Enquire
33 AD4317F790AA
Bracket, scuff plate 		- 8 Enquire
34 AD43132A48ABW
PLR RR DR SCF RH 		- 1 Enquire
35 AD43132A49AAW
Scuff plate, rear door, LHS 		- 1 Enquire
36 4G4318449BD
ACCELERATOR SCUFF PLATE LHD 		- 1 Enquire
37 4G433L657AA
Screw, M5 x 20, Countersunk, Black 		- 1 Enquire
38 6G3303837AA
BUMPON SQUARE BLOCK
lower console to carpet 		- - Enquire
38 701554
Screw, M5 x 12, Pan Hd 		- 3 Enquire
