Front Door Trim Assembly

Find Your Part

Aston Martin Rapide - Front Door Trim Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD4323942BBW PNL ASY FR DR TR COMP RHS $5,174.31 To Order
AD4323943BBW PNL ASY FR DR TR COMP LHS $5,174.31 To Order
AD4323942ABW Panel assy, Front Door Trim Complete RHS Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD438710077 DOOR INSERT SET- FRT 2 PCE-PIANO BLACK RAPIDE $687.82 To Order
AD438710079 DOOR INSERT SET- FRT 2 PCE-MAHOGANY RAPIDE $687.82 To Order
AD438710081 DOOR INSERT SET- FRT 2 PCE-TAMO ASH RAPIDE $743.96 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
707142 SCREW M5 X 12 $0.25 To Order
Photo Part No Description Price (each) Stock
703177 M5 TORX SCREW CHROME FREE $1.57 To Order
Photo Part No Description Price (each) Stock
8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK $0.41 To Order
Photo Part No Description Price (each) Stock
704328 Screw, M5 x 20, Torx Pan Head $0.11 To Order
Photo Part No Description Price (each) Stock
AD4311B390AA Bobbin, Front Door Mounting $144.31 To Order
Photo Part No Description Price (each) Stock
AD4323747AAW Insert, AIRBAG $224.43 To Order
Photo Part No Description Price (each) Stock
AD4318978AB Speaker Grille, Door Trim, RH, Iridium $871.05 To Order
AD4318979AB Speaker Grille, Door Trim, LH, Iridium $853.45 To Order
Photo Part No Description Price (each) Stock
AD4324002AAW PAD DR A/REST FR RHS $255.92 To Order
AD4324003AAW PAD DR A/REST FR LHS $86.45 To Order
Photo Part No Description Price (each) Stock
AD4324000ABW Pad, Door Arm Rest Inner Front RHD $326.71 To Order
AD4324001ABW Pad, Door Arm Rest Inner Front LHD $326.71 To Order
Photo Part No Description Price (each) Stock
703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE $0.37 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 To Order
Photo Part No Description Price (each) Stock
AD4324242AA FRONT DR GRB INSERT RHS $115.05 To Order
AD4324241AA Insert, Front Door Grab LHS Enquire To Order
Photo Part No Description Price (each) Stock
AD43101396AA MAT LWR DOOR POCKET RUBBER MAT DROP IN INSERT $120.58 To Order
AD43101397AA MAT LOWER DOOR POCKET RUBBER MAT DROP IN INSERT $120.58 To Order
Photo Part No Description Price (each) Stock
AD4314C924AC Bracket, Mounting, Frt Door Grab Handle RHS Enquire To Order
AD4314C925AC Bracket, Mounting, Frt Door Grab Handle LHS Enquire To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.21 To Order
Photo Part No Description Price (each) Stock
AD4312A954AA Bracket, Mounting, Frt Door Grab Handle Rear RHS $20.32 To Order
AD4312A955AA FRT DR GRB RR MTG BRKT LHS $19.72 To Order
Photo Part No Description Price (each) Stock
702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV $0.29 To Order
AD433710064 SWITCH ASSEMBLY- INNER DOOR $213.59 To Order
View All

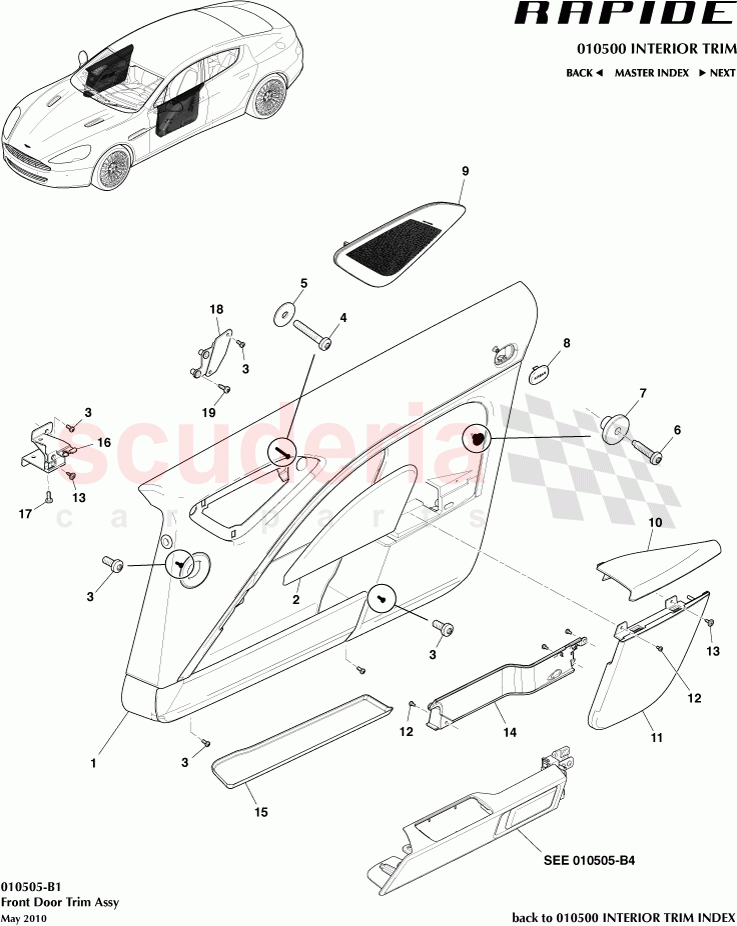

Front Door Trim Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD4323942BBW
PNL ASY FR DR TR COMP RHS
-No upper insert 		$5,174.31 1
1 AD4323943BBW
PNL ASY FR DR TR COMP LHS
-No upper insert 		$5,174.31 1
1 AD4323942ABW
Panel assy, Front Door Trim Complete RHS
-Leather insert 		- 1 Enquire
1 AD4323943ABW
Panel assy, Front Door Trim Complete LHS
-Leather insert 		- 1 Enquire
2 AD438710077
DOOR INSERT SET- FRT 2 PCE-PIANO BLACK RAPIDE
-Piano black veneer 		$687.82 1
2 AD438710079
DOOR INSERT SET- FRT 2 PCE-MAHOGANY RAPIDE
-Mahogany veneer 		$687.82 1
2 AD438710081
DOOR INSERT SET- FRT 2 PCE-TAMO ASH RAPIDE
-Tamo ash veneer 		$743.96 1
2 AD438710075
DOOR INSERT SET- FRT 2 PCE-WALNUT RAPIDE
-Walnut veneer 		$811.64 1
2 AD438710083
DOOR INSERT SET- FRT 2 PCE-BAMBOO RAPIDE
-Bamboo veneer 		$687.82 1
3 707142
SCREW M5 X 12 		$0.25 8
4 703177
M5 TORX SCREW CHROME FREE
per panel assy 		$1.57 1
5 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK
per panel assy 		$0.41 1
6 704328
Screw, M5 x 20, Torx Pan Head
per panel assy 		$0.11 1
7 AD4311B390AA
Bobbin, Front Door Mounting
per panel assy 		$144.31 1
8 AD4323747AAW
Insert, AIRBAG
per panel assy 		$224.43 1
9 AD4318978AB
Speaker Grille, Door Trim, RH, Iridium 		$871.05 1
9 AD4318979AB
Speaker Grille, Door Trim, LH, Iridium 		$853.45 1
10 AD4324002AAW
PAD DR A/REST FR RHS 		$255.92 1
10 AD4324003AAW
PAD DR A/REST FR LHS 		$86.45 1
11 AD4324000ABW
Pad, Door Arm Rest Inner Front RHD 		$326.71 1
11 AD4324001ABW
Pad, Door Arm Rest Inner Front LHD 		$326.71 1
12 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
per side 		$0.37 4
13 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
per side 		$2.80 1
14 AD4324242AA
FRONT DR GRB INSERT RHS 		$115.05 1
14 AD4324241AA
Insert, Front Door Grab LHS 		- 1 Enquire
15 AD43101396AA
MAT LWR DOOR POCKET RUBBER MAT DROP IN INSERT 		$120.58 1
15 AD43101397AA
MAT LOWER DOOR POCKET RUBBER MAT DROP IN INSERT 		$120.58 1
16 AD4314C924AC
Bracket, Mounting, Frt Door Grab Handle RHS 		- 1 Enquire
16 AD4314C925AC
Bracket, Mounting, Frt Door Grab Handle LHS 		- 1 Enquire
17 701553
Screw, M6 x 16, Pan Head 		$0.21 2
18 AD4312A954AA
Bracket, Mounting, Frt Door Grab Handle Rear RHS 		$20.32 1
18 AD4312A955AA
FRT DR GRB RR MTG BRKT LHS 		$19.72 1
19 702294
SCREW M6x1.00x16 PAN HD 6 LOBE DRV 		$0.29 2
19 AD433710064
SWITCH ASSEMBLY- INNER DOOR 		$213.59 -
