Rear Seat Assembly of Aston Martin Aston Martin Rapide

View All

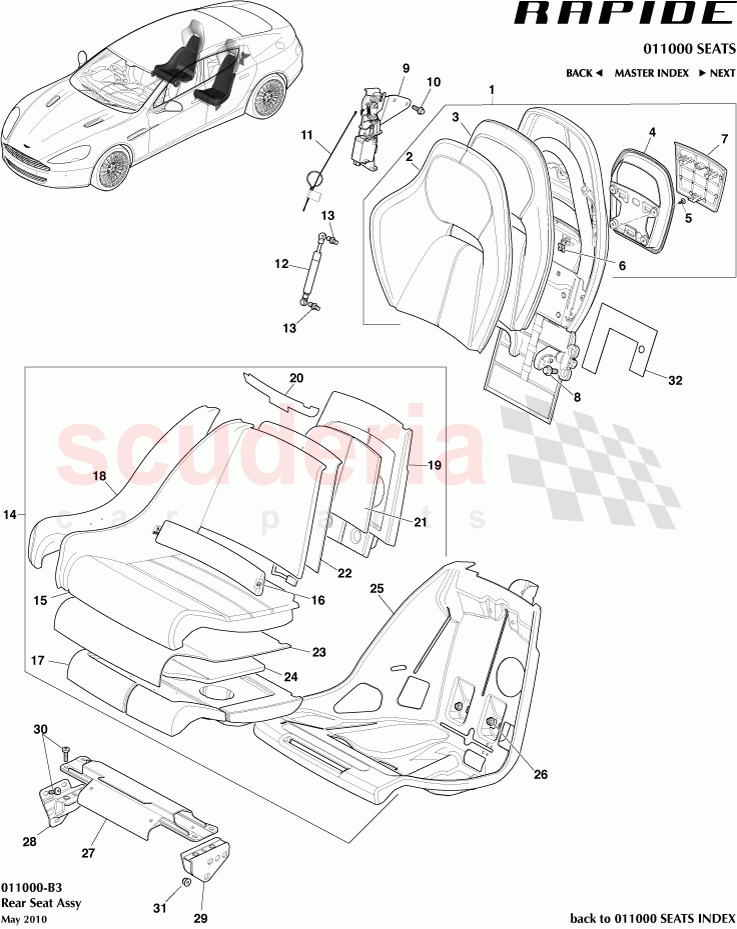

Aston Martin Rapide - Rear Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4360030AA	Upper back assy, rear seat, RH	Enquire	To Order
	AD4360031AA	Upper back assy, rear seat, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4366882ABW	COVER ASSY REAR SEAT BACK UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63870AB	Pad assy, rear seat upper back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43644B20AA	Finisher	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43644B16AAW	Finisher	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703200	SCREW M10x25 HEX FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A61390AE	BRK LAT ASY RR ST RH	Enquire	To Order
	AD43A61391AE	BRK LAT ASY RR ST LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700115	SCREW M8x25 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43432B18AA	CORD SEAT LATCH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4364220AA	GAS SPRING SEAT BACK UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12640101AA	Ball Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4360034AAW	Cushion assy, rear seat, RH	Enquire	To Order
	AD4360035AAW	Cushion assy, rear seat, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4363804AAW	COVER ASSY REAR SEAT CUSHION RH	Enquire	To Order
	AD4363805AAW	COVER ASY REAR SEAT CUSHION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63844AA	Pad assy, ISOFIX squab lower, RH	Enquire	To Order
	AD43A63845AA	Pad assy, ISOFIX squab lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63840AB	Pad assy, cushion rear seat, RH	Enquire	To Order
	AD43A63841AB	Pad assy, cushion rear seat, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63842AA	Pad assy, cushion outer rear seat, RH	Enquire	To Order
	AD43A63843AA	Pad assy, cushion outer rear seat, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63872AA	Pad assy, cushion rear seat back lower, RH	Enquire	To Order
	AD43A63873AA	Pad assy, cushion rear seat back lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63873AA	Pad assy, cushion rear seat back lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43A63874AA	FOAM INSERT REAR SEAT BACK LOWER RH	Enquire	To Order
	AD43A63875AA	Foam insert, rear seat back lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4366926AA	Mat assy, heater squab lower. RH	Enquire	To Order
	AD4366927AA	Mat assy, heater squab lower. LH	Enquire	To Order
	AD4314D702AA	Mat assy, cooled unit squab, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD4314D700AC	ASSY REAR SEAT CUSHION COOLED UNIT	Enquire	To Order
	AD4314D701AC	ASSY REAR SEAT CUSHION COOLED UNIT	Enquire	To Order
	AD4366928AB	Mat assy, heater cushion, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD43A63846AA	Foam insert, rear seat cushion, RH	Enquire	To Order
	AD43A63847AA	Foam insert, rear seat cushion, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43605B86AC	PANEL ASSY REAR SEAT CUSHION RH	Enquire	To Order
	AD43605B87AC	PANEL ASSY REAR SEAT CUSHION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43314A98AA	XMBER RR ST CUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43314A96AB	ASY BRACKET SUPPORT CUSHION OUTBOARD RH	Enquire	To Order
	AD43314A97AB	ASSY BRACKET SUPPORT CUSHION OUTBOARD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43310A40AB	ASSY BRACKET SUPPORT CUSHION INBOARD RH	Enquire	To Order
	AD43310A41AB	ASSY BRACKET SUPPORT CUSHION INVOARD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M1H403BA	BLACK OUT PATCH LH	Enquire	To Order
	AD43M1H404BA	BLACK OUT PATCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4360080AAW	Rear seat assy, RH	AD4360080AAW Rear seat assy, RH	-	1	Enquire
-	AD4360081AAW	Rear seat assy, LH	AD4360081AAW Rear seat assy, LH	-	1	Enquire
1	AD4360030AA	Upper back assy, rear seat, RH	AD4360030AA Upper back assy, rear seat, RH	-	1	Enquire
1	AD4360031AA	Upper back assy, rear seat, LH	AD4360031AA Upper back assy, rear seat, LH	-	1	Enquire
2	AD4366882ABW	COVER ASSY REAR SEAT BACK UPPER RH	AD4366882ABW COVER ASSY REAR SEAT BACK UPPER RH	-	1	Enquire
3	AD43A63870AB	Pad assy, rear seat upper back	AD43A63870AB Pad assy, rear seat upper back	-	1	Enquire
4	AD43644B20AA	Finisher	AD43644B20AA Finisher	-	1	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	4	Enquire
6	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
7	AD43644B16AAW	Finisher	AD43644B16AAW Finisher	-	1	Enquire
8	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
9	AD43A61390AE	BRK LAT ASY RR ST RH	AD43A61390AE BRK LAT ASY RR ST RH	-	1	Enquire
9	AD43A61391AE	BRK LAT ASY RR ST LH	AD43A61391AE BRK LAT ASY RR ST LH	-	1	Enquire
10	700115	SCREW M8x25 HEX FLG	700115 SCREW M8x25 HEX FLG	-	2	Enquire
11	AD43432B18AA	CORD SEAT LATCH ASSY	AD43432B18AA CORD SEAT LATCH ASSY	-	1	Enquire
12	AD4364220AA	GAS SPRING SEAT BACK UPPER	AD4364220AA GAS SPRING SEAT BACK UPPER	-	1	Enquire
13	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	-	2	Enquire
14	AD4360034AAW	Cushion assy, rear seat, RH	AD4360034AAW Cushion assy, rear seat, RH	-	1	Enquire
14	AD4360035AAW	Cushion assy, rear seat, LH	AD4360035AAW Cushion assy, rear seat, LH	-	1	Enquire
15	AD4363804AAW	COVER ASSY REAR SEAT CUSHION RH	AD4363804AAW COVER ASSY REAR SEAT CUSHION RH	-	1	Enquire
15	AD4363805AAW	COVER ASY REAR SEAT CUSHION LH	AD4363805AAW COVER ASY REAR SEAT CUSHION LH	-	1	Enquire
16	AD43A63844AA	Pad assy, ISOFIX squab lower, RH	AD43A63844AA Pad assy, ISOFIX squab lower, RH	-	1	Enquire
16	AD43A63845AA	Pad assy, ISOFIX squab lower, LH	AD43A63845AA Pad assy, ISOFIX squab lower, LH	-	1	Enquire
17	AD43A63840AB	Pad assy, cushion rear seat, RH	AD43A63840AB Pad assy, cushion rear seat, RH	-	1	Enquire
17	AD43A63841AB	Pad assy, cushion rear seat, LH	AD43A63841AB Pad assy, cushion rear seat, LH	-	1	Enquire
18	AD43A63842AA	Pad assy, cushion outer rear seat, RH	AD43A63842AA Pad assy, cushion outer rear seat, RH	-	1	Enquire
18	AD43A63843AA	Pad assy, cushion outer rear seat, LH	AD43A63843AA Pad assy, cushion outer rear seat, LH	-	1	Enquire
19	AD43A63872AA	Pad assy, cushion rear seat back lower, RH	AD43A63872AA Pad assy, cushion rear seat back lower, RH	-	1	Enquire
19	AD43A63873AA	Pad assy, cushion rear seat back lower, LH	AD43A63873AA Pad assy, cushion rear seat back lower, LH	-	1	Enquire
20	AD43A63873AA	Pad assy, cushion rear seat back lower, LH	AD43A63873AA Pad assy, cushion rear seat back lower, LH	-	1	Enquire
21	AD43A63874AA	FOAM INSERT REAR SEAT BACK LOWER RH	AD43A63874AA FOAM INSERT REAR SEAT BACK LOWER RH Not fitted to htd cooled seats	-	1	Enquire
21	AD43A63875AA	Foam insert, rear seat back lower, LH	AD43A63875AA Foam insert, rear seat back lower, LH Not fitted to htd cooled seats	-	1	Enquire
22	AD4366926AA	Mat assy, heater squab lower. RH	AD4366926AA Mat assy, heater squab lower. RH	-	1	Enquire
22	AD4366927AA	Mat assy, heater squab lower. LH	AD4366927AA Mat assy, heater squab lower. LH	-	1	Enquire
22	AD4314D702AA	Mat assy, cooled unit squab, RH	AD4314D702AA Mat assy, cooled unit squab, RH	-	1	Enquire
22	AD4314D703AA	ASST MAT REAR SEAT SQUAB COOLED UNIT LH	AD4314D703AA ASST MAT REAR SEAT SQUAB COOLED UNIT LH	-	1	Enquire
23	AD4314D700AC	ASSY REAR SEAT CUSHION COOLED UNIT	AD4314D700AC ASSY REAR SEAT CUSHION COOLED UNIT	-	1	Enquire
23	AD4314D701AC	ASSY REAR SEAT CUSHION COOLED UNIT	AD4314D701AC ASSY REAR SEAT CUSHION COOLED UNIT	-	1	Enquire
23	AD4366928AB	Mat assy, heater cushion, RH	AD4366928AB Mat assy, heater cushion, RH	-	1	Enquire
23	AD4366929AB	Mat assy, heater cushion, LH	AD4366929AB Mat assy, heater cushion, LH	-	1	Enquire
24	AD43A63846AA	Foam insert, rear seat cushion, RH	AD43A63846AA Foam insert, rear seat cushion, RH Not fitted to htd cooled seats	-	1	Enquire
24	AD43A63847AA	Foam insert, rear seat cushion, LH	AD43A63847AA Foam insert, rear seat cushion, LH Not fitted to htd cooled seats	-	1	Enquire
25	AD43605B86AC	PANEL ASSY REAR SEAT CUSHION RH	AD43605B86AC PANEL ASSY REAR SEAT CUSHION RH	-	1	Enquire
25	AD43605B87AC	PANEL ASSY REAR SEAT CUSHION LH	AD43605B87AC PANEL ASSY REAR SEAT CUSHION LH	-	1	Enquire
26	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	2	Enquire
27	FD43314A98AA	XMBER RR ST CUSH	FD43314A98AA XMBER RR ST CUSH	-	1	Enquire
28	AD43314A96AB	ASY BRACKET SUPPORT CUSHION OUTBOARD RH	AD43314A96AB ASY BRACKET SUPPORT CUSHION OUTBOARD RH	-	1	Enquire
28	AD43314A97AB	ASSY BRACKET SUPPORT CUSHION OUTBOARD LH	AD43314A97AB ASSY BRACKET SUPPORT CUSHION OUTBOARD LH	-	1	Enquire
29	AD43310A40AB	ASSY BRACKET SUPPORT CUSHION INBOARD RH	AD43310A40AB ASSY BRACKET SUPPORT CUSHION INBOARD RH	-	1	Enquire
29	AD43310A41AB	ASSY BRACKET SUPPORT CUSHION INVOARD LH	AD43310A41AB ASSY BRACKET SUPPORT CUSHION INVOARD LH	-	1	Enquire
30	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10)	-	7	Enquire
31	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10)	703216PK NUT M8 HEXAGON FLANGED (PACK OF 10)	-	3	Enquire
32	AD43M1H403BA	BLACK OUT PATCH LH	AD43M1H403BA BLACK OUT PATCH LH	-	1	Enquire
32	AD43M1H404BA	BLACK OUT PATCH	AD43M1H404BA BLACK OUT PATCH	-	1	Enquire
