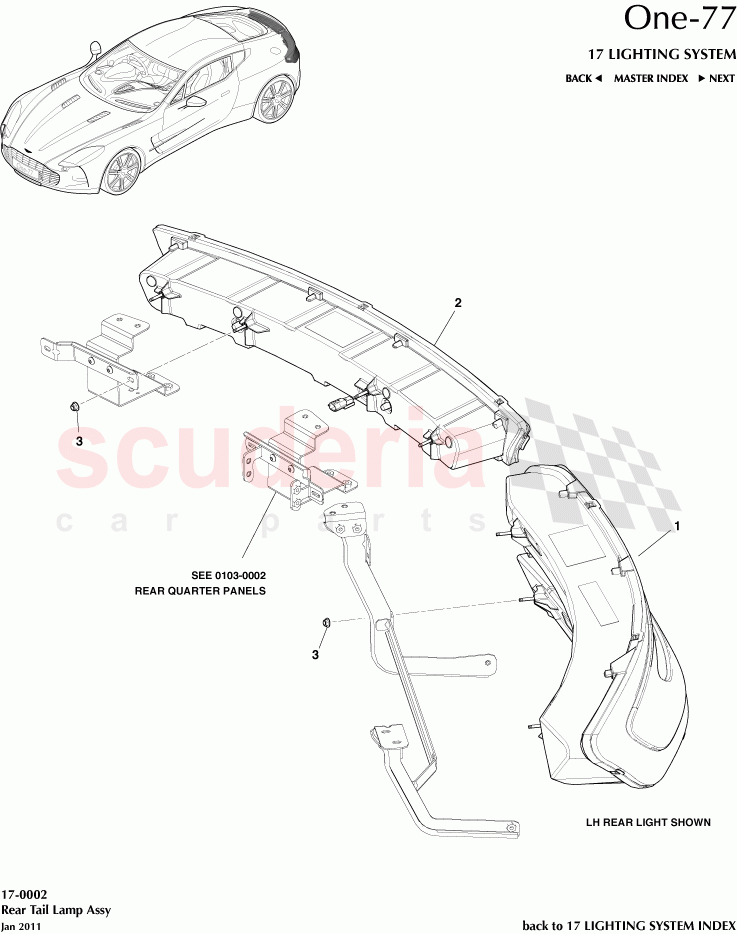

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY9313405AA	Tail Lamp LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9313N408AA	Lamp, CHMSL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY9313404AA	Tail Lamp RH	AY9313404AA Tail Lamp RH	-	1	Enquire
-	DBYA02035C	Bracket, LH, CHMSL	DBYA02035C Bracket, LH, CHMSL See 0103-0002	-	1	Enquire
-	DBYA02036C	Bracket, RH, CHMSL	DBYA02036C Bracket, RH, CHMSL	-	1	Enquire
-	DBYA02037C	Bracket, Inner LH, Tail Lamp	DBYA02037C Bracket, Inner LH, Tail Lamp See 0103-0002	-	1	Enquire
-	DBYA02038C	Bracket, Inner RH, Tail Lamp	DBYA02038C Bracket, Inner RH, Tail Lamp See 0103-0002	-	1	Enquire
-	DBYA02039D	Bracket, Outer LH, Tail Lamp	DBYA02039D Bracket, Outer LH, Tail Lamp See 0103-0002	-	1	Enquire
-	DBYA02040D	Bracket, Outer RH, Tail Lamp	DBYA02040D Bracket, Outer RH, Tail Lamp See 0103-0002	-	1	Enquire
1	AY9313405AA	Tail Lamp LH	AY9313405AA Tail Lamp LH	-	1	Enquire
2	AY9313N408AA	Lamp, CHMSL	AY9313N408AA Lamp, CHMSL	-	1	Enquire
3	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head 4 per assy	-	12	Enquire
