Seat Belt Assembly of Aston Martin Aston Martin One-77

View All

Aston Martin One-77 - Seat Belt Assembly

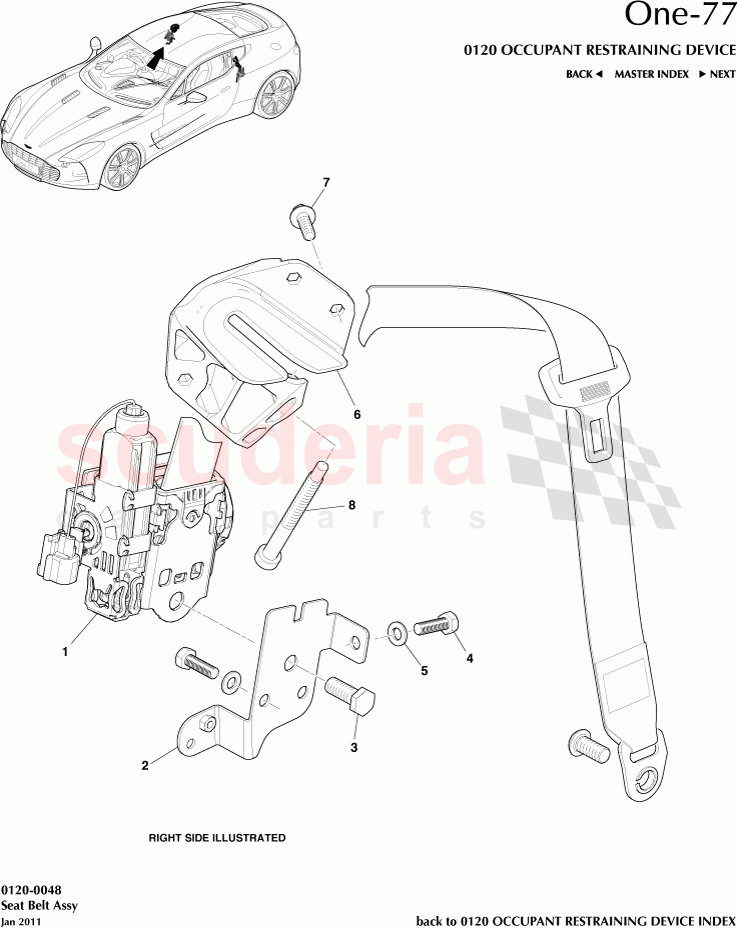

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	$1,038.19	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091205AE	Bracket, Seat Belt Retractor RH	$154.88	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12023091015AD	D-Ring, Seatbelt RH	$2,227.75	To Order

Photo	Part No	Description	Price (each)	Stock
	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	$6.10	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33611B70BCW	Seatbelt Retractor assy, LHD, Driver's	6G33611B70BCW Seatbelt Retractor assy, LHD, Driver's Flint	$1,168.49	1
-	6G33611B69BCW	SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT)	6G33611B69BCW SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT) Flint	$1,171.86	1
-	6G33611B68BBW	SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT)	6G33611B68BBW SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT) Flint	$1,168.49	1
-	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	6G33611B71ABW SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL) Warm Charcoal	$1,168.49	1
-	6G33611B70ACW	FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL)	6G33611B70ACW FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL) Warm Charcoal	$1,168.49	1
-	6G33611B69ACW	FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL)	6G33611B69ACW FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL) Warm Charcoal	$1,168.49	1
-	6G33611B68ABW	FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL)	6G33611B68ABW FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL) Warm Charcoal	$1,168.49	1
-	AY93611B71CAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71CAW Seatbelt Retractor assy, RHD, Driver's Silver	$1,168.49	1
-	AY93611B70CAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70CAW Seatbelt Retractor assy, LHD, Driver's Silver	$1,168.49	1
-	AY93611B69CAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69CAW Seatbelt Retractor assy, RHD, Passenger's Silver	$1,168.49	1
-	AY93611B68CAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68CAW Seatbelt Retractor assy, LHD, Passenger's Silver	$1,168.49	1
-	AY93611B71DAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71DAW Seatbelt Retractor assy, RHD, Driver's Blue	$1,168.49	1
-	AY93611B70DAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70DAW Seatbelt Retractor assy, LHD, Driver's Blue	$1,168.49	1
-	AY93611B69DAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69DAW Seatbelt Retractor assy, RHD, Passenger's Blue	$1,168.49	1
-	AY93611B68DAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68DAW Seatbelt Retractor assy, LHD, Passenger's Blue	$1,168.49	1
-	AY93611B71EAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71EAW Seatbelt Retractor assy, RHD, Driver's Red	$1,168.49	1
-	AY93611B70EAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70EAW Seatbelt Retractor assy, LHD, Driver's Red	$1,168.49	1
-	AY93611B69EAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69EAW Seatbelt Retractor assy, RHD, Passenger's Red	$1,168.49	1
-	AY93611B68EAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68EAW Seatbelt Retractor assy, LHD, Passenger's Red	$1,168.49	1
-	12023091204AD	Bracket, Seat Belt Retractor LH	12023091204AD Bracket, Seat Belt Retractor LH	$164.13	1
-	12023091014AD	D-Ring, Seatbelt LH	12023091014AD D-Ring, Seatbelt LH	$2,227.75	1
1	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	6G33611B71BBW SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT) Flint	$1,038.19	1
2	12023091205AE	Bracket, Seat Belt Retractor RH	12023091205AE Bracket, Seat Belt Retractor RH	$154.88	1
3	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
4	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	$0.71	6
6	12023091015AD	D-Ring, Seatbelt RH	12023091015AD D-Ring, Seatbelt RH	$2,227.75	1
7	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE D-Ring	$0.73	6
8	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	$6.10	2
