Evaporator & Heater Assembly of Aston Martin Aston Martin One-77

View All

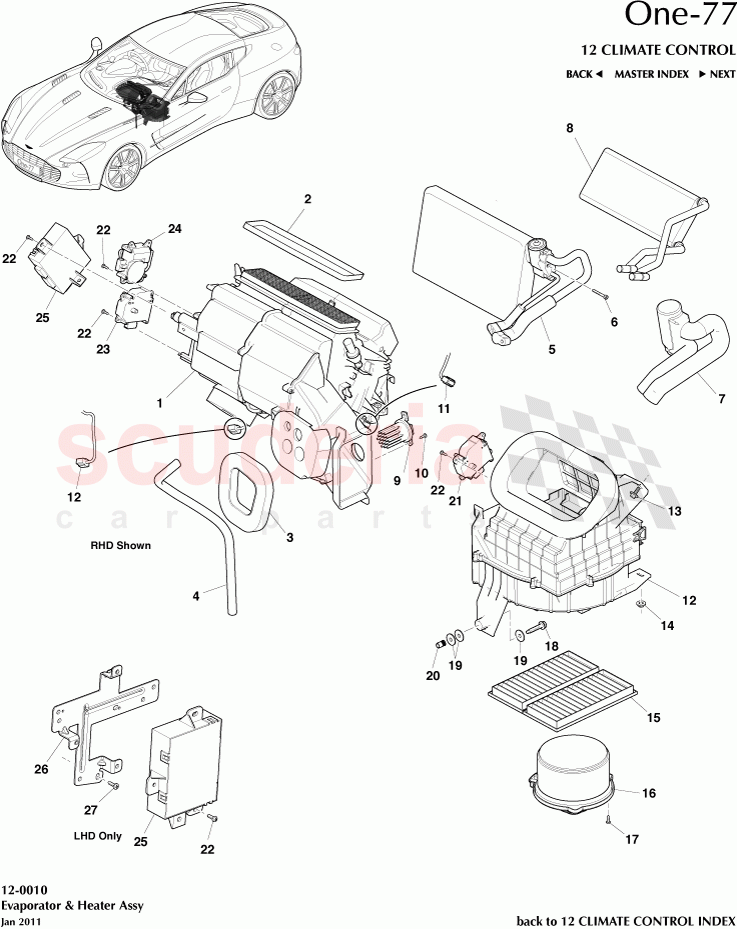

Aston Martin One-77 - Evaporator & Heater Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3318N407BA	EVAPORATOR & HEATER ASSY AIRCON RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319N574AA	Seal, Vent Air Duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319D692AA	Seal, A/C Evaporator Tub Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038680AB	Drain Tube, condensation, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319850AA	Evaporator A/C, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ALR8679AA	Screw, M5 x 40, Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D669AA	Sealing, Heater Core, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318A271AA	Core & Tube Assy, heater, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F615AA	Transistor Power A/C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F598AA	Sensor A/C Evaporator Temperature	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319924BB	Blower Assy, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313ZE1AAPK	Pollen and Odour Filter (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F612AA	Motor and Fan Assy A/C, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N104301AA	SCREW M5 x 16 HX SPCL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703745	SCREW-M8x35 FLG 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703137	Washer, M8, HVAC to bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3358762AA	RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318A250AA	Servo Assy, A/C Heater Fresh/Recirculate Air RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D674AA	Servo Assy, A/C Heater Air Mix, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318E246AA	Servo Assy, A/C Heater Mode, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314F164AA	Control Assy, A/C & heater temp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43121205AA	Bracket, ECU mounting, LHD Only	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G3318N407AA	EVAPORATOR & HEATER ASSY AIRCON LHD	6G3318N407AA EVAPORATOR & HEATER ASSY AIRCON LHD	-	1	Enquire
-	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	-	Enquire
-	12023038678AB	Drain Tube, condensation, LHD	12023038678AB Drain Tube, condensation, LHD	-	1	Enquire
-	4G4318693AA	Sealing, Heater Core Tube to Heater Case	4G4318693AA Sealing, Heater Core Tube to Heater Case	-	1	Enquire
-	4G4318C676AA	Sealing, heater core tube to heater case, LHD	4G4318C676AA Sealing, heater core tube to heater case, LHD	-	1	Enquire
-	4G4318D671AA	Core & Tube Assy, heater, LHD	4G4318D671AA Core & Tube Assy, heater, LHD	-	1	Enquire
-	4G4319925AB	Blower Assy, LHD	4G4319925AB Blower Assy, LHD	-	1	Enquire
-	4G4319F613AA	Motor and Fan Assy A/C, LHD	4G4319F613AA Motor and Fan Assy A/C, LHD	-	1	Enquire
-	4G4318A251AA	Servo Assy, A/C Heater Fresh/Recirculate Air LHD	4G4318A251AA Servo Assy, A/C Heater Fresh/Recirculate Air LHD	-	1	Enquire
-	4G4318D675AA	Servo Assy, A/C Heater Air Mix, LHD	4G4318D675AA Servo Assy, A/C Heater Air Mix, LHD	-	1	Enquire
-	4G4318E247AA	Servo Assy, A/C Heater Mode, LHD	4G4318E247AA Servo Assy, A/C Heater Mode, LHD	-	1	Enquire
1	6G3318N407BA	EVAPORATOR & HEATER ASSY AIRCON RHD	6G3318N407BA EVAPORATOR & HEATER ASSY AIRCON RHD	-	1	Enquire
2	4G4319N574AA	Seal, Vent Air Duct	4G4319N574AA Seal, Vent Air Duct	-	1	Enquire
3	4G4319D692AA	Seal, A/C Evaporator Tub Outer	4G4319D692AA Seal, A/C Evaporator Tub Outer	-	1	Enquire
4	12023038680AB	Drain Tube, condensation, RHD	12023038680AB Drain Tube, condensation, RHD	-	1	Enquire
5	4G4319850AA	Evaporator A/C, RHD	4G4319850AA Evaporator A/C, RHD	-	1	Enquire
6	4G43ALR8679AA	Screw, M5 x 40, Hex Socket	4G43ALR8679AA Screw, M5 x 40, Hex Socket	-	2	Enquire
7	4G4318D669AA	Sealing, Heater Core, LHD	4G4318D669AA Sealing, Heater Core, LHD	-	1	Enquire
8	4G4318A271AA	Core & Tube Assy, heater, RHD	4G4318A271AA Core & Tube Assy, heater, RHD	-	1	Enquire
9	4G4319F615AA	Transistor Power A/C	4G4319F615AA Transistor Power A/C	-	1	Enquire
10	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	-	2	Enquire
11	4G4319F598AA	Sensor A/C Evaporator Temperature	4G4319F598AA Sensor A/C Evaporator Temperature	-	2	Enquire
12	4G4319924BB	Blower Assy, RHD	4G4319924BB Blower Assy, RHD	-	1	Enquire
13	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	1	Enquire
14	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	2	Enquire
15	4G4313ZE1AAPK	Pollen and Odour Filter (Pack of 2)	4G4313ZE1AAPK Pollen and Odour Filter (Pack of 2)	-	1	Enquire
16	4G4319F612AA	Motor and Fan Assy A/C, RHD	4G4319F612AA Motor and Fan Assy A/C, RHD	-	1	Enquire
17	4G43N104301AA	SCREW M5 x 16 HX SPCL	4G43N104301AA SCREW M5 x 16 HX SPCL	-	3	Enquire
18	703745	SCREW-M8x35 FLG 8.8	703745 SCREW-M8x35 FLG 8.8	-	1	Enquire
19	703137	Washer, M8, HVAC to bracket	703137 Washer, M8, HVAC to bracket	-	2	Enquire
20	6G3358762AA	RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	6G3358762AA RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	-	1	Enquire
21	4G4318A250AA	Servo Assy, A/C Heater Fresh/Recirculate Air RHD	4G4318A250AA Servo Assy, A/C Heater Fresh/Recirculate Air RHD	-	1	Enquire
22	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	-	12	Enquire
23	4G4318D674AA	Servo Assy, A/C Heater Air Mix, RHD	4G4318D674AA Servo Assy, A/C Heater Air Mix, RHD	-	1	Enquire
24	4G4318E246AA	Servo Assy, A/C Heater Mode, RHD	4G4318E246AA Servo Assy, A/C Heater Mode, RHD	-	1	Enquire
25	4G4314F164AA	Control Assy, A/C & heater temp	4G4314F164AA Control Assy, A/C & heater temp	-	2	Enquire
26	4G43121205AA	Bracket, ECU mounting, LHD Only	4G43121205AA Bracket, ECU mounting, LHD Only	-	1	Enquire
27	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	-	3	Enquire
