Find Your Part

View All

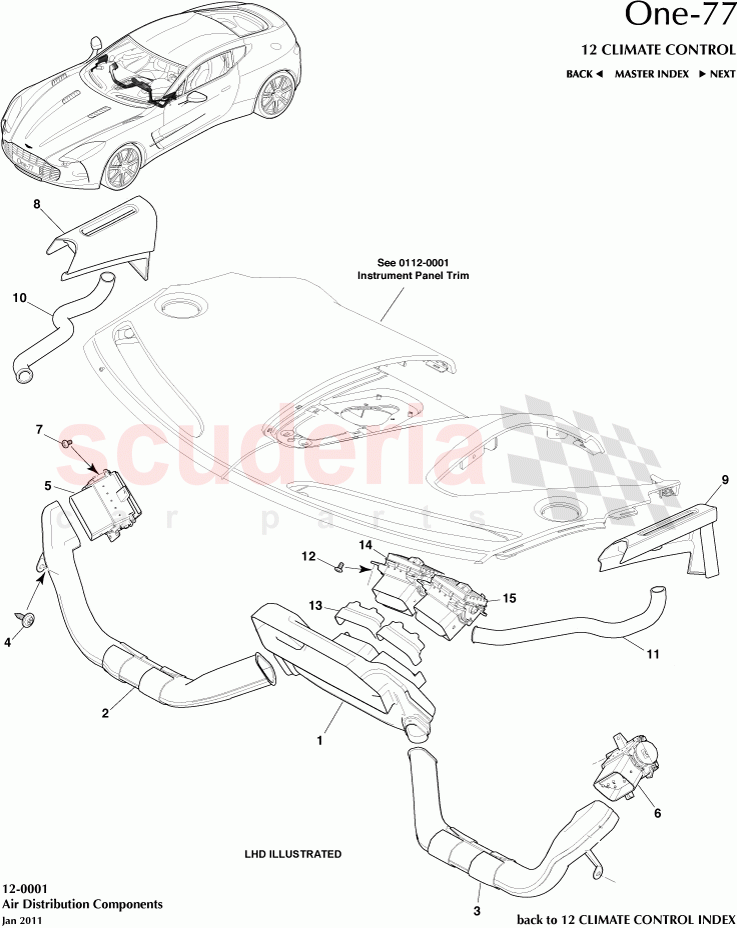

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023146000AG	Air Duct, IP Centre Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146814AA	Duct EOD Assy, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146815AA	Duct EOD Assy, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B30BB	Register Assembly, RH, Iridium Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B31BB	Register Assembly, LH, Iridium Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704509	Screw M4x8 Pan hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9324874BA	Cheater Assy, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9324874AA	Cheater Assy, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146005AB	Tube, IP Front Side Duct, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146004AC	Tube, IP Front Side Duct, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704509	Screw M4x8 Pan hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146695AB	Filler Panel, Centre Register	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B30BB	Register Assembly, RH, Iridium Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33046B31BB	Register Assembly, LH, Iridium Silver	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	12023146000AG	Air Duct, IP Centre Outlet	12023146000AG Air Duct, IP Centre Outlet	-	1	Enquire
2	12023146814AA	Duct EOD Assy, RH	12023146814AA Duct EOD Assy, RH	-	1	Enquire
3	12023146815AA	Duct EOD Assy, LH	12023146815AA Duct EOD Assy, LH	-	1	Enquire
4	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
5	8D33046B30BB	Register Assembly, RH, Iridium Silver	8D33046B30BB Register Assembly, RH, Iridium Silver	-	2	Enquire
6	8D33046B31BB	Register Assembly, LH, Iridium Silver	8D33046B31BB Register Assembly, LH, Iridium Silver	-	2	Enquire
7	704509	Screw M4x8 Pan hd	704509 Screw M4x8 Pan hd 4 per assy	-	8	Enquire
8	AY9324874BA	Cheater Assy, RHS	AY9324874BA Cheater Assy, RHS	-	1	Enquire
9	AY9324874AA	Cheater Assy, LHS	AY9324874AA Cheater Assy, LHS	-	1	Enquire
10	12023146005AB	Tube, IP Front Side Duct, RH	12023146005AB Tube, IP Front Side Duct, RH	-	1	Enquire
11	12023146004AC	Tube, IP Front Side Duct, LH	12023146004AC Tube, IP Front Side Duct, LH	-	1	Enquire
12	704509	Screw M4x8 Pan hd	704509 Screw M4x8 Pan hd 4 per assy	-	8	Enquire
13	12023146695AB	Filler Panel, Centre Register	12023146695AB Filler Panel, Centre Register	-	2	Enquire
14	8D33046B30BB	Register Assembly, RH, Iridium Silver	8D33046B30BB Register Assembly, RH, Iridium Silver	-	1	Enquire
15	8D33046B31BB	Register Assembly, LH, Iridium Silver	8D33046B31BB Register Assembly, LH, Iridium Silver	-	1	Enquire
