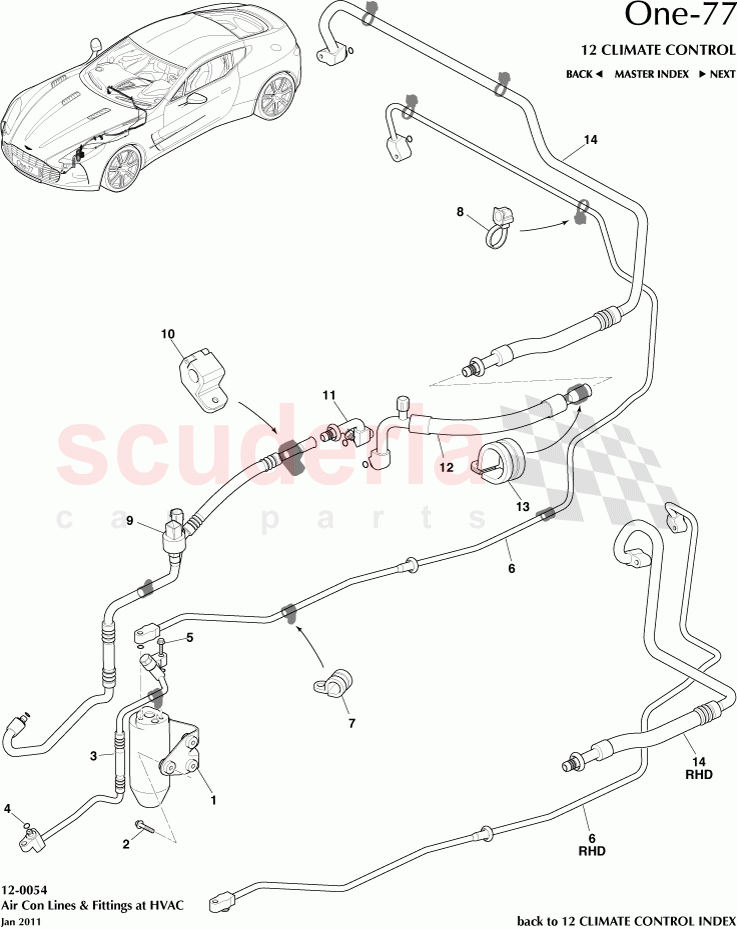

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023038560AB	Bracket, canister ,A/C Receiver Drier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038130AD	Hose Assy, Drier to Condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038134AE	Hose Assy, Drier to HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694891TBC	P Clip, 10mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038132AF	Hose Assy, Compressor to Condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038338AD	PIPE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038746AB	Hose Assy, Comp to Cond, Engine Fit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038744AB	Hose Assy, Comp to HVAC, Engine Fit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038136AE	Hose Assy, Comp to HVAC	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023038135AB	Hose Assy, Drier to HVAC. RHD	12023038135AB Hose Assy, Drier to HVAC. RHD	-	1	Enquire
-	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	-	1	Enquire
-	12023038137AA	Hose Assy, Comp to HVAC, RHD	12023038137AA Hose Assy, Comp to HVAC, RHD	-	1	Enquire
1	12023038560AB	Bracket, canister ,A/C Receiver Drier	12023038560AB Bracket, canister ,A/C Receiver Drier	-	1	Enquire
2	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	3	Enquire
3	12023038130AD	Hose Assy, Drier to Condenser	12023038130AD Hose Assy, Drier to Condenser	-	1	Enquire
6	12023038134AE	Hose Assy, Drier to HVAC	12023038134AE Hose Assy, Drier to HVAC	-	1	Enquire
7	694891TBC	P Clip, 10mm	694891TBC P Clip, 10mm	-	3	Enquire
9	12023038132AF	Hose Assy, Compressor to Condenser	12023038132AF Hose Assy, Compressor to Condenser	-	1	Enquire
10	12023038338AD	PIPE SUPPORT	12023038338AD PIPE SUPPORT	-	1	Enquire
11	12023038746AB	Hose Assy, Comp to Cond, Engine Fit	12023038746AB Hose Assy, Comp to Cond, Engine Fit	-	1	Enquire
12	12023038744AB	Hose Assy, Comp to HVAC, Engine Fit	12023038744AB Hose Assy, Comp to HVAC, Engine Fit	-	1	Enquire
14	12023038136AE	Hose Assy, Comp to HVAC	12023038136AE Hose Assy, Comp to HVAC	-	1	Enquire
