Wiper Arm & Blade Assembly of Aston Martin Aston Martin One-77

View All

Aston Martin One-77 - Wiper Arm & Blade Assembly

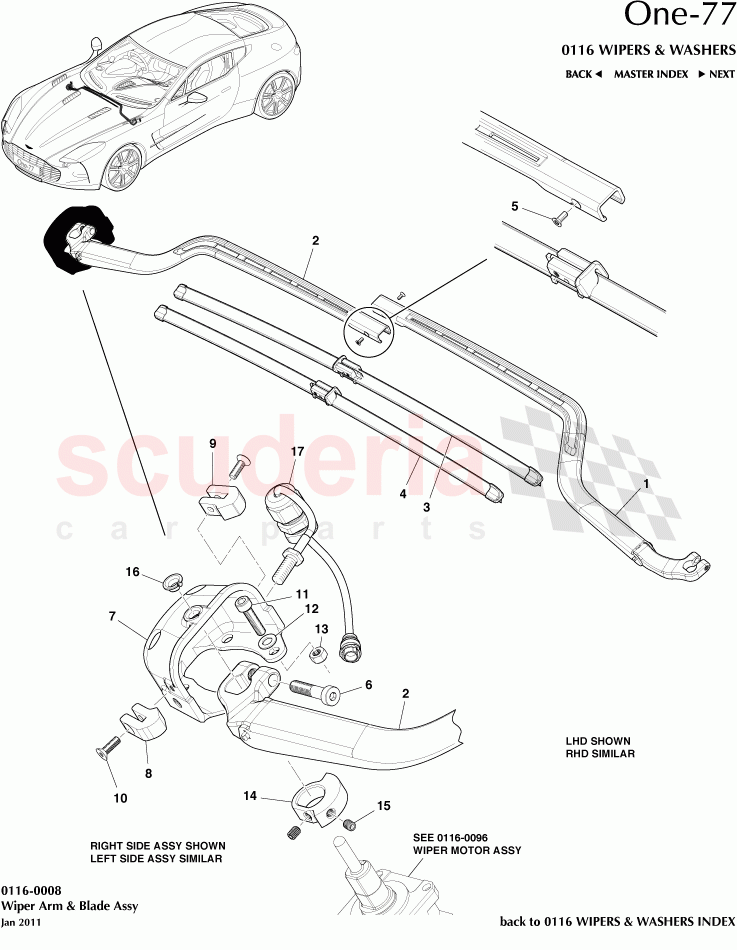

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023091362AG	WPR ARM ASY DRV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091364AF	Arm assy, Windshield Wiper, Passenger side LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091052AF	Blade assy, Windshield Wiper, Driver side, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091054AF	Blade assy, Windshield Wiper, Passenger side, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096138	Screw M4x10 torx c/sunk hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51040080035	Bolt M8x35 hex socket thin hd Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091026AH	Bracket, Retaining- Wiper Arm Position Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091148AD	Hard stop, Windshield Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091228AC	Hard stop Upper, Windshield Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51060050016	Screw M5x16 hex socket c/sunk hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51050060025	Bolt M6x25 Socket hd Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51416060001	M6 Washer, Flat Type Z ID6.4xOD12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51729060001	Nut M6 hex, nylon insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091022AG	Trigger ring, Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51260060008	Screw M6x8 hex socket set, cup point	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091050AA	Bushing, Windshield Wiper Arm Hub	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091351AD	Sensor, Windshield Wiper Arm Trigger RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023091363AA	Arm assy, Windshield Wiper, Driver side RHD	12023091363AA Arm assy, Windshield Wiper, Driver side RHD	-	1	Enquire
-	12023091365AA	Arm assy, Windshield Wiper, Passenger side RHD	12023091365AA Arm assy, Windshield Wiper, Passenger side RHD	-	1	Enquire
-	AY933710102	Blade assy, Windshield Wiper, Driver side, RHD	AY933710102 Blade assy, Windshield Wiper, Driver side, RHD	-	1	Enquire
-	AY933710103	Blade assy, Windshield Wiper, Passenger side, RHD	AY933710103 Blade assy, Windshield Wiper, Passenger side, RHD	-	1	Enquire
-	12023091350AD	Sensor, Windshield Wiper Arm Trigger LH	12023091350AD Sensor, Windshield Wiper Arm Trigger LH	-	1	Enquire
1	12023091362AG	WPR ARM ASY DRV	12023091362AG WPR ARM ASY DRV	-	1	Enquire
2	12023091364AF	Arm assy, Windshield Wiper, Passenger side LHD	12023091364AF Arm assy, Windshield Wiper, Passenger side LHD	-	1	Enquire
3	12023091052AF	Blade assy, Windshield Wiper, Driver side, LHD	12023091052AF Blade assy, Windshield Wiper, Driver side, LHD	-	1	Enquire
4	12023091054AF	Blade assy, Windshield Wiper, Passenger side, LHD	12023091054AF Blade assy, Windshield Wiper, Passenger side, LHD	-	1	Enquire
5	12023096138	Screw M4x10 torx c/sunk hd	12023096138 Screw M4x10 torx c/sunk hd 2 per Blade	-	4	Enquire
6	51040080035	Bolt M8x35 hex socket thin hd Cap	51040080035 Bolt M8x35 hex socket thin hd Cap 1 per Arm assy	-	2	Enquire
7	12023091026AH	Bracket, Retaining- Wiper Arm Position Sensor	12023091026AH Bracket, Retaining- Wiper Arm Position Sensor	-	2	Enquire
8	12023091148AD	Hard stop, Windshield Wiper Arm	12023091148AD Hard stop, Windshield Wiper Arm 1 per Retaining Bracket	-	2	Enquire
9	12023091228AC	Hard stop Upper, Windshield Wiper Arm	12023091228AC Hard stop Upper, Windshield Wiper Arm 1 per Retaining Bracket	-	2	Enquire
10	51060050016	Screw M5x16 hex socket c/sunk hd	51060050016 Screw M5x16 hex socket c/sunk hd 1 per Hard Stop	-	4	Enquire
11	51050060025	Bolt M6x25 Socket hd Cap	51050060025 Bolt M6x25 Socket hd Cap 4 per Retaining Bracket	-	8	Enquire
12	51416060001	M6 Washer, Flat Type Z ID6.4xOD12	51416060001 M6 Washer, Flat Type Z ID6.4xOD12	-	8	Enquire
13	51729060001	Nut M6 hex, nylon insert	51729060001 Nut M6 hex, nylon insert 4 per Retaing Bracket	-	8	Enquire
14	12023091022AG	Trigger ring, Wiper Arm	12023091022AG Trigger ring, Wiper Arm 1 per Arm assy	-	2	Enquire
15	51260060008	Screw M6x8 hex socket set, cup point	51260060008 Screw M6x8 hex socket set, cup point 2 per Trigger ring	-	4	Enquire
16	12023091050AA	Bushing, Windshield Wiper Arm Hub	12023091050AA Bushing, Windshield Wiper Arm Hub 1 per Wiper Arm Hub	-	2	Enquire
17	12023091351AD	Sensor, Windshield Wiper Arm Trigger RH	12023091351AD Sensor, Windshield Wiper Arm Trigger RH	-	1	Enquire
