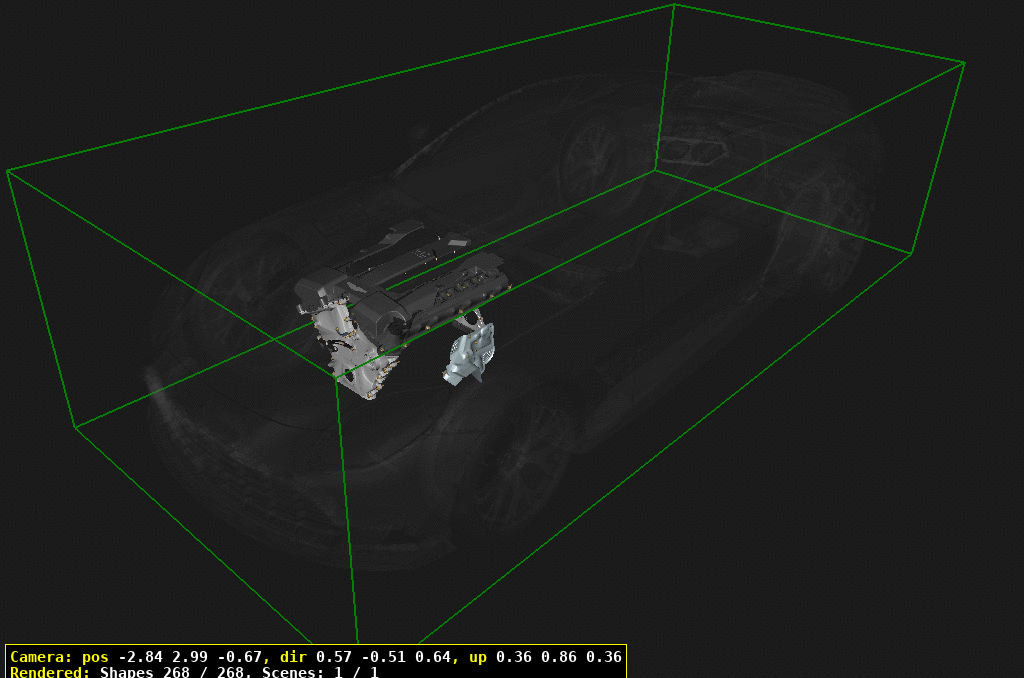

Engine Covers of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Engine Covers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
30	HY533678AAAA	CABLE TIE	HY533678AAAA CABLE TIE	-	2	Enquire
40	HY53V14536AC	BRKT WIRING	HY53V14536AC BRKT WIRING	-	1	Enquire
50	22AB406GP	HEATSHIELD REFLECTOR RH	22AB406GP HEATSHIELD REFLECTOR RH	-	1	Enquire
60	CD333296AA	Female Bollhoff Fixing	CD333296AA Female Bollhoff Fixing	-	6	Enquire
70	HY5313C026AD	CVR-OIL CTRL VLVS-SO	HY5313C026AD CVR-OIL CTRL VLVS-SO	-	1	Enquire
80	HY5313C026BC	CVR-OIL CTRL VLVS-SO	HY5313C026BC CVR-OIL CTRL VLVS-SO	-	1	Enquire
90	HY536D331AB	ASSY REAR MAIN BEAR	HY536D331AB ASSY REAR MAIN BEAR	-	1	Enquire
100	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	6	Enquire
110	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	-	1	Enquire
120	HY536K318AB	RET CRNK OIL SEAL RR	HY536K318AB RET CRNK OIL SEAL RR	-	1	Enquire
130	ED236582AA	CAM COVER RH	ED236582AA CAM COVER RH Includes item 150	-	1	Enquire
140	ED236A505AA	CAM COVER LH	ED236A505AA CAM COVER LH Includes item 150	-	1	Enquire
150	CD3338565AA	Gasket Kit	CD3338565AA Gasket Kit	-	2	Enquire
170	22AB408GP	RR BMPR NUMBER PLATE LAMP COVER LH	22AB408GP RR BMPR NUMBER PLATE LAMP COVER LH Part of item 130-140	-	4	Enquire
180	22AB409GP	RR BMPR NUMBER PLATE LAMP COVER RH	22AB409GP RR BMPR NUMBER PLATE LAMP COVER RH Part of item 130-140	-	4	Enquire
200	CD3395487AB	VENT PIPE	CD3395487AB VENT PIPE	-	2	Enquire
210	702853	BOLT-M8 x 47.5 W/WSH	702853 BOLT-M8 x 47.5 W/WSH	-	13	Enquire
220	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front	-	1	Enquire
230	CD336766AA	Oil Filler Cap	CD336766AA Oil Filler Cap Black, Standard	-	1	Enquire
240	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre ARRIVING SOON	-	1	Enquire
250	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH	-	1	Enquire
260	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH ARRIVING SOON	-	1	Enquire
270	708244	STUD-M8x44 + M6x30	708244 STUD-M8x44 + M6x30	-	1	Enquire
280	702859	PIN	702859 PIN	-	2	Enquire
290	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
300	HY538A588BB	BRKT ENG - THERMO	HY538A588BB BRKT ENG - THERMO	-	1	Enquire
310	HY538A588AC	BRKT ENG ECAC HOSE	HY538A588AC BRKT ENG ECAC HOSE	-	1	Enquire
320	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	9	Enquire
330	HY535867827AA	SNAPLOC SCREW	HY535867827AA SNAPLOC SCREW	-	4	Enquire
340	SY7Y5867827AA	SNAPLOC SCREW	SY7Y5867827AA SNAPLOC SCREW	-	2	Enquire
350	HY538A588CA	BRKT ENG THERMO	HY538A588CA BRKT ENG THERMO	-	1	Enquire
360	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE	-	1	Enquire
370	HY536D080AC	FRONT COVER	HY536D080AC FRONT COVER	-	1	Enquire
380	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	6	Enquire
390	SY7Y031004AB	CFK ENGINE CVR ASY	SY7Y031004AB CFK ENGINE CVR ASY	-	1	Enquire
