Electrical and Sensors of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Electrical and Sensors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

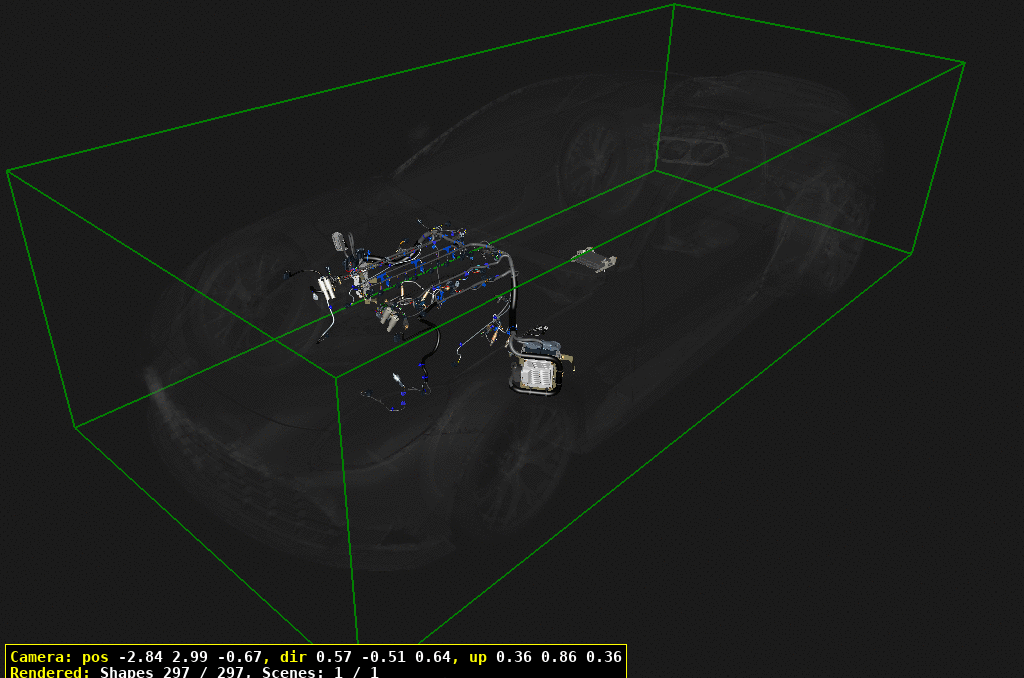

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	SY7Y12B637AA	AE34D ENGINE HARNESS	SY7Y12B637AA AE34D ENGINE HARNESS	-	1	Enquire
30	HY5312A650AA	ENGINE CONTROL MODUL	HY5312A650AA ENGINE CONTROL MODUL	-	2	Enquire
40	SY7Y12B696AC	P/T ECU BRKT LHS	SY7Y12B696AC P/T ECU BRKT LHS	-	1	Enquire
50	SY7Y12B695AB	P/T ECU BRKT RHS	SY7Y12B695AB P/T ECU BRKT RHS	-	1	Enquire
60	707141	SCREW-M5 x 20 PAN HD	707141 SCREW-M5 x 20 PAN HD	-	8	Enquire
70	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	6	Enquire
80	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
90	PY83SE12B684AA	MODULE-POWERTRAIN	PY83SE12B684AA MODULE-POWERTRAIN CPC	-	1	Enquire
100	RY5318D821AB	CPC MNTG BRKT	RY5318D821AB CPC MNTG BRKT LHD	-	1	Enquire
101	RY5318D820AB	CPC MNTG BRKT	RY5318D820AB CPC MNTG BRKT RHD	-	1	Enquire
110	707786	SCREW-M5 x 12 PN BLK	707786 SCREW-M5 x 12 PN BLK	-	2	Enquire
120	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking CPC Bracket	-	2	Enquire
130	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
140	22MA487GP	PDC SENSOR - PRIMED	22MA487GP PDC SENSOR - PRIMED ION Sensing & Ignition	-	2	Enquire
200	CM5E6B297CC	VCT SOLENOID	CM5E6B297CC VCT SOLENOID	-	4	Enquire
210	ED2312K073BA	SNSR ASY CMSHFT TIMN	ED2312K073BA SNSR ASY CMSHFT TIMN	-	4	Enquire
220	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	5	Enquire
230	ED236C315AB	SNS ASY-CRKSHT TIM	ED236C315AB SNS ASY-CRKSHT TIM	-	1	Enquire
240	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	4	Enquire
250	HY5312B676AA	SNS ENG INTK TEMP PR	HY5312B676AA SNS ENG INTK TEMP PR	-	4	Enquire
260	HY539S306AA	OIL PRESS SENSOR	HY539S306AA OIL PRESS SENSOR	-	1	Enquire
270	CD3312A699AA	Sensor Assy, Engine Knock	CD3312A699AA Sensor Assy, Engine Knock	-	2	Enquire
280	6G430310009	SENSOR ASY-ENG SPARK	6G430310009 SENSOR ASY-ENG SPARK	-	4	Enquire
290	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	6	Enquire
300	HY5312K530AB	BRKT ENG SP KN SNS C	HY5312K530AB BRKT ENG SP KN SNS C	-	1	Enquire
310	HY5312B637BC	KNCK SNSR LINK LEAD	HY5312B637BC KNCK SNSR LINK LEAD	-	1	Enquire
320	SY7Y12B637CA	AE34D KNOCK SENSOR L	SY7Y12B637CA AE34D KNOCK SENSOR L	-	1	Enquire
330	HY539V449AA	PRESSURE SENSOR	HY539V449AA PRESSURE SENSOR	-	2	Enquire
340	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
350	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
400	ED239F472AA	HEATED EXHAUST GAS OXYGEN SENSOR ARRIVING SOON	ED239F472AA HEATED EXHAUST GAS OXYGEN SENSOR ARRIVING SOON	-	2	Enquire
410	6C119G444AA	LAMBDA SENSOR	6C119G444AA LAMBDA SENSOR	-	2	Enquire
420	HY535910AA	UNIVERSAL CABLE CLIP	HY535910AA UNIVERSAL CABLE CLIP	-	1	Enquire
