Aston Martin GT VANQUISH (2025- - Engine Structure

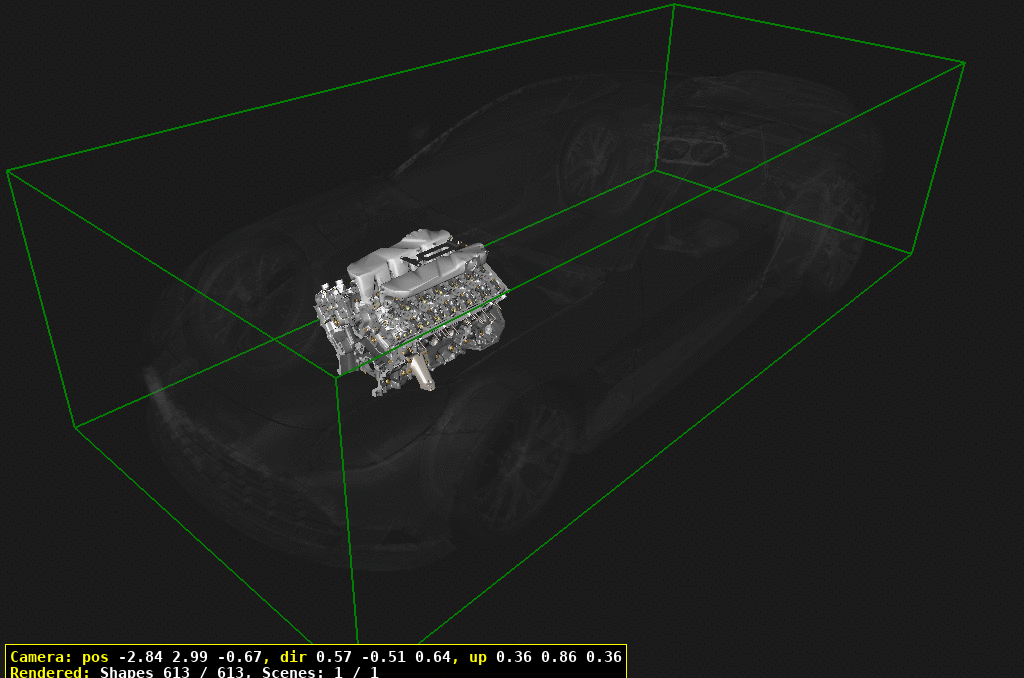

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	00RB172	CLIP - EXPANDING	00RB172 CLIP - EXPANDING Includes Ancillaries &WCAC not illustrated	-	1	Enquire
11	00RB173	STUD - CLIP - EXPANDING	00RB173 STUD - CLIP - EXPANDING	-	-	Enquire
12	00RB215	CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK	00RB215 CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK	-	-	Enquire
20	22AB727GP	SEAL BONNET MARGIN MLD RH	22AB727GP SEAL BONNET MARGIN MLD RH Includes items 40-140	-	1	Enquire
30	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 Main Bearing Cap Inner.ALWAYS REPLACE. DO NOTRE-USE	-	14	Enquire
40	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap Crankcase. ALWAYSREPLACE. DO NOT RE-USE	-	14	Enquire
50	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head Main Bearing Cap Outer.ALWAYS REPLACE. DO NOTRE-USE ARRIVING SOON	-	14	Enquire
60	HY53205029AA	ANTI DRAIN VALVE	HY53205029AA ANTI DRAIN VALVE	-	2	Enquire
70	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
80	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	5	Enquire
90	707150	PIN	707150 PIN	-	2	Enquire
100	707151	PIN-6x16 DWL CHMFR H	707151 PIN-6x16 DWL CHMFR H	-	5	Enquire
110	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
120	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	1	Enquire
130	704775	Plug, 19.35, Exp Cup	704775 Plug, 19.35, Exp Cup	-	1	Enquire
140	707161	DOWEL-HOLLOW-16.4	707161 DOWEL-HOLLOW-16.4	-	4	Enquire
150	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	8	Enquire
160	HY536031AA	ENGINE MOUNT BRACKET	HY536031AA ENGINE MOUNT BRACKET	-	2	Enquire
170	HY536869BB	FRT CVR CRKC VENT	HY536869BB FRT CVR CRKC VENT	-	1	Enquire
180	HY536869AB	RR CVR CRKC VENT	HY536869AB RR CVR CRKC VENT	-	1	Enquire
190	HY536B752BA	REAR OIL SPRTR GSKT	HY536B752BA REAR OIL SPRTR GSKT	-	1	Enquire
210	HY536B752AA	FRONT OIL SPRTR GSKT	HY536B752AA FRONT OIL SPRTR GSKT	-	1	Enquire
220	13AA721CP	LUGGAGE BIN - FRONT	13AA721CP LUGGAGE BIN - FRONT With Valves, Adjusters &Springs	-	1	Enquire
221	13A5452CP	NVH PAD - LUGGAGE BIN	13A5452CP NVH PAD - LUGGAGE BIN Less Valves, Adjusters,Springs & Camshafts	-	1	Enquire
230	11N2342CP	LUGGAGE BIN NET	11N2342CP LUGGAGE BIN NET With Valves, Adjusters &Springs	-	1	Enquire
231	22AA585GP	ASSY REAR TRIM LUGGAGE BIN	22AA585GP ASSY REAR TRIM LUGGAGE BIN Less Valves, Adjusters,Springs & Camshafts	-	1	Enquire
235	22AD582GP	REAR FENDER FINISHER LH	22AD582GP REAR FENDER FINISHER LH ALWAYS REPLACE. DO NOTRE-USE	-	28	Enquire
240	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	10	Enquire
245	HY536K799AA	OIL RSTRCTR TO C/SHT	HY536K799AA OIL RSTRCTR TO C/SHT Camshaft oil feed	-	4	Enquire
250	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	56	Enquire
260	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14	-	2	Enquire
280	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	2	Enquire
290	707152	PIN-10 x 49.25 DWL	707152 PIN-10 x 49.25 DWL	-	2	Enquire
300	707153	PLUG-INT HEX DRYSEAL	707153 PLUG-INT HEX DRYSEAL	-	2	Enquire
310	HY533823AC	STUD (EXH MANIFOLD)	HY533823AC STUD (EXH MANIFOLD) ALWAYS REPLACE. DO NOTRE-USE	-	24	Enquire
320	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOTRE-USE	-	4	Enquire
330	HY5312K530AB	BRKT ENG SP KN SNS C	HY5312K530AB BRKT ENG SP KN SNS C	-	1	Enquire
340	22AD383GP	REAR FENDER FINISHER RH	22AD383GP REAR FENDER FINISHER RH	-	1	Enquire
350	22AC312GP	ASSY REAR BADGE	22AC312GP ASSY REAR BADGE	-	1	Enquire
360	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) Pack of 2	-	1	Enquire
370	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
380	702544	BOLT M6 x 50 HF PIL 8	702544 BOLT M6 x 50 HF PIL 8	-	14	Enquire
390	22NB477GP	REAR TRIM ASSY - LUGGAGE HOOP	22NB477GP REAR TRIM ASSY - LUGGAGE HOOP	-	1	Enquire
400	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	2	Enquire
440	HY539425BD	MANF INTK UPR LH	HY539425BD MANF INTK UPR LH	-	1	Enquire
450	22AD380GP	REAR FENDER FINISHER UPPER LH	22AD380GP REAR FENDER FINISHER UPPER LH	-	1	Enquire
460	HY536N078AA	OIL SQUIRT JET	HY536N078AA OIL SQUIRT JET	-	12	Enquire
470	707149	SCREW-M6x10 EXTR LOB	707149 SCREW-M6x10 EXTR LOB	-	12	Enquire
480	NY736686BA	BREATHER SHIELD	NY736686BA BREATHER SHIELD	-	2	Enquire
490	707149	SCREW-M6x10 EXTR LOB	707149 SCREW-M6x10 EXTR LOB	-	4	Enquire
500	MY6Y9S447AA	PLG ASY INTK MANF	MY6Y9S447AA PLG ASY INTK MANF Includes item 510	-	1	Enquire
510	HY53532387AA	O RING	HY53532387AA O RING	-	1	Enquire
