Aston Martin GT VANQUISH (2025- - Engine Ancillaries

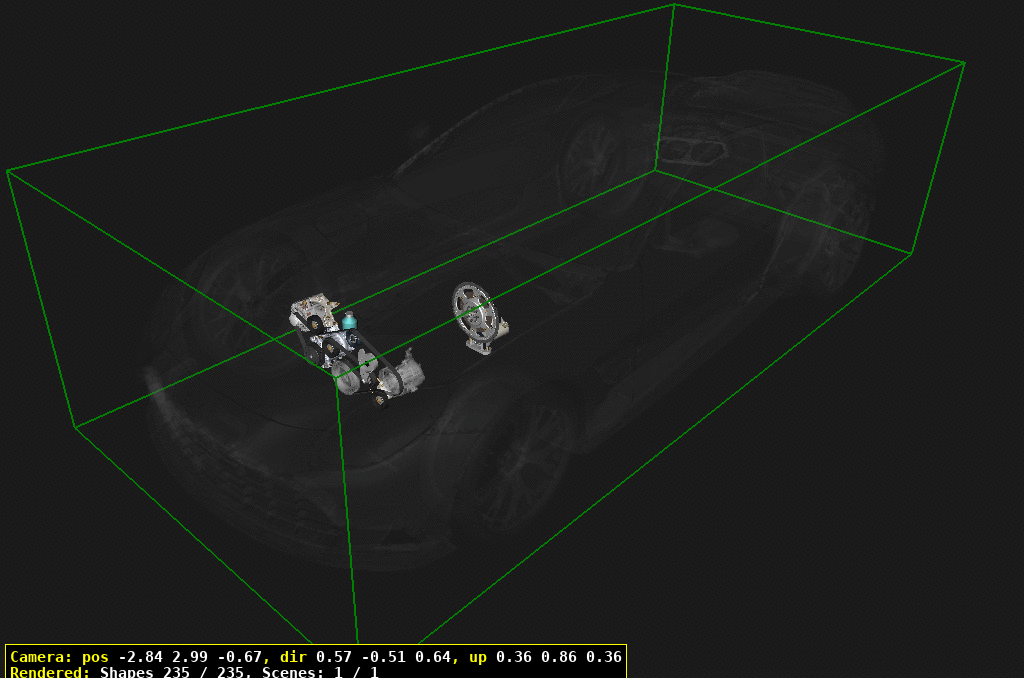

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8	-	3	Enquire
30	HY5319D629AB	COMPR & CL ASY A/C	HY5319D629AB COMPR & CL ASY A/C	-	1	Enquire
40	HY538620AA	FEAD BELT	HY538620AA FEAD BELT	-	1	Enquire
50	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	3	Enquire
60	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	-	1	Enquire
70	703702	BOLT M8x1.25x24.5	703702 BOLT M8x1.25x24.5	-	4	Enquire
80	702573	BOLT M8 X 35	702573 BOLT M8 X 35	-	2	Enquire
90	HY538B616AB	BRKT ASY ISL SPT	HY538B616AB BRKT ASY ISL SPT	-	1	Enquire
100	702856	BOLT&WASHER-M10x97.5	702856 BOLT&WASHER-M10x97.5	-	2	Enquire
110	704112	Bolt, M10 x 40	704112 Bolt, M10 x 40	-	4	Enquire
120	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	-	4	Enquire
120	SY7Y10300AA	ALTERNATOR ASSY	SY7Y10300AA ALTERNATOR ASSY	-	1	Enquire
130	HY5310239AB	ALT BRKT MTG	HY5310239AB ALT BRKT MTG	-	1	Enquire
150	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
160	SY7Y14W163CA	BATT CBL MNTG BRKT	SY7Y14W163CA BATT CBL MNTG BRKT	-	1	Enquire
170	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
180	HY5319A501AA	PAG OIL SP-A2	HY5319A501AA PAG OIL SP-A2 250ml	-	A/R	Enquire
200	LY63611B74AC	BOLT-M10x1.00x28.5	LY63611B74AC BOLT-M10x1.00x28.5 ALWAYS REPLACE. DO NOTRE-USE	-	8	Enquire
210	SY7Y405073AA	AUTO FLYWHEEL ASY	SY7Y405073AA AUTO FLYWHEEL ASY	-	1	Enquire
220	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd ALWAYS REPLACE. DO NOTRE-USE	-	6	Enquire
230	HY5311000CC	STARTER MOTOR	HY5311000CC STARTER MOTOR	-	1	Enquire
240	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
250	HY536W366AE	DRIVELINE COUPLING	HY536W366AE DRIVELINE COUPLING Remove Transit Bolt onInstallation	-	1	Enquire
260	11AA108CP	BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	$2.92	1
270	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	-	2	Enquire
