Aston Martin GT VANQUISH (2025- - Cooling System

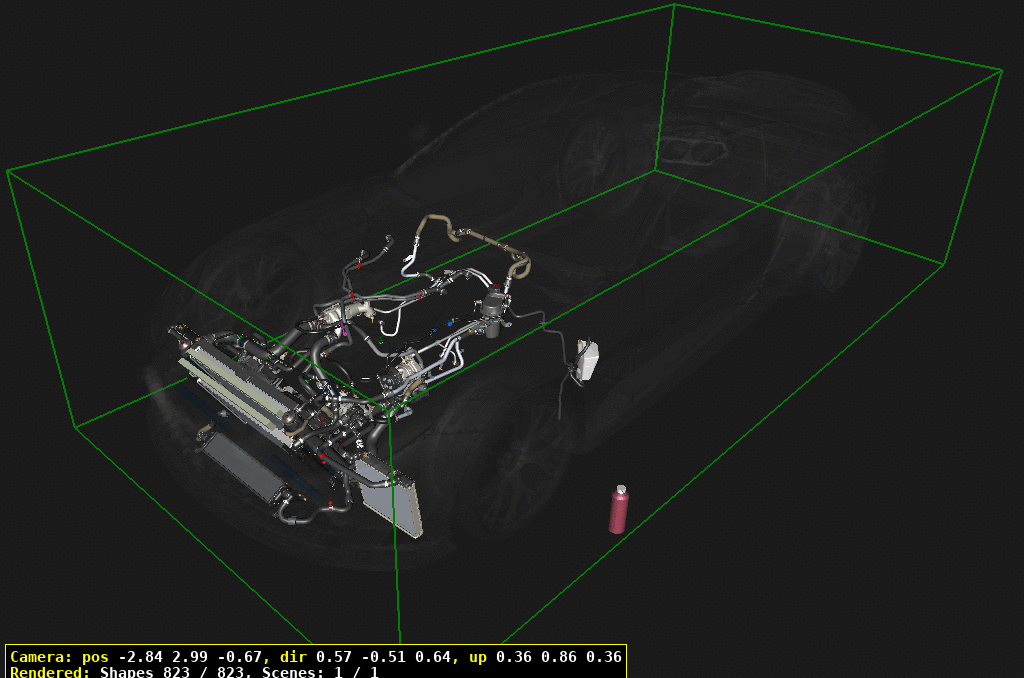

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	HY5361520AA	CTRL CL MOD HX ASSY	HY5361520AA CTRL CL MOD HX ASSY Includes items 240 & 1040	-	1	Enquire
20	SY7Y8333AB	TOP HOSE ASSY	SY7Y8333AB TOP HOSE ASSY	-	1	Enquire
30	SY7Y8333BB	AUX COOLER INLET HOS	SY7Y8333BB AUX COOLER INLET HOS	-	1	Enquire
40	SY7Y8D050AA	AUX OTLT HOS ASY RH	SY7Y8D050AA AUX OTLT HOS ASY RH	-	1	Enquire
50	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	5	Enquire
60	SY7Y8556AB	BYPASS HOSE ASSY	SY7Y8556AB BYPASS HOSE ASSY	-	1	Enquire
70	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	1	Enquire
80	SY7Y8556BB	OIL COOLER OUTLET CO	SY7Y8556BB OIL COOLER OUTLET CO	-	1	Enquire
90	SY7Y9263AB	HOSE PIANO HX OUTLET	SY7Y9263AB HOSE PIANO HX OUTLET	-	1	Enquire
100	SY7Y61J31AB	BOTTOM HOSE ASSY	SY7Y61J31AB BOTTOM HOSE ASSY	-	1	Enquire
110	SY7Y8C350AA	DEGAS M/UP HOS ASY	SY7Y8C350AA DEGAS M/UP HOS ASY	-	1	Enquire
120	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
130	SY7Y8063AC	BS ENG DGS HOS ASY	SY7Y8063AC BS ENG DGS HOS ASY	-	1	Enquire
140	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	2	Enquire
150	SY7Y8C363AD	CNTR HX DGS HOS ASY	SY7Y8C363AD CNTR HX DGS HOS ASY	-	1	Enquire
160	HY5319B518AE	RADIATOR EXPANSION TANK	HY5319B518AE RADIATOR EXPANSION TANK Includes item 170	-	1	Enquire
170	RY538101AA	PRSR CAP ASY 180KPA	RY538101AA PRSR CAP ASY 180KPA	-	1	Enquire
180	SY7Y16155AA	SY7Y-16155-AA	SY7Y16155AA SY7Y-16155-AA	-	1	Enquire
190	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	5	Enquire
200	HY538B081AA	HOSE SUPPLY TANK	HY538B081AA HOSE SUPPLY TANK	-	1	Enquire
210	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	-	1	Enquire
220	703152	SCREW/WSHR M6x20 HEX PILOT CHROME FREE	703152 SCREW/WSHR M6x20 HEX PILOT CHROME FREE	-	2	Enquire
230	HY538N029AA	OVERFLOW HOSE	HY538N029AA OVERFLOW HOSE	-	1	Enquire
240	HY538005AA	CNTRL HX ASSY HTS	HY538005AA CNTRL HX ASSY HTS High Temperature System	-	1	Enquire
250	HY536C681AA	ISOLATOR CONTROL COOLER MODULE	HY536C681AA ISOLATOR CONTROL COOLER MODULE	-	4	Enquire
260	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
270	KY7361J05AB	LH RAD SEAL	KY7361J05AB LH RAD SEAL LHD	-	1	Enquire
271	KY7361J05BA	RH RAD SEAL	KY7361J05BA RH RAD SEAL RHD	-	1	Enquire
280	SY638D048AA	CNTR RAD ASY AUX	SY638D048AA CNTR RAD ASY AUX Centre	-	1	Enquire
290	RY738084AA	BRKT RAD MTNG LH AUX	RY738084AA BRKT RAD MTNG LH AUX	-	1	Enquire
300	RY738083AA	BRKT RAD MTNG RH AUX	RY738083AA BRKT RAD MTNG RH AUX	-	1	Enquire
310	707338	SCREW-M6 x 14 HEX BL	707338 SCREW-M6 x 14 HEX BL	-	1	Enquire
320	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	4	Enquire
330	HY5361J05AA	CL MOD FOAM SL	HY5361J05AA CL MOD FOAM SL	-	2	Enquire
340	22AB538GP	ASSY RR BUMPER CTR PANEL WITH PDC	22AB538GP ASSY RR BUMPER CTR PANEL WITH PDC Heater Inlet Hoses	-	1	Enquire
350	HY5398659AB	TUB ASY CROSSOVER	HY5398659AB TUB ASY CROSSOVER To RH Turbocharger	-	1	Enquire
360	HY539U468AA	HOS ASY TRB INLT LH	HY539U468AA HOS ASY TRB INLT LH	-	1	Enquire
370	HY539U468BA	HOS ASY TRB INLT RH	HY539U468BA HOS ASY TRB INLT RH	-	1	Enquire
380	HY539U469AA	HOS ASY TRB OLET LH	HY539U469AA HOS ASY TRB OLET LH	-	-	Enquire
390	HY539U469BA	HOS ASY TRB OLET RH	HY539U469BA HOS ASY TRB OLET RH	-	1	Enquire
400	HY53100079AA	BANJO BOLT M14	HY53100079AA BANJO BOLT M14	-	4	Enquire
410	HY53232046AA	COPPER WASHER M14	HY53232046AA COPPER WASHER M14 ALWAYS REPLACE. DO NOTRE-USE	-	4	Enquire
420	HY538A595AB	HOS ASY ENG THERMO C	HY538A595AB HOS ASY ENG THERMO C To Run-On Coolant Pump	-	1	Enquire
430	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
440	HY538A583AA	BRKT AUX COOL PMP	HY538A583AA BRKT AUX COOL PMP	-	1	Enquire
450	HY538B552AA	COOLANT RUN ON PUMP	HY538B552AA COOLANT RUN ON PUMP Auxiliary Run-On Pump	-	1	Enquire
470	702573	BOLT M8 X 35	702573 BOLT M8 X 35	-	4	Enquire
480	HY538A586AB	THERMOSTAT ASSEMBLY	HY538A586AB THERMOSTAT ASSEMBLY Includes items 490-570	-	1	Enquire
490	HY539YA90AA	STUDBOLT M6X40+M6X20	HY539YA90AA STUDBOLT M6X40+M6X20	-	1	Enquire
500	HY5312A648AA	SNS ASY COOL	HY5312A648AA SNS ASY COOL	-	1	Enquire
510	CD338575AA	Thermostat	CD338575AA Thermostat	-	1	Enquire
530	HY5325081AA	CLIP TEMP SENS	HY5325081AA CLIP TEMP SENS	-	1	Enquire
540	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL ARRIVING SOON	-	1	Enquire
550	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing	-	1	Enquire
560	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet	-	1	Enquire
570	702525	BOLT M6 X 35 HEX	702525 BOLT M6 X 35 HEX	-	2	Enquire
580	SY7Y8274AA	TUB ASY WTR PMP INLT	SY7Y8274AA TUB ASY WTR PMP INLT Includes item 590	-	1	Enquire
590	HY539E936DA	O-RING 46X3	HY539E936DA O-RING 46X3	-	1	Enquire
600	HY538K168AA	WATER PUMP	HY538K168AA WATER PUMP	-	1	Enquire
610	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL	-	3	Enquire
620	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	3	Enquire
630	SY7Y18674AB	TUB HTR WTR OLET	SY7Y18674AB TUB HTR WTR OLET	-	1	Enquire
640	NY738507AA	WATER PUMP GASKET	NY738507AA WATER PUMP GASKET	-	1	Enquire
650	SY7Y6N867AB	PIPE OIL COOLER FEED	SY7Y6N867AB PIPE OIL COOLER FEED	-	1	Enquire
660	22AA868GP	ASSY RR BUMPER CTR PANEL BASE	22AA868GP ASSY RR BUMPER CTR PANEL BASE	-	1	Enquire
670	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
680	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
690	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
700	SY7Y18D603AA	AUX HT EXC ASY RH	SY7Y18D603AA AUX HT EXC ASY RH	-	1	Enquire
710	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
720	707611	SCREW-M8x30 PAN HD	707611 SCREW-M8x30 PAN HD	-	1	Enquire
800	JY53322666AAPK	COOLANT-(1.5 LTR)-10	JY53322666AAPK COOLANT-(1.5 LTR)-10 1 Litre, Pack of 12	-	A/R	Enquire
900	SY7Y8K101AA	AUX HX OLET H ASY LH	SY7Y8K101AA AUX HX OLET H ASY LH Includes item 910	-	1	Enquire
910	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	2	Enquire
920	SY7Y9H298AA	WACAC OTLT HS ASY LH	SY7Y9H298AA WACAC OTLT HS ASY LH	-	1	Enquire
930	SY7Y9H299AA	WACAC INLT HS ASY RH	SY7Y9H299AA WACAC INLT HS ASY RH	-	1	Enquire
940	HY5315167AA	CNTRL HX INLET HOSE	HY5315167AA CNTRL HX INLET HOSE	-	1	Enquire
950	SY7Y18K582AB	CNT HX OTLET HOS ASY	SY7Y18K582AB CNT HX OTLET HOS ASY Includes item 910	-	1	Enquire
960	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	3	Enquire
970	SY7Y8C350BB	DEGAS LT SUPPLY HOSE	SY7Y8C350BB DEGAS LT SUPPLY HOSE	-	1	Enquire
980	HY538B591AC	ELEC WATER PUMP	HY538B591AC ELEC WATER PUMP	-	1	Enquire
990	HY538N503AC	BASE BRKT EPUMP COMM	HY538N503AC BASE BRKT EPUMP COMM	-	1	Enquire
1000	HY538B590AC	ELEC WATER PUMP	HY538B590AC ELEC WATER PUMP	-	1	Enquire
1010	SY7Y8N501AA	BASE BRKT EPUMP RHS	SY7Y8N501AA BASE BRKT EPUMP RHS	-	1	Enquire
1020	HY538N502AA	STRAP BRKT EPUMP	HY538N502AA STRAP BRKT EPUMP	-	1	Enquire
1030	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	6	Enquire
1040	HY534190AA	CONTROL HEAT EXCHANGE LH	HY534190AA CONTROL HEAT EXCHANGE LH Low Temperature System	-	1	Enquire
1050	HY538N301AA	GOP RUB SL	HY538N301AA GOP RUB SL	-	2	Enquire
1060	HY53F8B170AA	SL CNTRL RUB CL MOD	HY53F8B170AA SL CNTRL RUB CL MOD	-	2	Enquire
1070	SY7Y18D506AA	AUX HX ASY LH	SY7Y18D506AA AUX HX ASY LH	-	1	Enquire
1080	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	2	Enquire
1090	HY539N491AB	PIPE ASSY WCAC FD	HY539N491AB PIPE ASSY WCAC FD	-	1	Enquire
1100	HY539N491BA	PIPE ASSY WCAC RTN	HY539N491BA PIPE ASSY WCAC RTN	-	1	Enquire
1200	HY5318D334AC	HT INLT HOS ASY LH	HY5318D334AC HT INLT HOS ASY LH LHD	-	1	Enquire
1210	HY5318D359AB	HT OTLT HOS ASY LHD	HY5318D359AB HT OTLT HOS ASY LHD LHD	-	1	Enquire
1220	HY53359568AA	C CLIP D23MM	HY53359568AA C CLIP D23MM	-	1	Enquire
1230	HY5318D334BB	HT INLT HOS ASY RH	HY5318D334BB HT INLT HOS ASY RH RHD	-	1	Enquire
1240	HY5318D359BC	HT OTLT HOS ASY RH	HY5318D359BC HT OTLT HOS ASY RH RHD	-	1	Enquire
1300	HY538C607AB	CNTRL FAN MOD ASSY	HY538C607AB CNTRL FAN MOD ASSY	-	1	Enquire
1310	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	1	Enquire
1320	HY5390781AA	PATCH BOLT&WSHR	HY5390781AA PATCH BOLT&WSHR Patchlocked	-	2	Enquire
1330	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	4	Enquire
